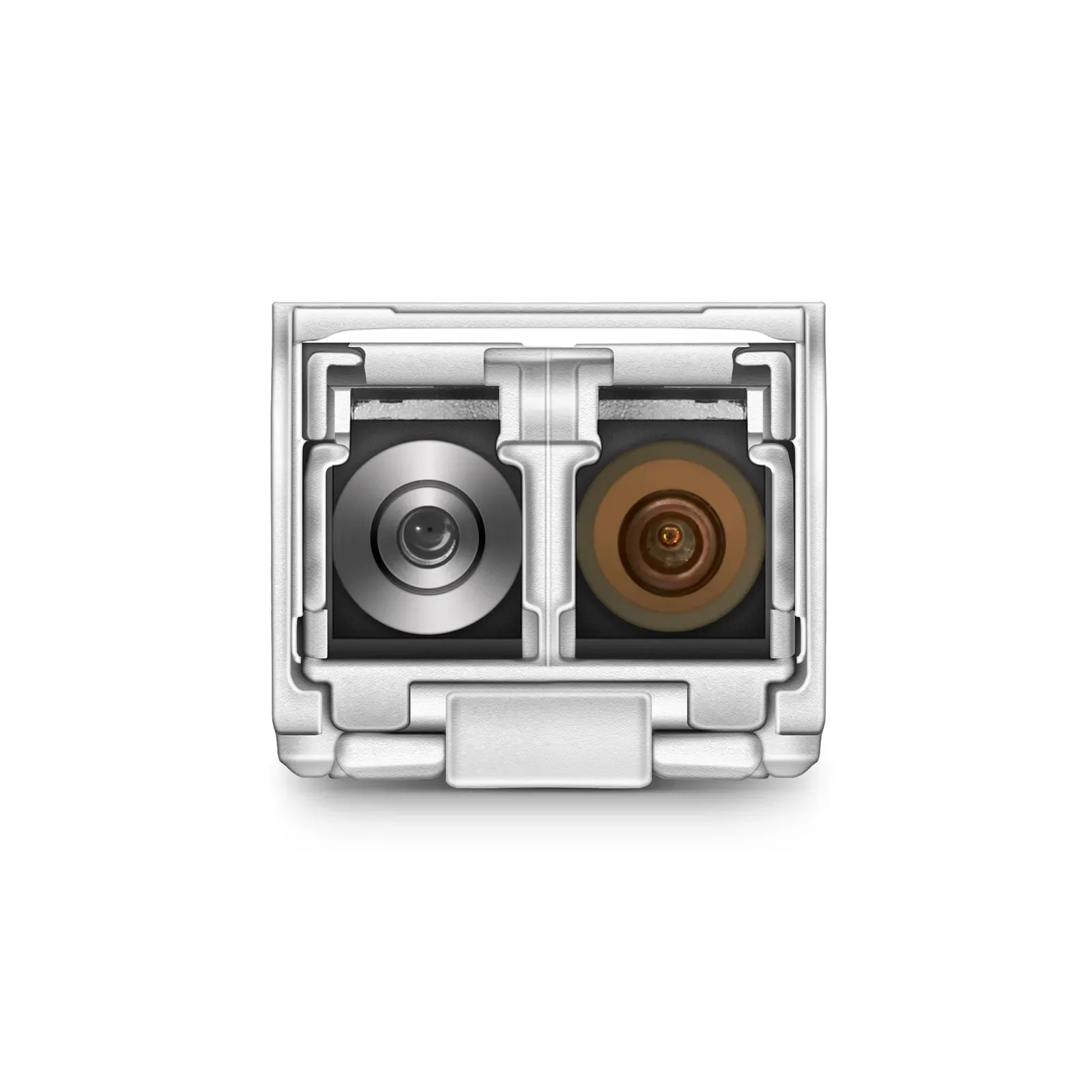

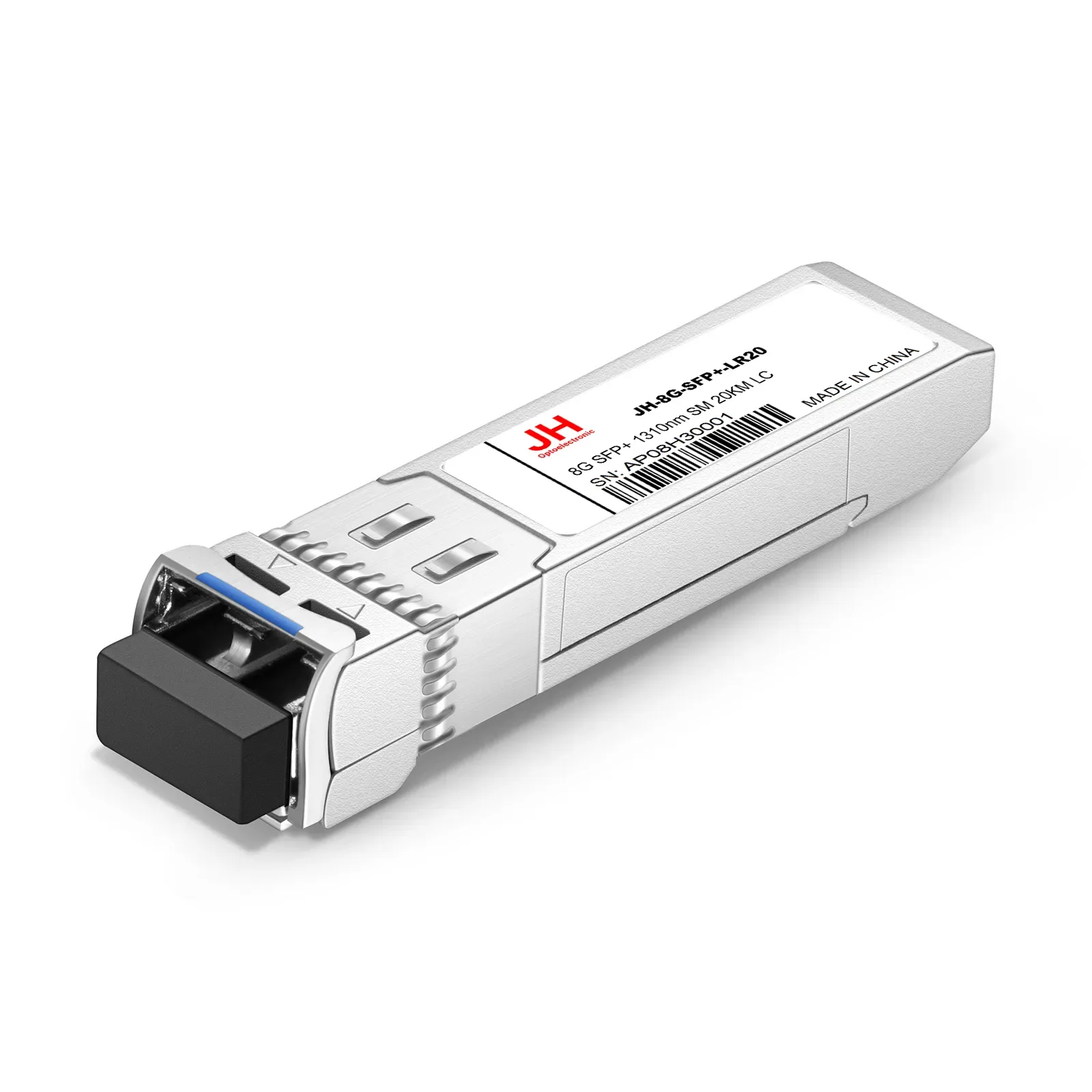

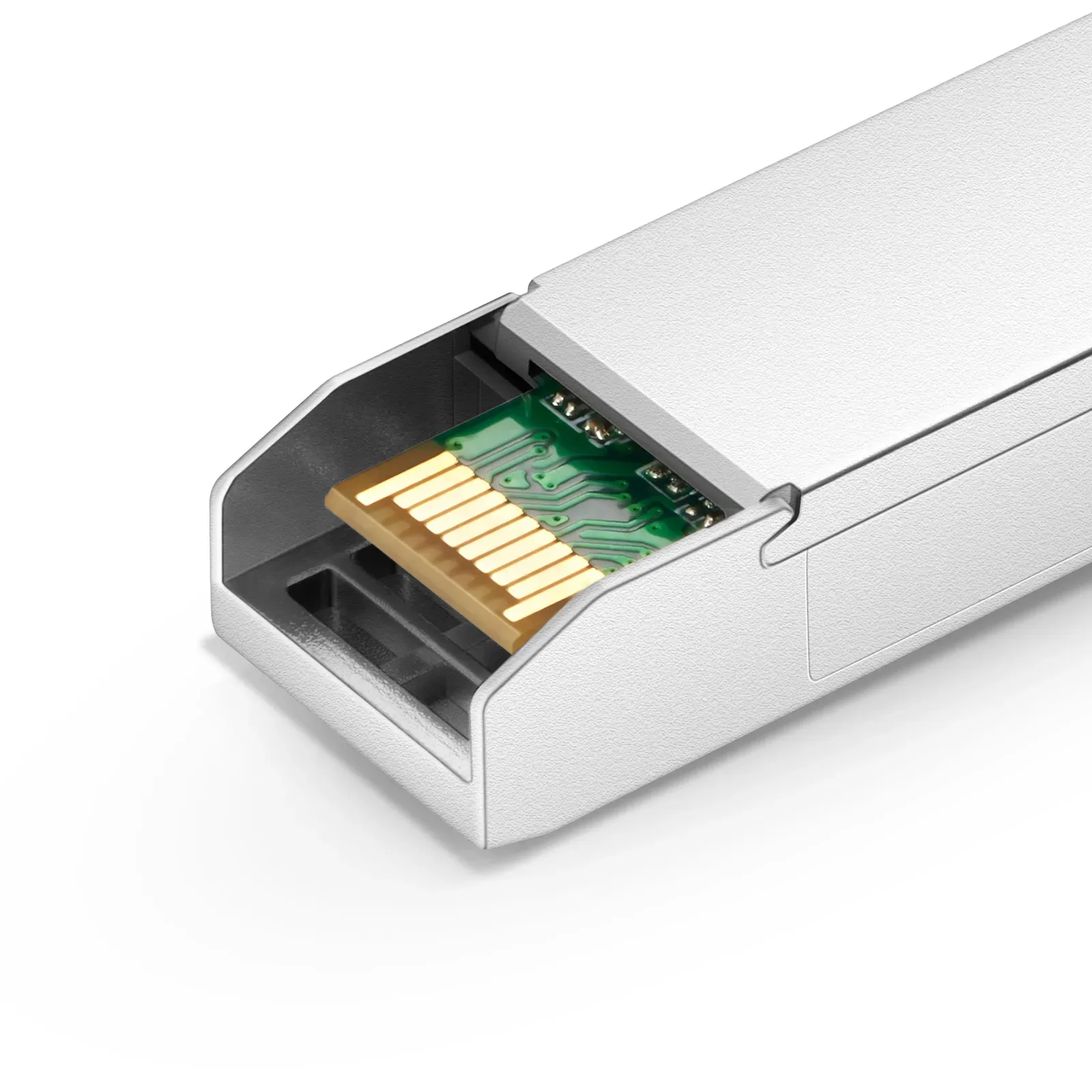

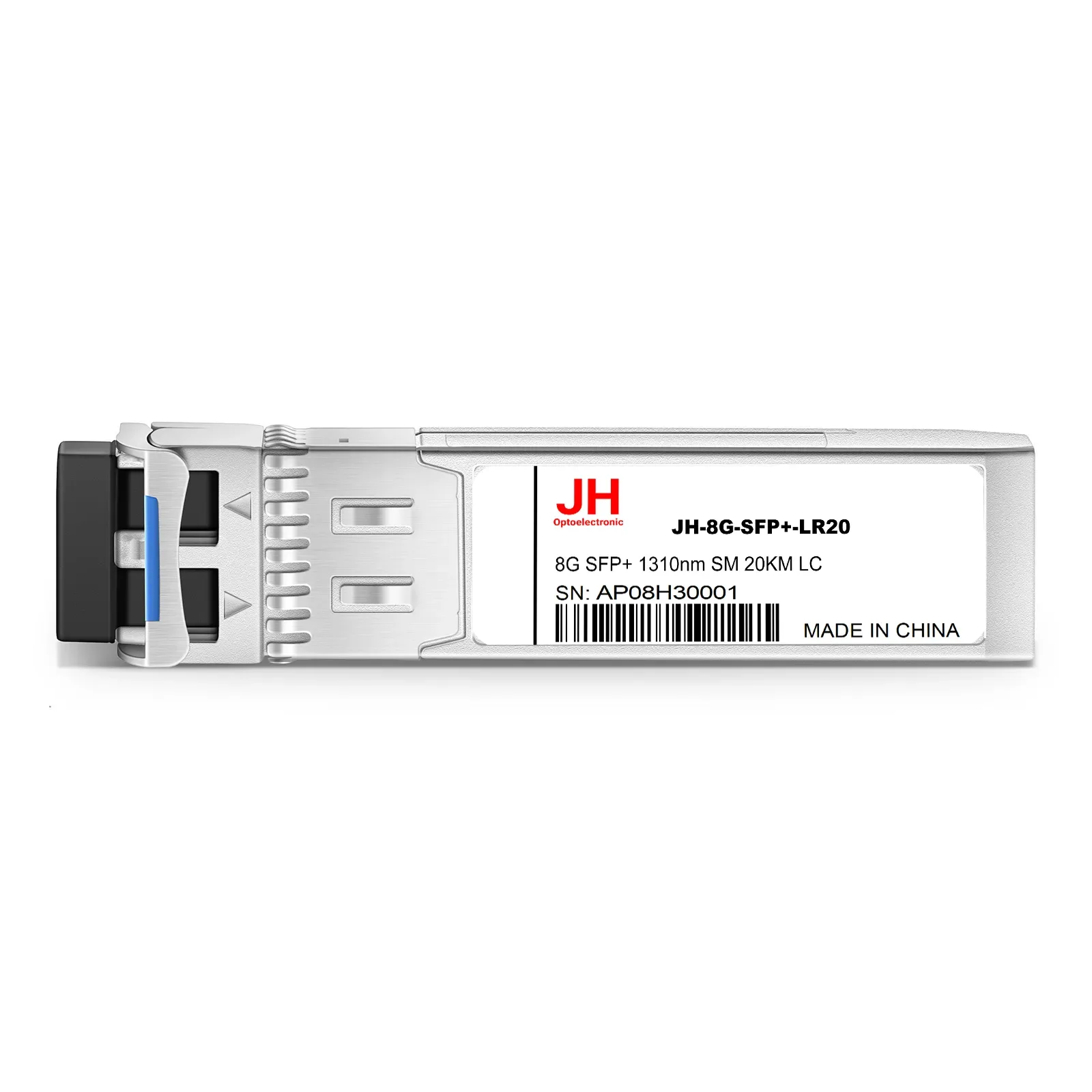

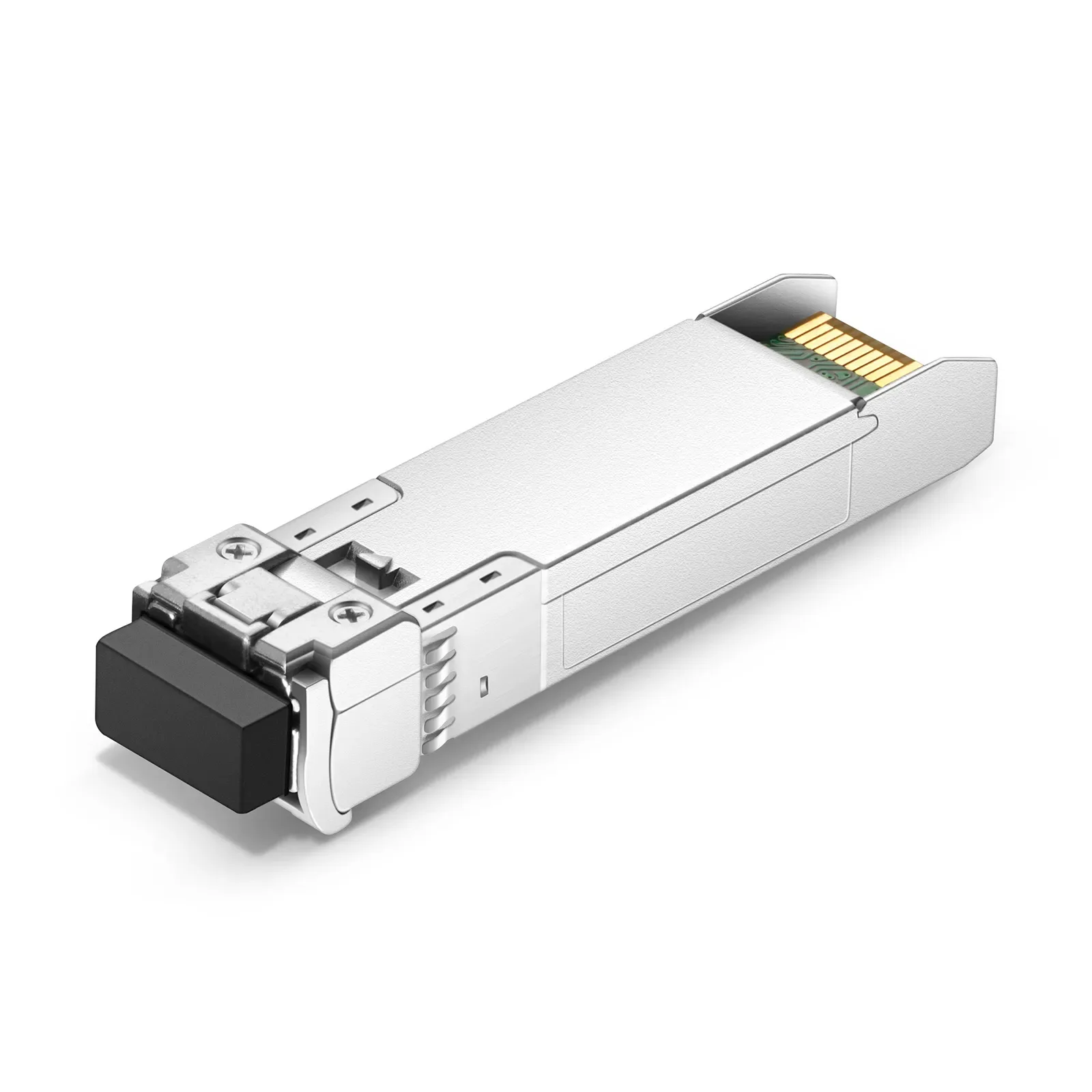

Model: 8G SFP+ 1310nm SM 20KM LC
JH-8G-SFP+-LR20 provides 8GBase-LR throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. This transceiver is compliant with SFF-8636 standards. Digital diagnostics functions are available via a 2-wire common management interface, as specified in SFF- 8472, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for fiber communication up to 8G. The FC transceiver is applied to Storage Area Networking in Data Centers, Data Center Fiber Channel Interconnections over Backbone, Enterprise Network SAN Interconnections, etc.
| Data Rate | 8G |
| Distance | 20KM |
| Wavelength | 1310nm |
| Form Factor | SFP+ |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | DFB |
| Receiver | PIN |
| TX Power | -8.2~0.5 |
| Receiver Sensitivity | -14.4 |
| Power consumption（Max） | 1W |
