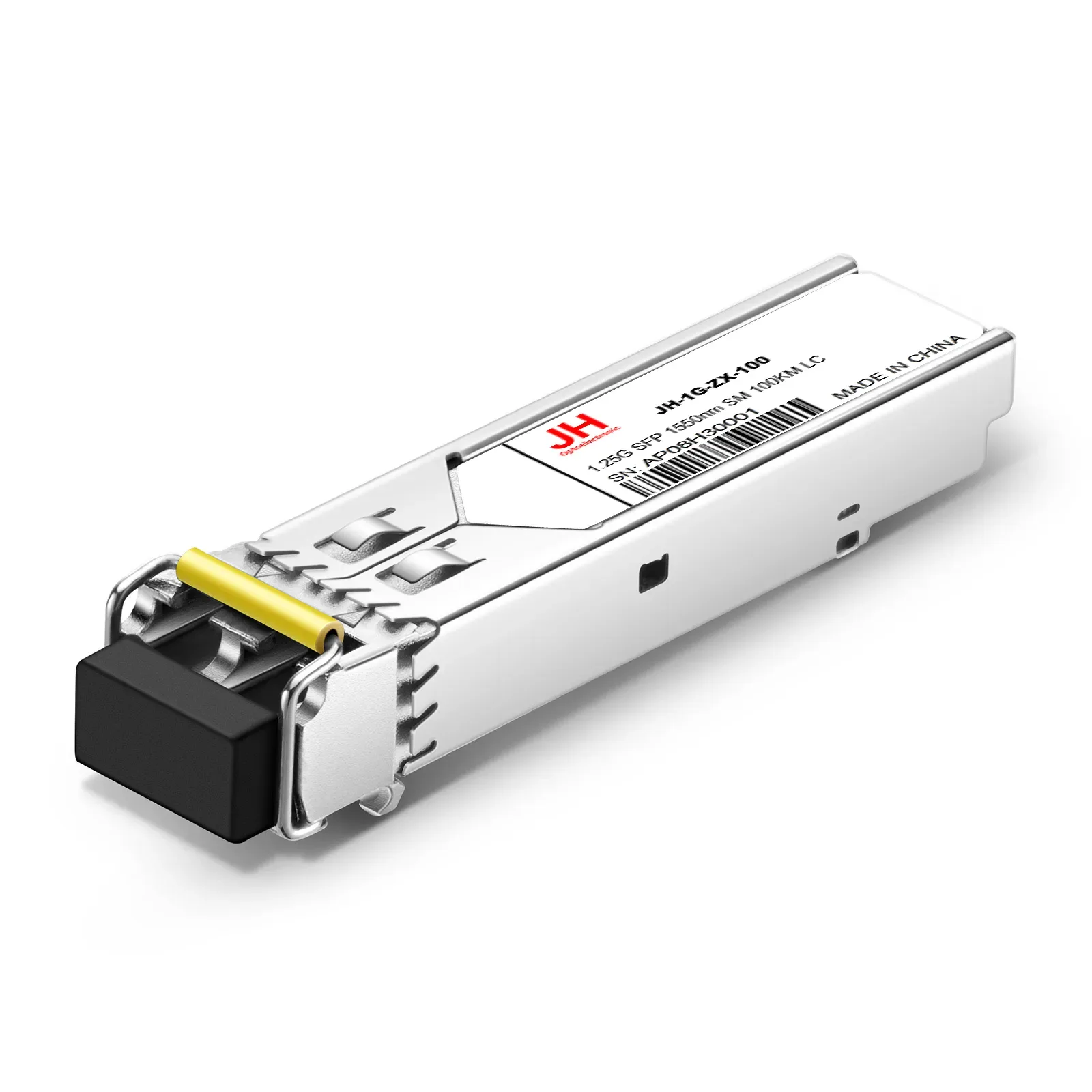

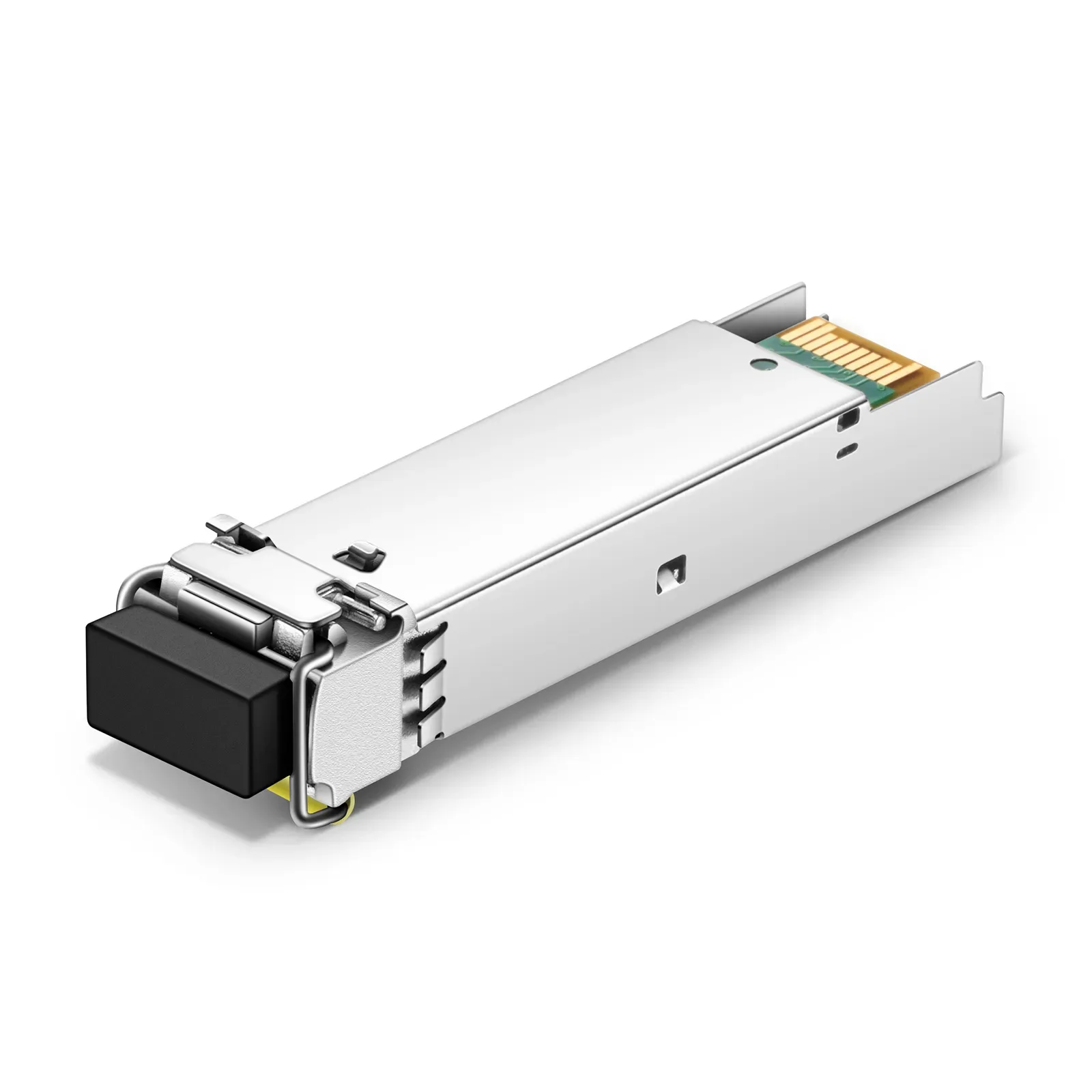

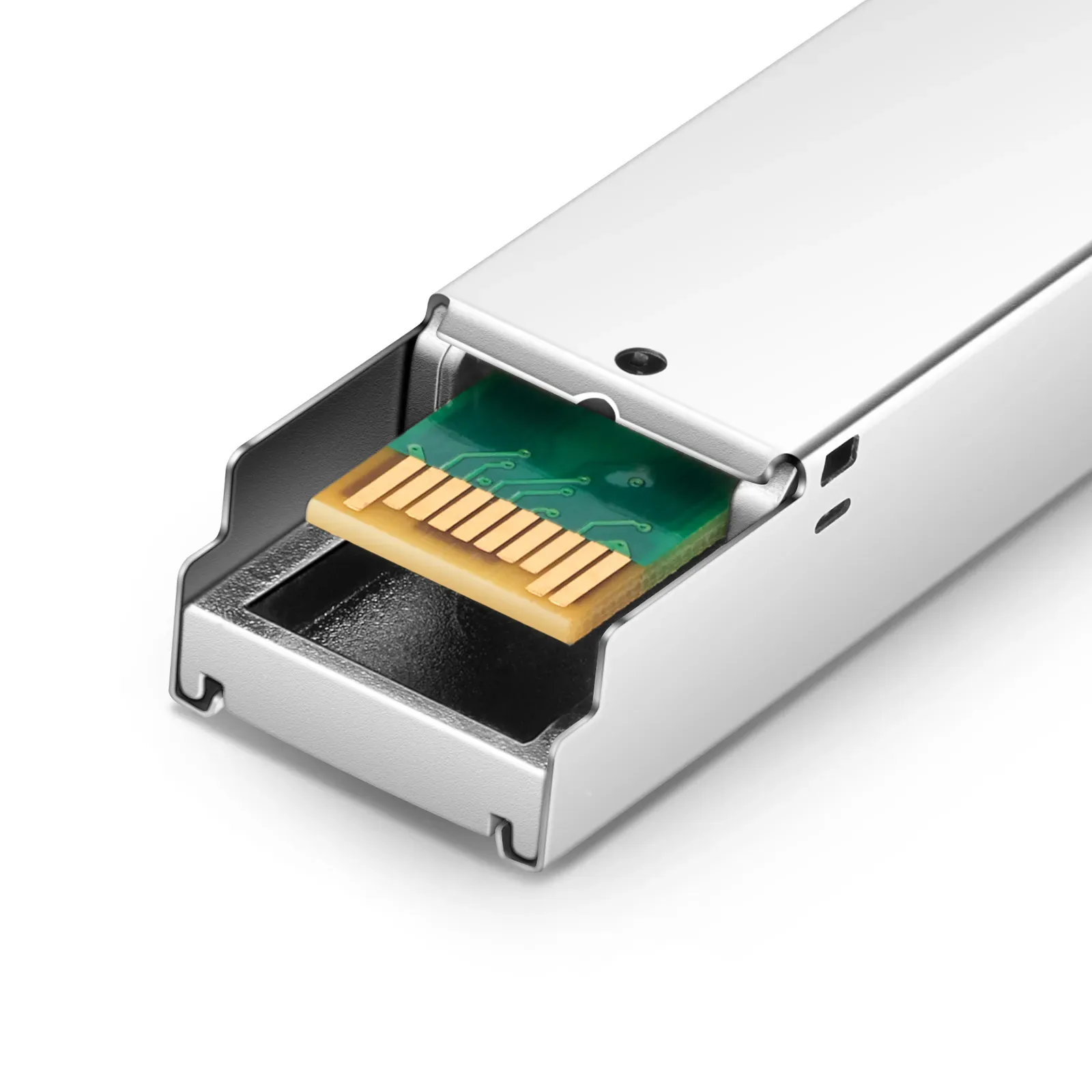

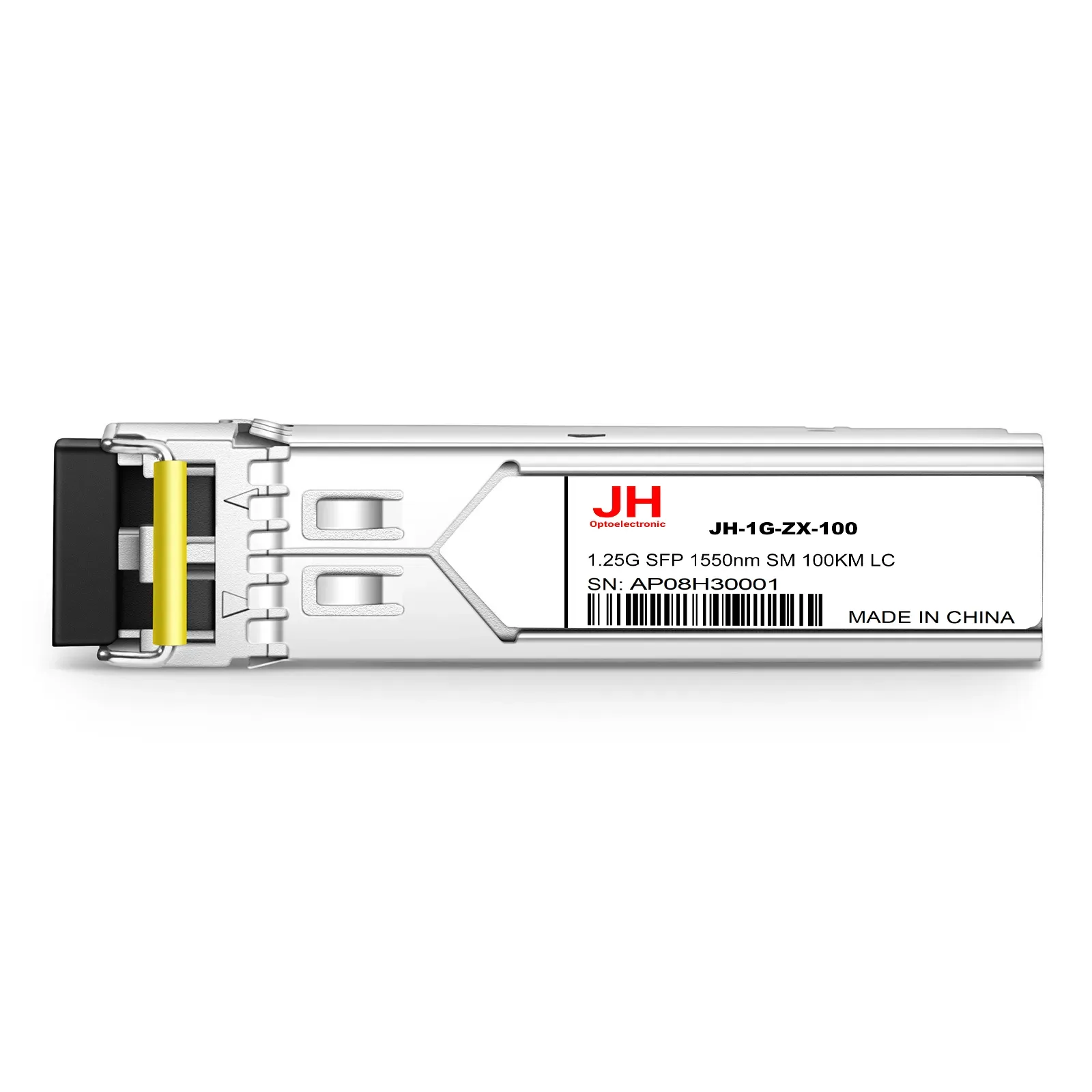

JH-1G-ZX-100

Model: 1.25G SFP 1550nm SM 100KM LC

JH-1G-ZX-100 supports up to 100km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc.Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Features

Hot-pluggable SFP form factor
Supports 1.25Gbps data transmission rate, compliant with IEEE 802.3z Gigabit Ethernet standard
Maximum power consumption < 1W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Carrier Long-Haul Backbone, Inter-City Transport

Specifications

Data Rate	1.25G
Distance	100KM
Wavelength	1550nm
Form Factor	SFP

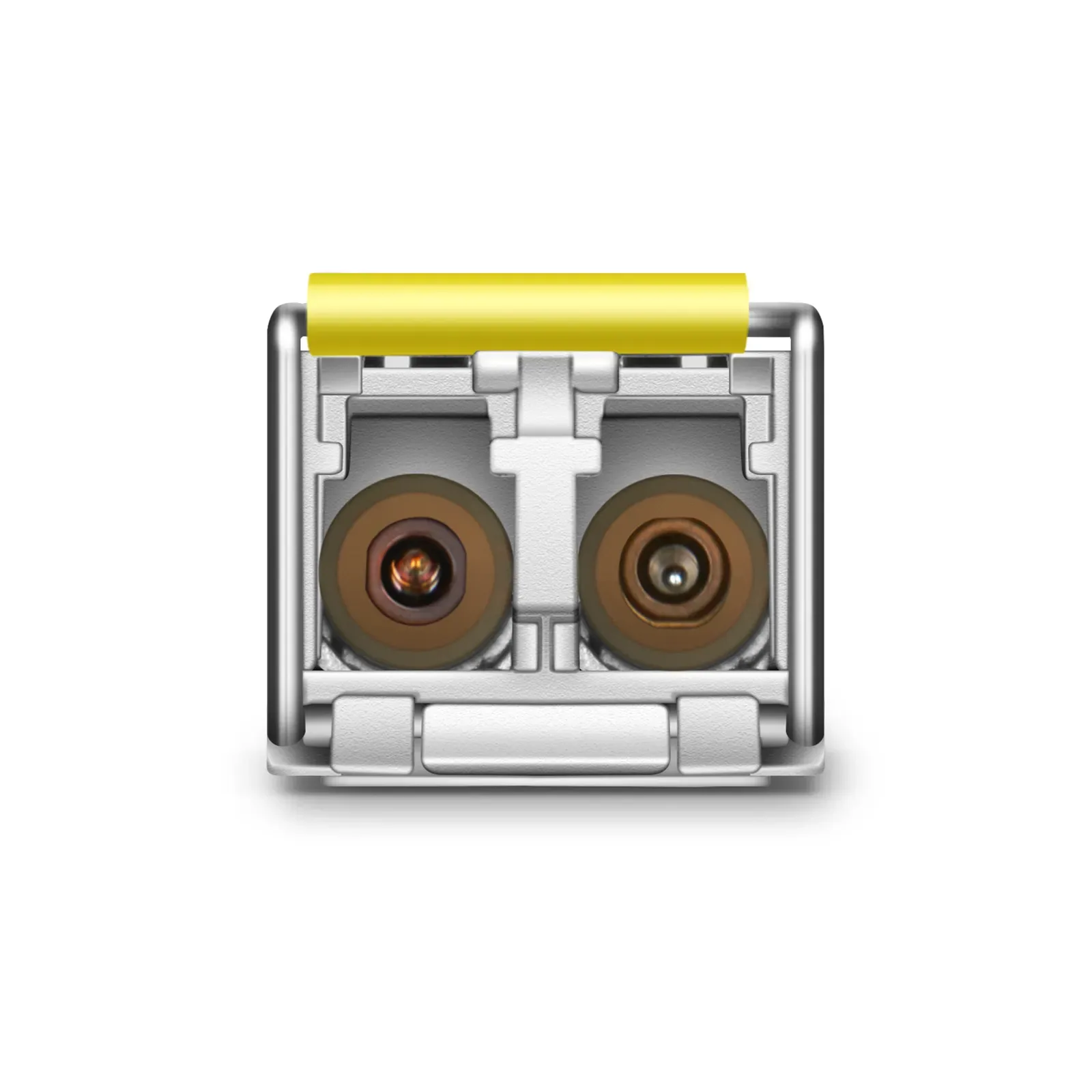

Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	0~5
Receiver Sensitivity	-26
Power consumption（Max）	1W
