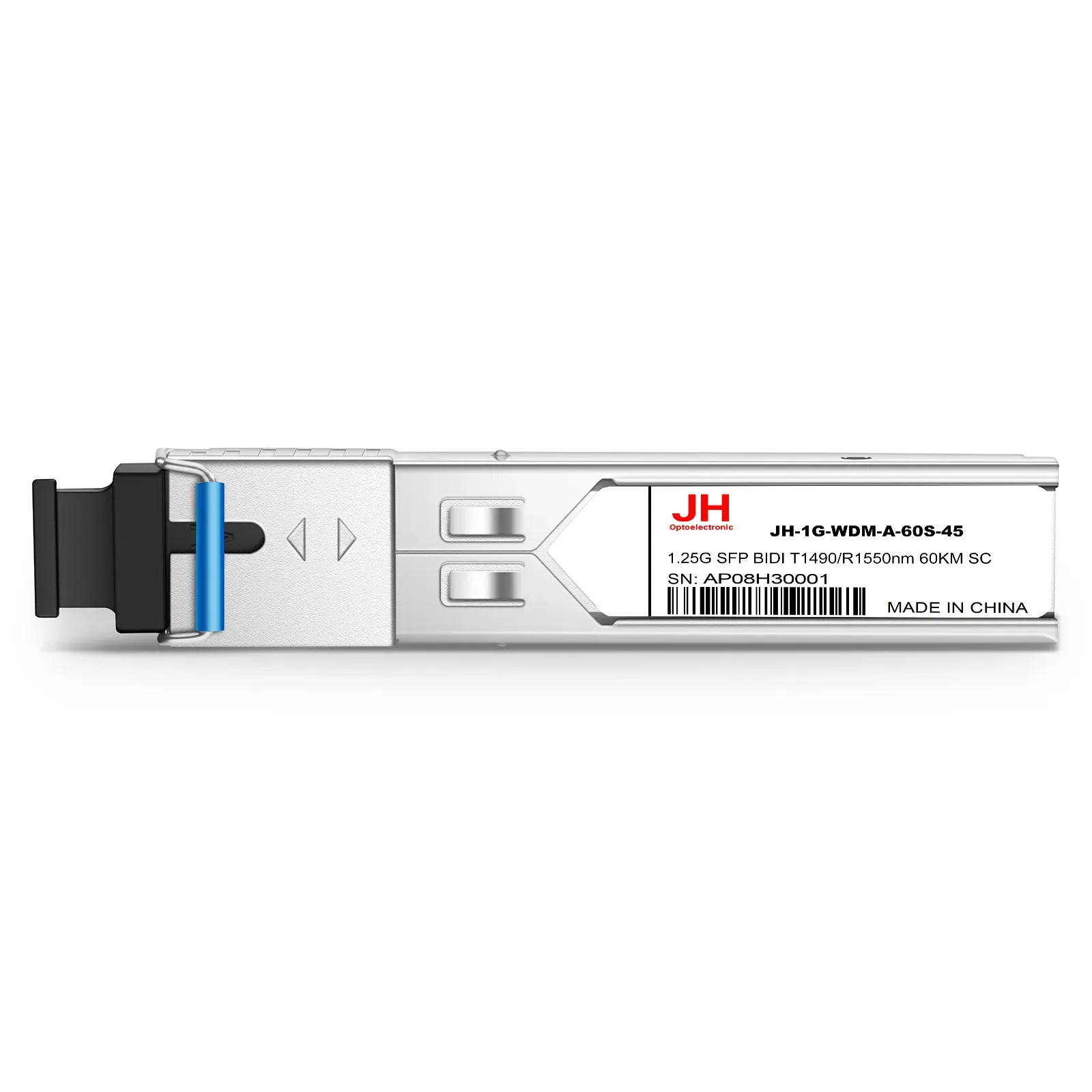

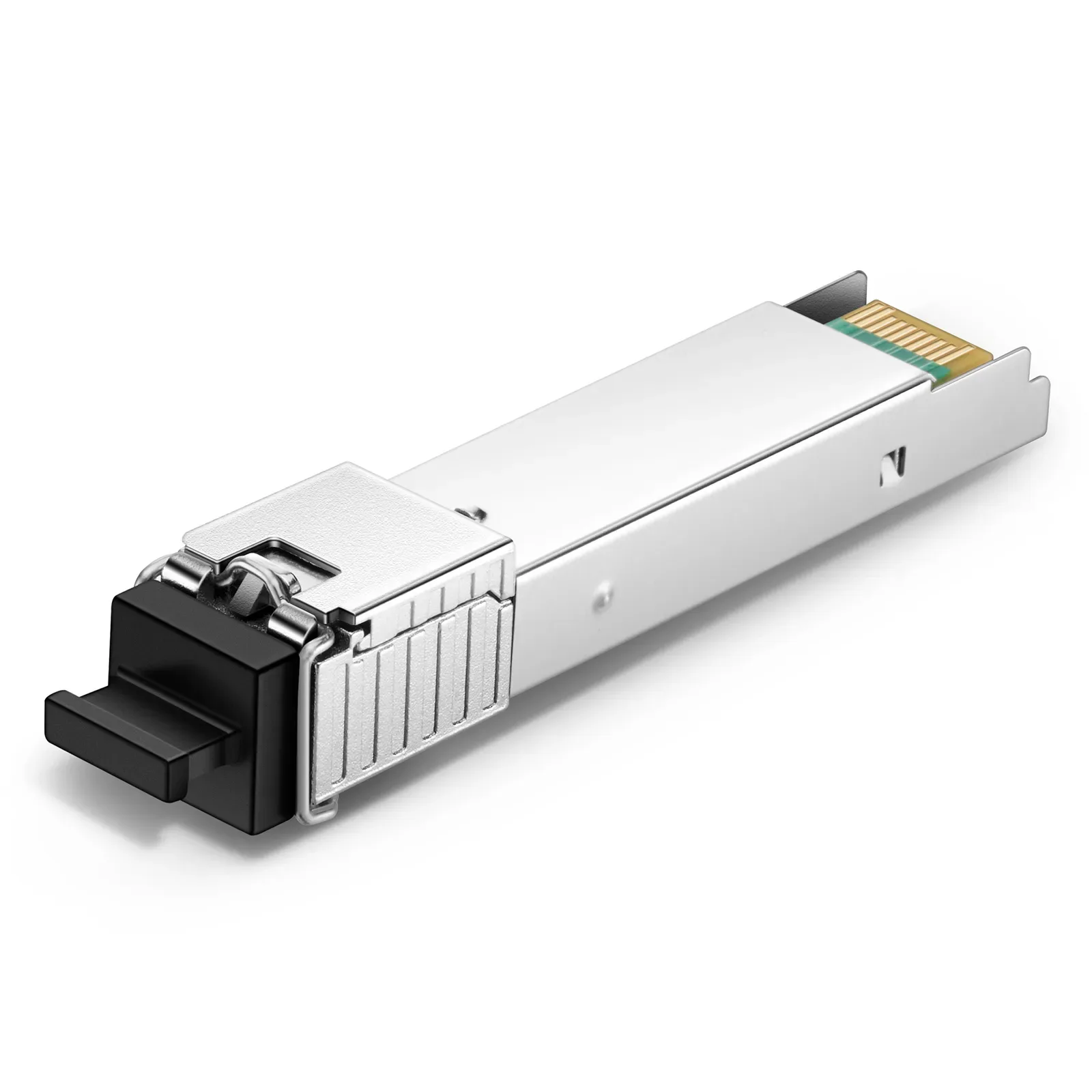

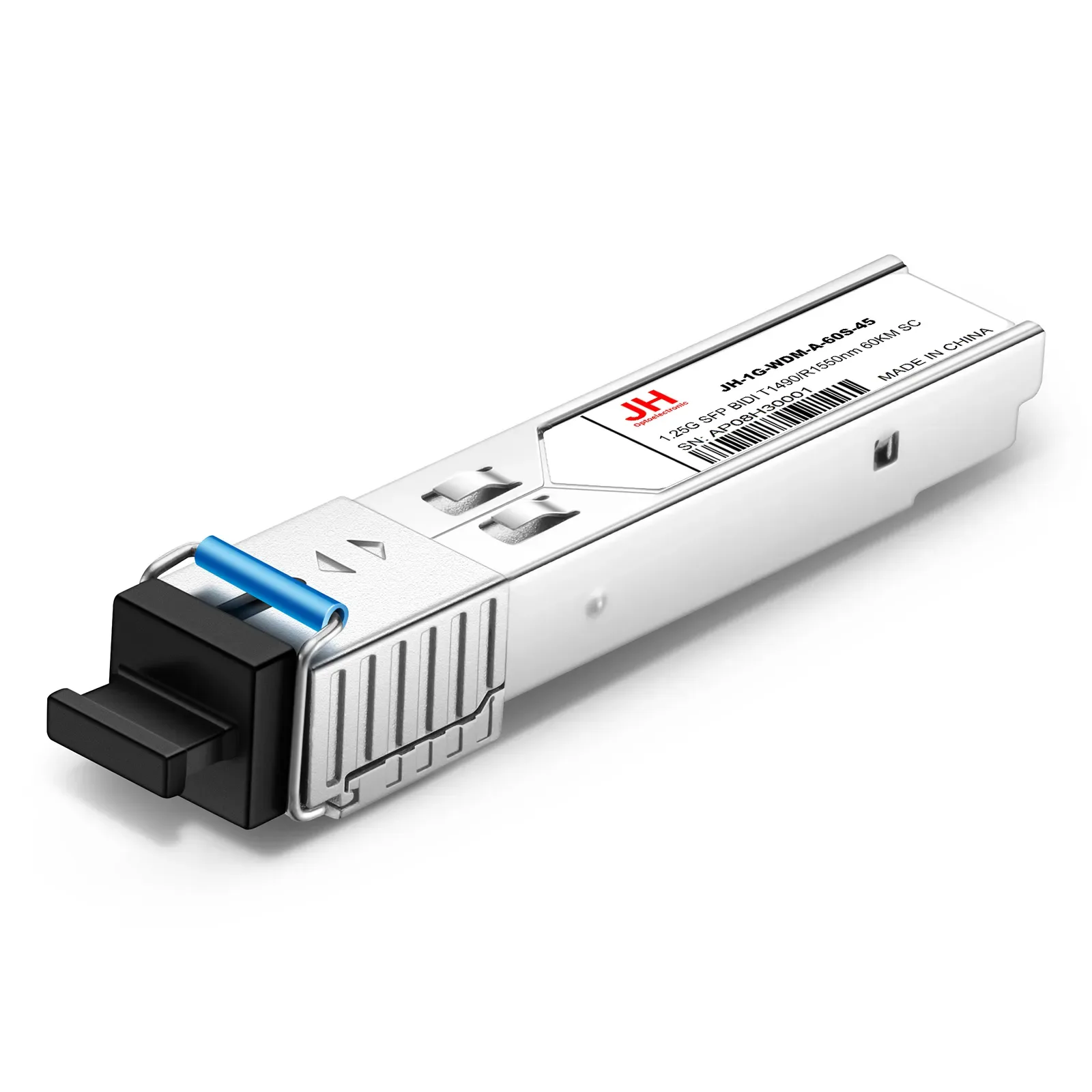

JH-1G-WDM-A-60S-45

Model: 1.25G SFP BIDI T1490/R1550nm 60KM SC

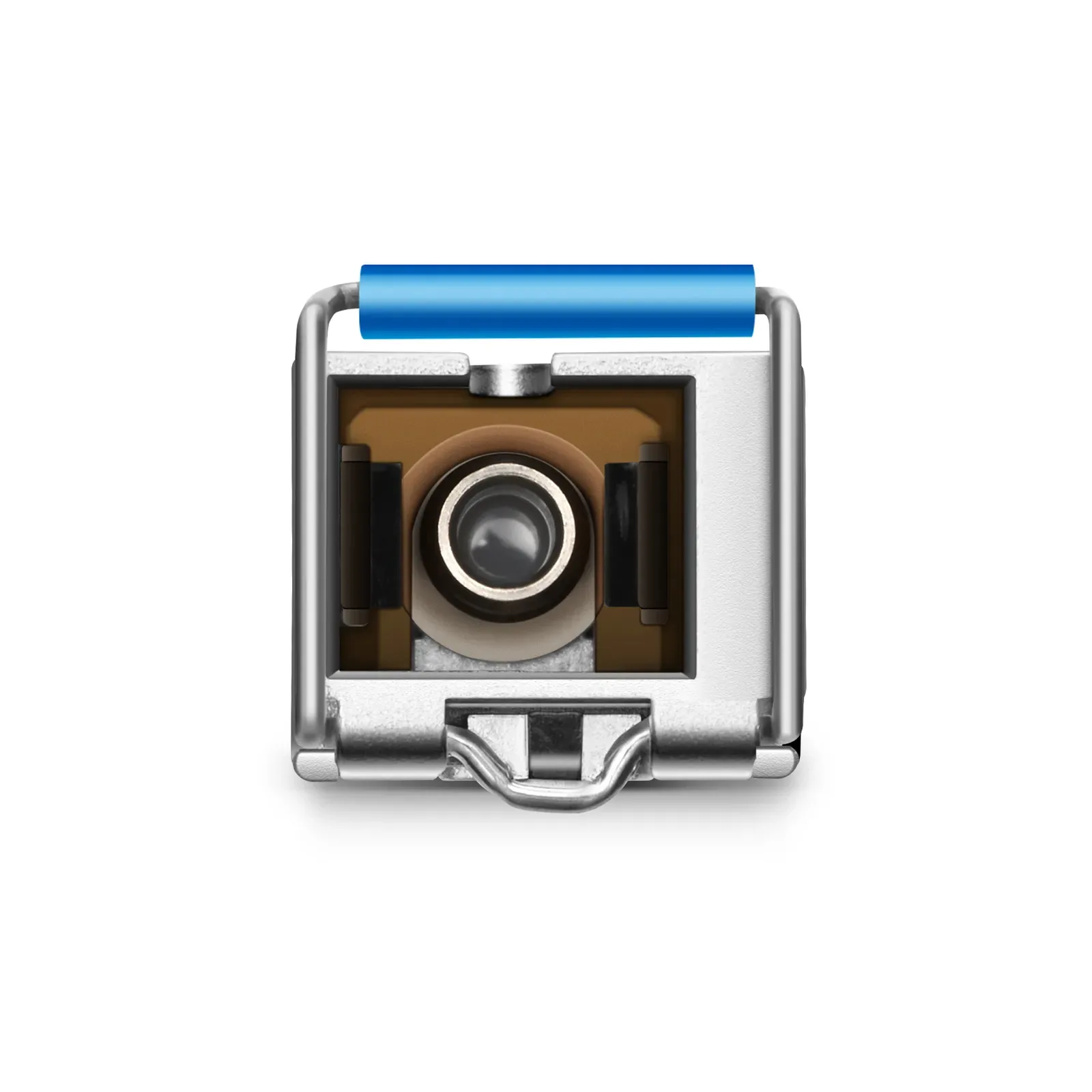

JH-1G-WDM-A-60S-45 provides up to 60km of 1000Base-BX throughput over single-mode fiber (SMF) using 1490nm-TX/1550nm-RX wavelengths via SC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.

Features

Hot-pluggable SFP form factor
Supports 1.25Gbps data transmission rate, compliant with IEEE 802.3z Gigabit Ethernet standard
Maximum power consumption < 1W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
ISP Metro Access, Campus Extension

Specifications

Data Rate	1.25G
Distance	60KM
Wavelength	BIDI
Form Factor	SFP
Connector	SC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	DFB
Receiver	APD
TX Power	0~5
Receiver Sensitivity	-26
Power consumption（Max）	1W
