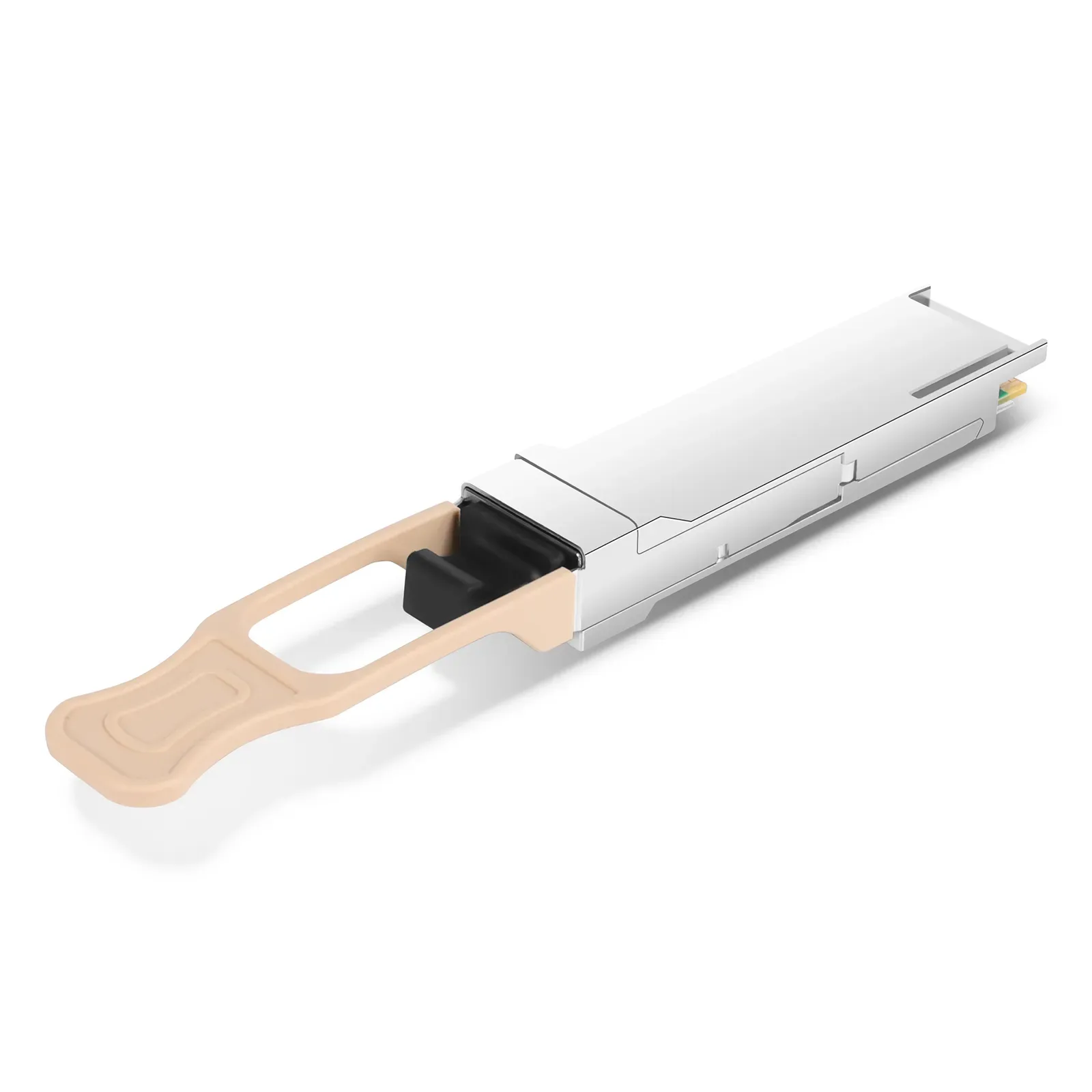

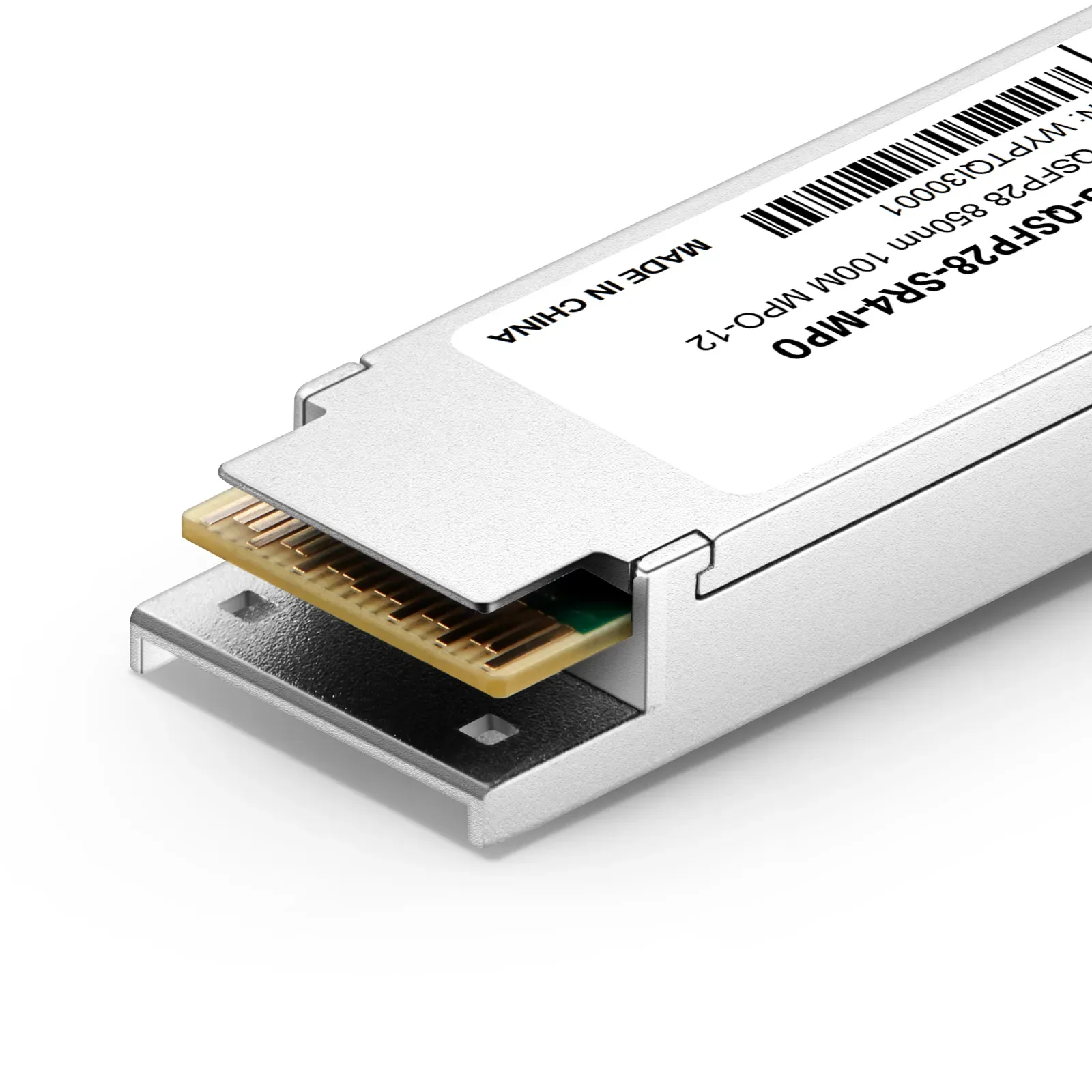

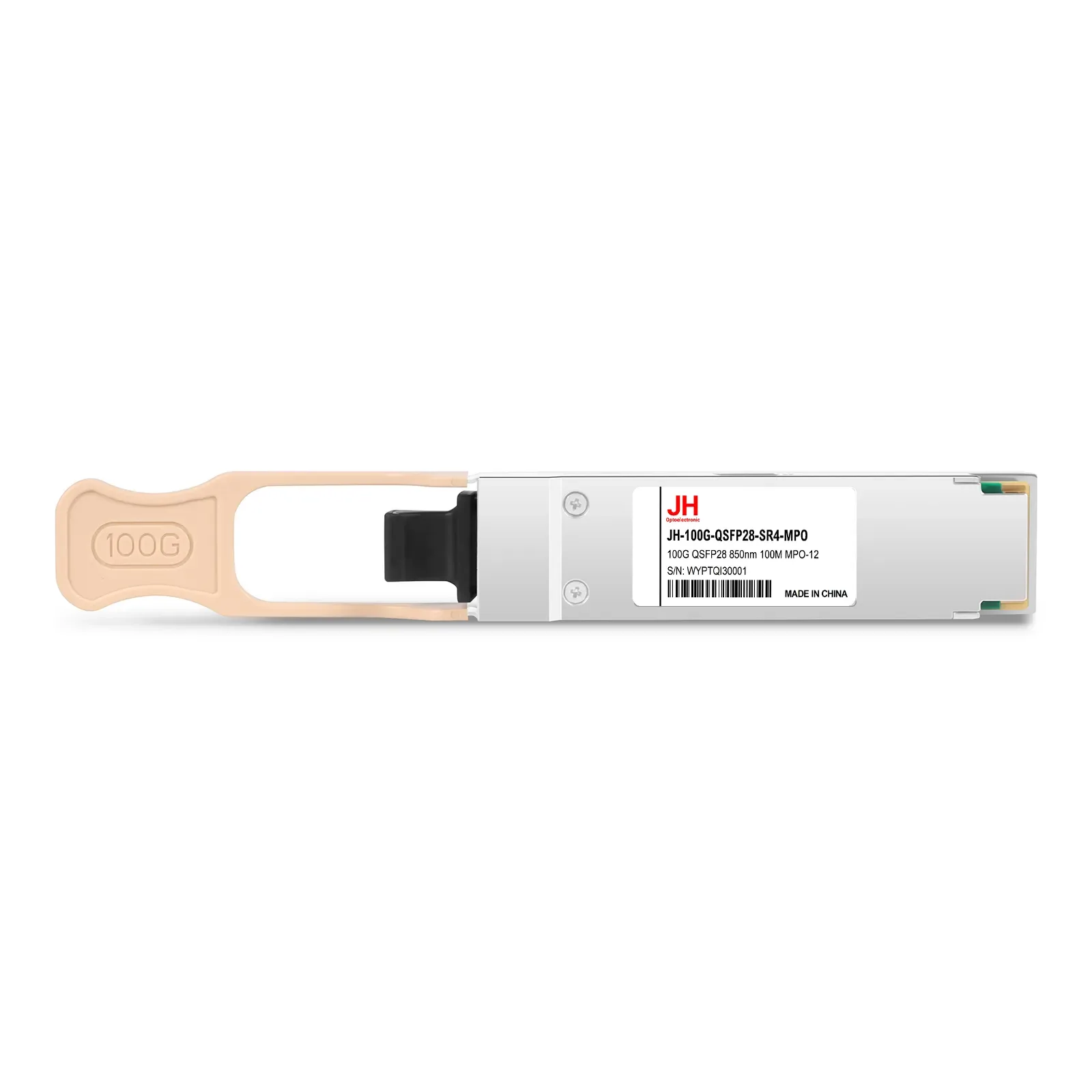

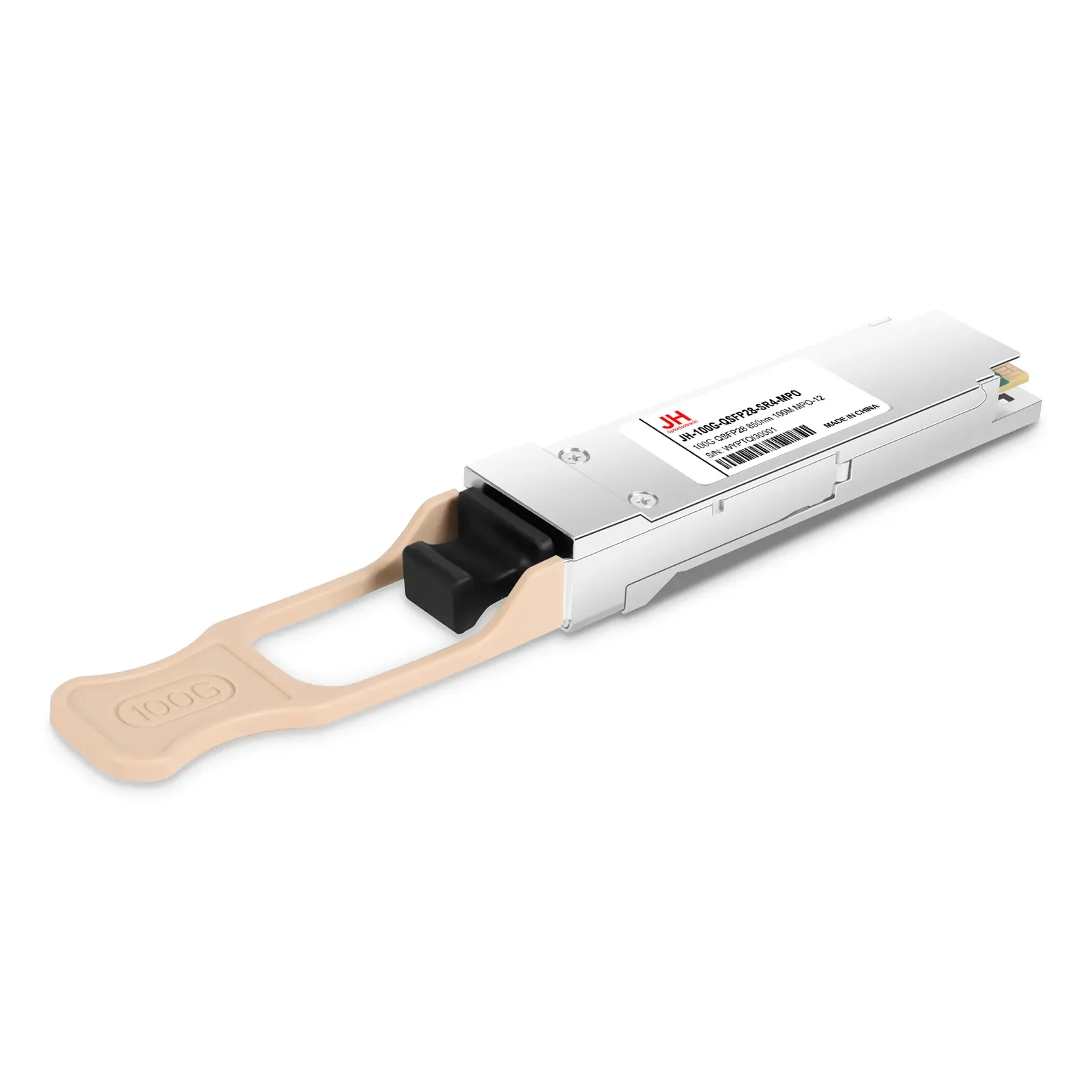

JH-100G-QSFP28-SR4-MPO

Model: 100G QSFP28 850nm 100M MPO-12

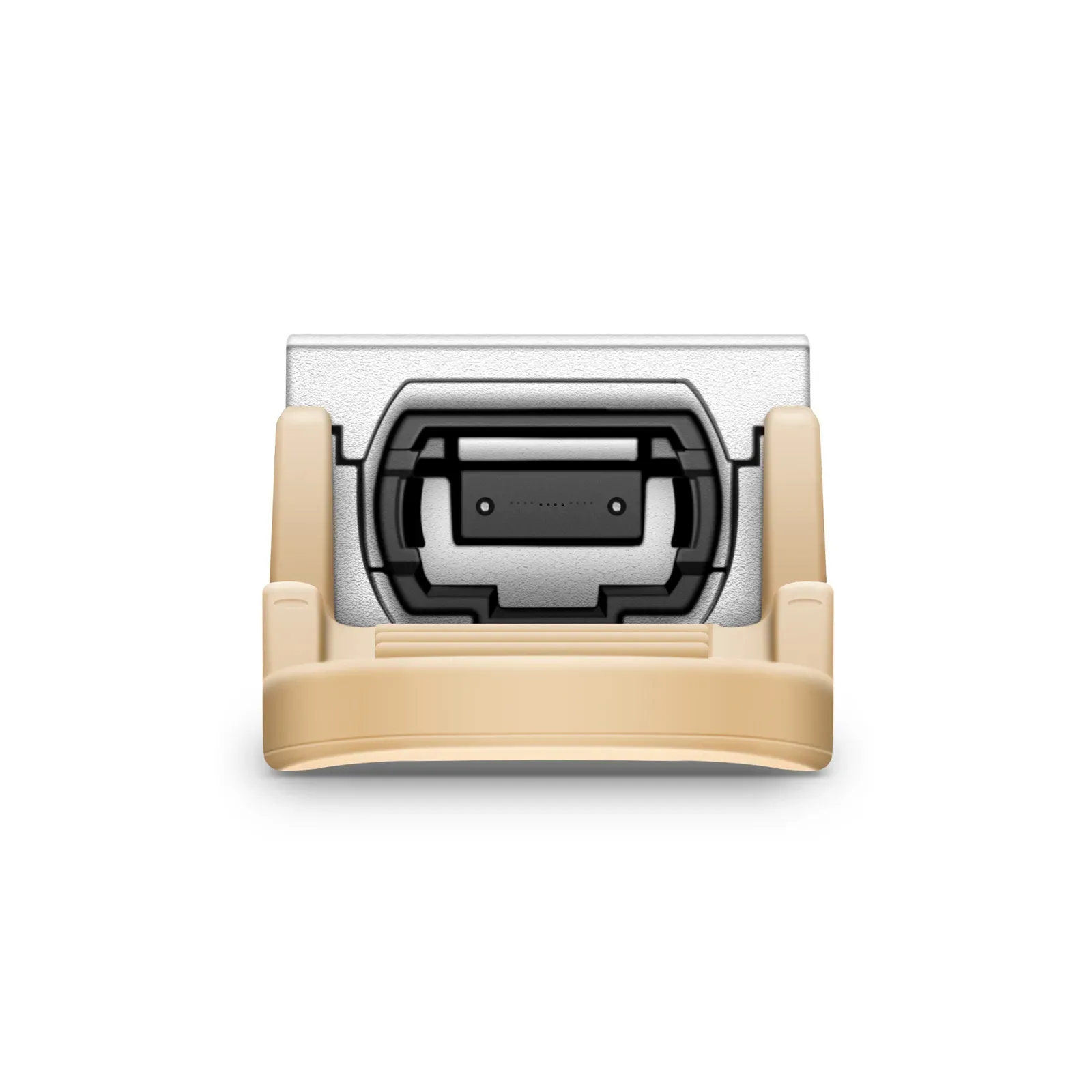

JH-100G-QSFP28-SR4-MPO Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 70m over OM3 and 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. The module also supports breakout to 4x 25GBASE-SR SFP28. The transceiver is compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, and CAUI-4 standards. Digital diagnostics are provided via the I2C interface for real-time monitoring.

Features

Hot-pluggable QSFP28 form factor
Supports 100Gbps data rate (4x25G NRZ), compliant with IEEE 802.3bm 100G Ethernet standard
Maximum power consumption < 2.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, 25G NRZ per lane, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Spine-Leaf, LAN Backbone

Specifications

Data Rate	100G
Distance	100M
Wavelength	850nm
Form Factor	QSFP28
Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-8.4~2.4
Receiver Sensitivity	-10.3
Power consumption（Max）	2.5W
