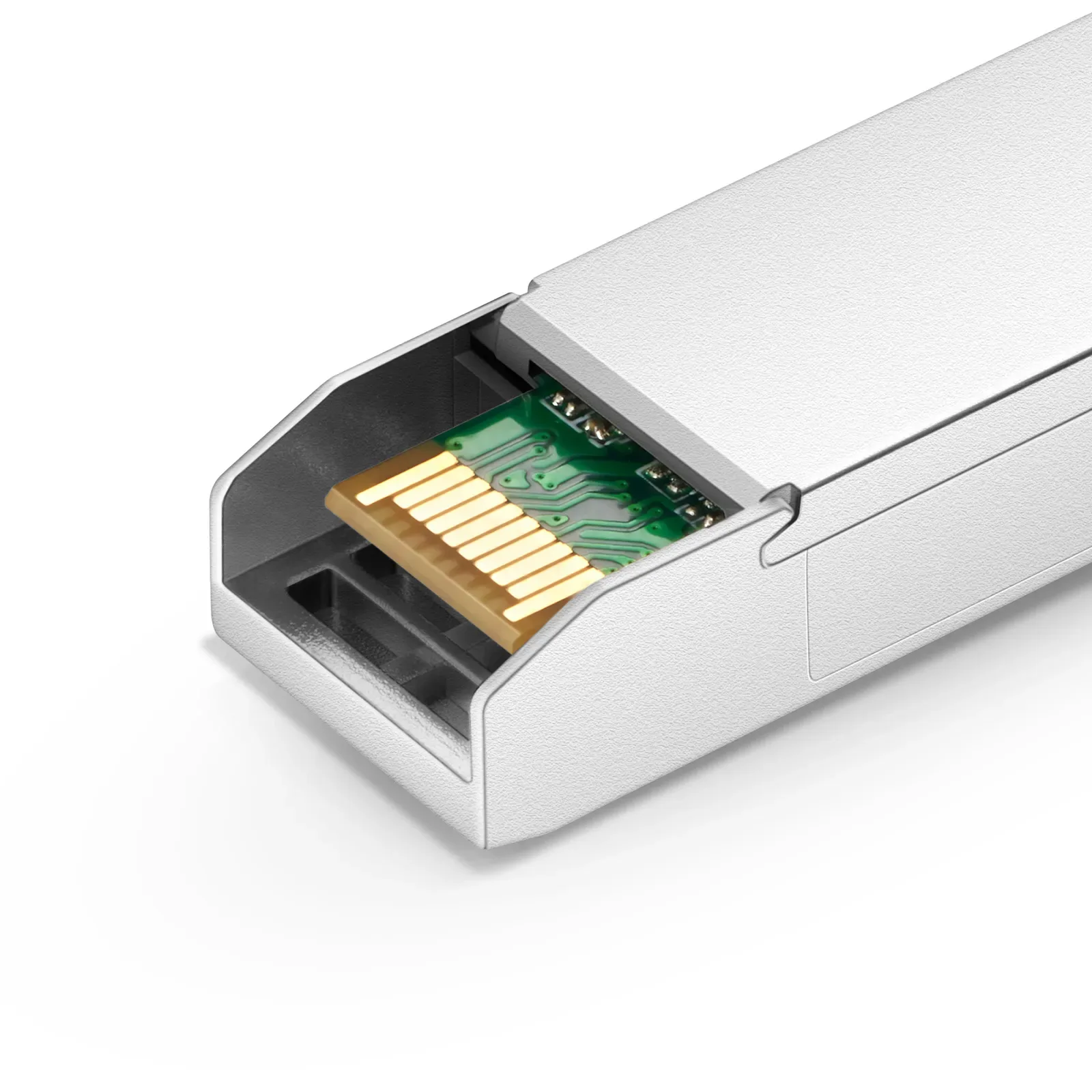

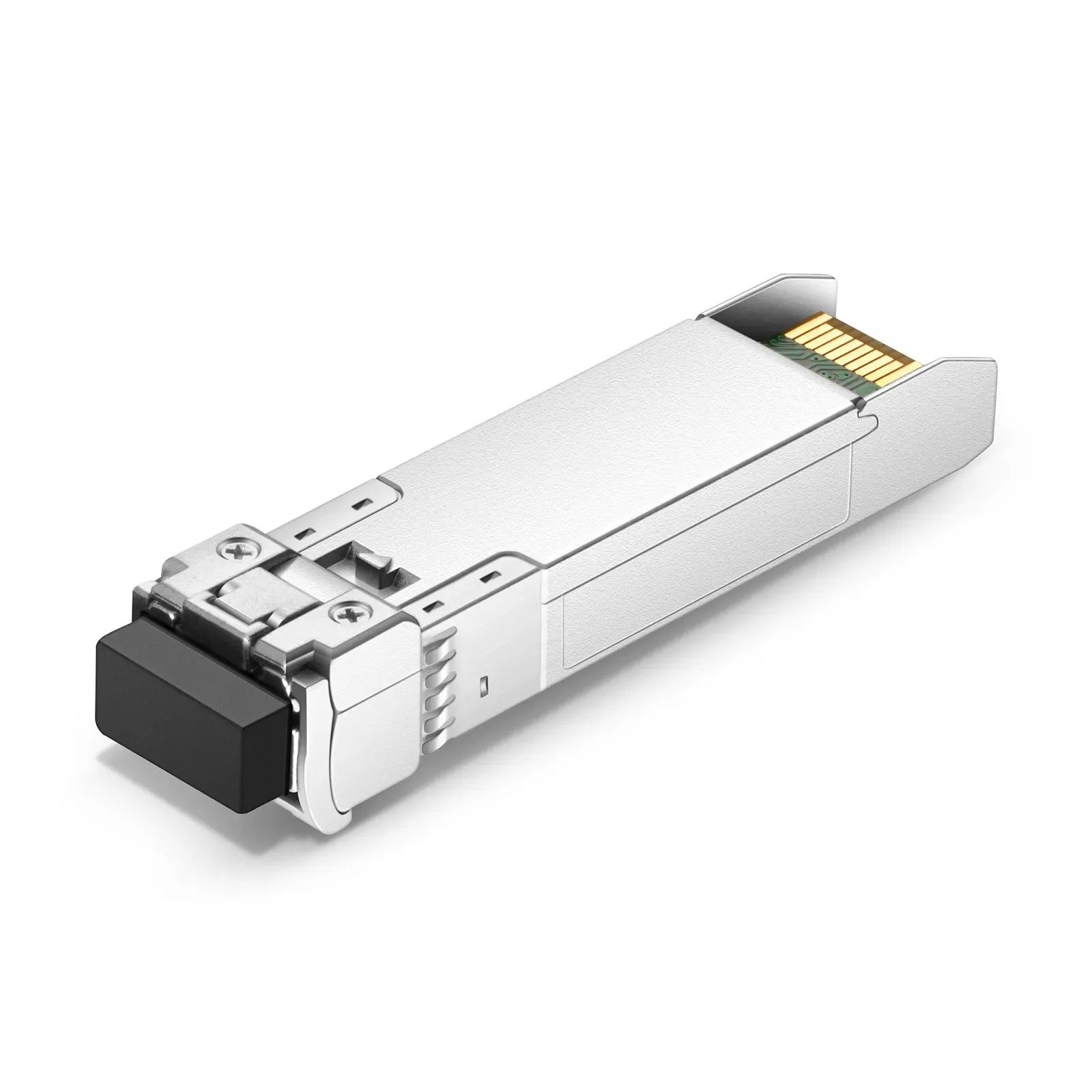

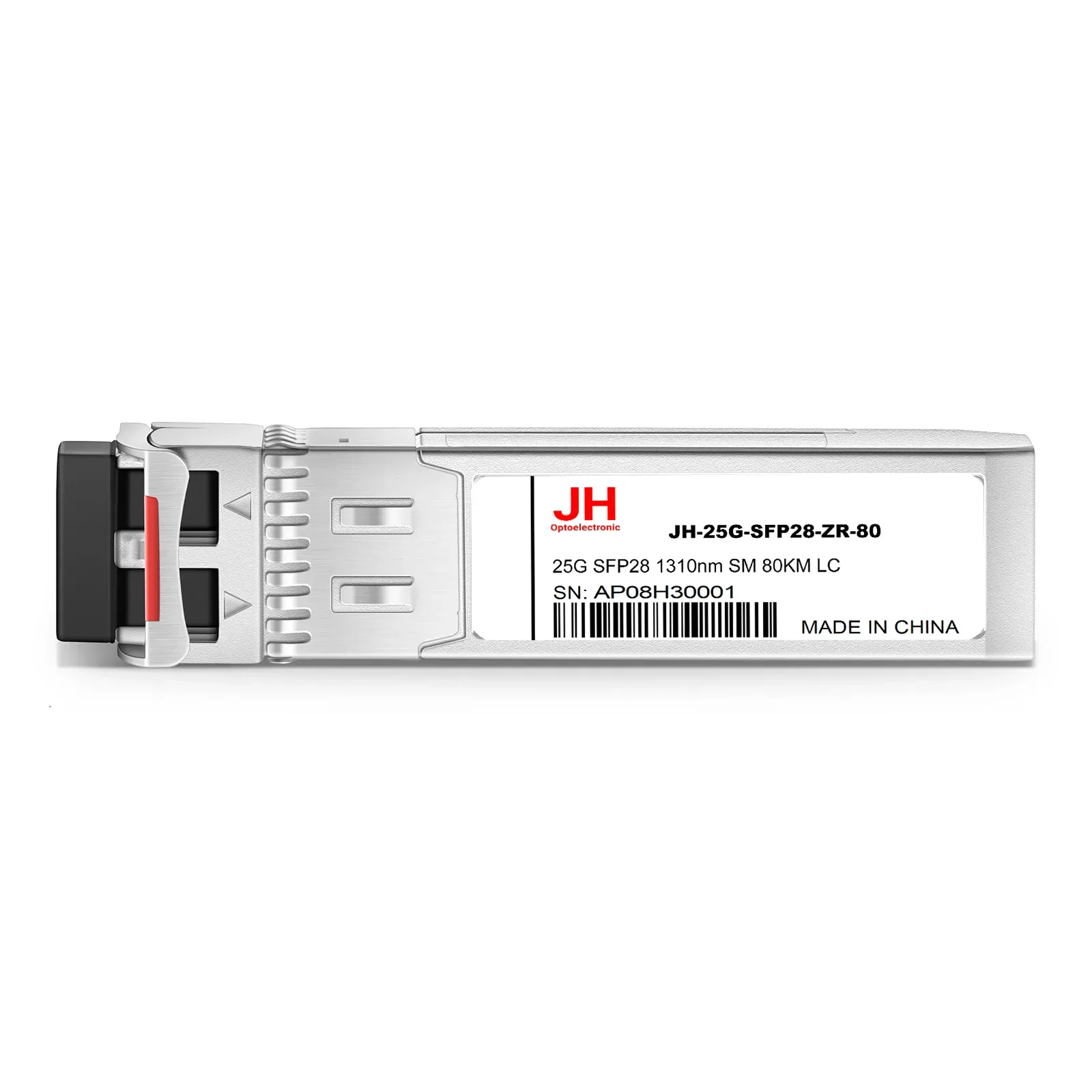

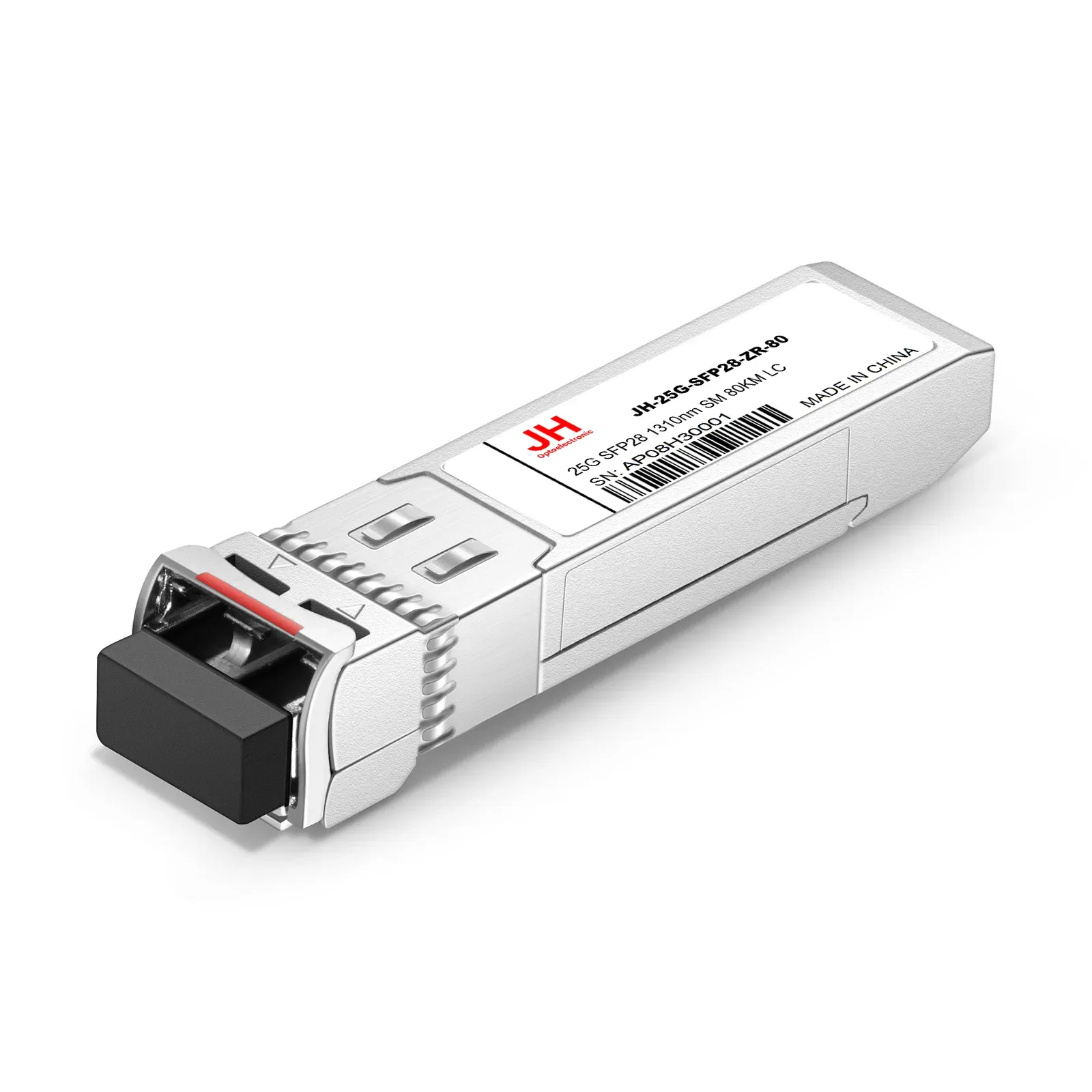

Model: 25G SFP28 1310nm SM 80KM LC

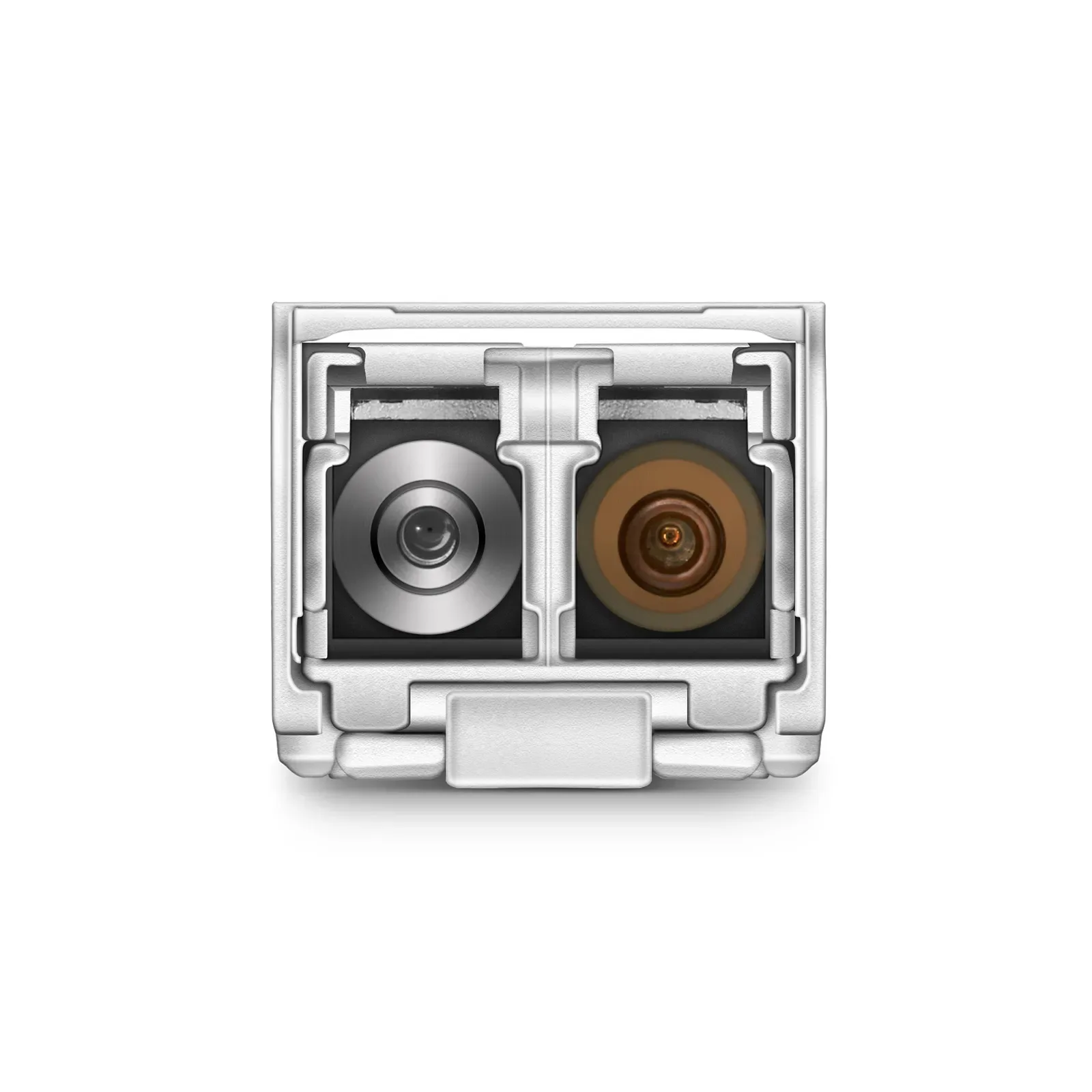

JH-25G-SFP28-ZR-80 module is equipped with LC duplex connectors, reaching a link up to 80km over OS2 single-mode fiber (SMF). This 25G optical transceiver comes with an SFP28 connector, enabling 25 Gbps bandwidth. DOM/DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring.
| Data Rate | 25G |
| Distance | 80KM |
| Wavelength | 1310nm |
| Form Factor | SFP28 |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | SOA+PIN |
| TX Power | 2~7 |
| Receiver Sensitivity | -28 |
| Power consumption（Max） | 2.5W |
