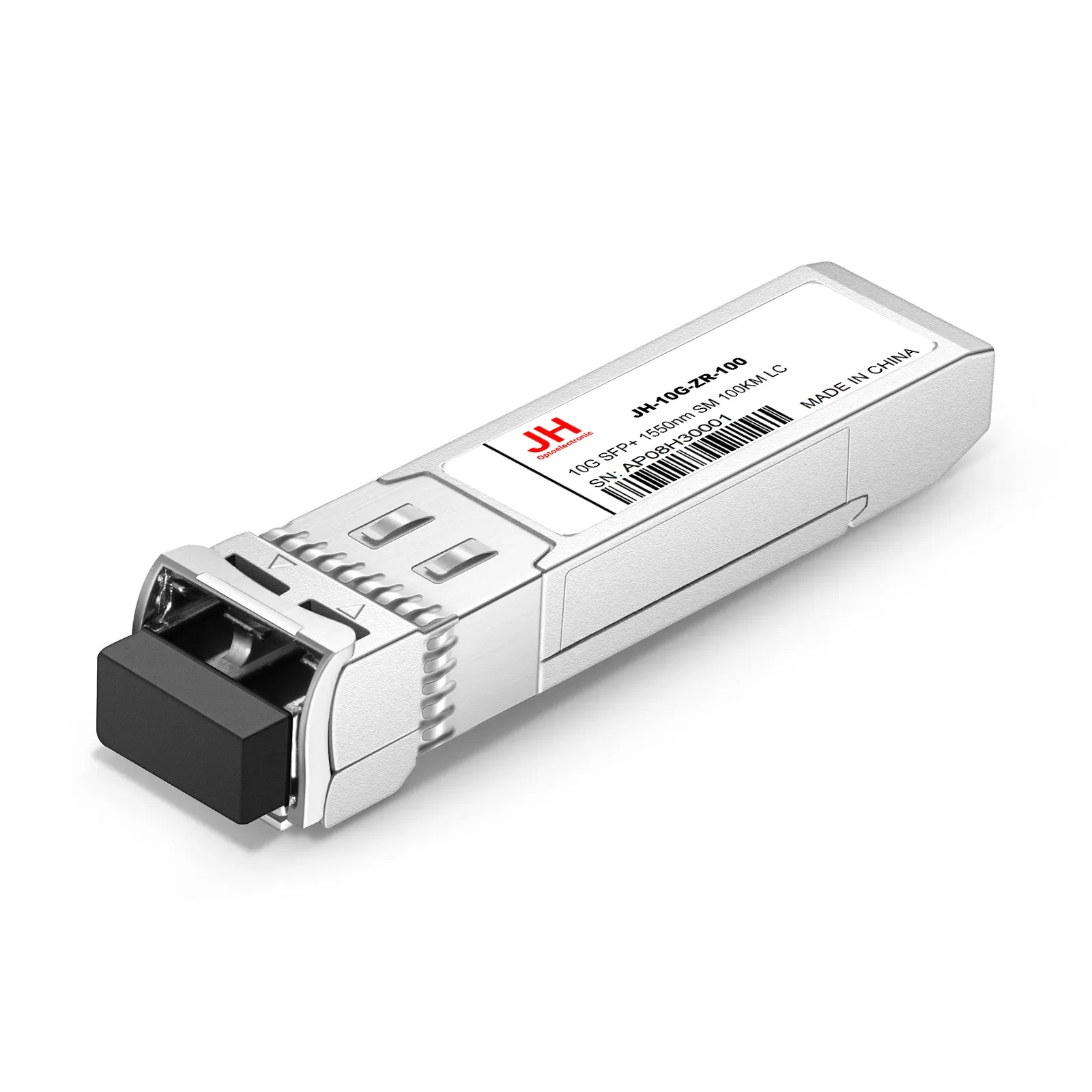

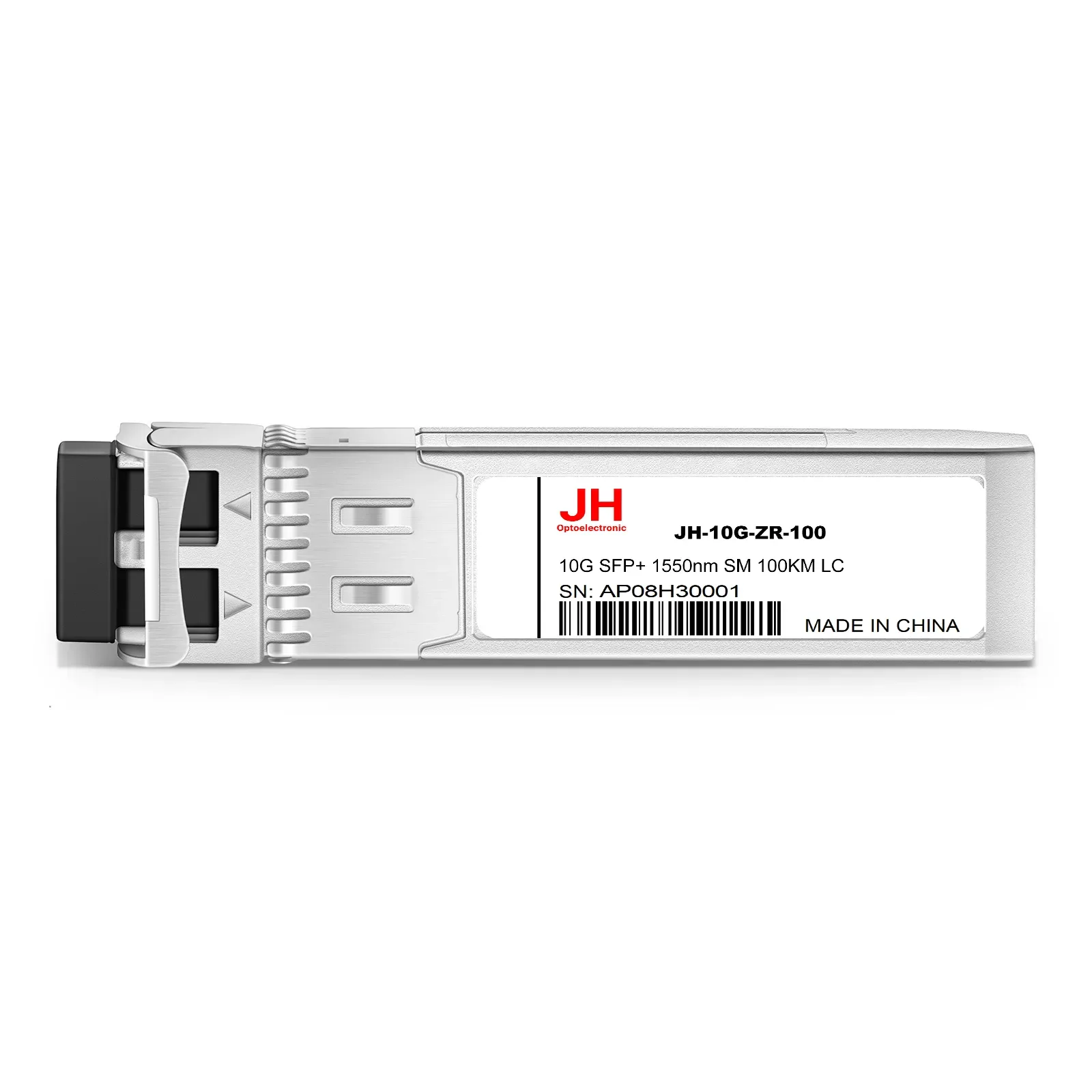

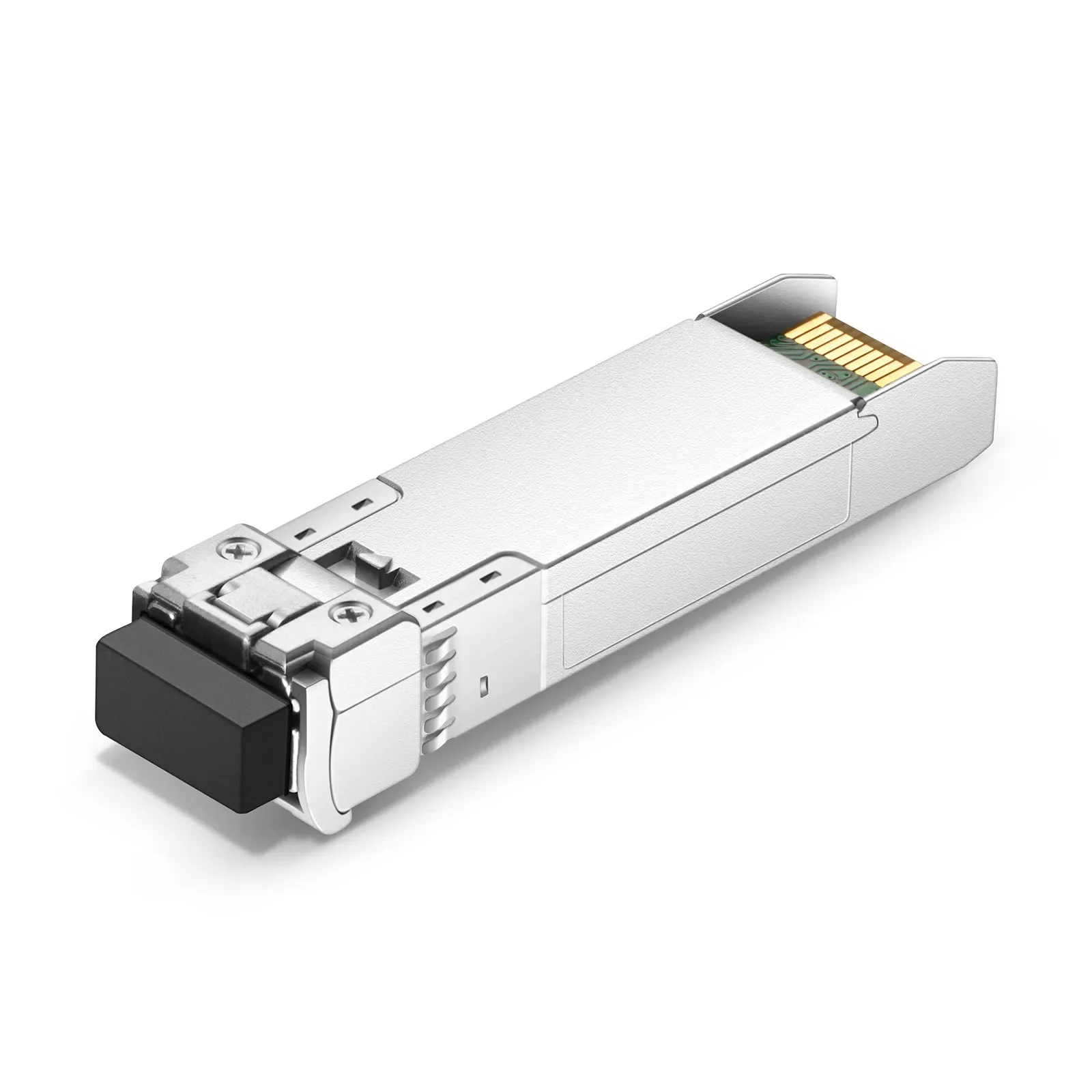

JH-10G-ZR-100

Model: 10G SFP+ 1550nm SM 100KM LC

JH-10G-ZR-100 supports up to 100km over OS2 SMF via an LC duplex connector. This transceiver is compliant with per the RoHS Directive 2011/65/EU. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fiber Channel etc.

Features

Hot-pluggable SFP+ form factor
Supports 10.3125Gbps data transmission rate, compliant with IEEE 802.3ae 10G Ethernet standard
Maximum power consumption < 1.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Carrier Long-Haul Backbone, Inter-City Transport

Specifications

Data Rate	10G
Distance	100KM
Wavelength	1550nm
Form Factor	SFP+
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	APD
TX Power	0-5
Receiver Sensitivity	-26
Power consumption（Max）	1.5W
