JH-200G-QSFP56-A4-AOC

Model: 200G QSFP56 to 4xSFP56 AOC 1M

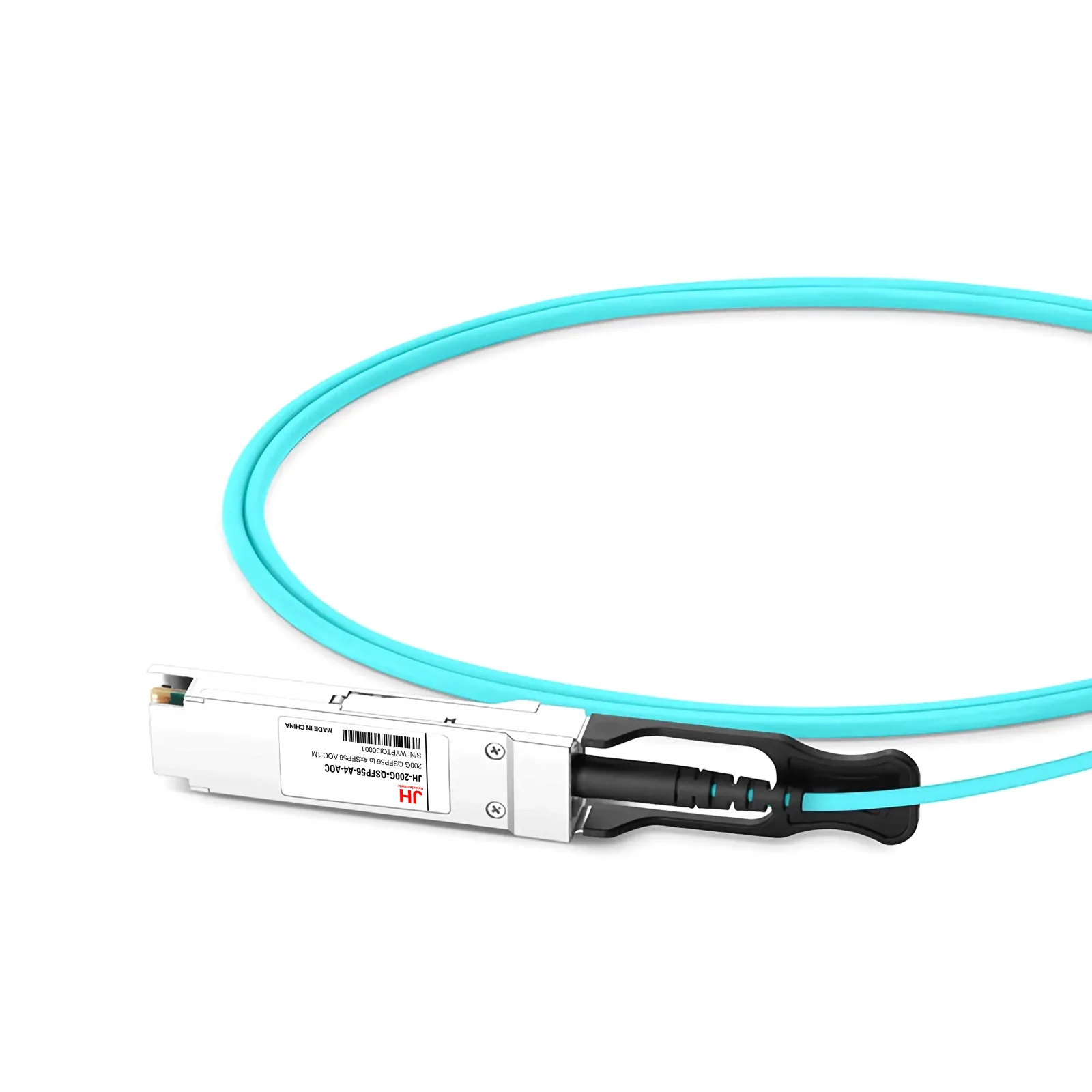

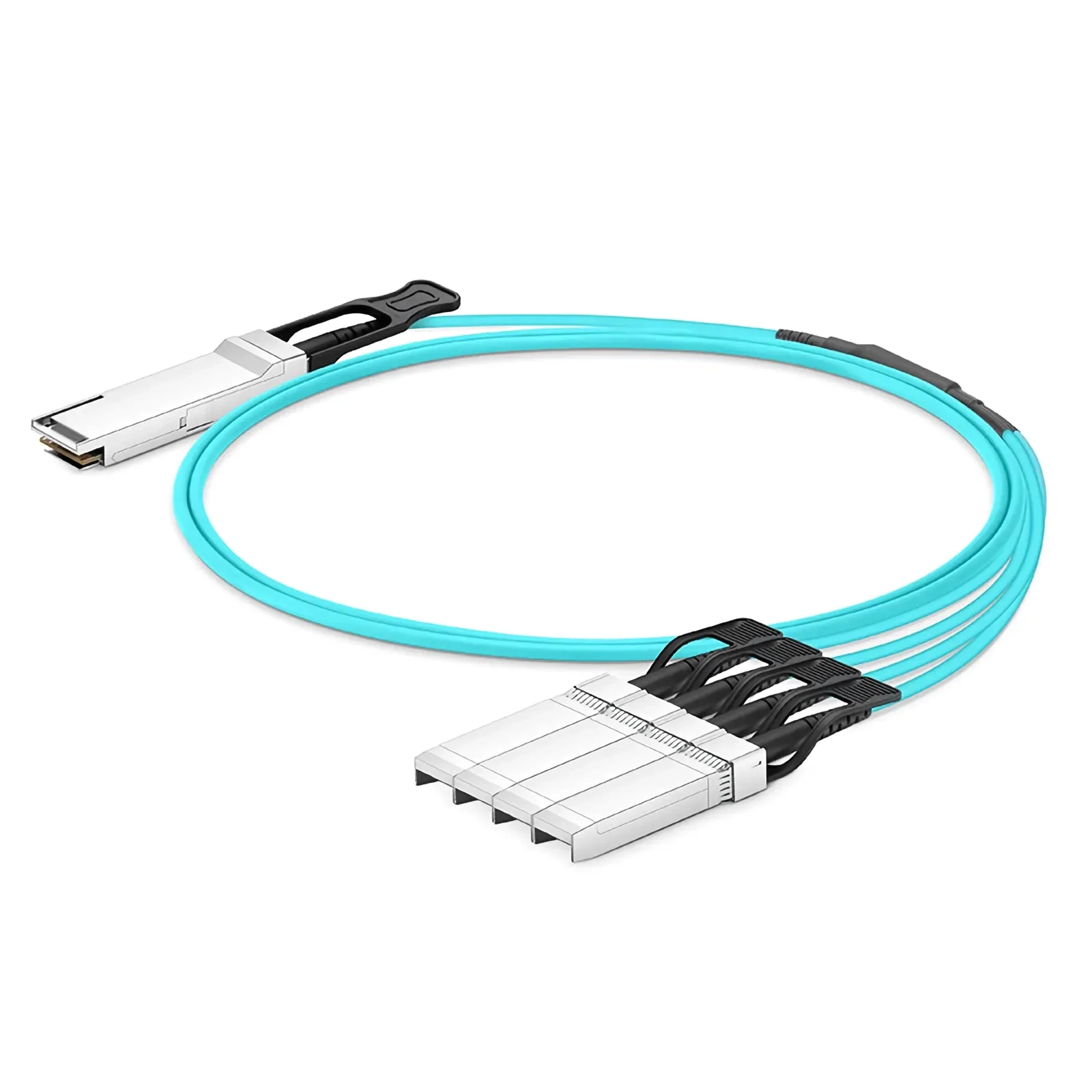

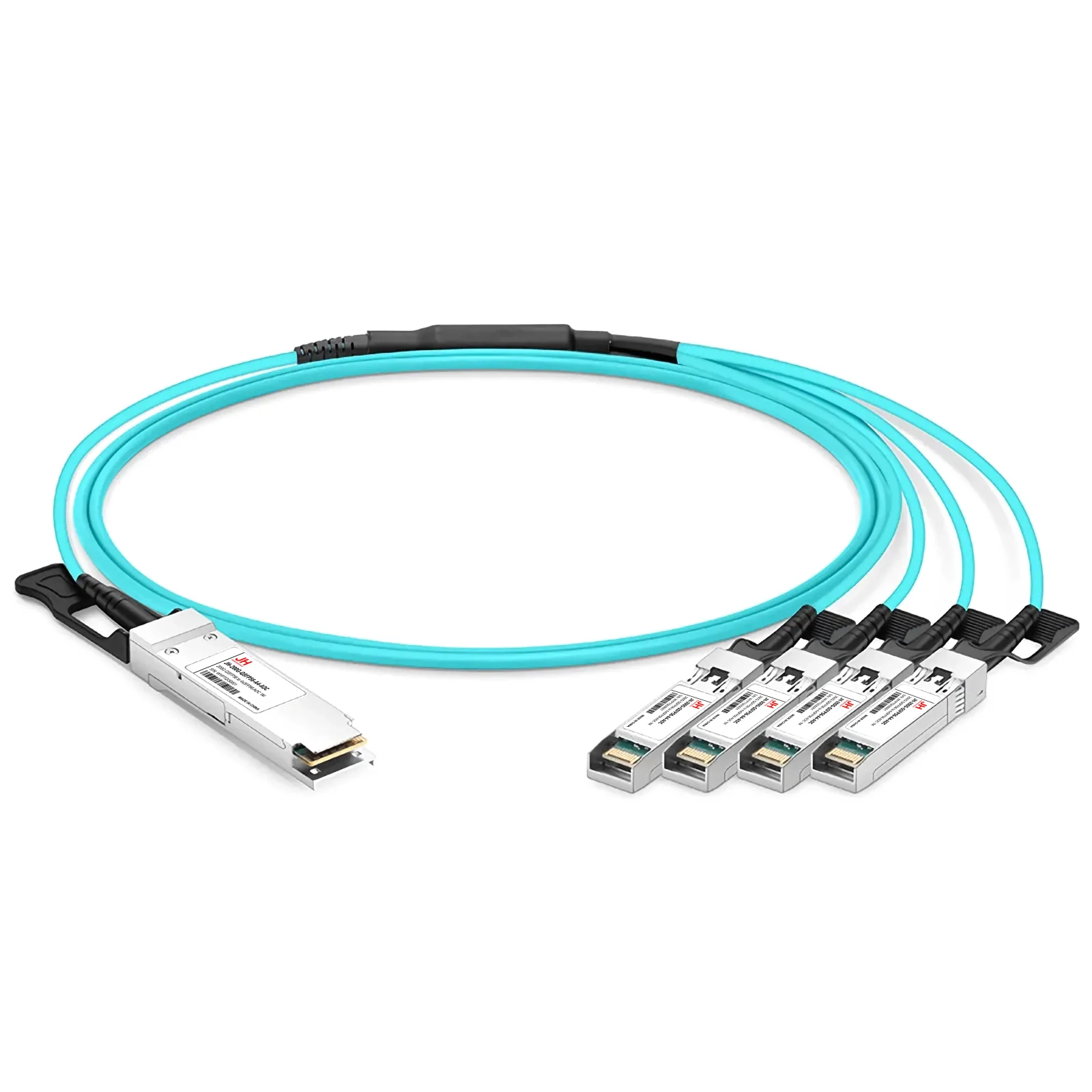

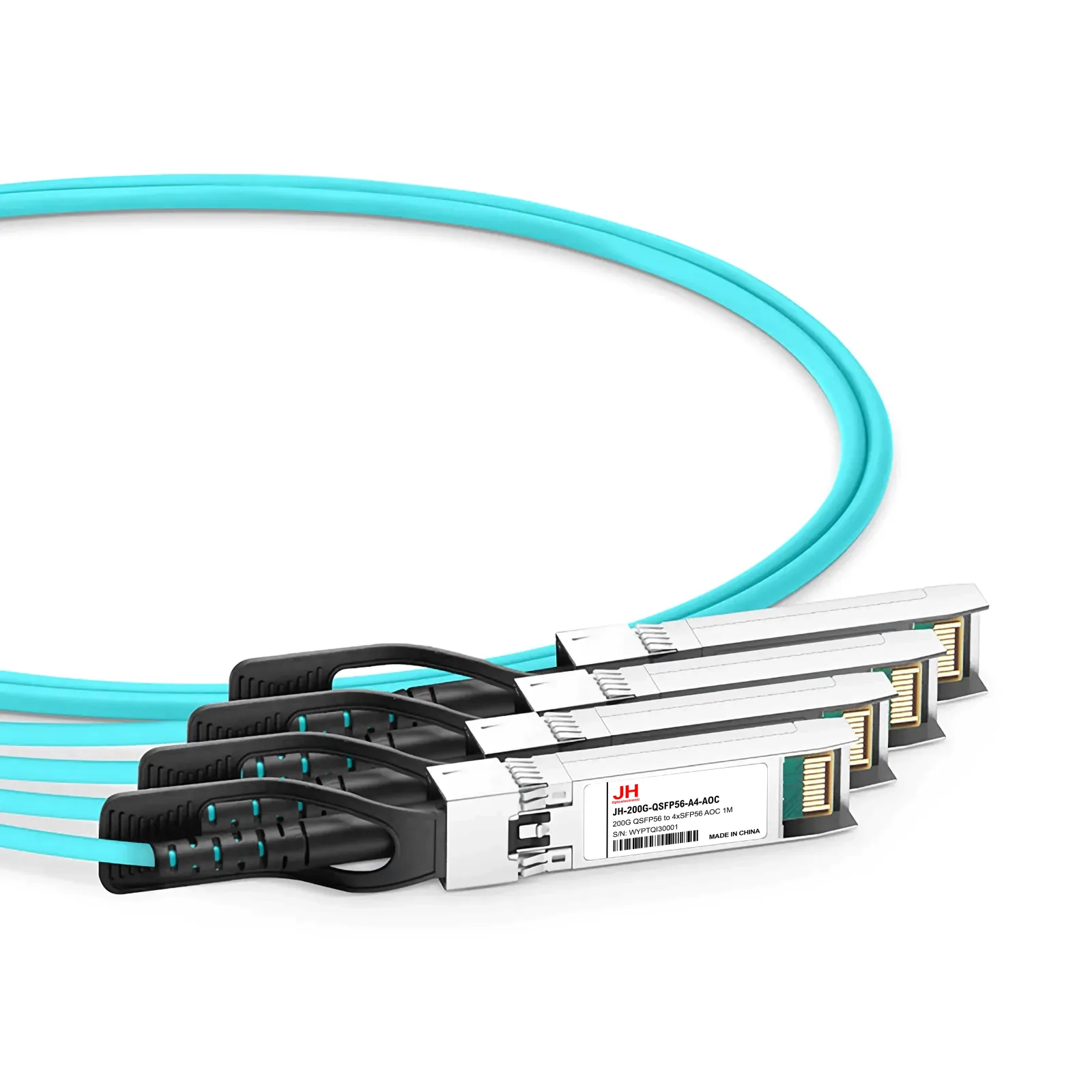

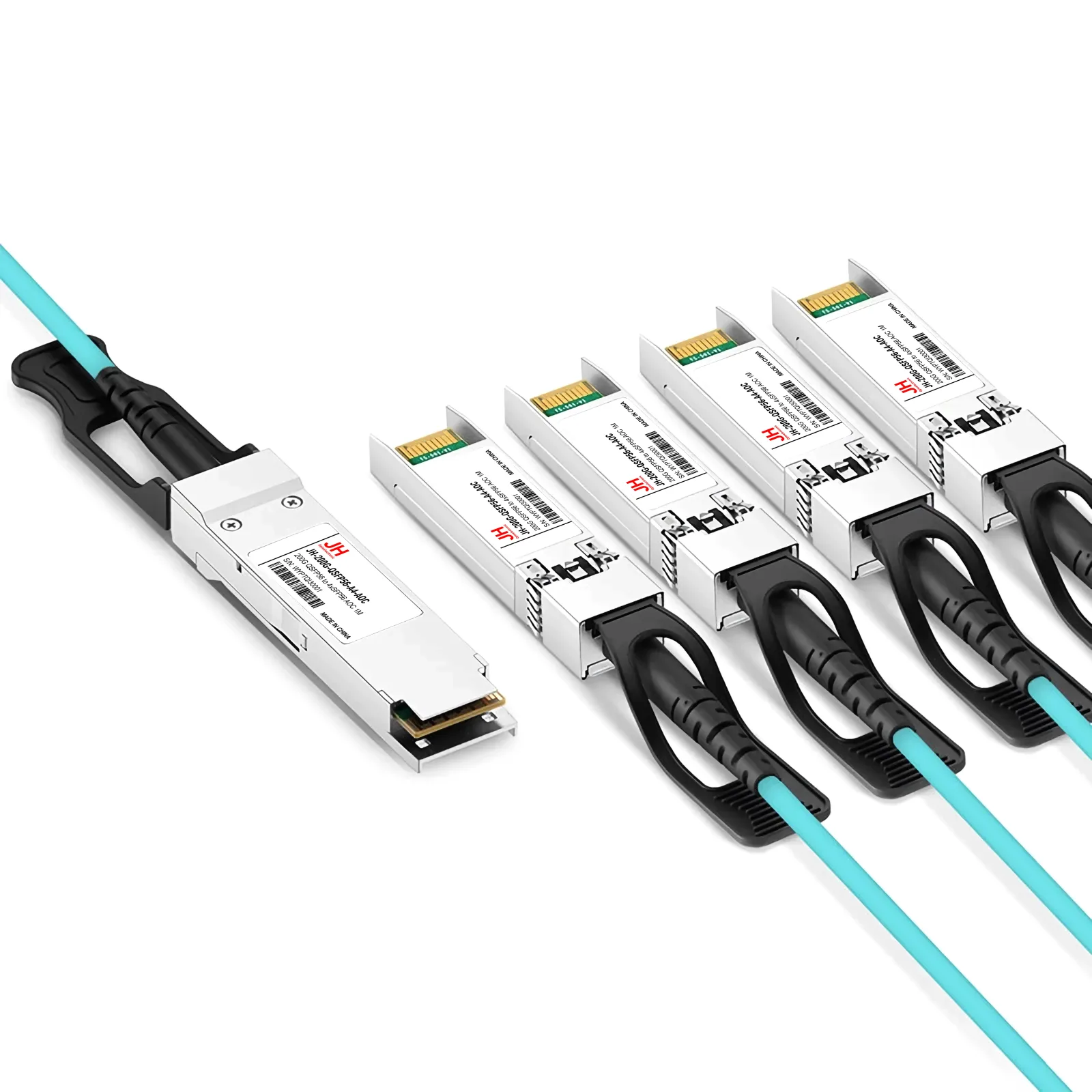

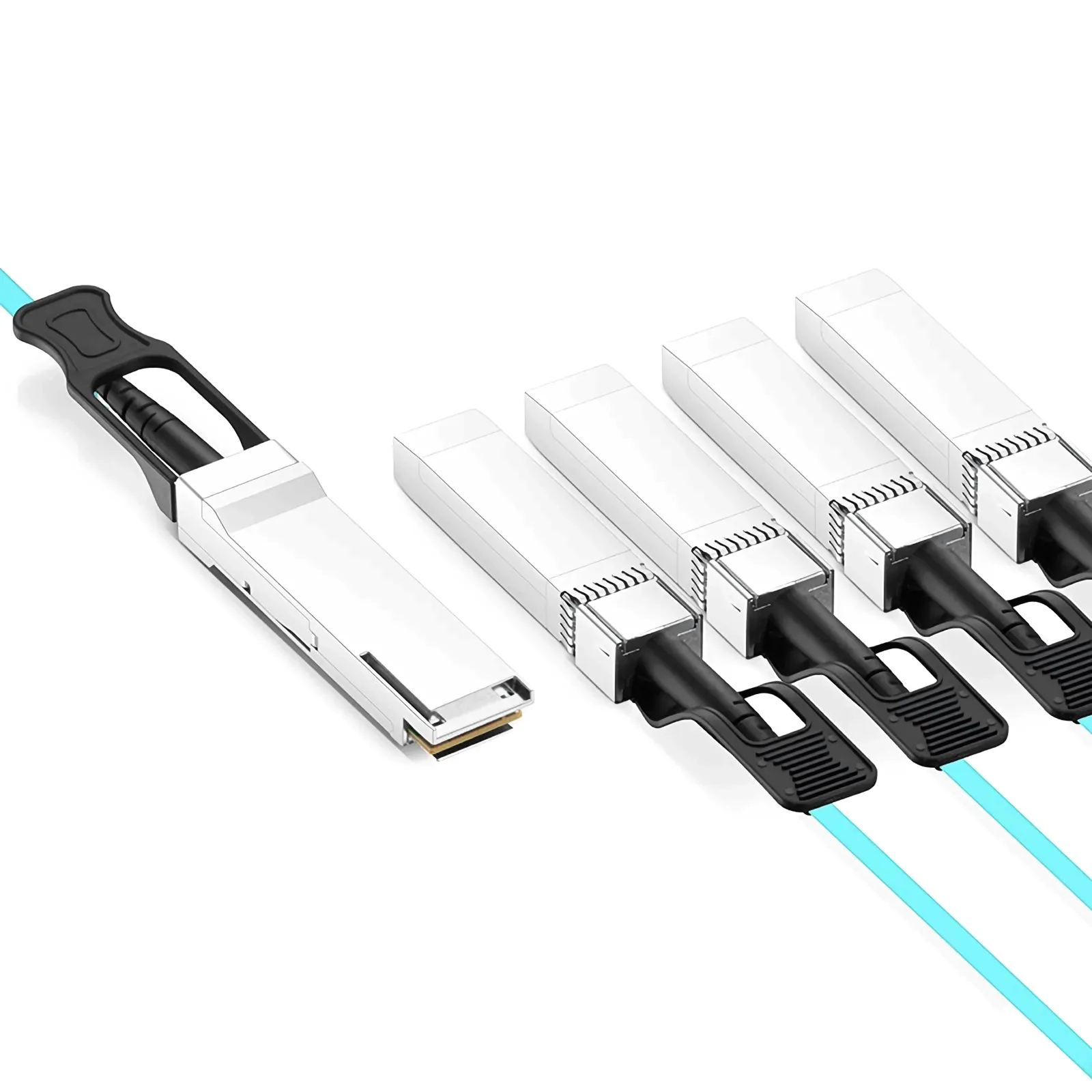

JH-200G-QSFP56-A4-AOC 200G QSFP56 to 4x50G SFP56 Breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). This breakout cable is compliant with QSFP56 MSA/SFP56 MSA and IEEE Standards. It provides a connection of a 200G QSFP56 port on one end and to four SFP56 connectors on the other end and is suitable for quick and simple connections within racks and across adjacent racks.

Features

Hot-pluggable QSFP56 to 4xSFP56 Active Optical Cable assembly
Supports 200Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 4W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 200G Interconnect, High-Density, Lightweight and EMI Immune

Specifications

Data Rate	200G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP56 to 4xSFP56
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-6.5~4
Receiver Sensitivity	-8.4
Power consumption（Max）	4W
