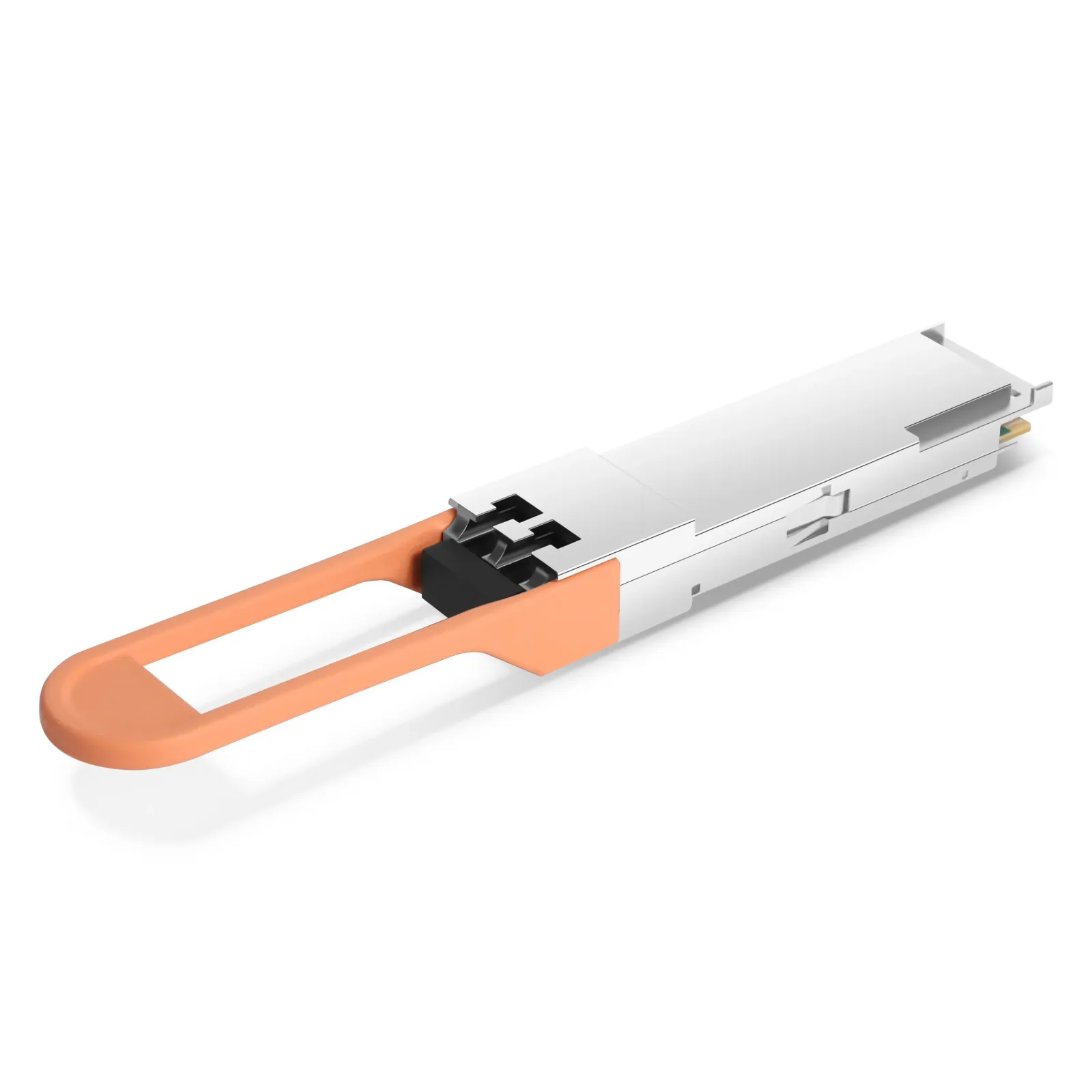

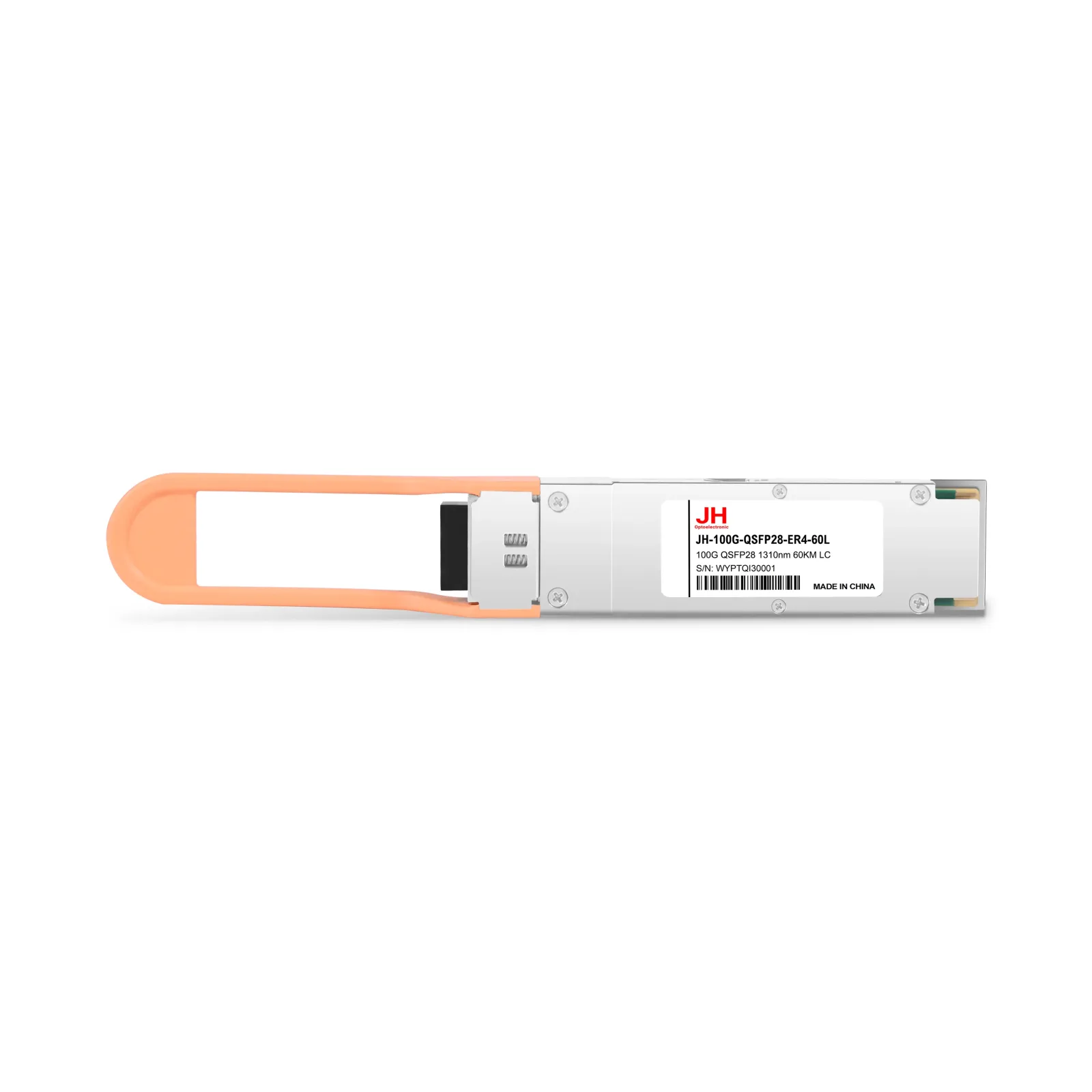

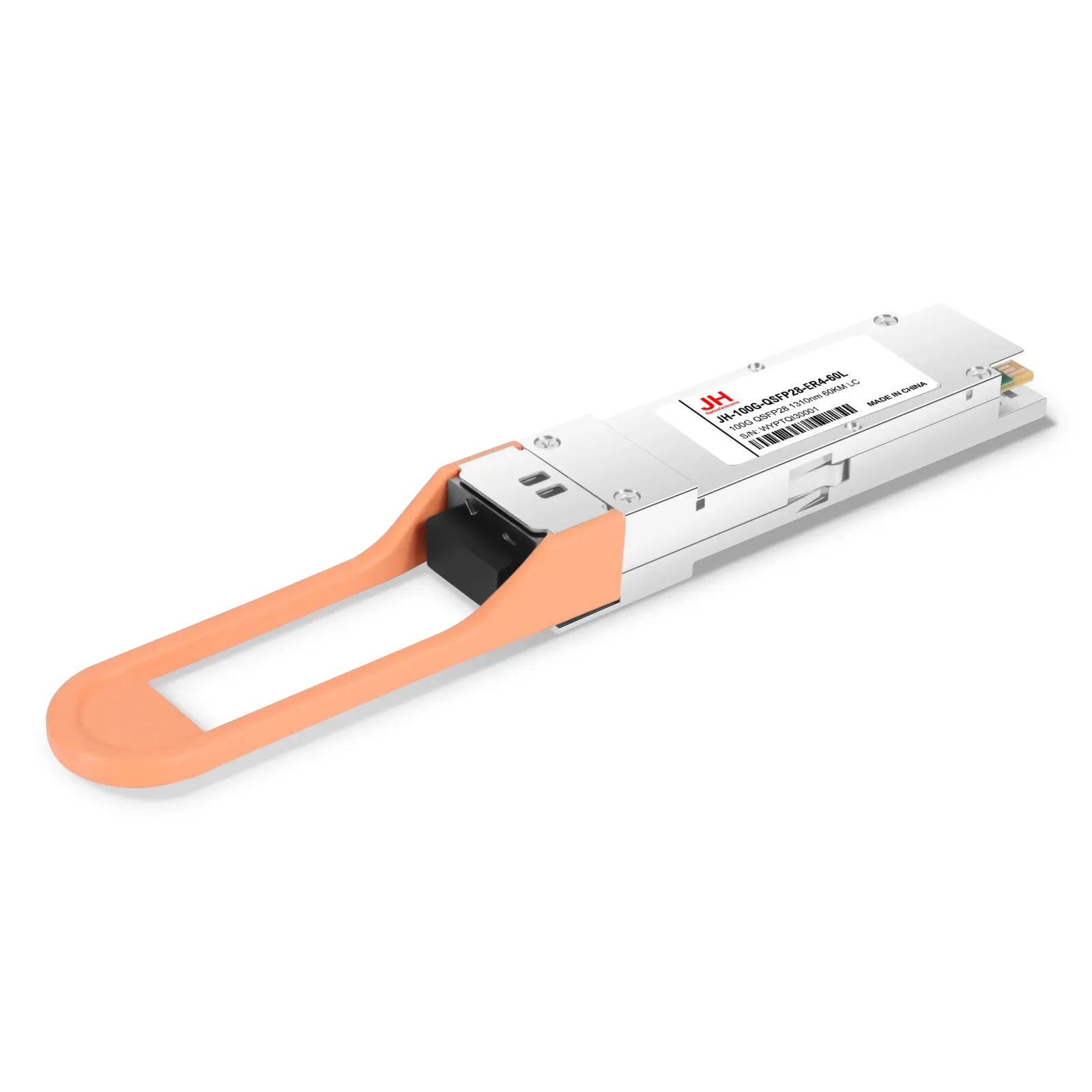

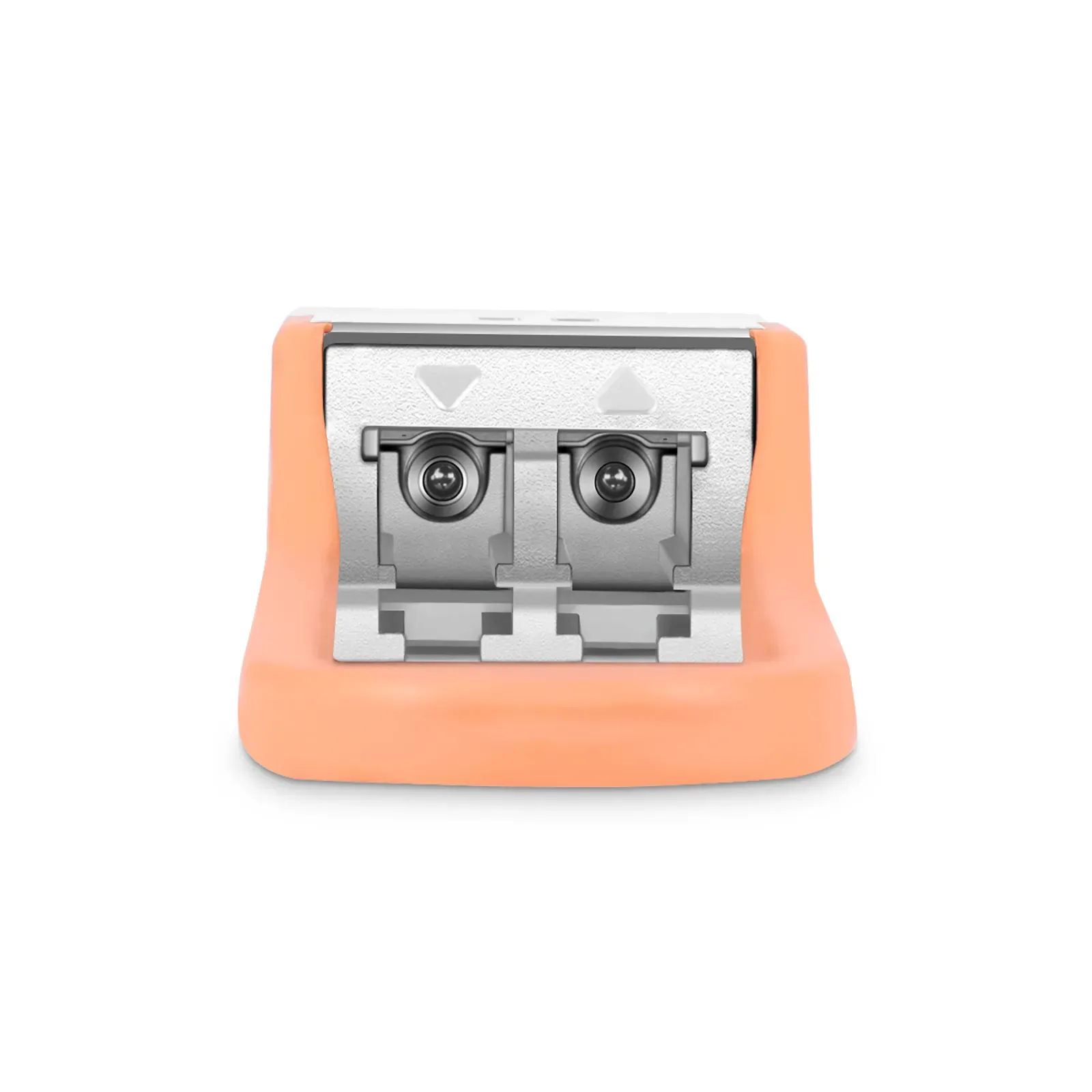

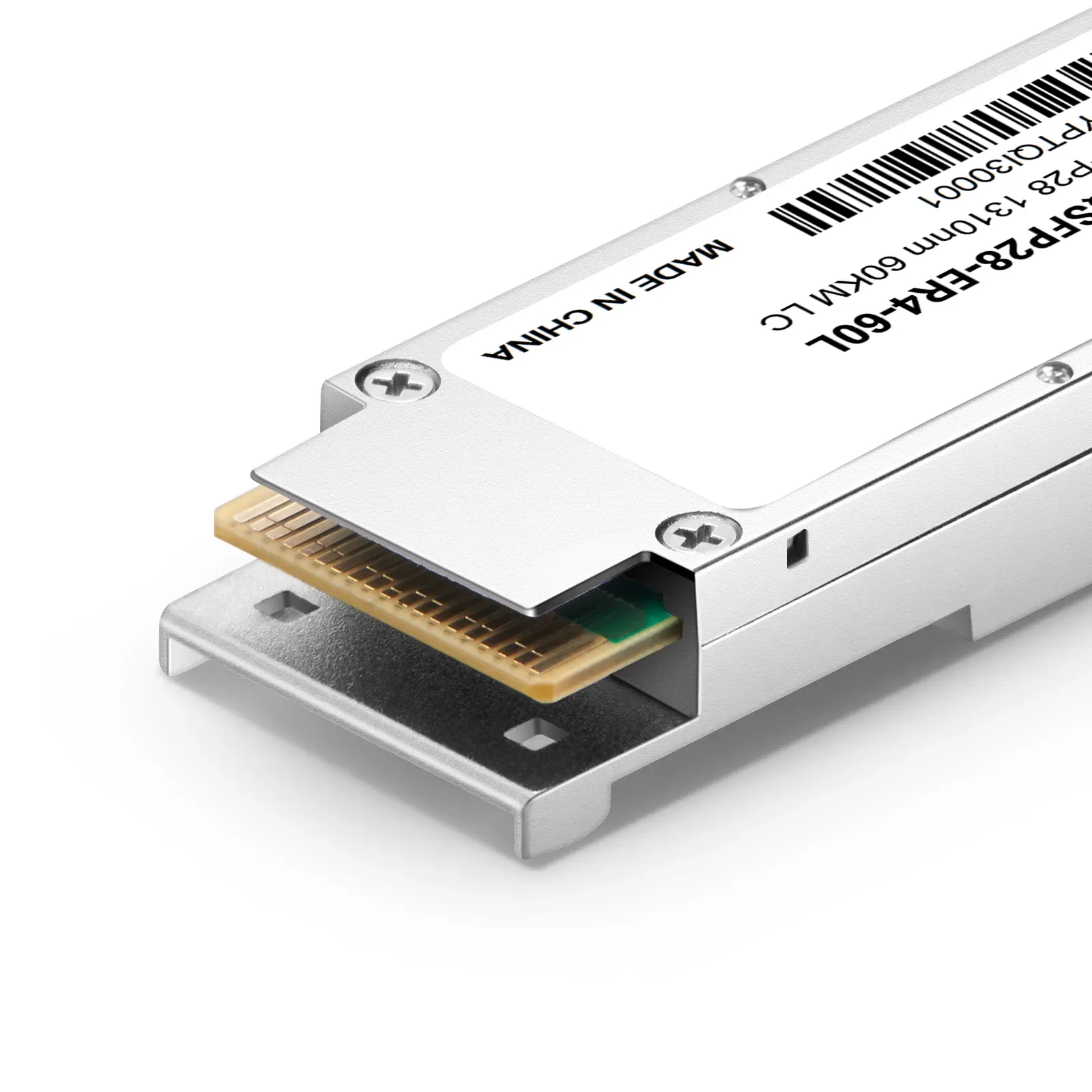

Model: 100G QSFP28 1310nm 60KM LC
JH-100G-QSFP28-ER4-60L module is designed for 60km optical communication applications. This module contains a 4-lane optical transmitter, a 4-lane optical receiver, and a module management block, including a 2-wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry-standard LC connector. With these features, this easy-to-install, hot-swappable transceiver is suitable for various applications, such as 100G telecom connections, data centers, high-performance computing networks, and enterprise core and distribution layer applications.
| Data Rate | 100G |
| Distance | 60KM |
| Wavelength | 1310nm |
| Form Factor | QSFP28 |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | SOA+PIN |
| TX Power | 1~6.5 |
| Receiver Sensitivity | -26 |
| Power consumption（Max） | 5.5W |
