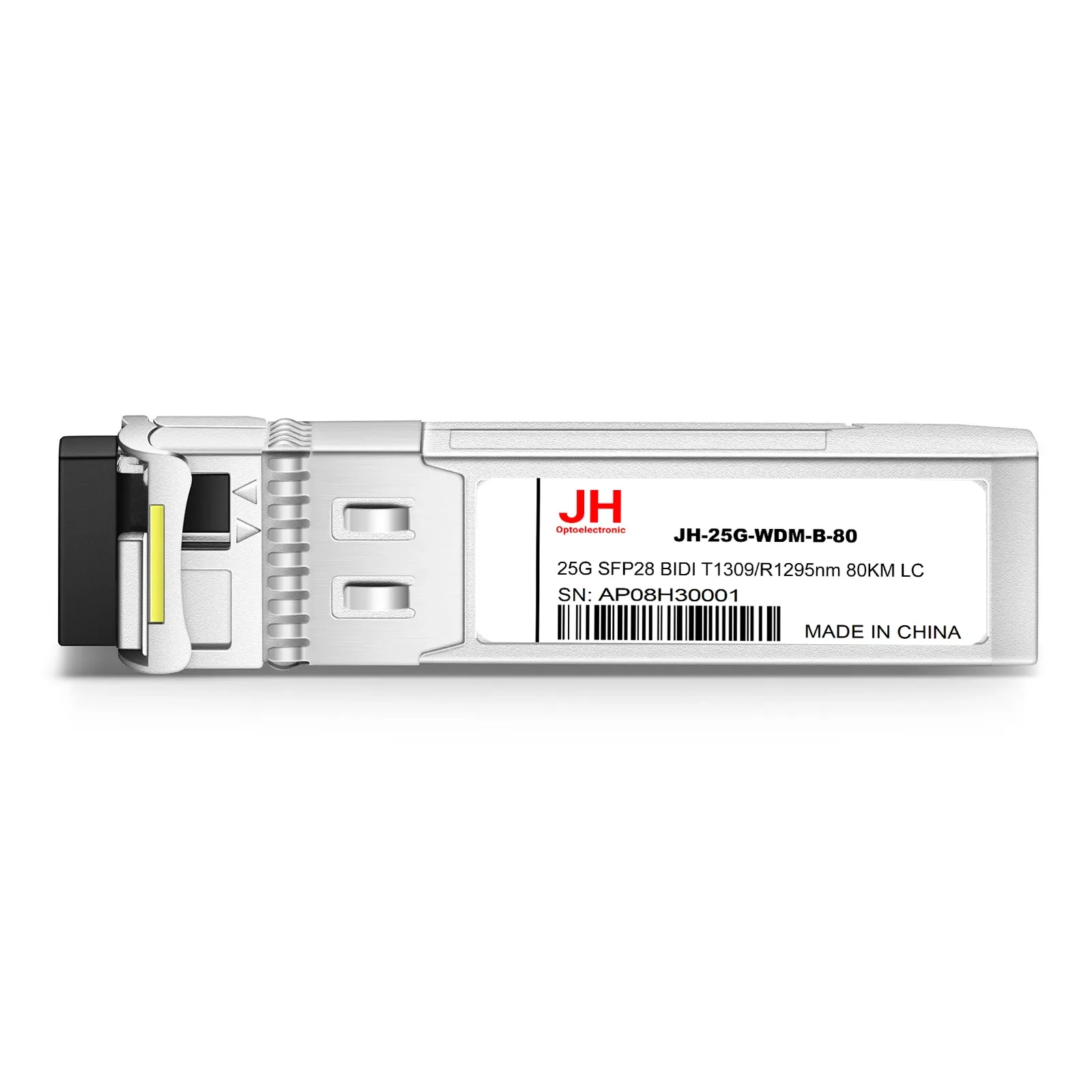

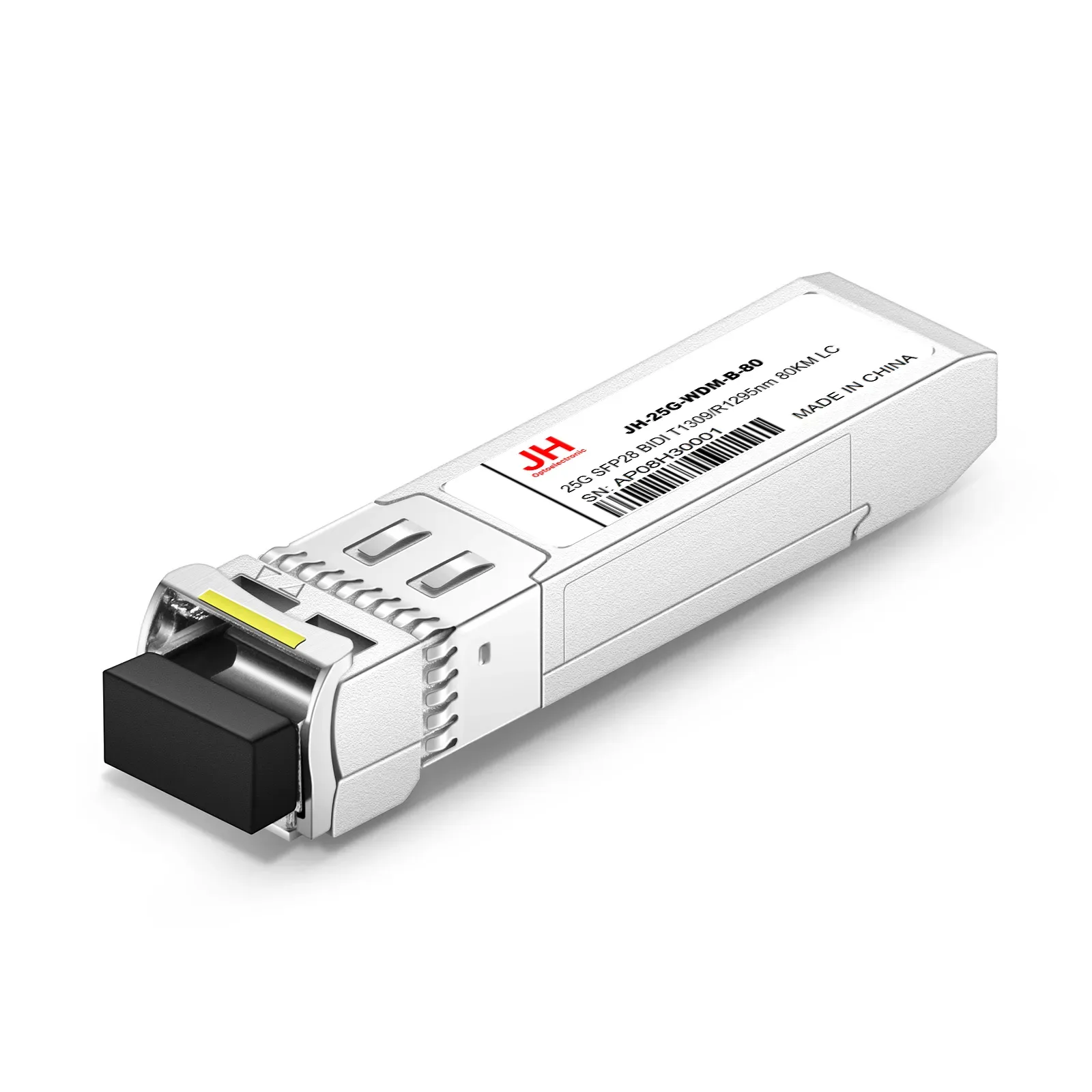

Model: 25G SFP28 BIDI T1309/R1295nm 80KM LC
JH-25G-WDM-B-80L provides 25GBase-BX throughput up to 80km over single mode fiber (SMF) using a wavelength of 1309nm-TX/1295nm-RX via an LC simplex connector.This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
| Data Rate | 25G |
| Distance | 80KM |
| Wavelength | BIDI |
| Form Factor | SFP28 |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | SOA&PIN |
| TX Power | 2~7 |
| Receiver Sensitivity | -28 |
| Power consumption（Max） | 2.5W |
