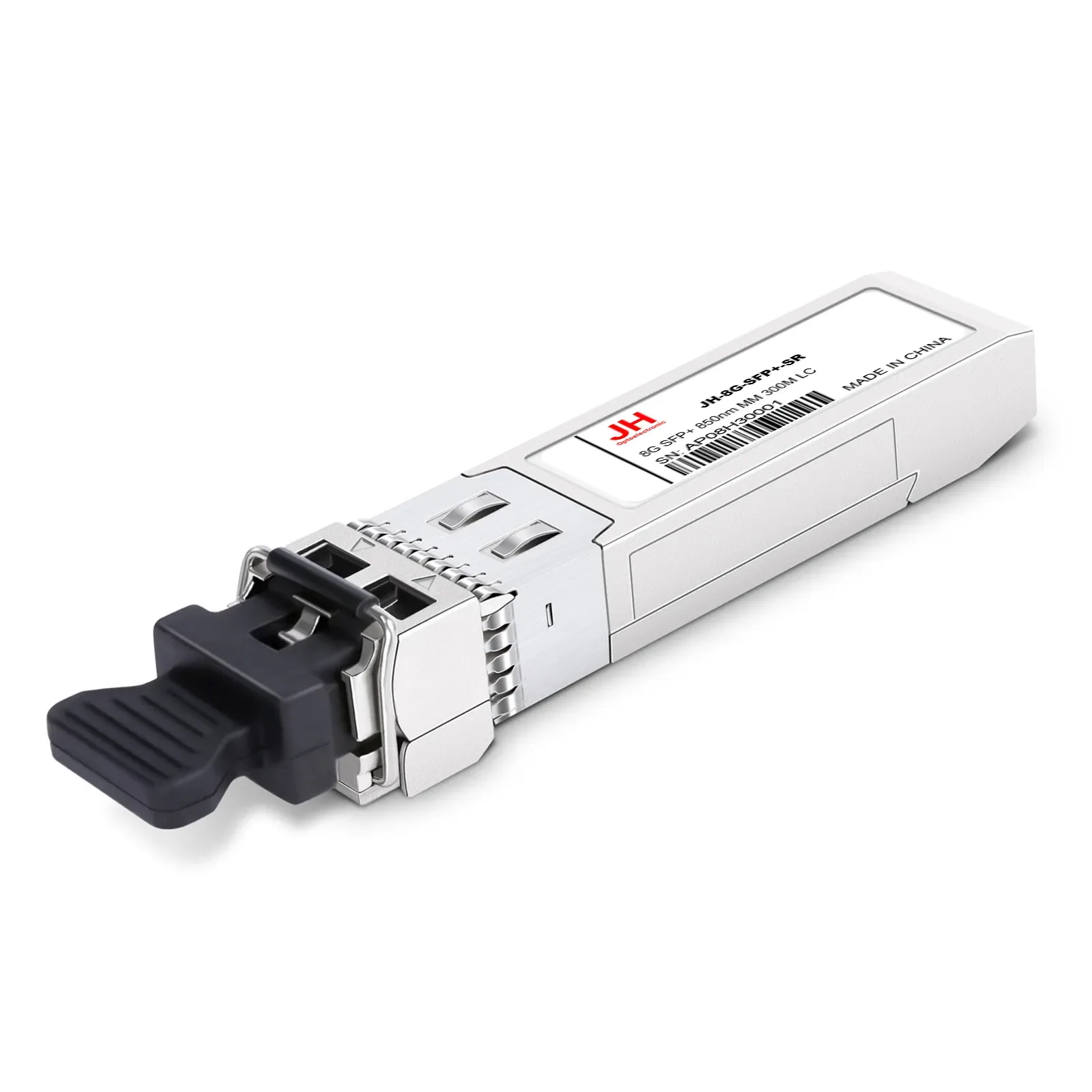

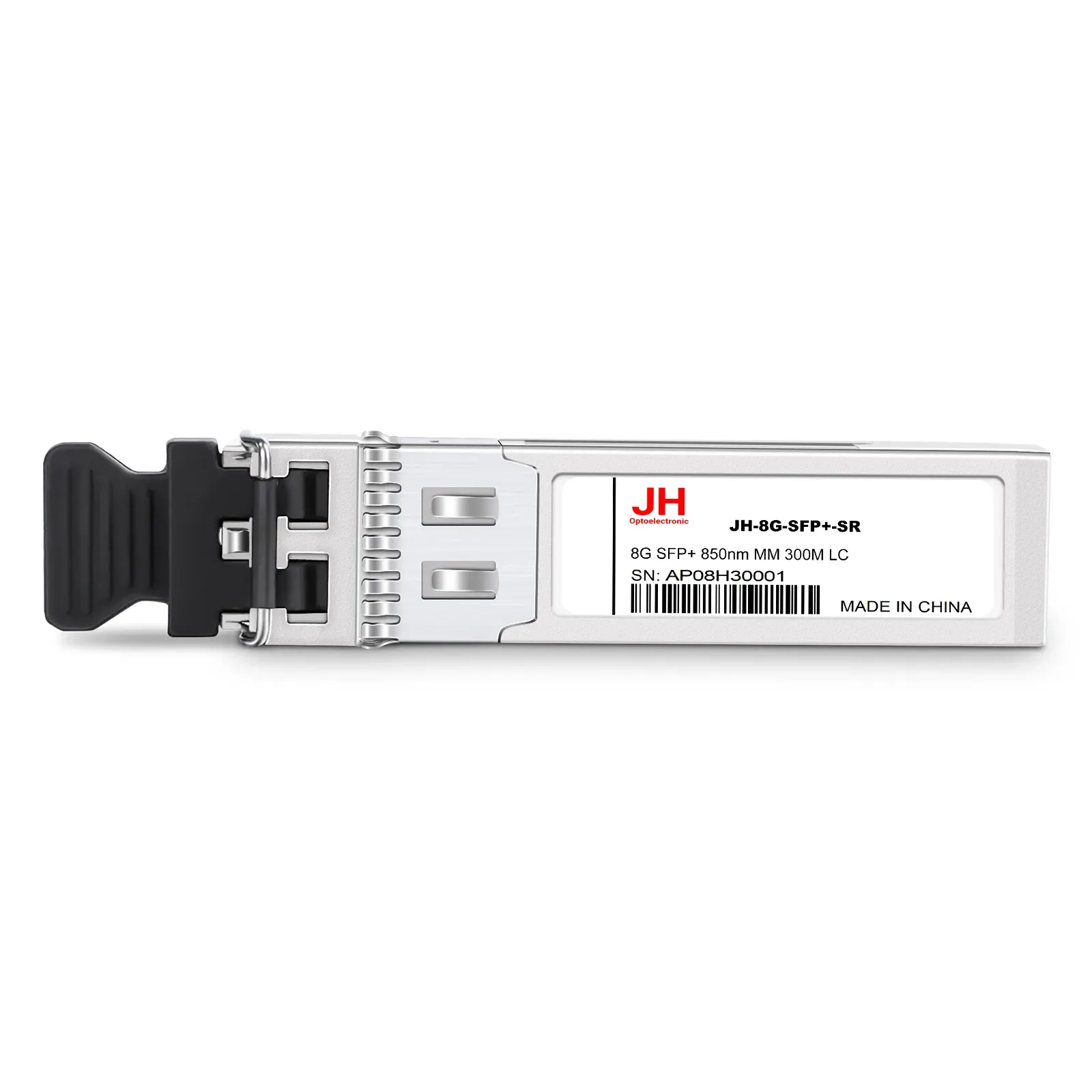

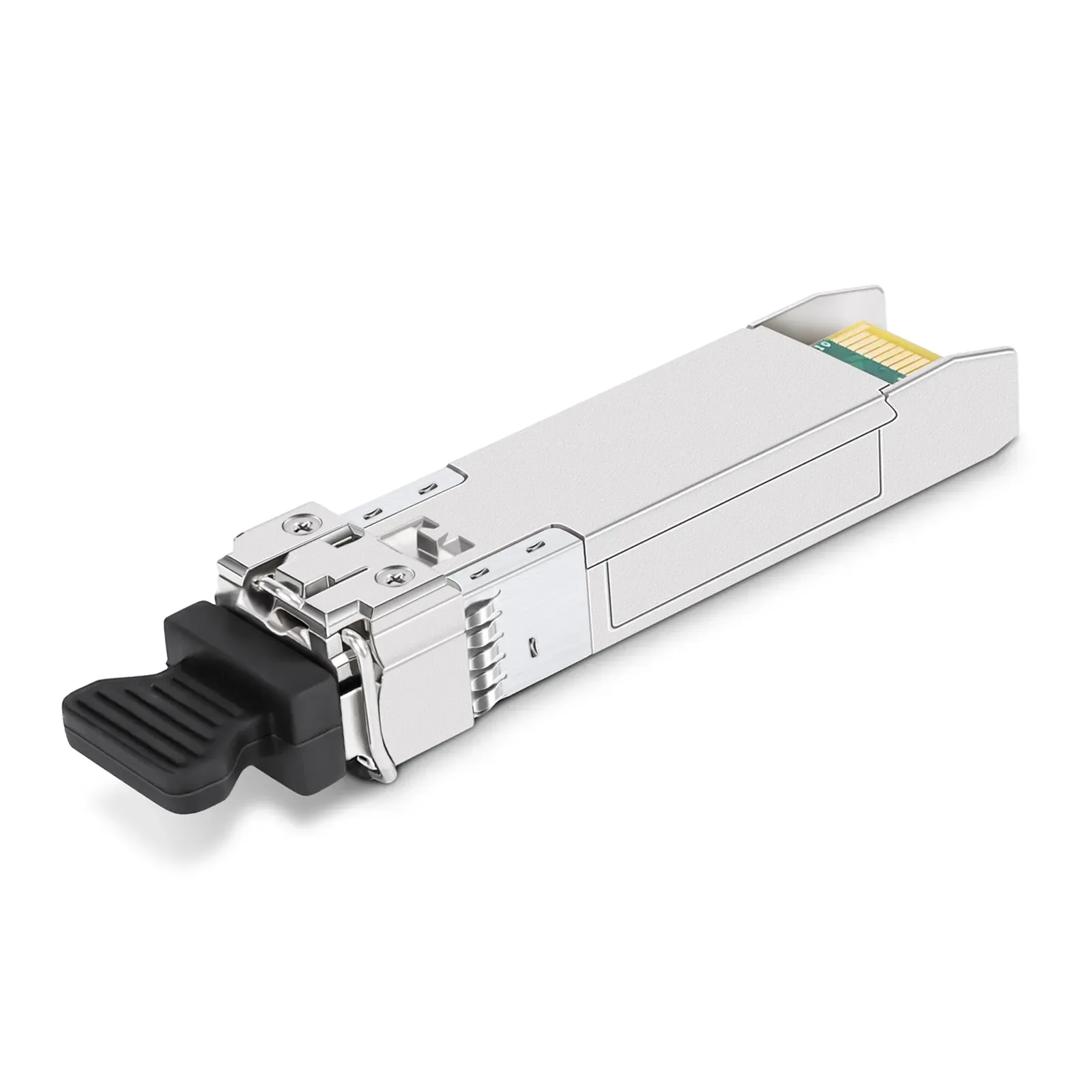

JH-8G-SFP+-SR

型号：8G SFP+ 850nm MM 300M LC

JH-8G-SFP+-SR provides 8GBase-SR throughput up to 300m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. This transceiver is compliant with SFF-8636 standards. Digital diagnostics functions are available via a 2-wire common management interface, as specified in SFF- 8472, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for fiber communications up to 8G. The FC transceiver is applied to Storage Area Networking in Data Centers, Data Center Fiber Channel Interconnections over Backbone, Enterprise Network SAN Interconnections, etc.

联系我们

产品特性

Hot-pluggable SFP+ form factor
Supports 8.5Gbps data rate, compliant with FC-PI-4 8G Fibre Channel standard
Maximum power consumption < 1W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Fibre Channel SAN, 8G FC Storage Networks

规格参数

Data Rate	8G
Distance	300M
Wavelength	850nm
Form Factor	SFP+

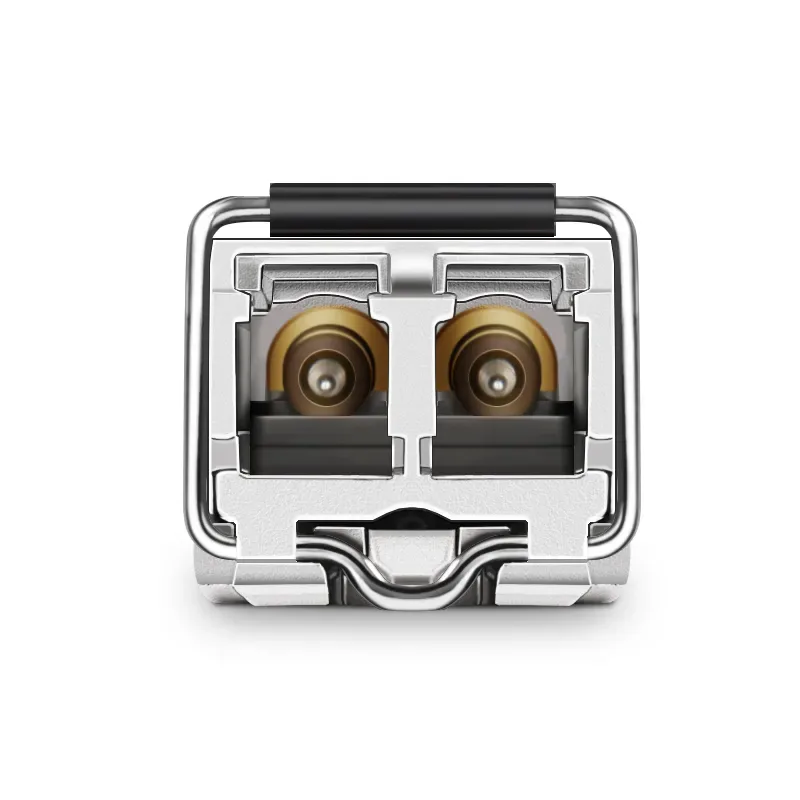

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-7.3~-1
Receiver Sensitivity	-11
Power consumption（Max）	1W
