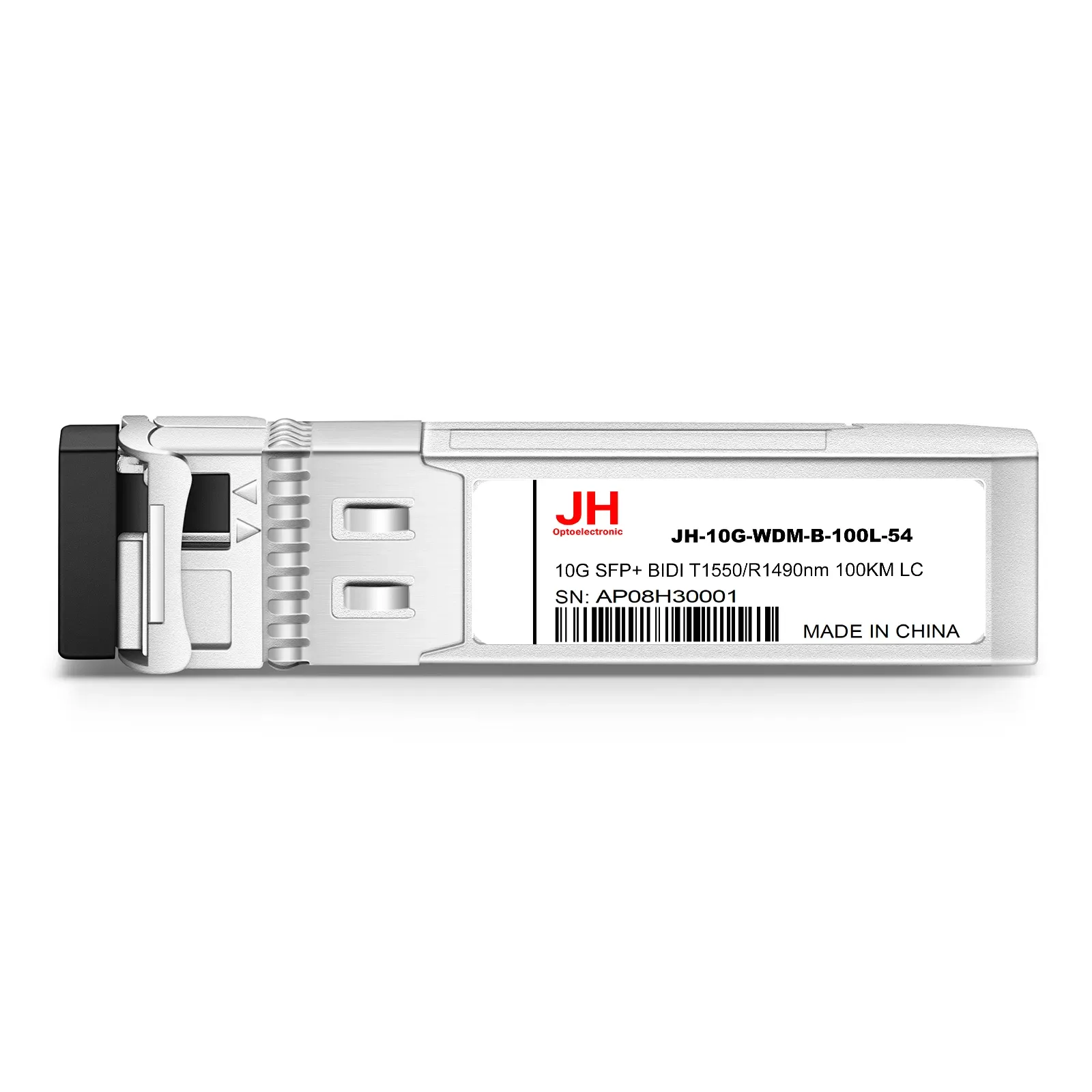

型号：10G SFP+ BIDI T1550/R1490nm 100KM LC
JH-10G-WDM-B-100L-54 supports up to 100km over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1550-nm channel and receives a 1490-nm signal, whereas the other BiDi SFP+ optics transmits at a 1490-nm wavelength and receives a 1550-nm signal.
| Data Rate | 10G |
| Distance | 100KM |
| Wavelength | BIDI |
| Form Factor | SFP+ |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | DFB |
| Receiver | APD |
| TX Power | 1~6 |
| Receiver Sensitivity | -25 |
| Power consumption（Max） | 1.5W |
