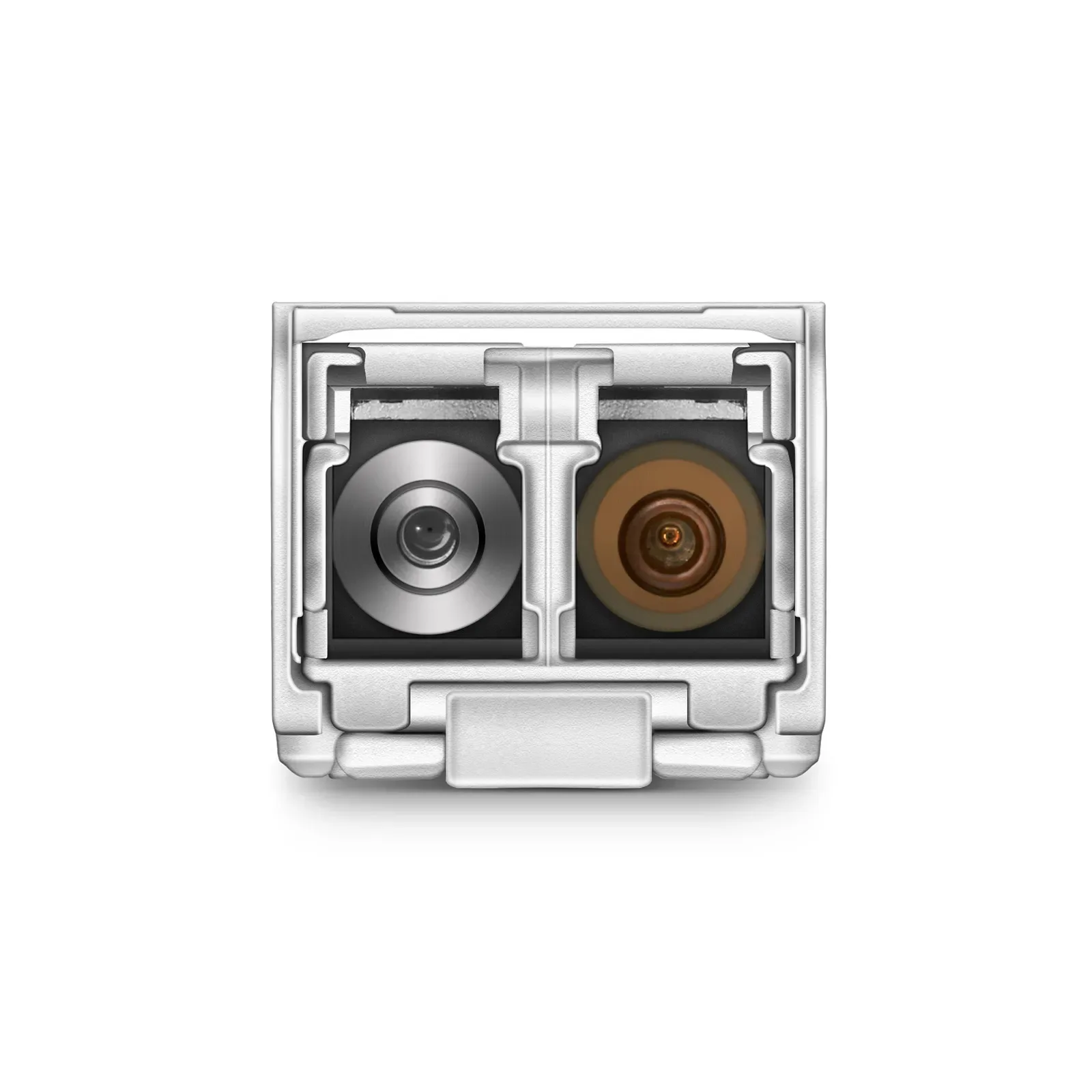

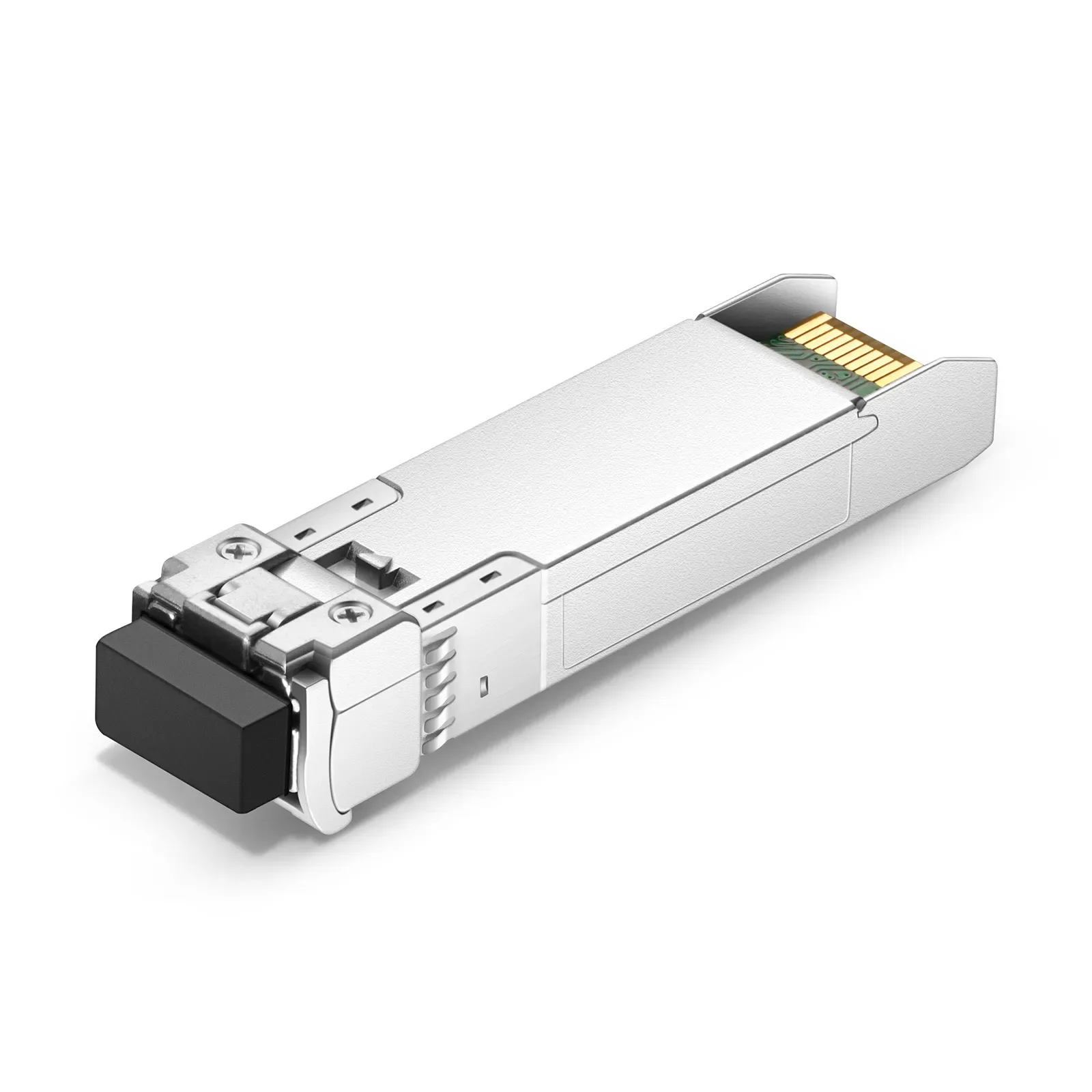

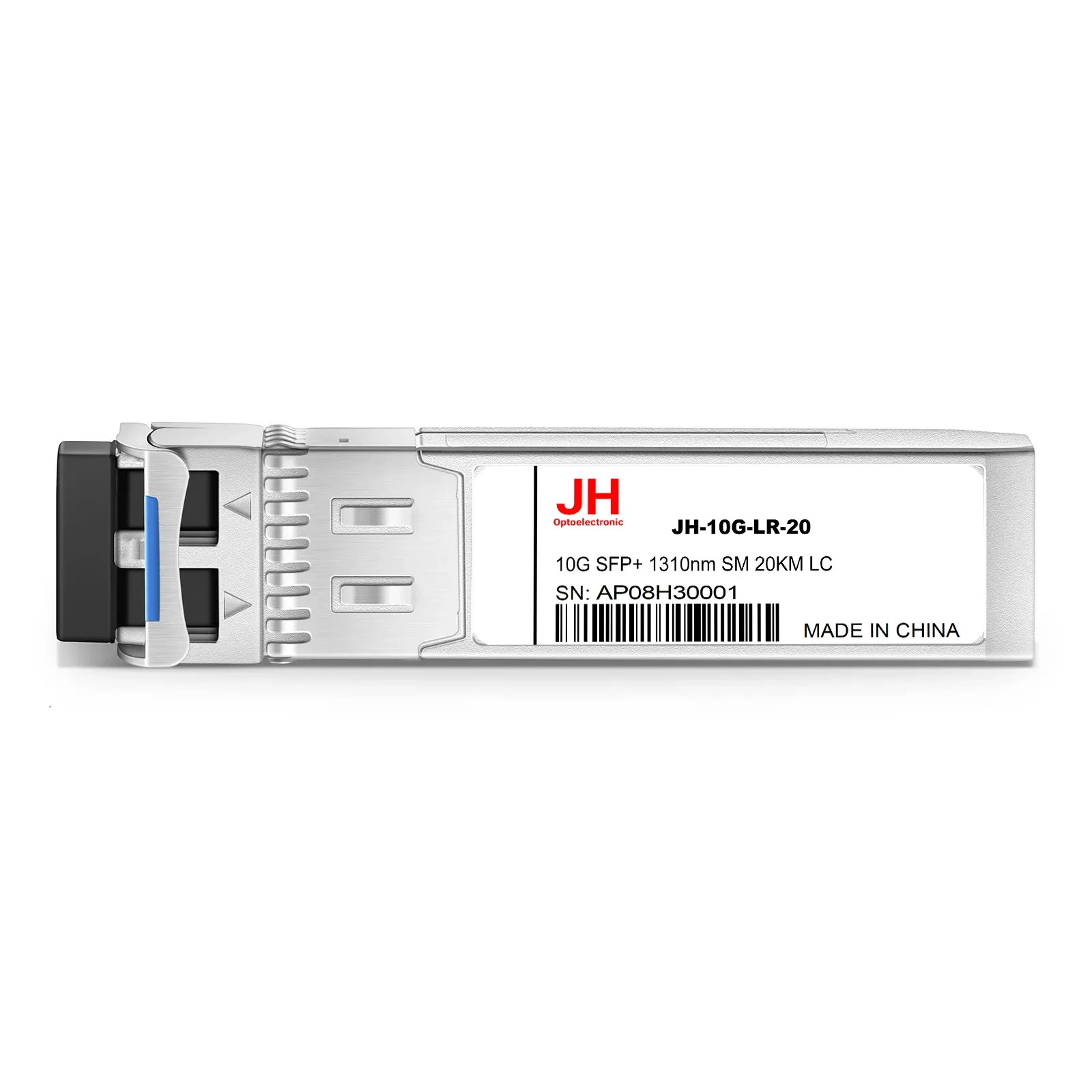

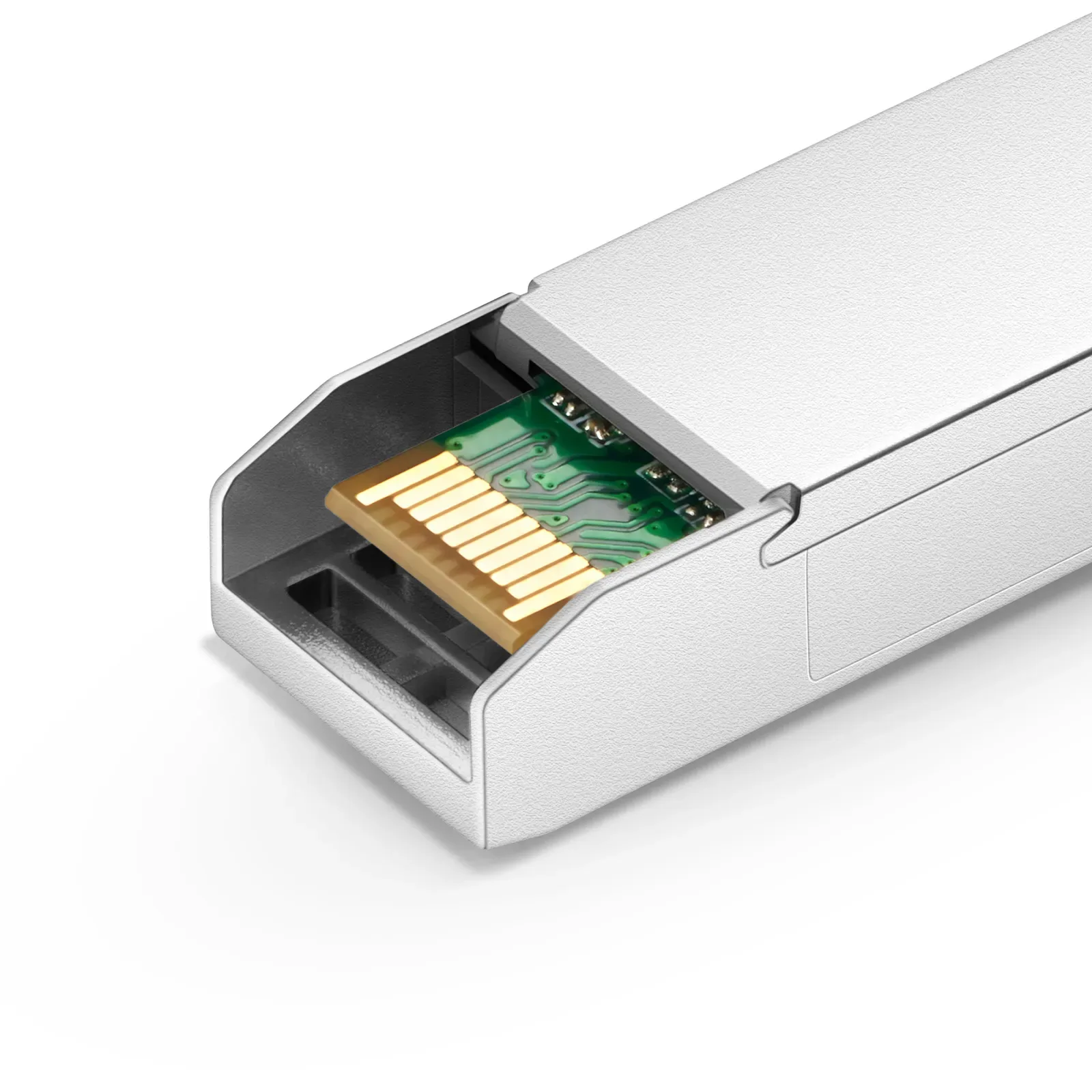

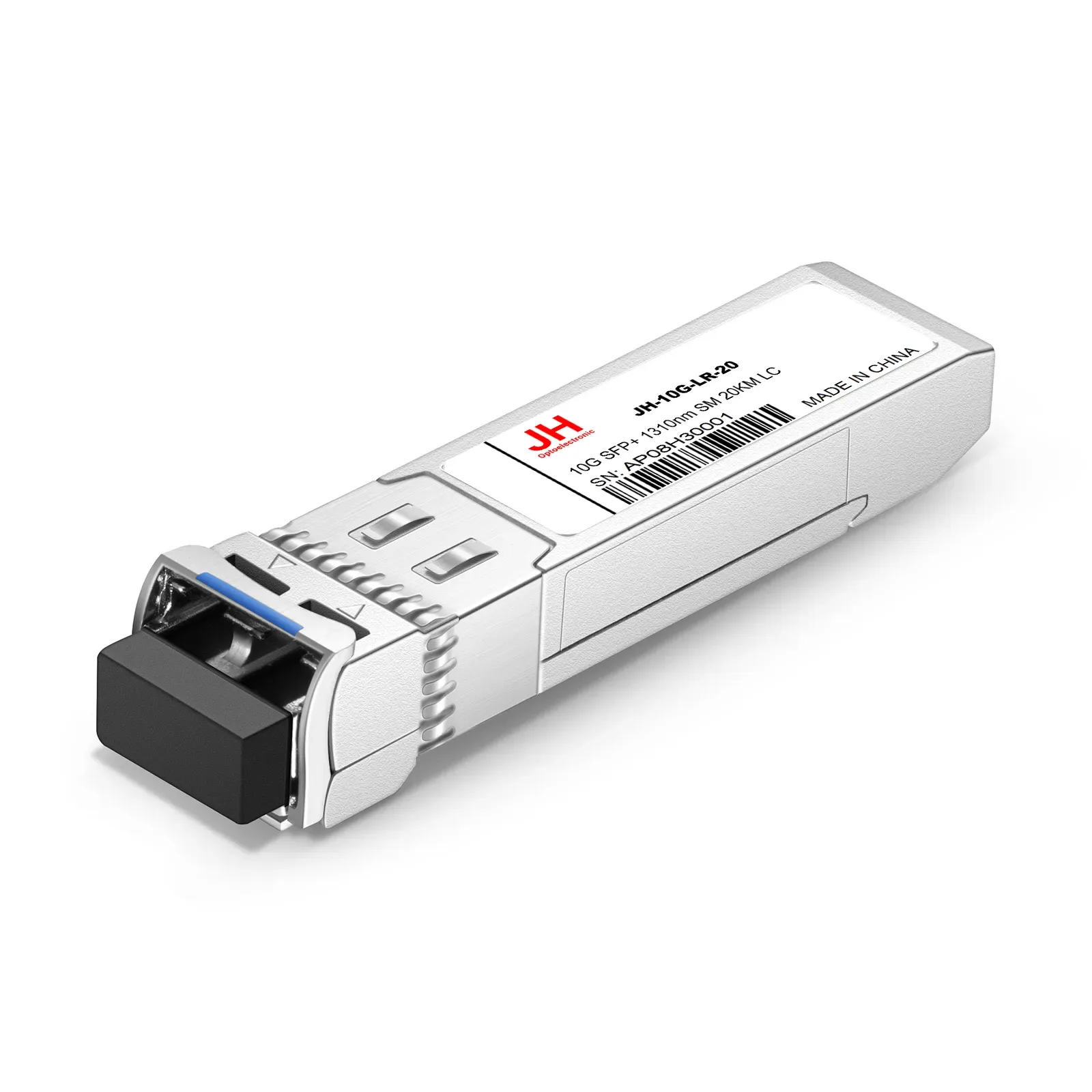

JH-10G-LR-20

型号：10G SFP+ 1310nm SM 20KM LC

JH-10G-LR-20 supports up to 20km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

联系我们

产品特性

Hot-pluggable SFP+ form factor
Supports 10.3125Gbps data transmission rate, compliant with IEEE 802.3ae 10G Ethernet standard
Maximum power consumption < 1.5W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise Campus, Metro Access

规格参数

Data Rate	10G
Distance	20KM
Wavelength	1310nm
Form Factor	SFP+
Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-5~0.5
Receiver Sensitivity	-14.4
Power consumption（Max）	1.5W
