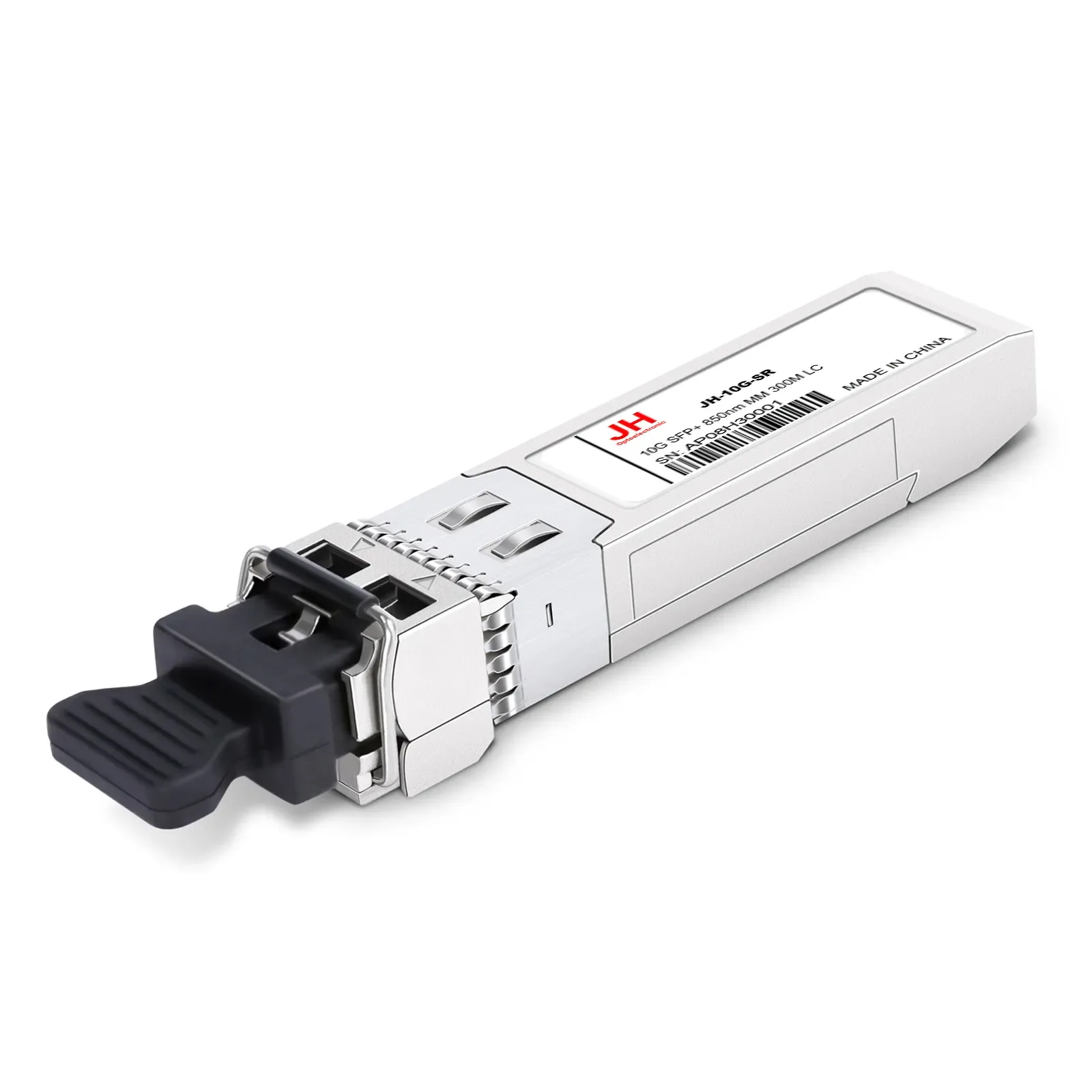

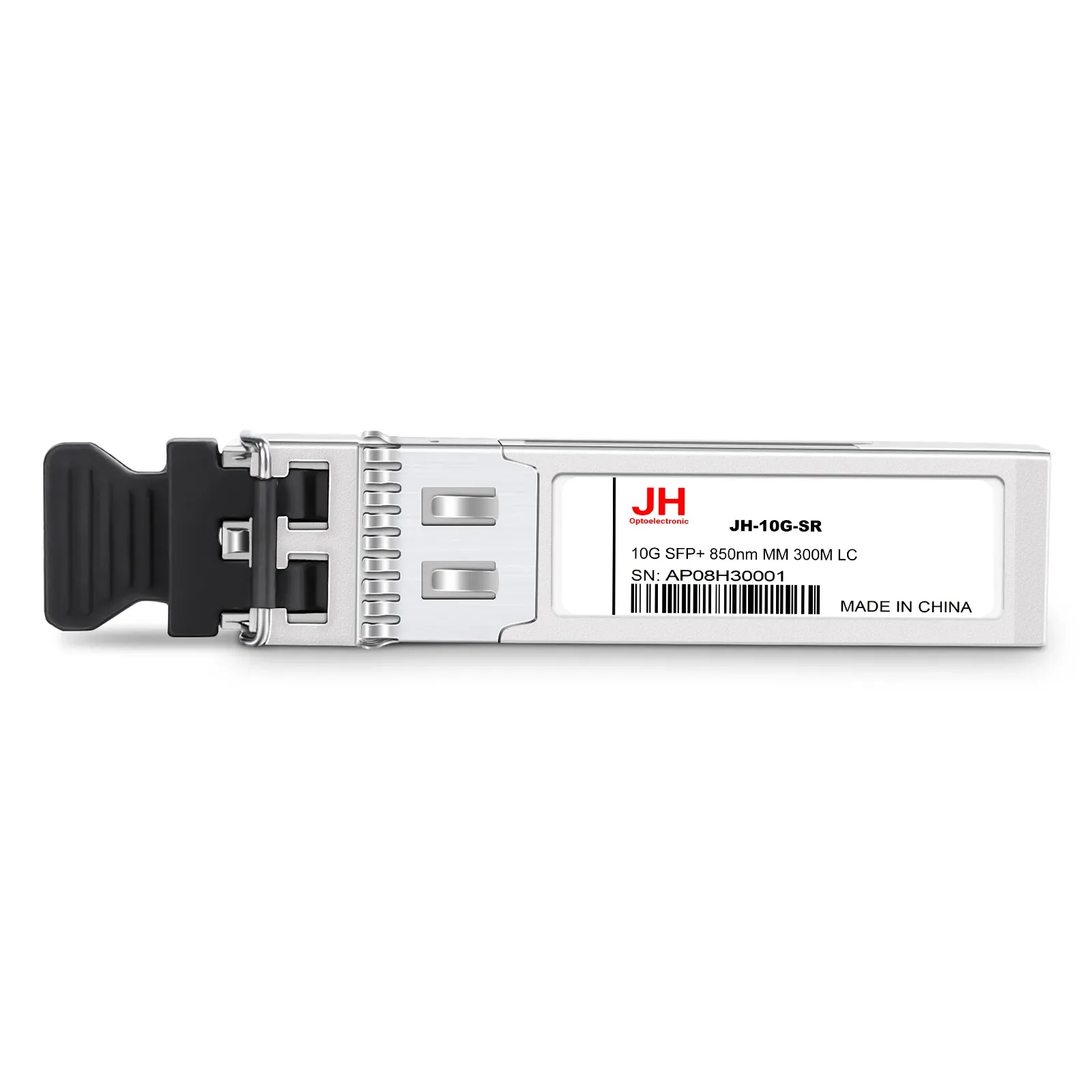

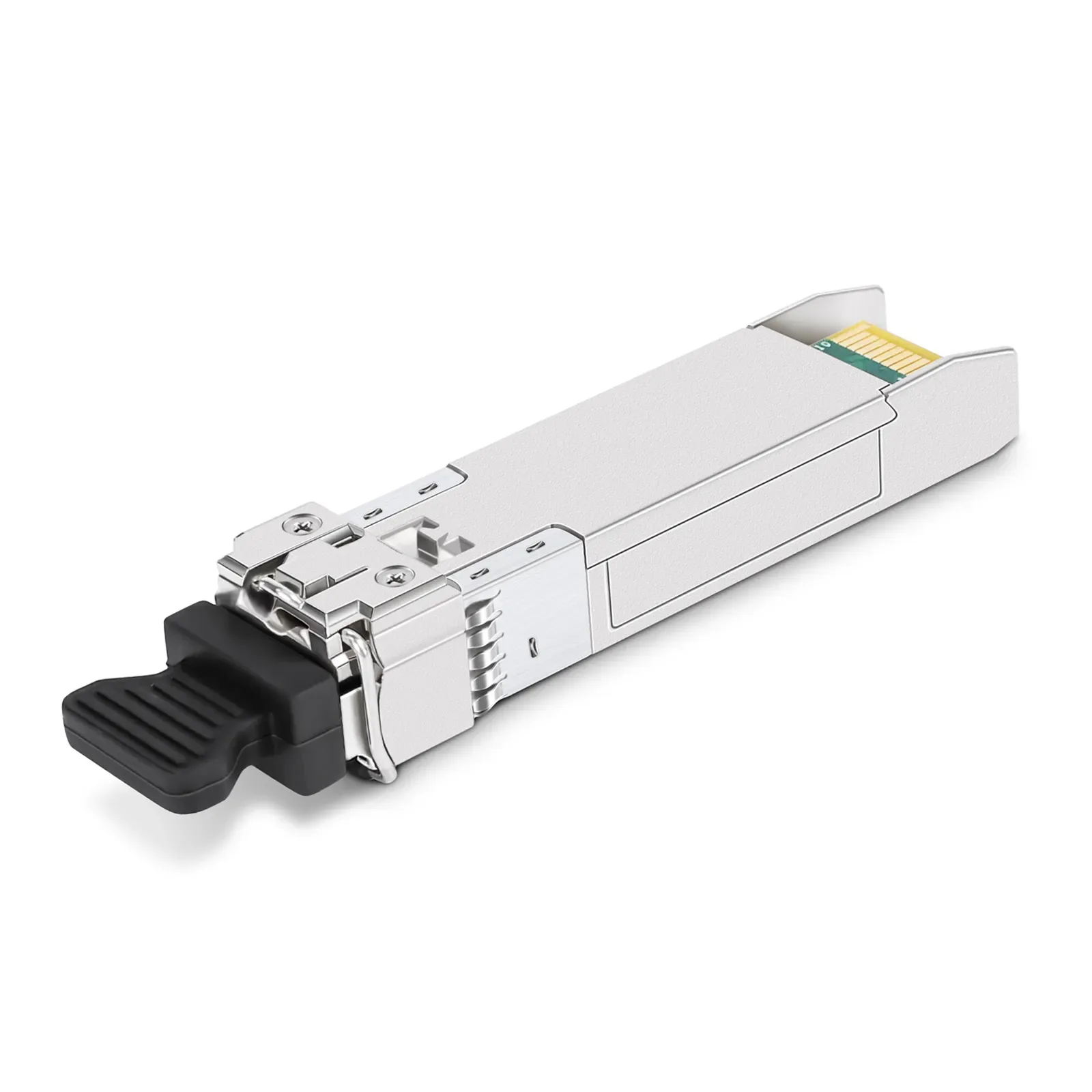

JH-10G-SR

型号：10G SFP+ 850nm MM 300M LC

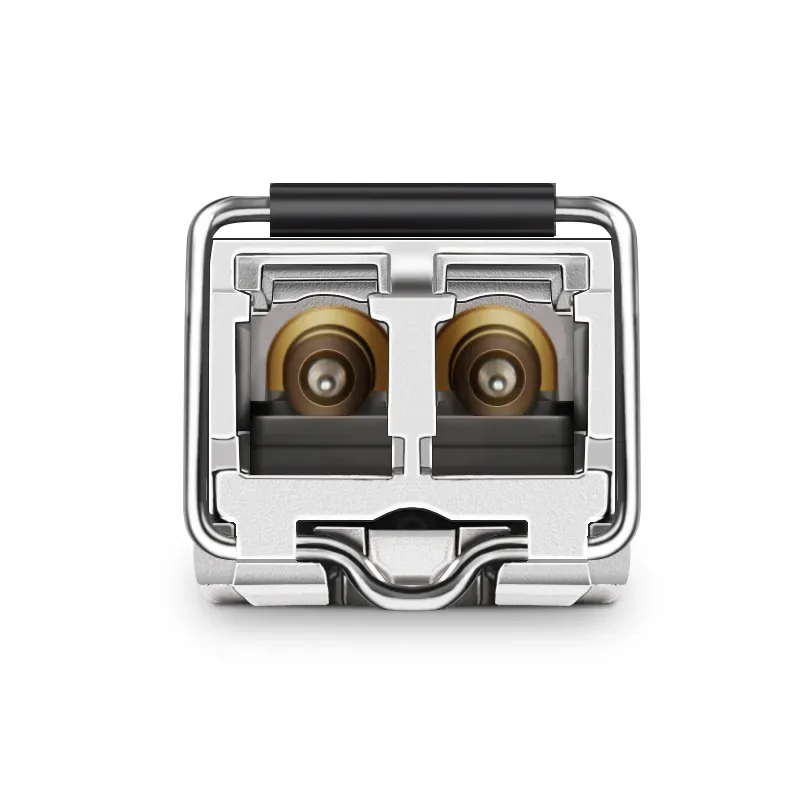

JH-10G-SR supports up to 300m over OM3 MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, IEEE 802.3-2012 10G-SR/SW and 1000BASE-SX. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 1G and 10G Ethernet etc.

联系我们

产品特性

Hot-pluggable SFP+ form factor
Supports 10.3125Gbps data transmission rate, compliant with IEEE 802.3ae 10G Ethernet standard
Maximum power consumption < 0.8W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise LAN Backbone, Server Access

规格参数

Data Rate	10G
Distance	300M
Wavelength	850nm
Form Factor	SFP+
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-6~1
Receiver Sensitivity	-12
Power consumption（Max）	0.8W
