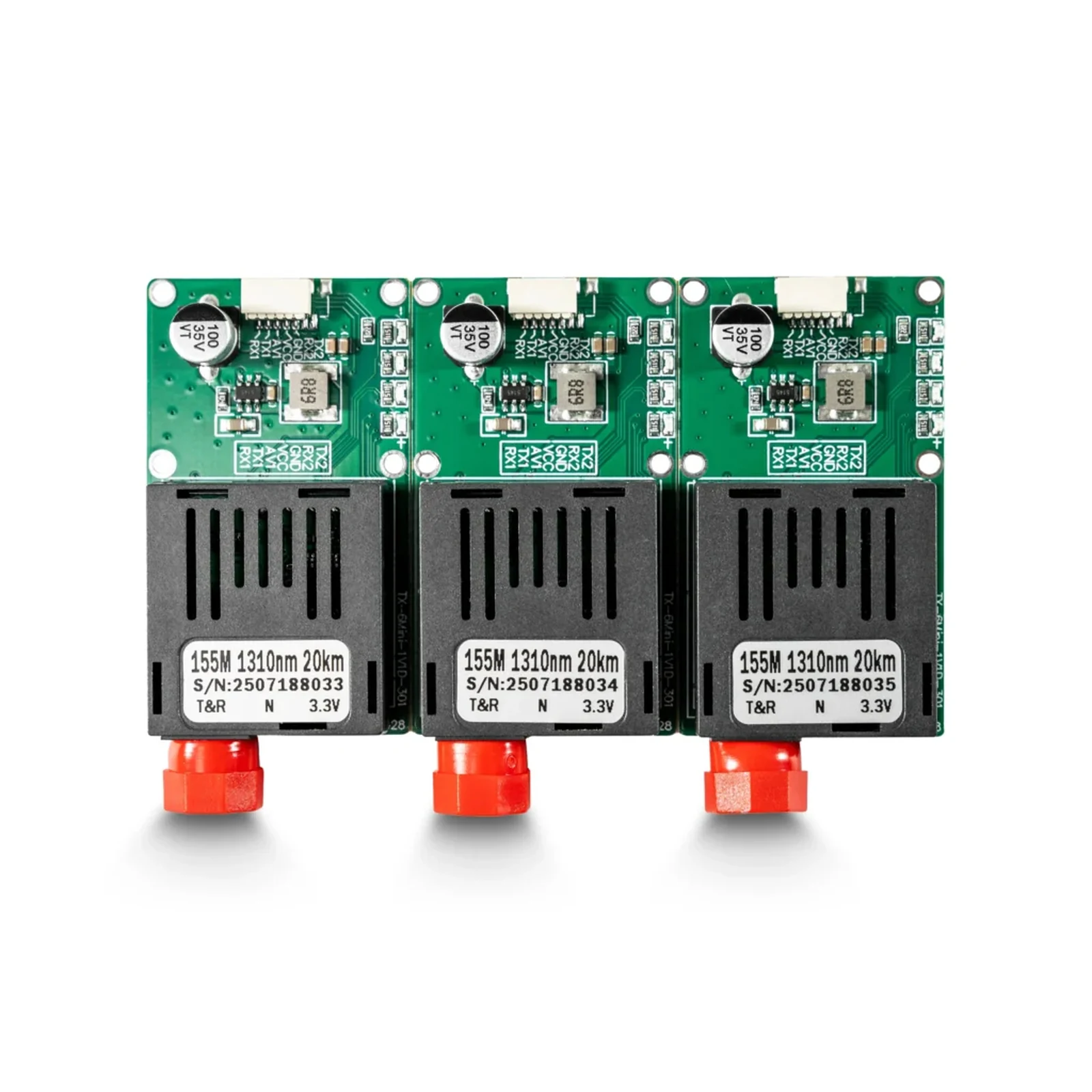

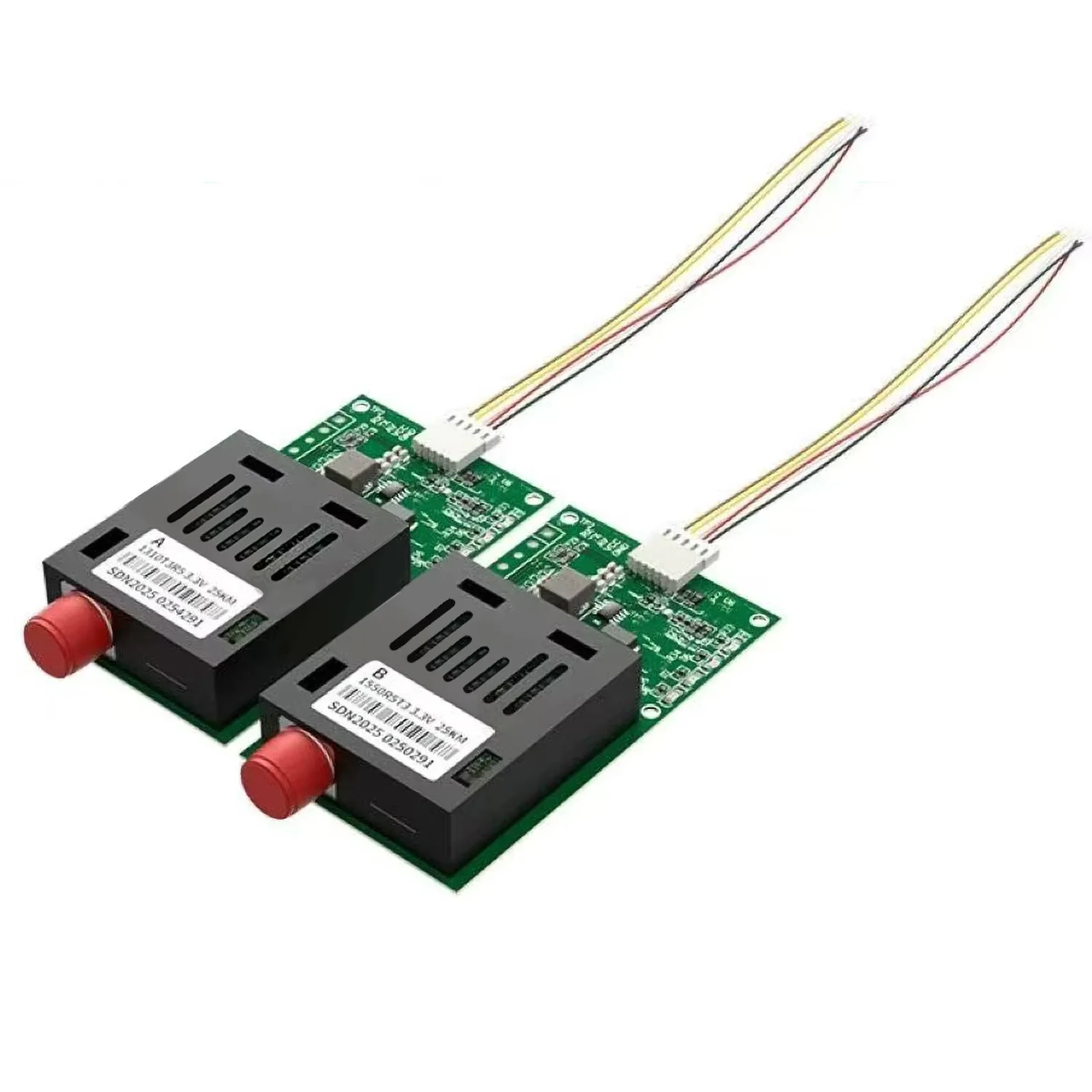

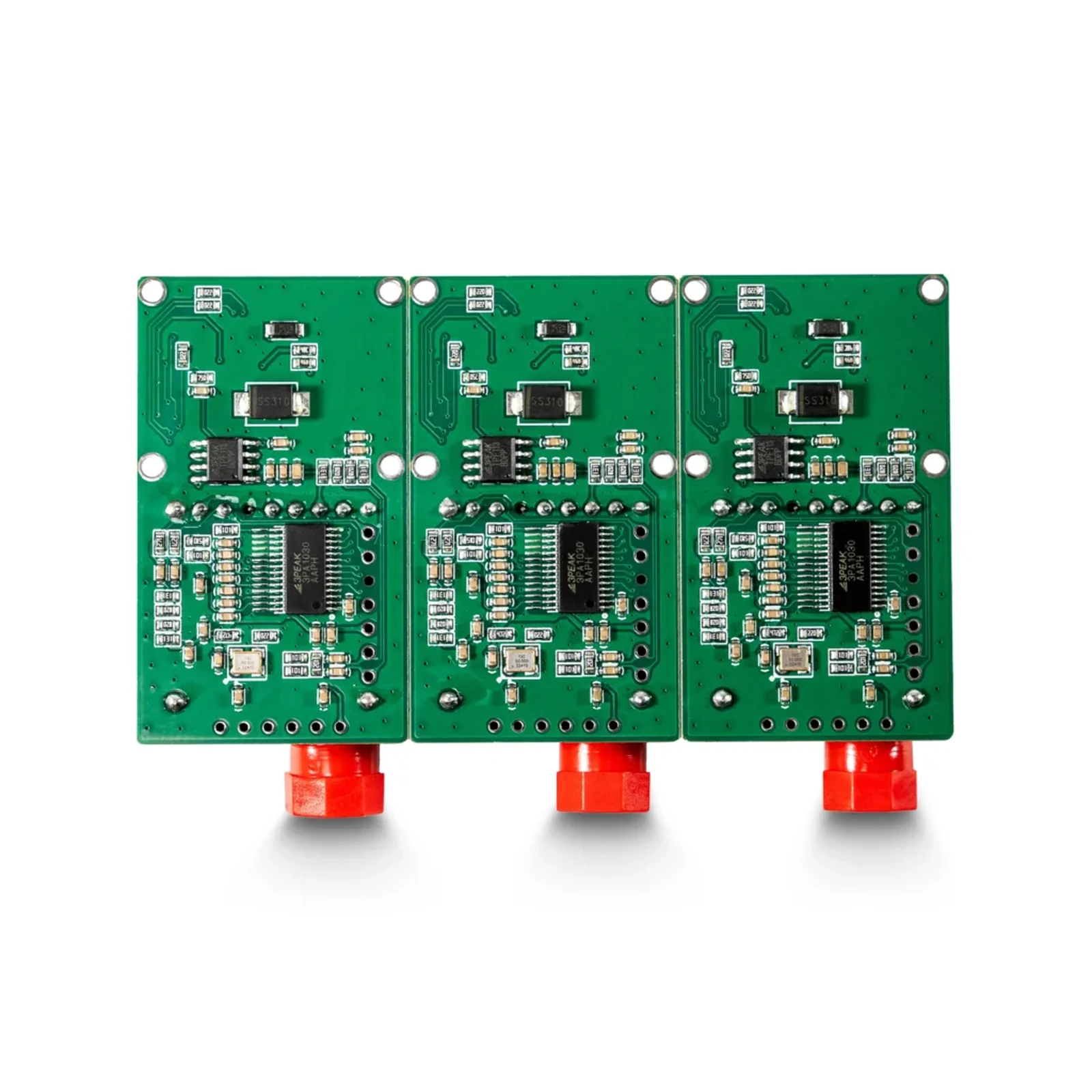

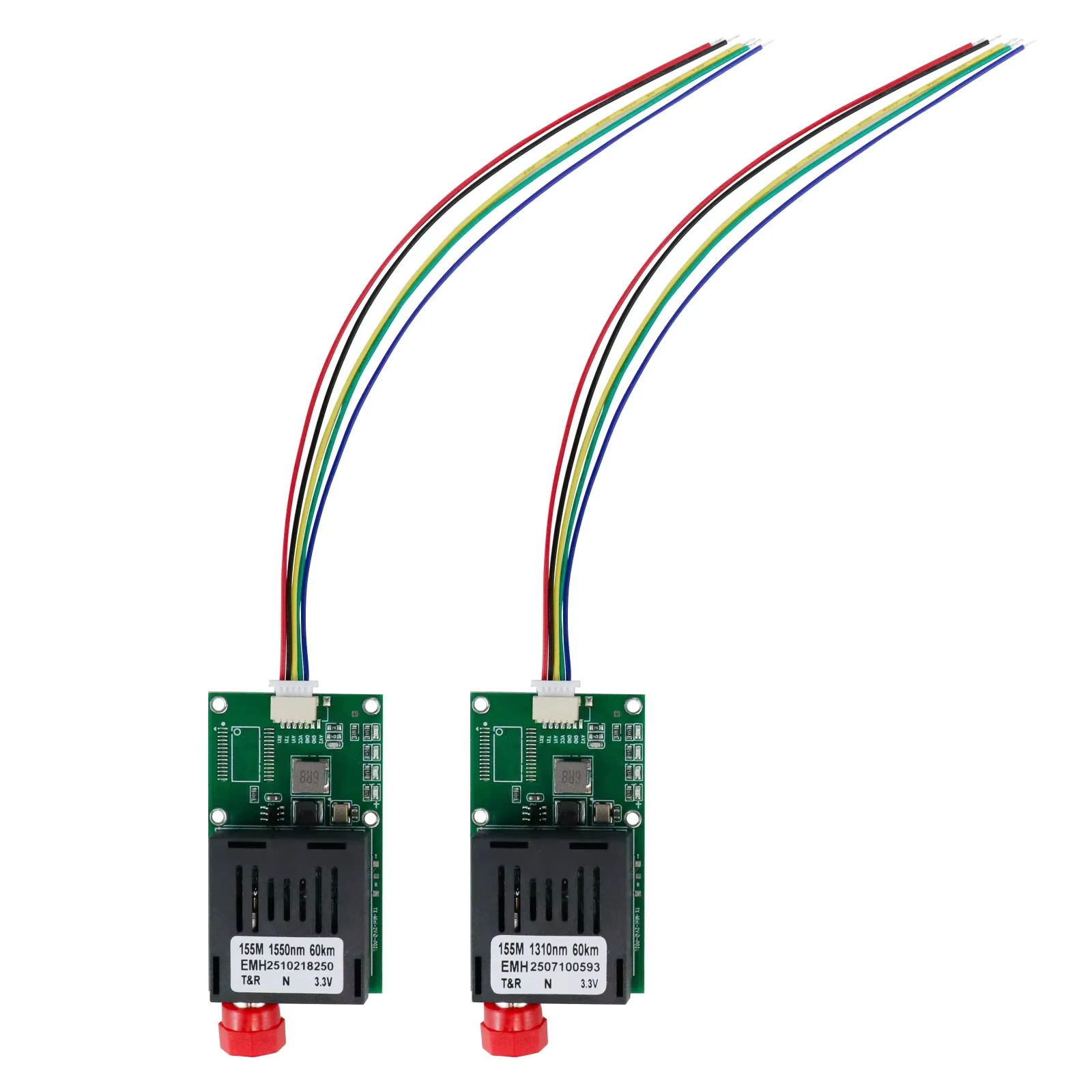

TTL-A/B

The TTL-A/B transmission module optical transceiver adopts a cost-effective domestic FPGA and utilizes fiber optic transmission technology to achieve long-distance lossless transmission of CVBS video signals and TTL control signals, making the image output smoother. The maximum transmission distance can reach 100 kilometers, suitable for complex electromagnetic environment scenarios such as drone racing, aerial photography, and industrial inspection.

联系我们

产品特性

Support synchronous transmission of CVBS video signal+TTL/UART control signal
Suitable for simulated camera and CVBS camera
The fiber optic medium type is single-mode single fiber, default FC interface
Optical communication technology can effectively resist electromagnetic interference
The working temperature can be within the range of -20-60°C
Equipment safety, reliability, stable performance, and overall lightweight
Strong anti-interference ability, large transmission bandwidth, and long distance

规格参数

Power supply mode	DC5~16V
Product Specifications	54.5 * 29 * 13 mm
Operating temperature	-20~60℃
Power dissipation	< 3W
Fiber Optic Interface	FC
Fiber Type	Single Mode-Single Fiber
Data Interface	SH1.0* 5PIN
Data Rate	100Mbps
Video Format	NTSC/PAL
Working wavelength	1310nm/1550nm
Data Direction	uniderection
Transmission Distance	0~120km
Data Format	TTL(UART)
