JH-100G-QSFP28-A4-AOC

型号：100G QSFP28 to 4xSFP28 AOC 1M

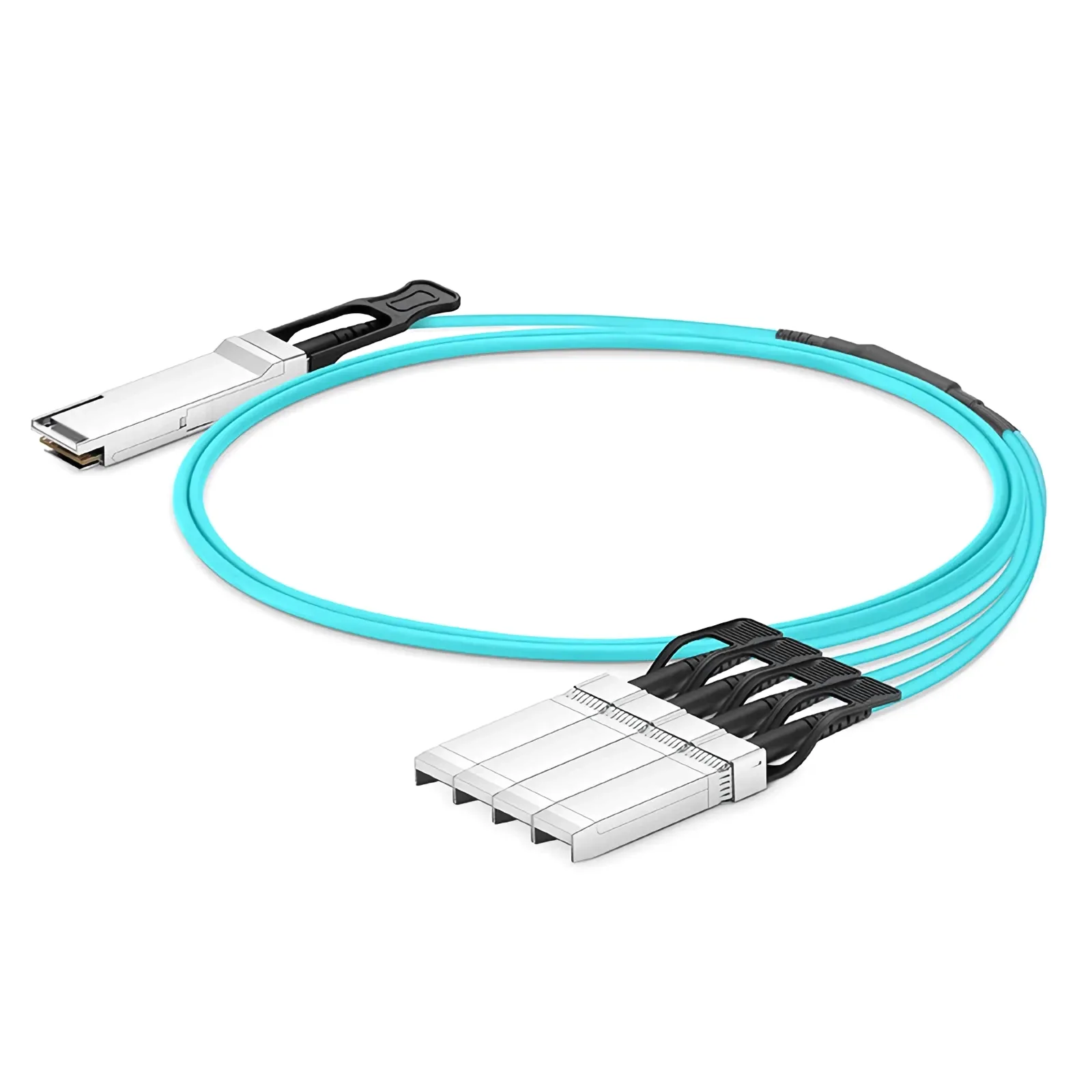

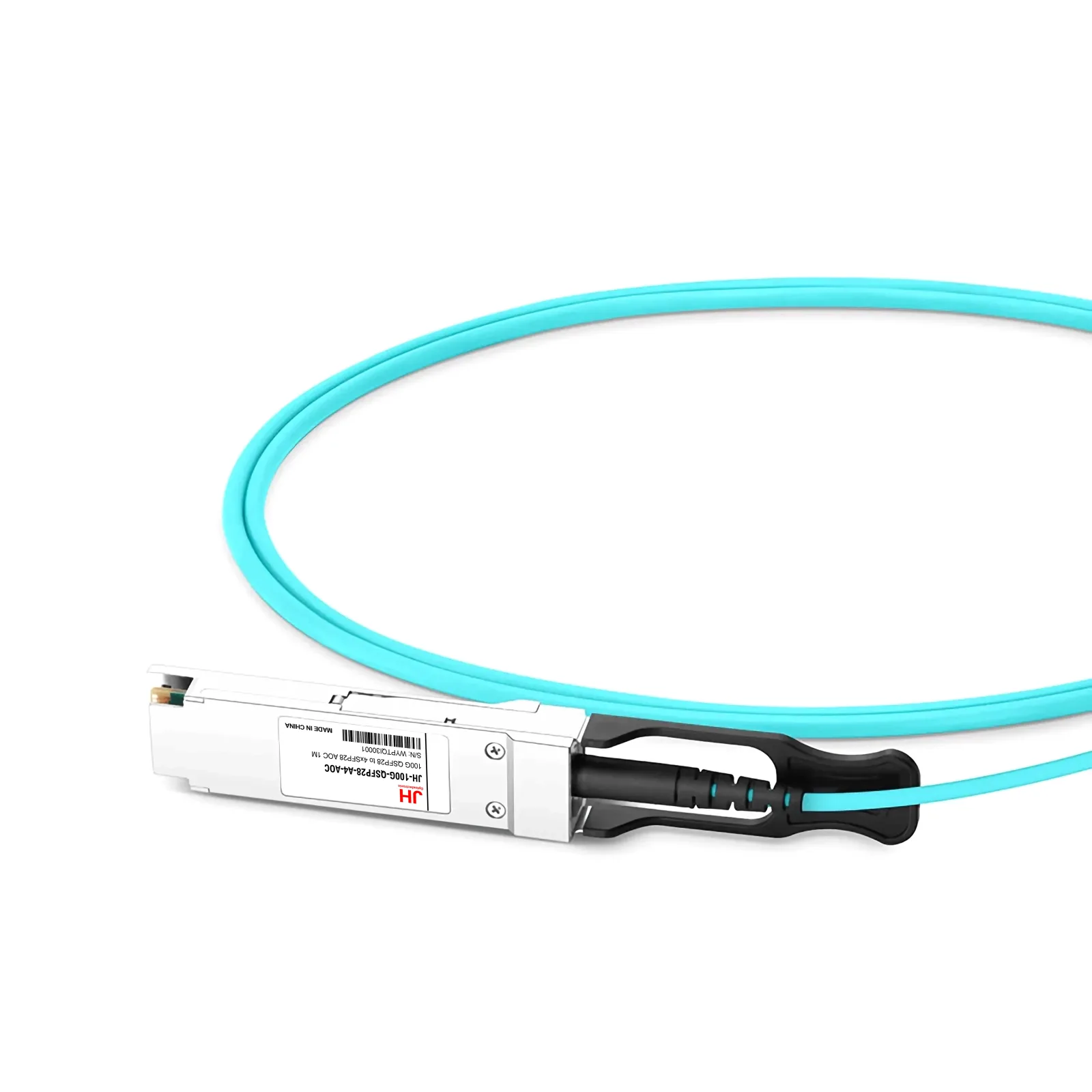

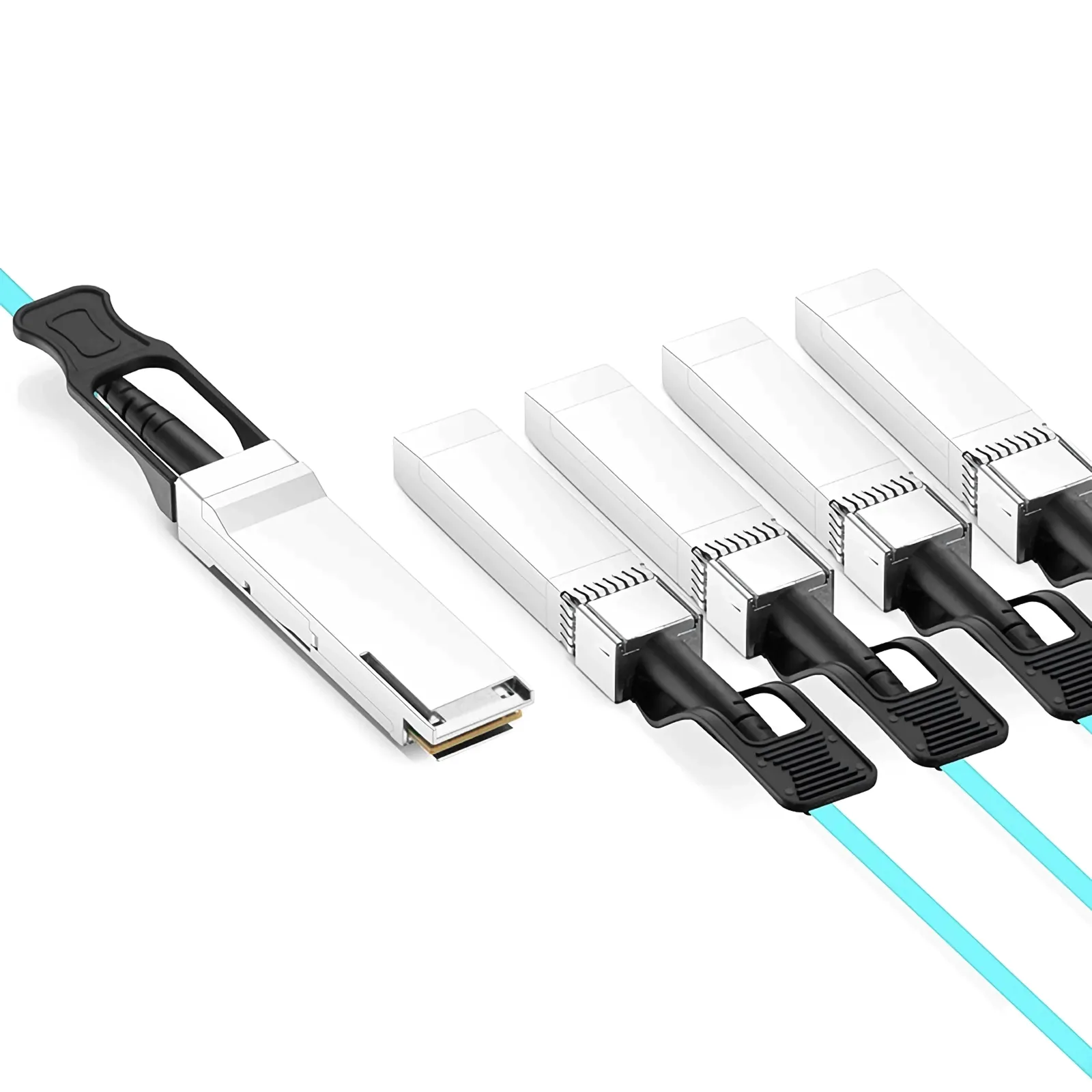

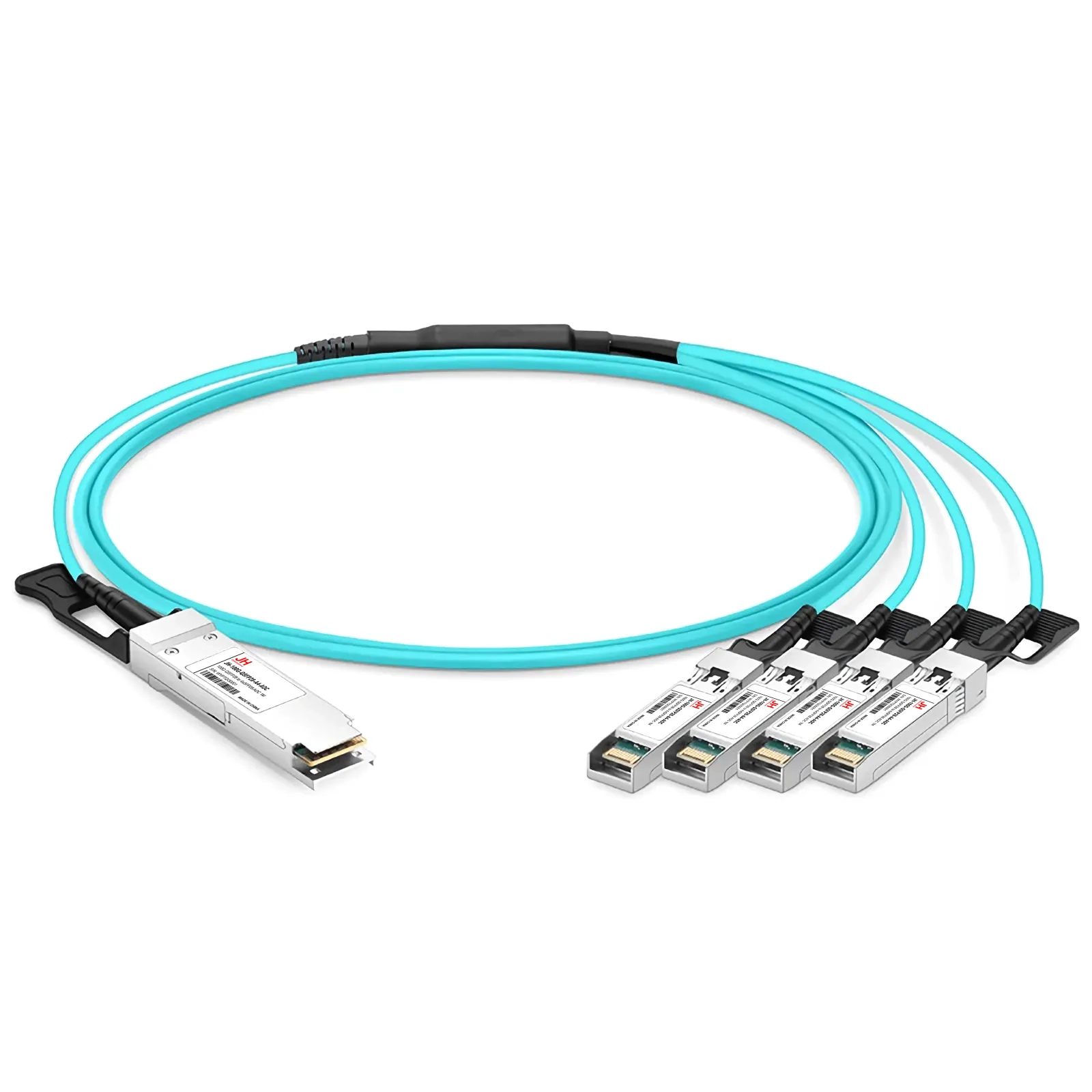

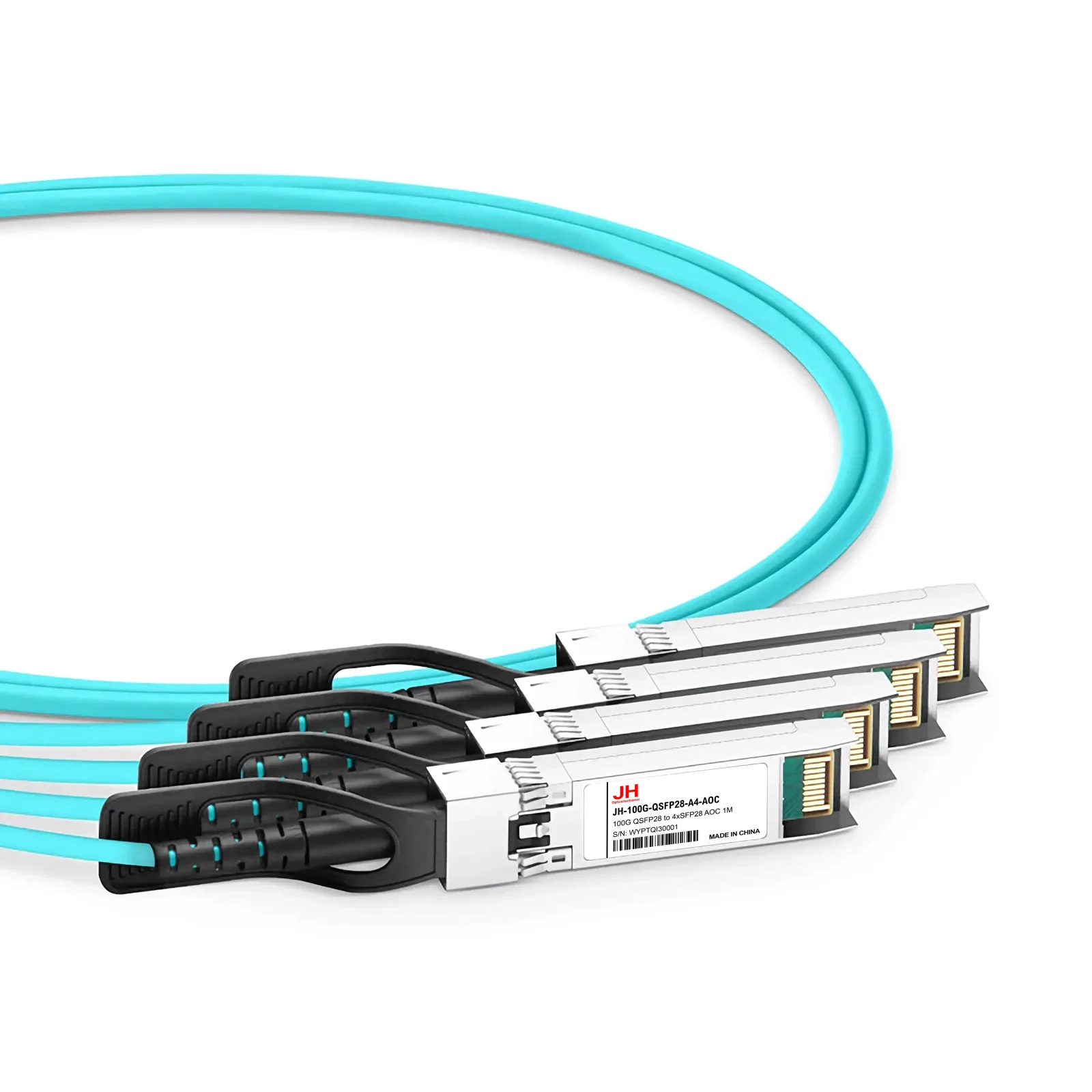

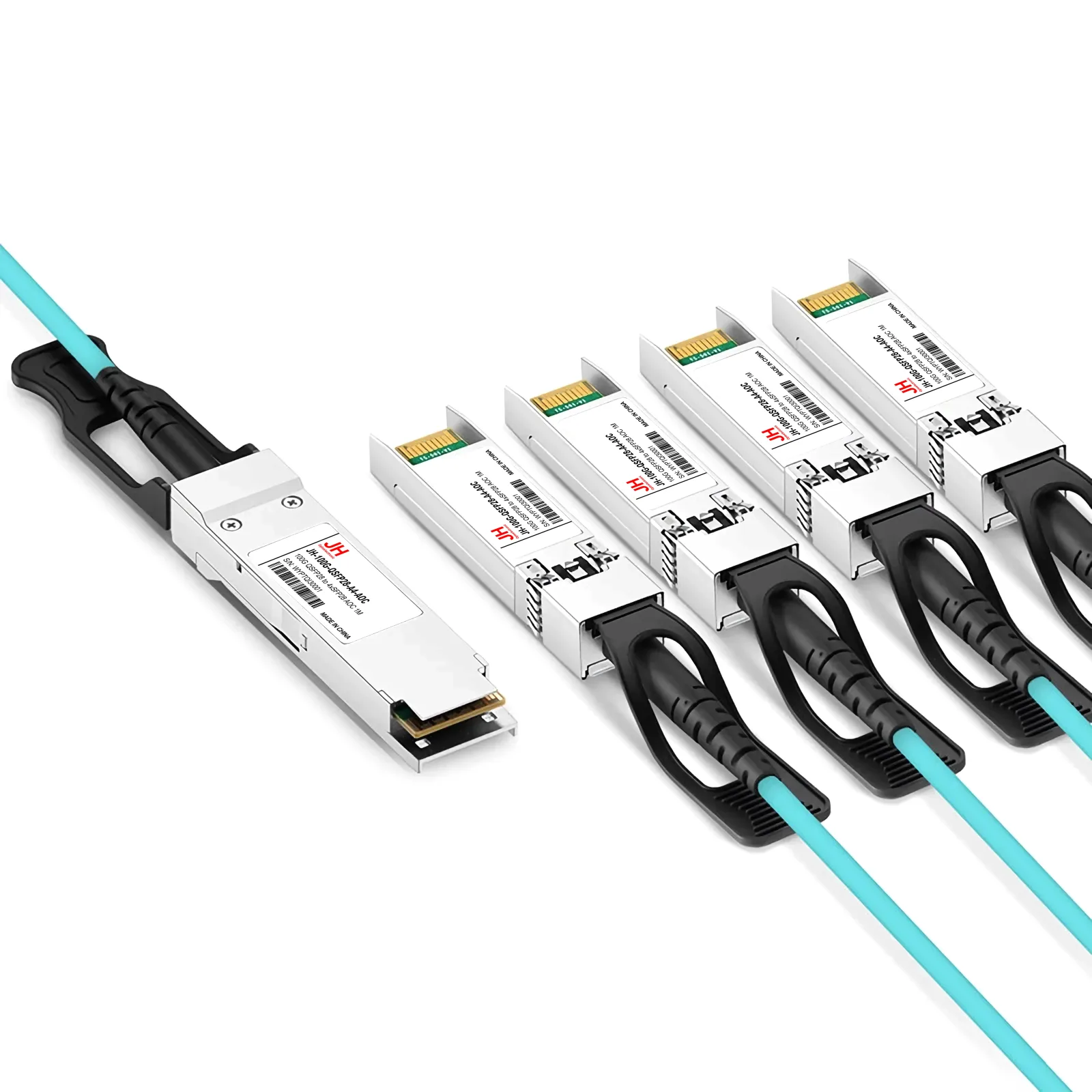

JH-100G-QSFP28-A4-AOC QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable is designed for 100G-to-4x 25G Ethernet breakout applications. It is compliant with QSFP28 MSA and SFP28 MSA standards. The main use of the cable is linking one 100G QSFP28 port to four 25G SFP28 ports, supporting 100G-to-4x 25G Ethernet interoperability. Featured with low latency, low power consumption, and high reliability, it is suitable for quick and simple connections within racks and across adjacent racks.

联系我们

产品特性

Hot-pluggable QSFP28 to 4xSFP28 Active Optical Cable assembly
Supports 100Gbps data rate, compliant with QSFP28 MSA, SFF-8636 and SFF-8665 standards
Maximum power consumption < 2W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 100G-to-4x25G Breakout, High-Density Interconnect

规格参数

Data Rate	100G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP28 to 4xSFP28
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-8.4~2.4
Receiver Sensitivity	-10.3
Power consumption（Max）	2W
