JH-200G-QSFP56-A2-AOC

型号：200G QSFP56 to 2xQSFP56 AOC 1M

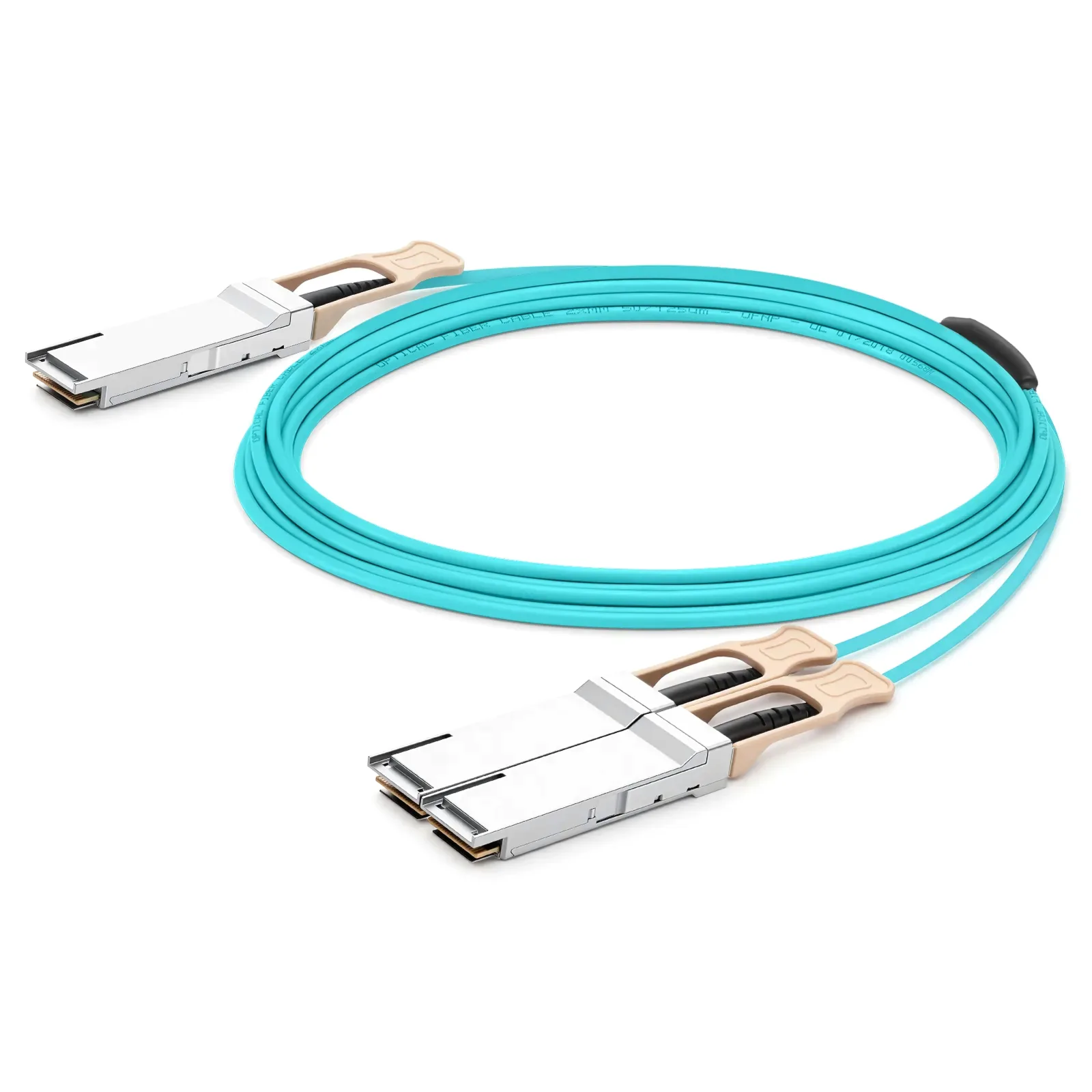

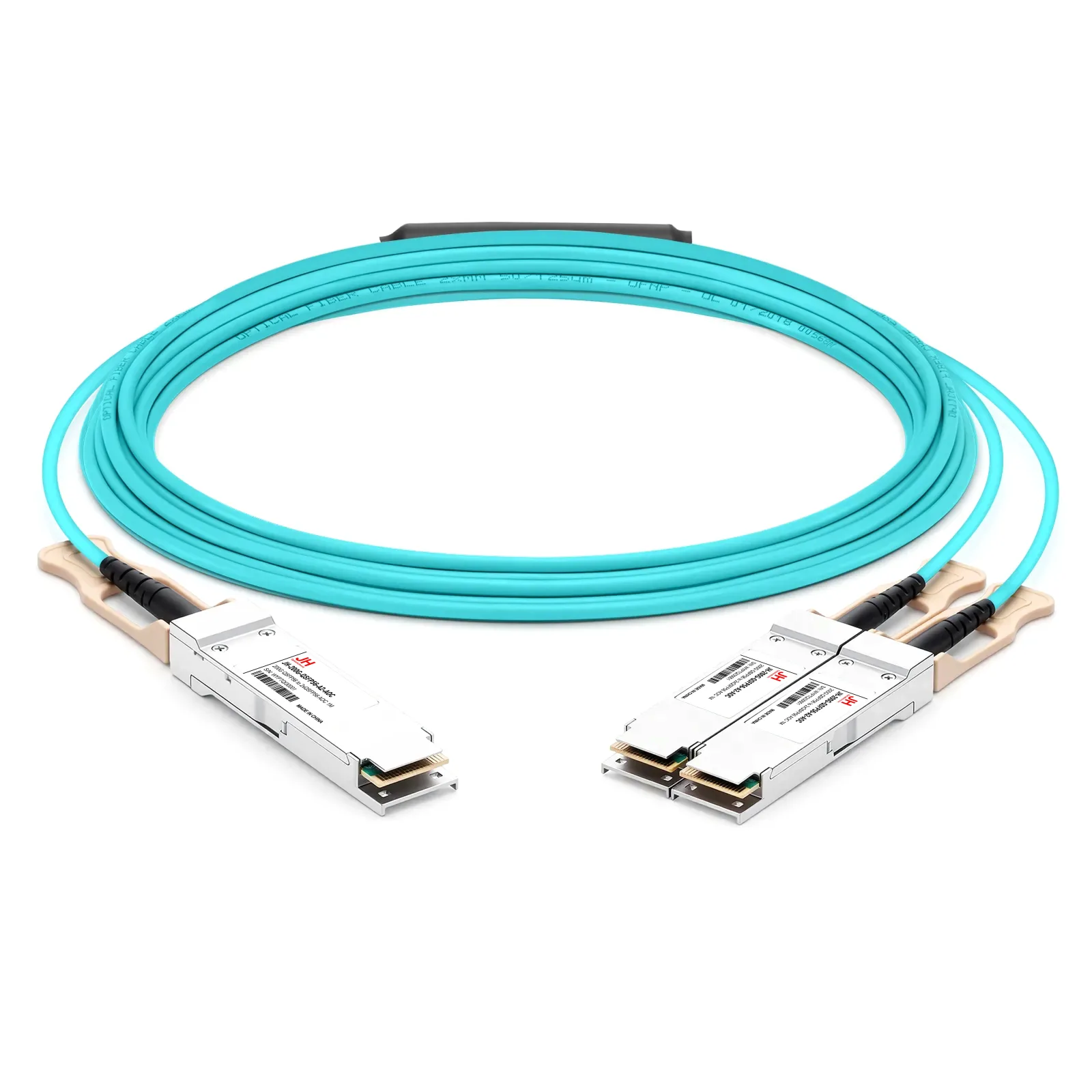

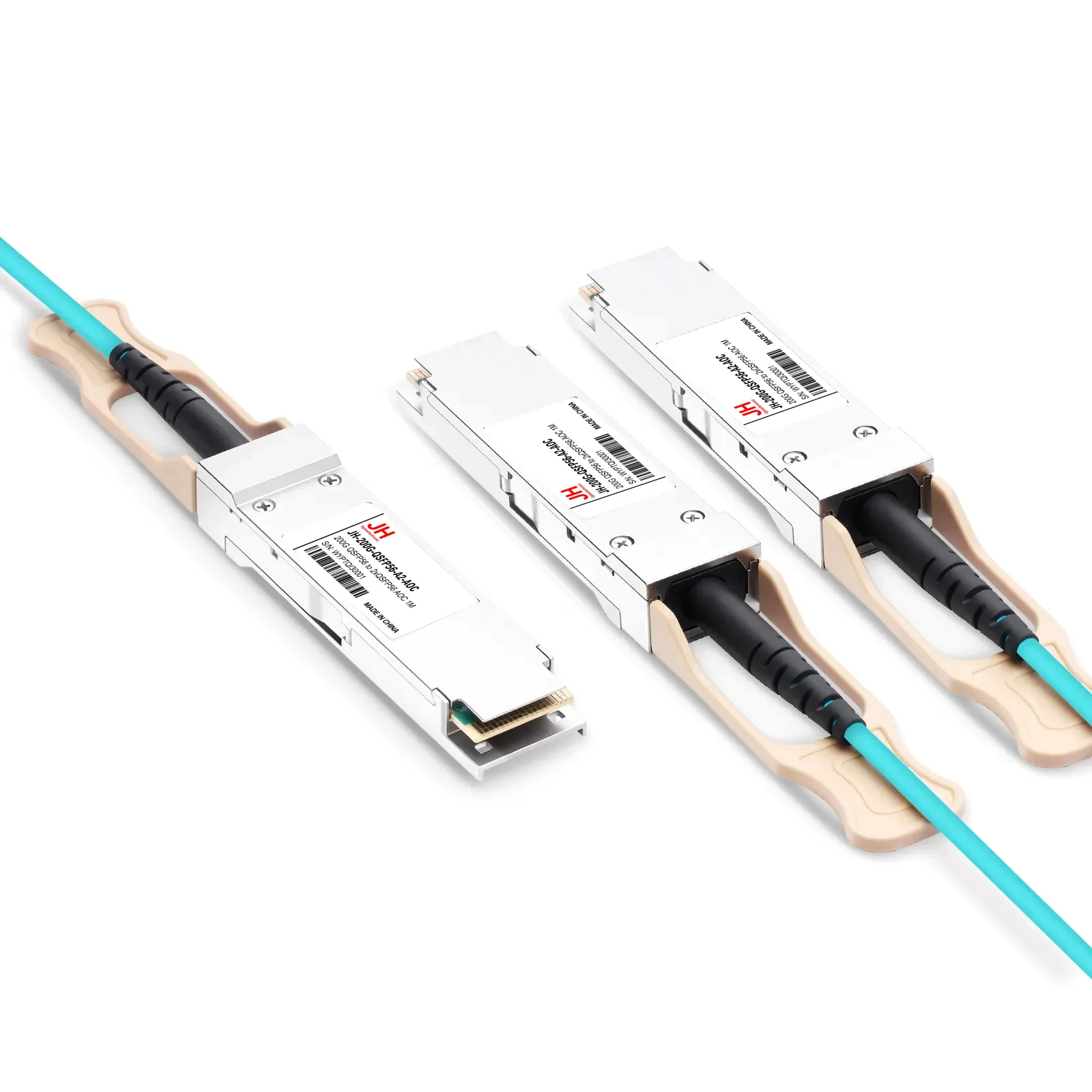

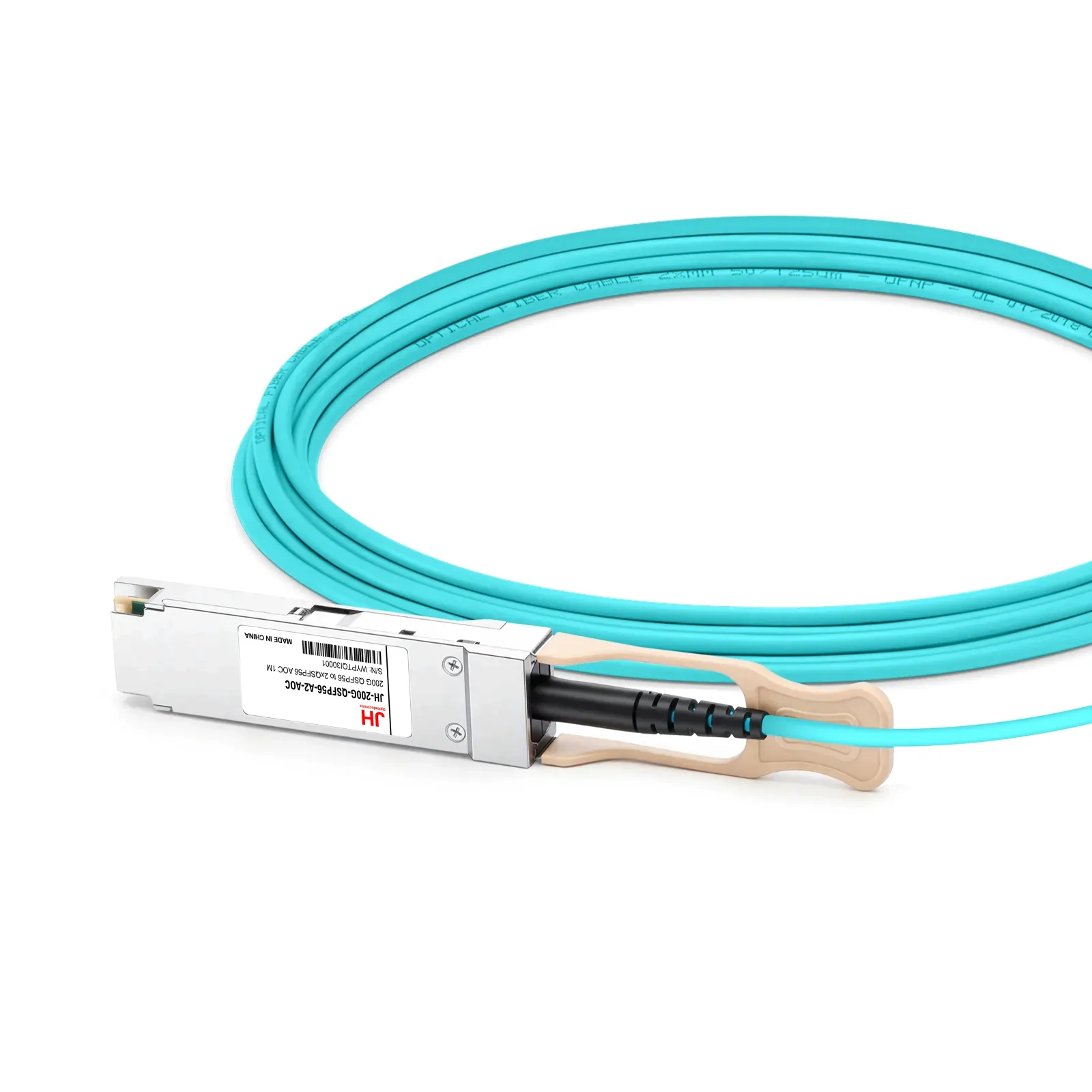

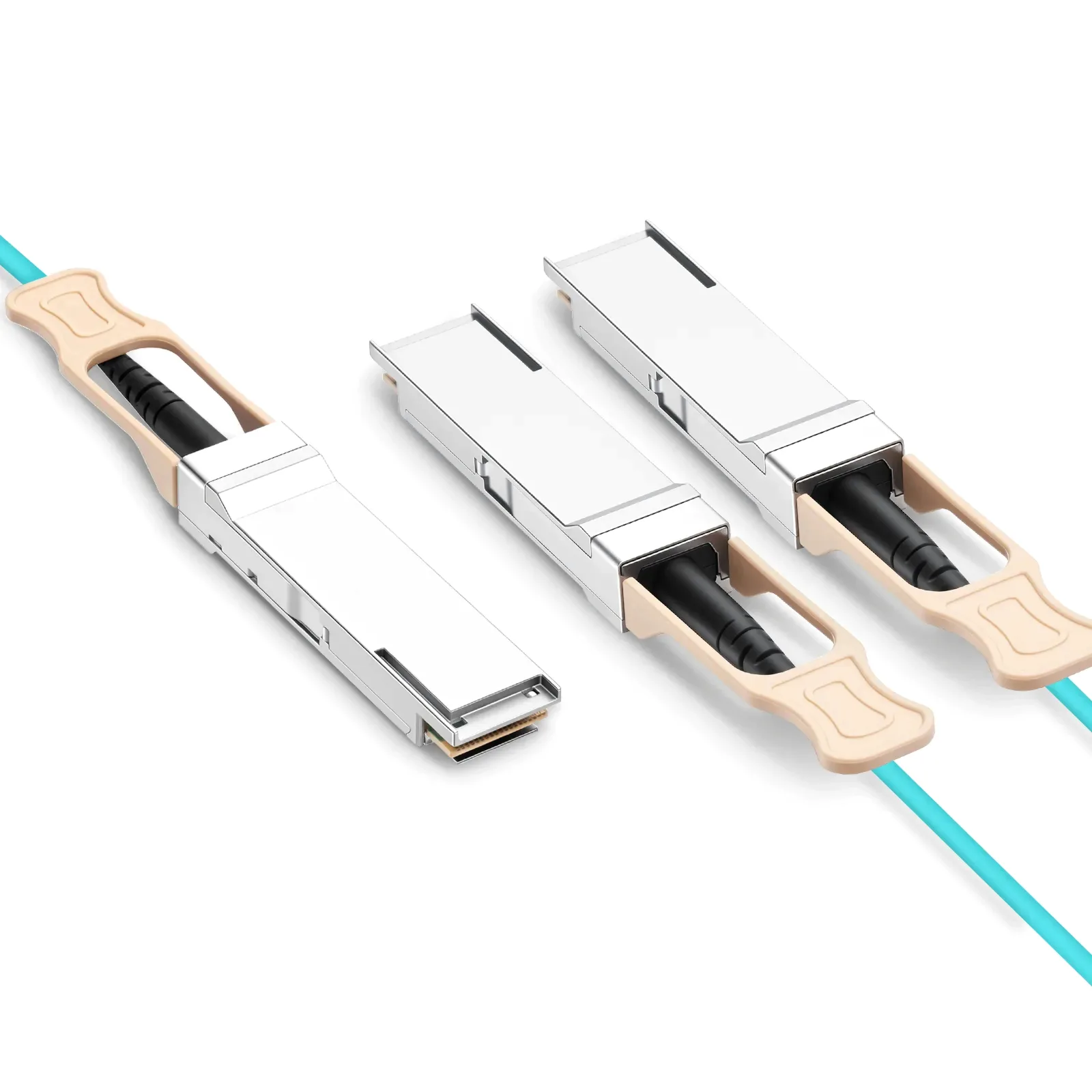

JH-200G-QSFP56-A2-AOC QSFP56 to 2x100G QSFP56 Breakout Ethernet Active Optical Cable operates over Multi-Mode Fiber (MMF). This breakout cable is compliant with IEEE 802.3, QSFP56 MSA, SFF-8024, SFF-8679, SFF-8665, SFF-8636. It provides a connection of a QSFP56 200G port on one end and to two 100G QSFP56 ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.

联系我们

产品特性

Hot-pluggable QSFP56 to 2xQSFP56 Active Optical Cable assembly
Supports 200Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 4W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 200G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	200G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP56 to 2xQSFP56
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-6.5~4
Receiver Sensitivity	-8.4
Power consumption（Max）	4W
