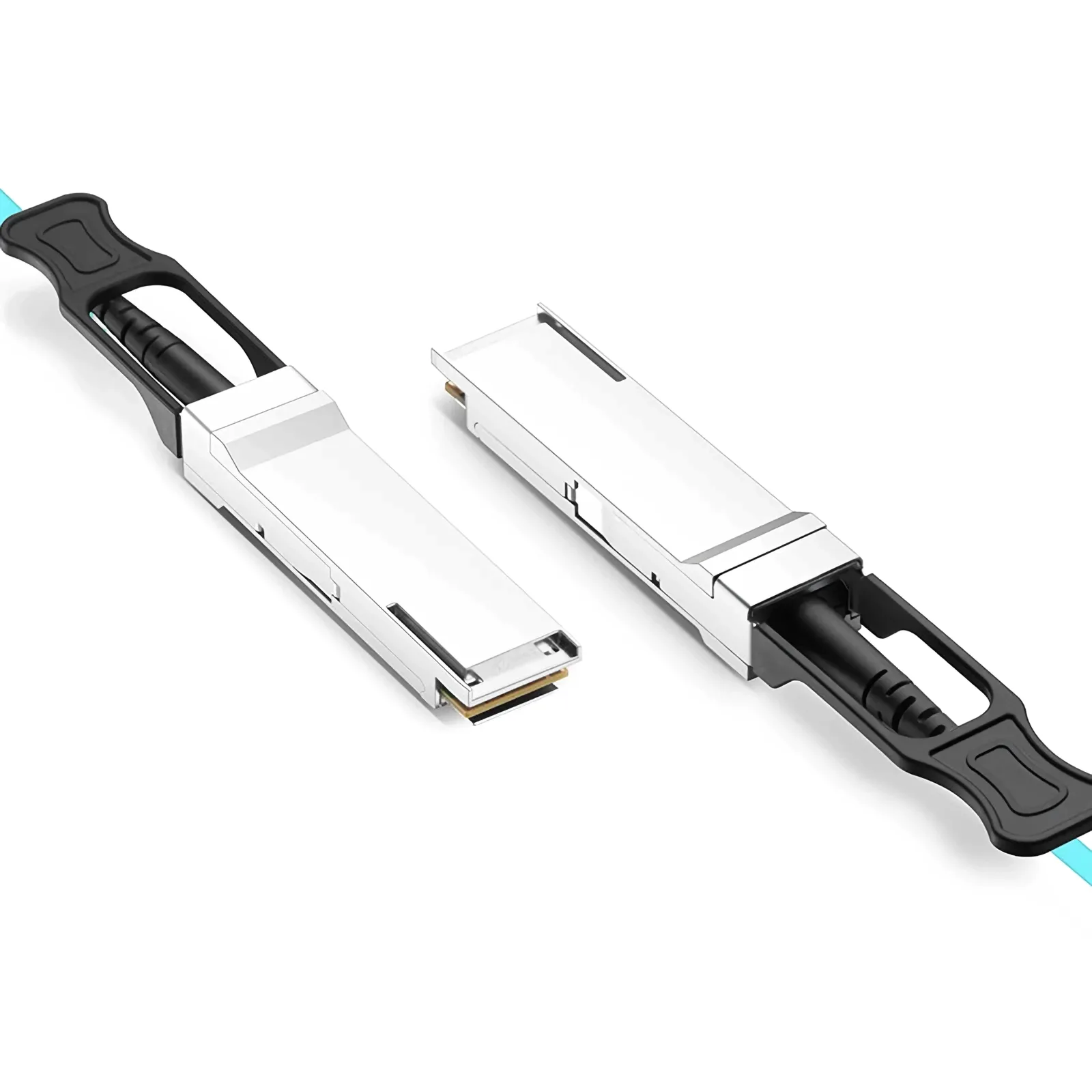

JH-200G-QSFP56-A1-AOC

型号：200G QSFP56 to QSFP56 AOC 1M

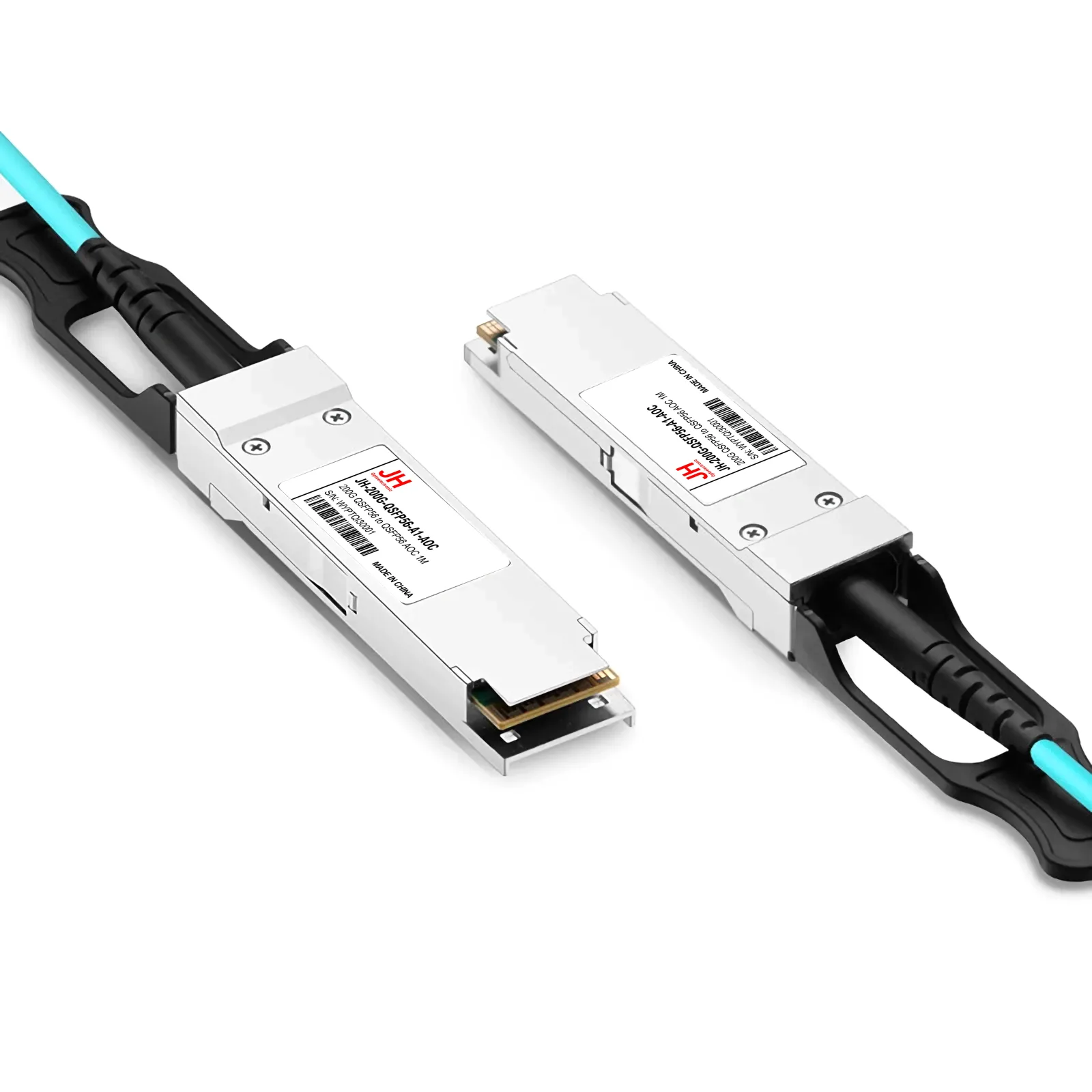

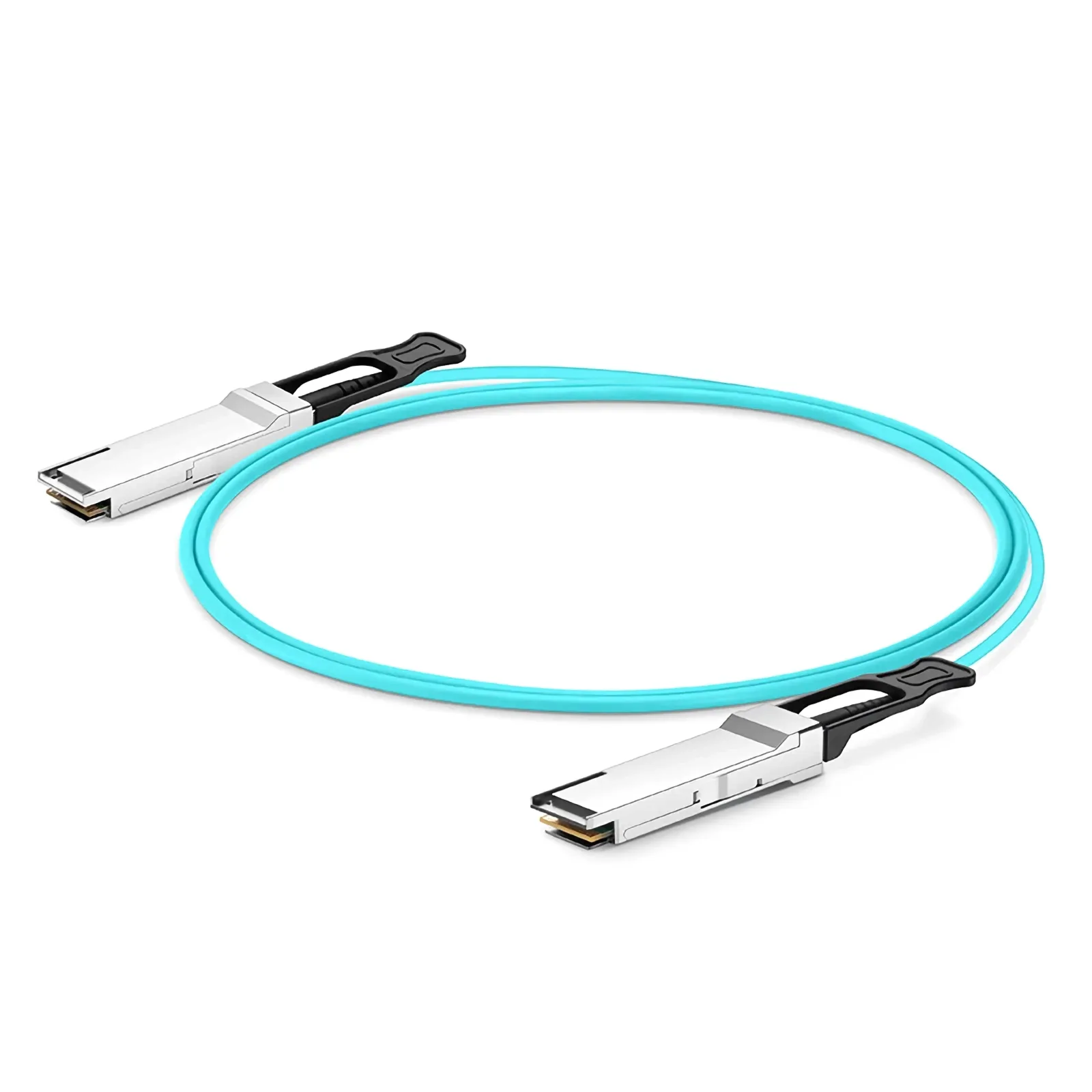

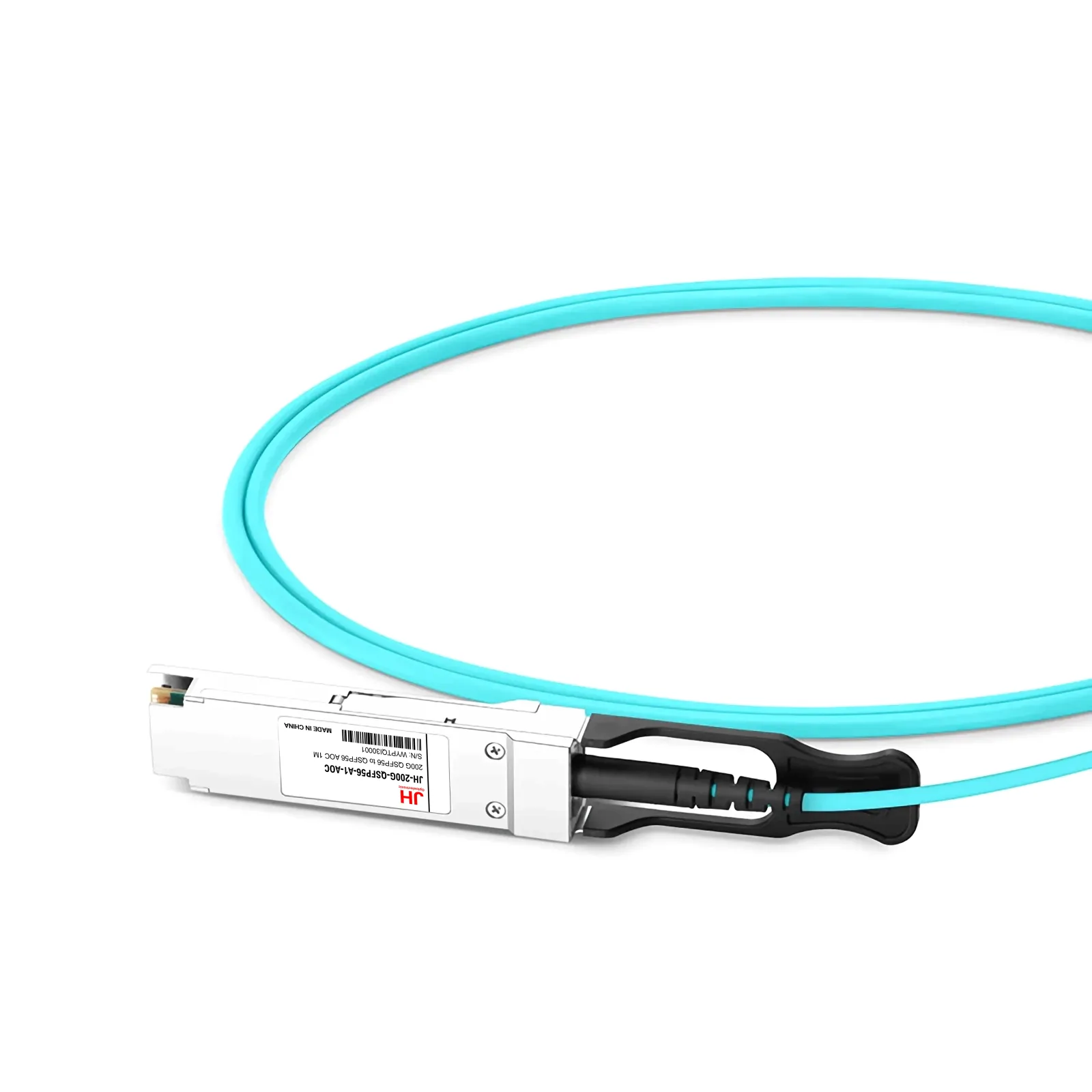

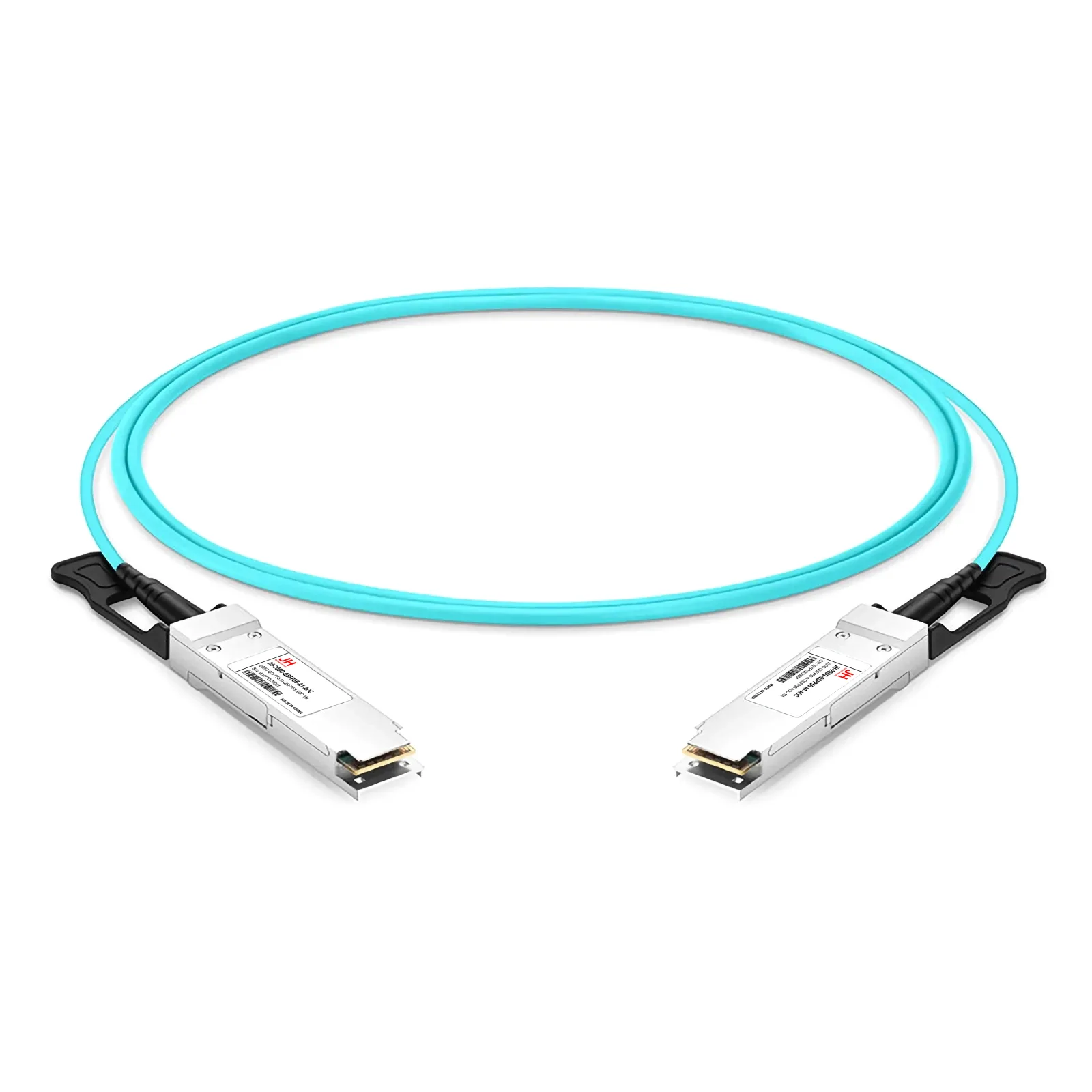

JH-200G-QSFP56-A1-AOC 200G QSFP56 active optical cable is designed for use in 200 Gigabit Ethernet links over OM3 multimode fiber, it contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s. This active optical cable is compliant with IEEE 802.3, SFF-8665, SFF-8636, QSFP56 MSA.

联系我们

产品特性

Hot-pluggable QSFP56 to QSFP56 Active Optical Cable assembly
Supports 200Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 4W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 200G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	200G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP56 to QSFP56
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-6.5~4
Receiver Sensitivity	-8.4
Power consumption（Max）	4W

规格书

规格书下载

Datasheet
