JH-400G-QDD-OSFP-A1-AOC

型号：400G QSFP-DD to OSFP AOC 1M

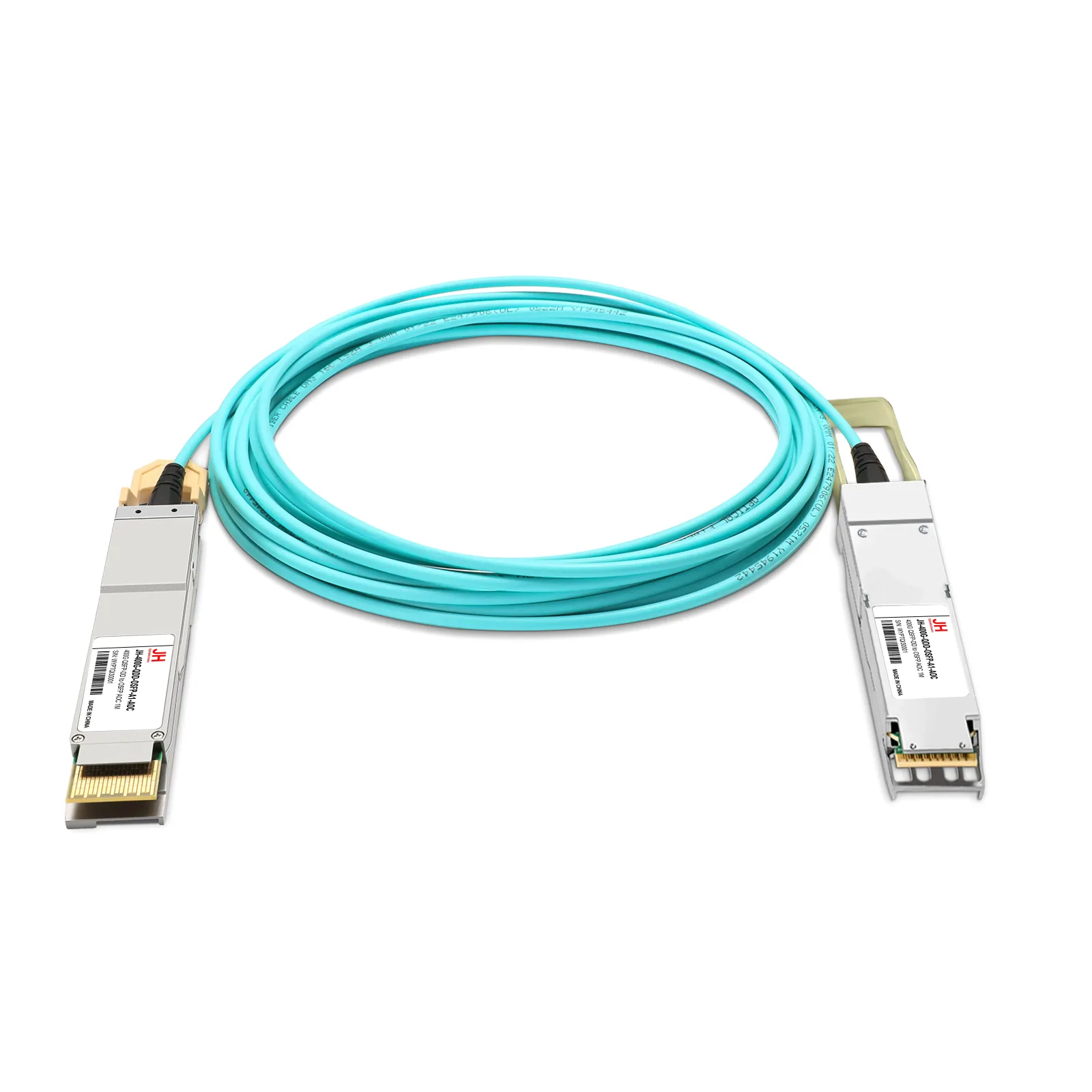

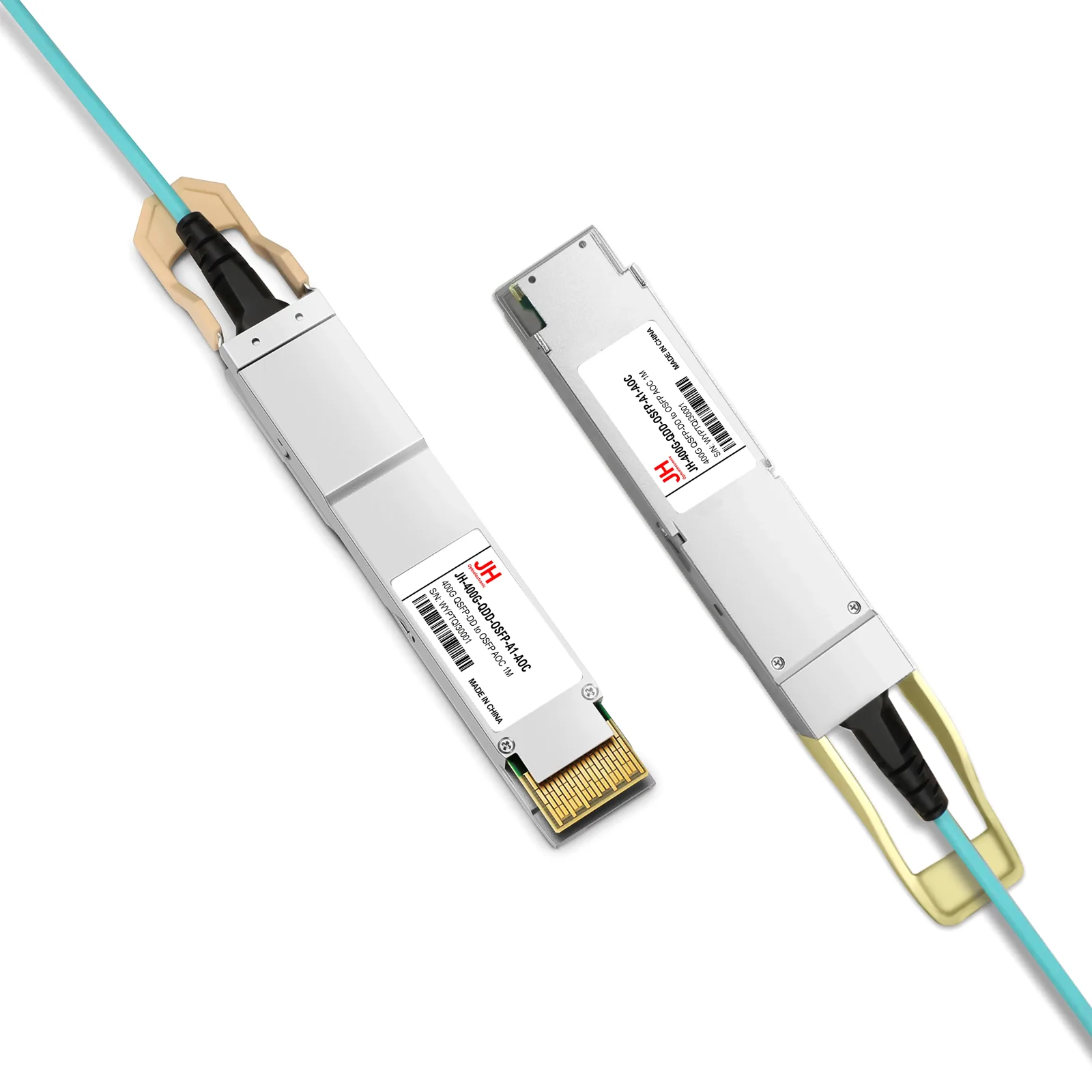

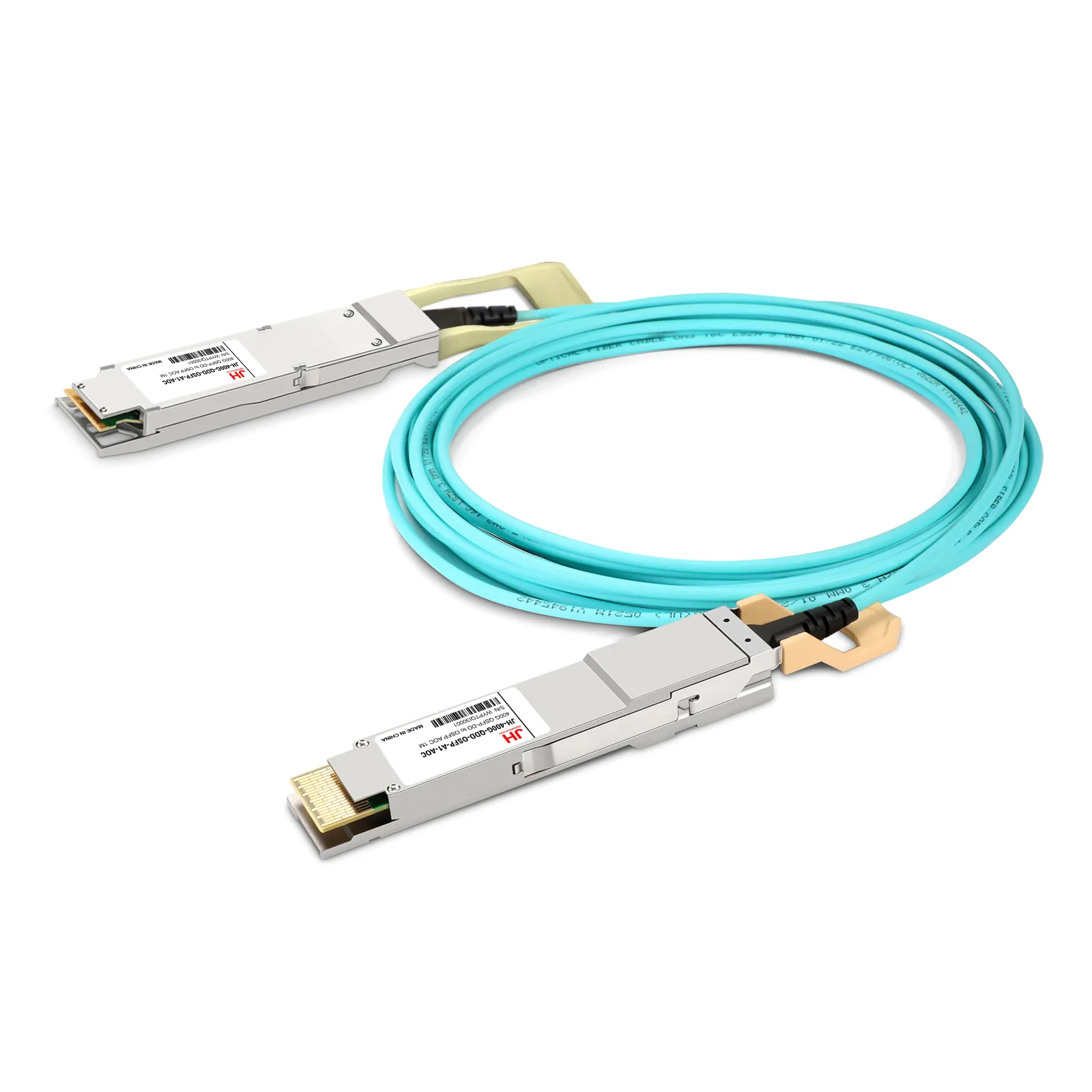

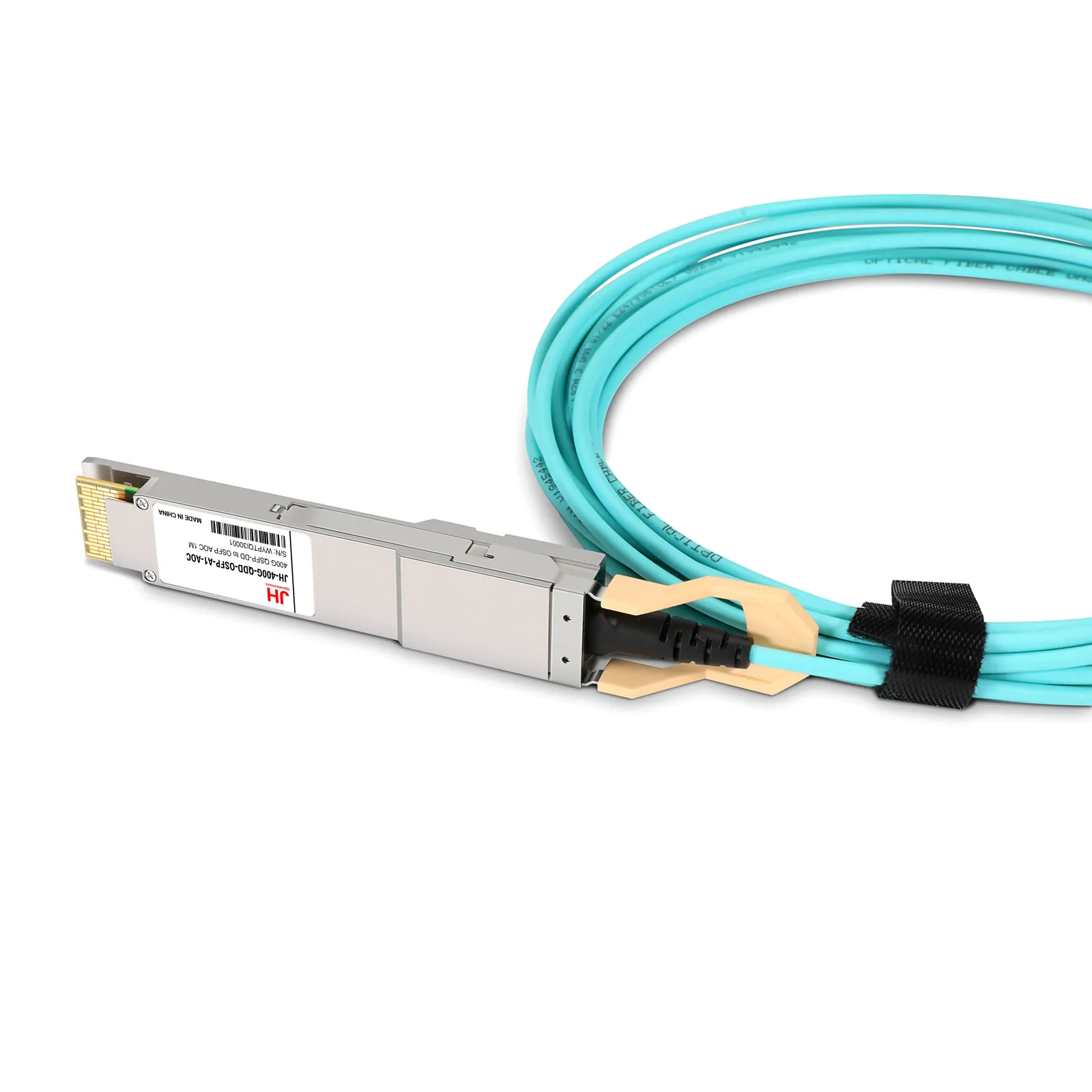

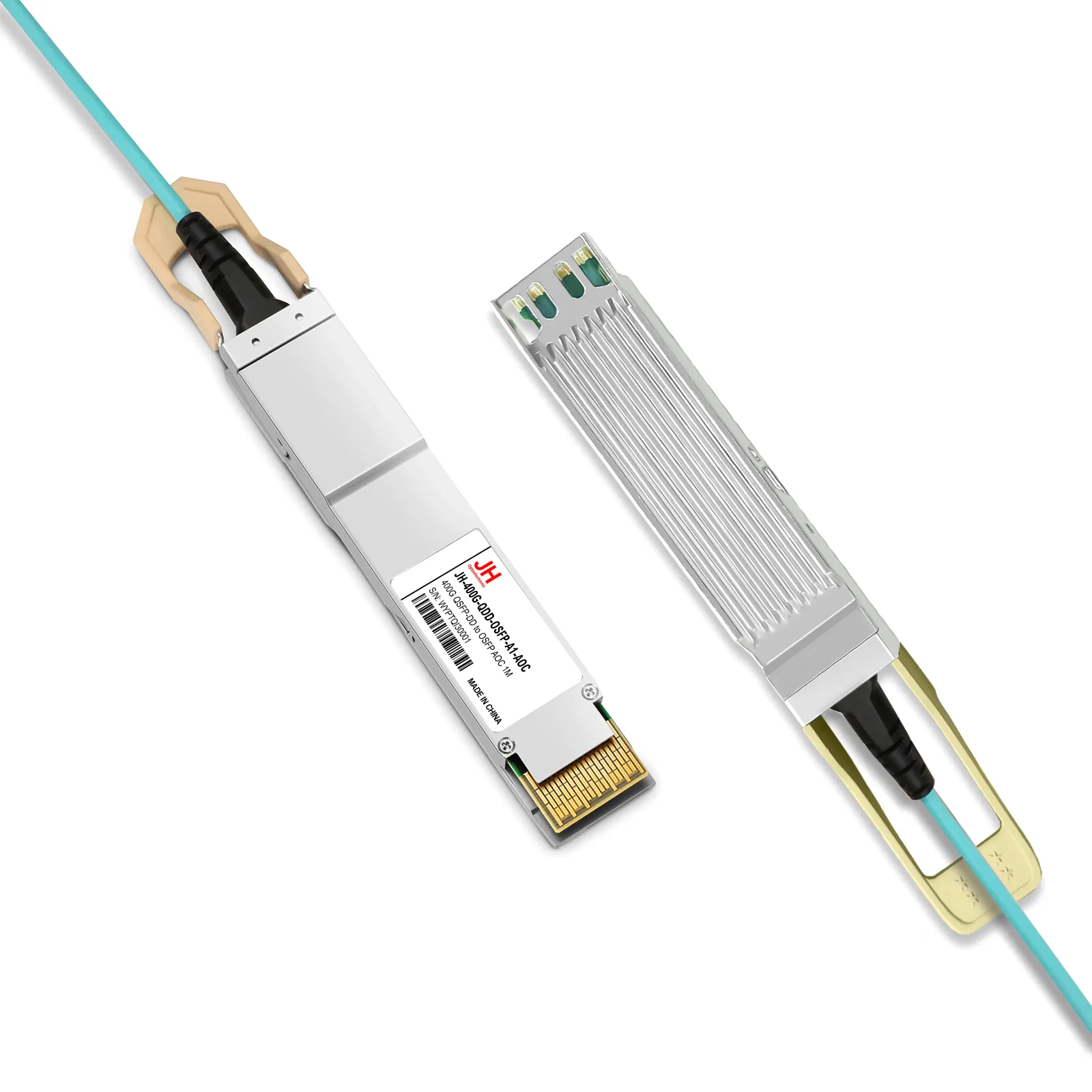

JH-400G-QDD-OSFP-A1-AOCOSFP active optical cable is a pluggable, parallel, fiber-optic QSFP-DD to OSFP AOC for Ethernet applications. It is designed for short-range multi-lane data communication and interconnect applicatijons. This active optical cable is compliant with IEEE 802.3bs-400GAUI-8, QSFP-DD MSA, and OSFP MSA.

联系我们

产品特性

Hot-pluggable QSFP-DD to OSFP Active Optical Cable assembly
Supports 400Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 9W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 400G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	400G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP-DD to OSFP
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	9W
