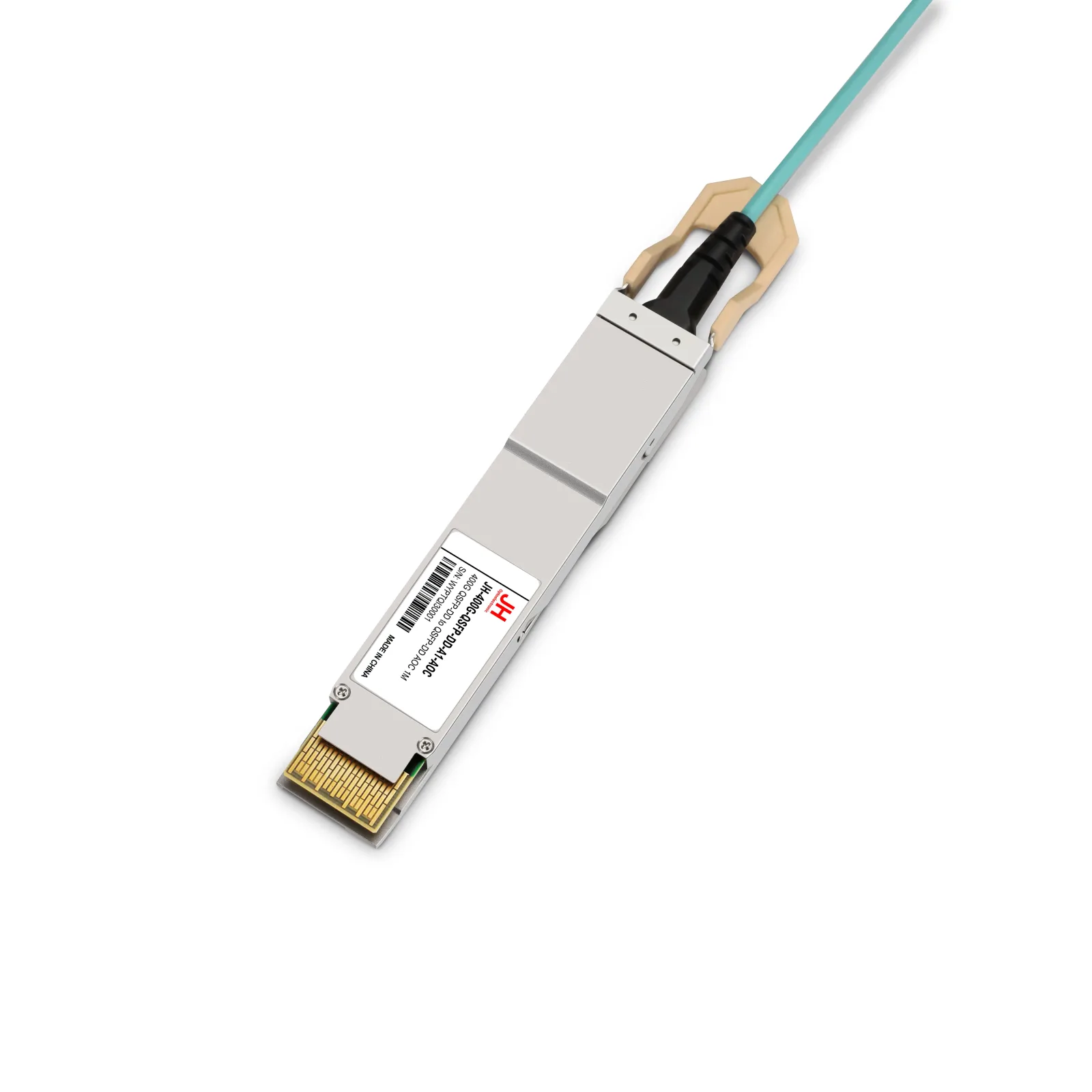

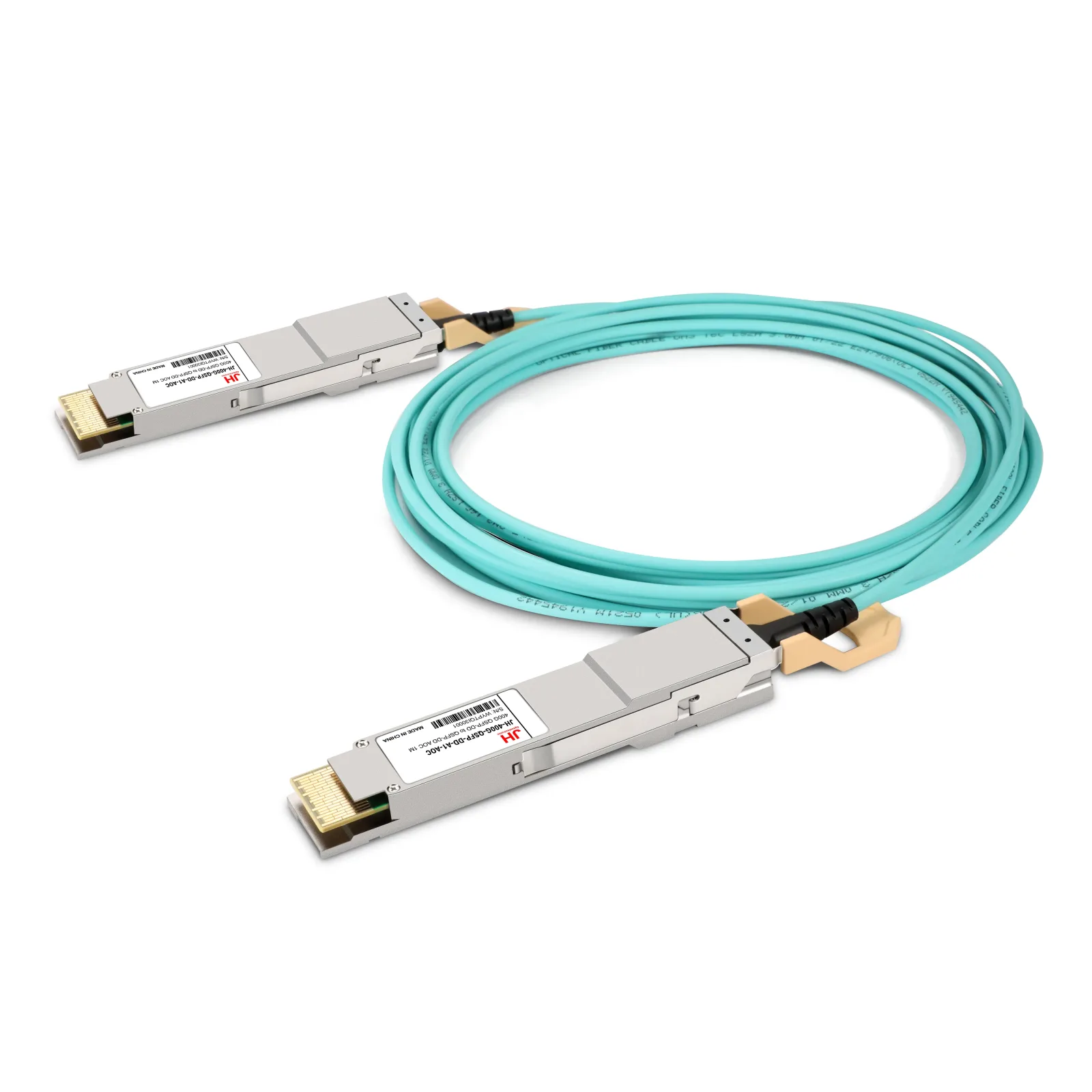

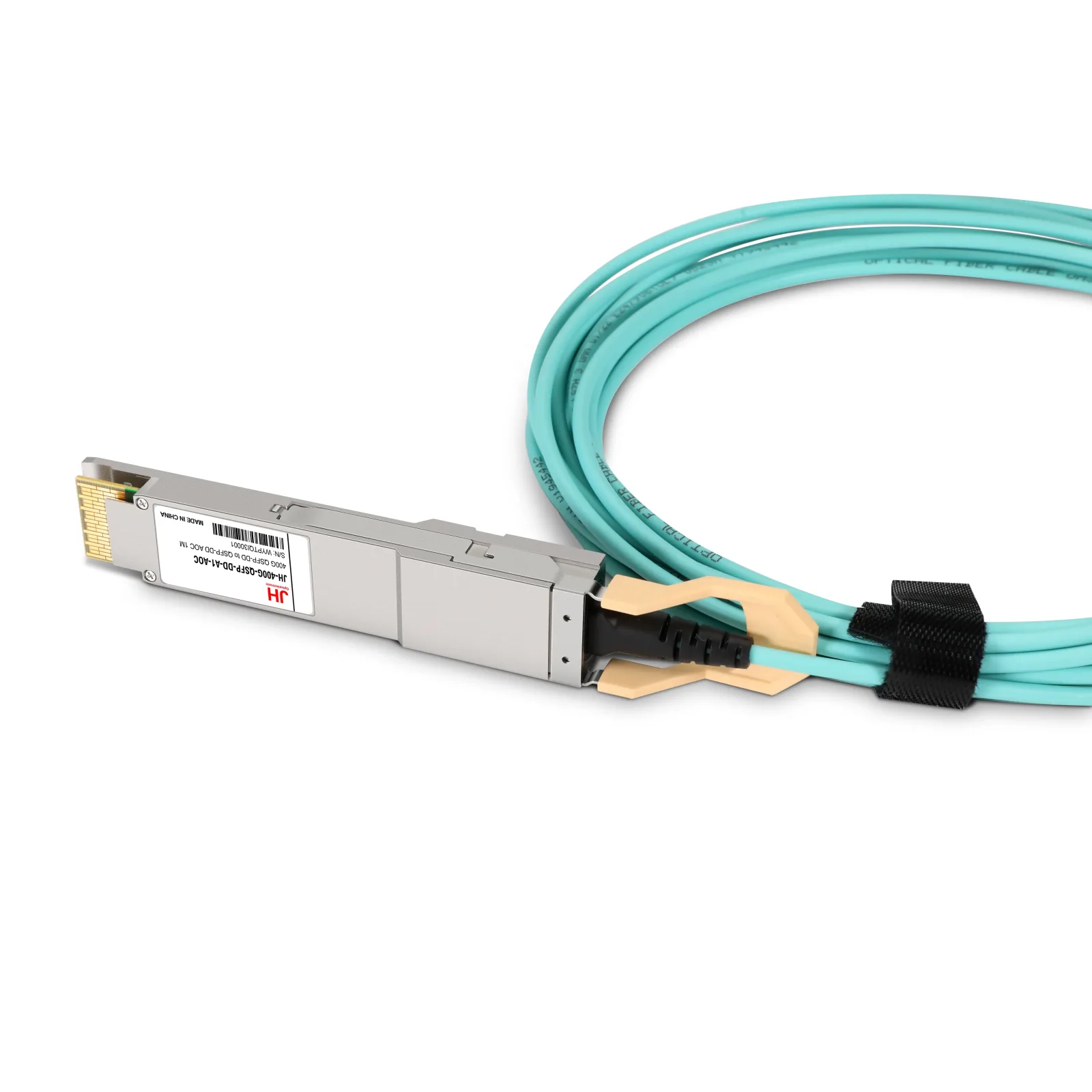

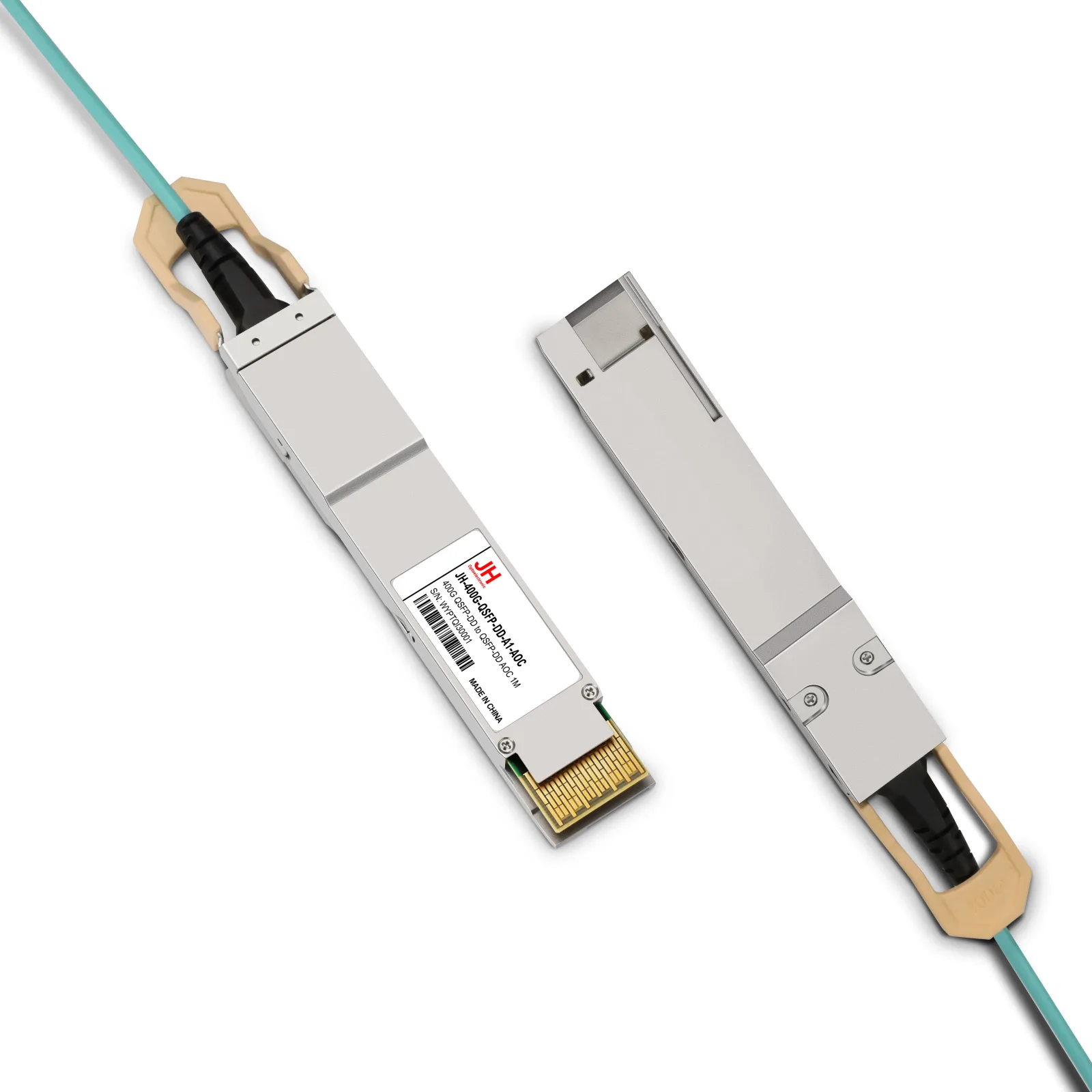

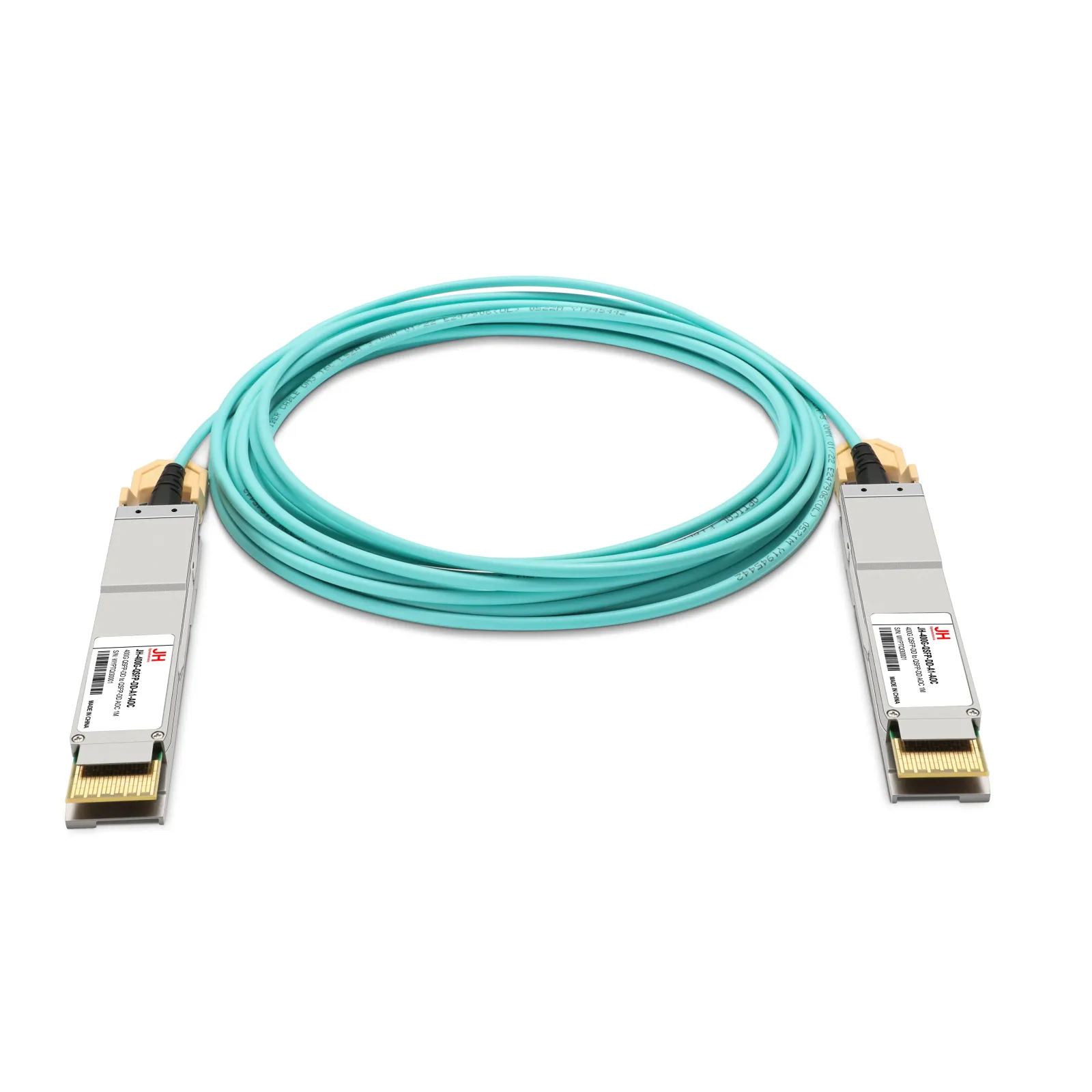

JH-400G-QSFP-DD-A1-AOC

型号：400G QSFP-DD to QSFP-DD AOC 1M

JH-400G-QSFP-DD-A1-AOC active optical cables are designed for use in 400 Gigabit Ethernet links over OM4 multimode fibers, and contain eight multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 53Gb/s. This active optical cable is compliant with IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA, and QSFP-DD-CMIS-rev4p0. Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.

联系我们

产品特性

Hot-pluggable QSFP-DD to QSFP Active Optical Cable assembly
Supports 400Gbps data rate, compliant with QSFP-DD MSA and CMIS 5.0 standards
Maximum power consumption < 9W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 400G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	400G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP-DD to QSFP
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	9W

规格书

规格书下载

Datasheet
