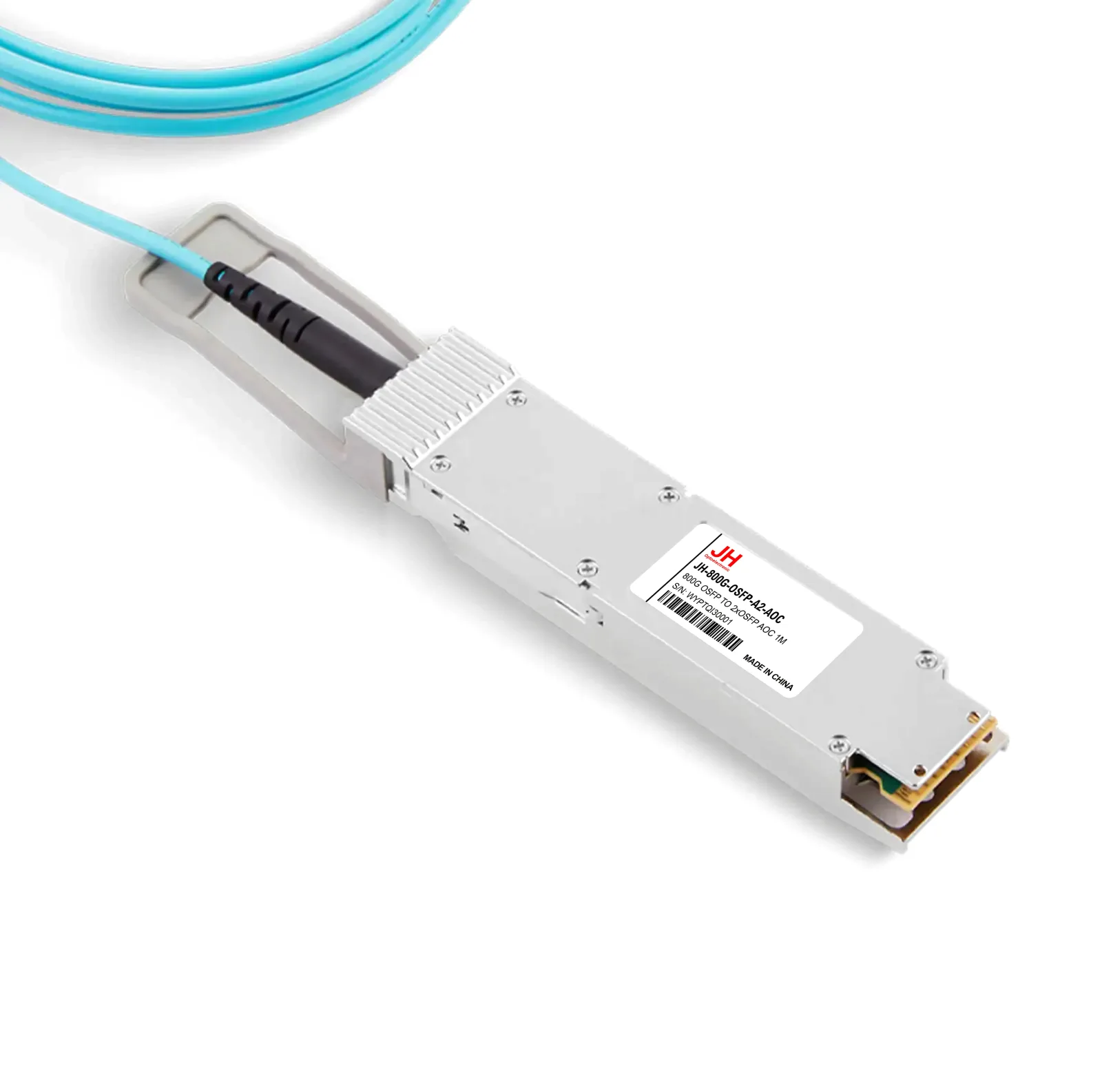

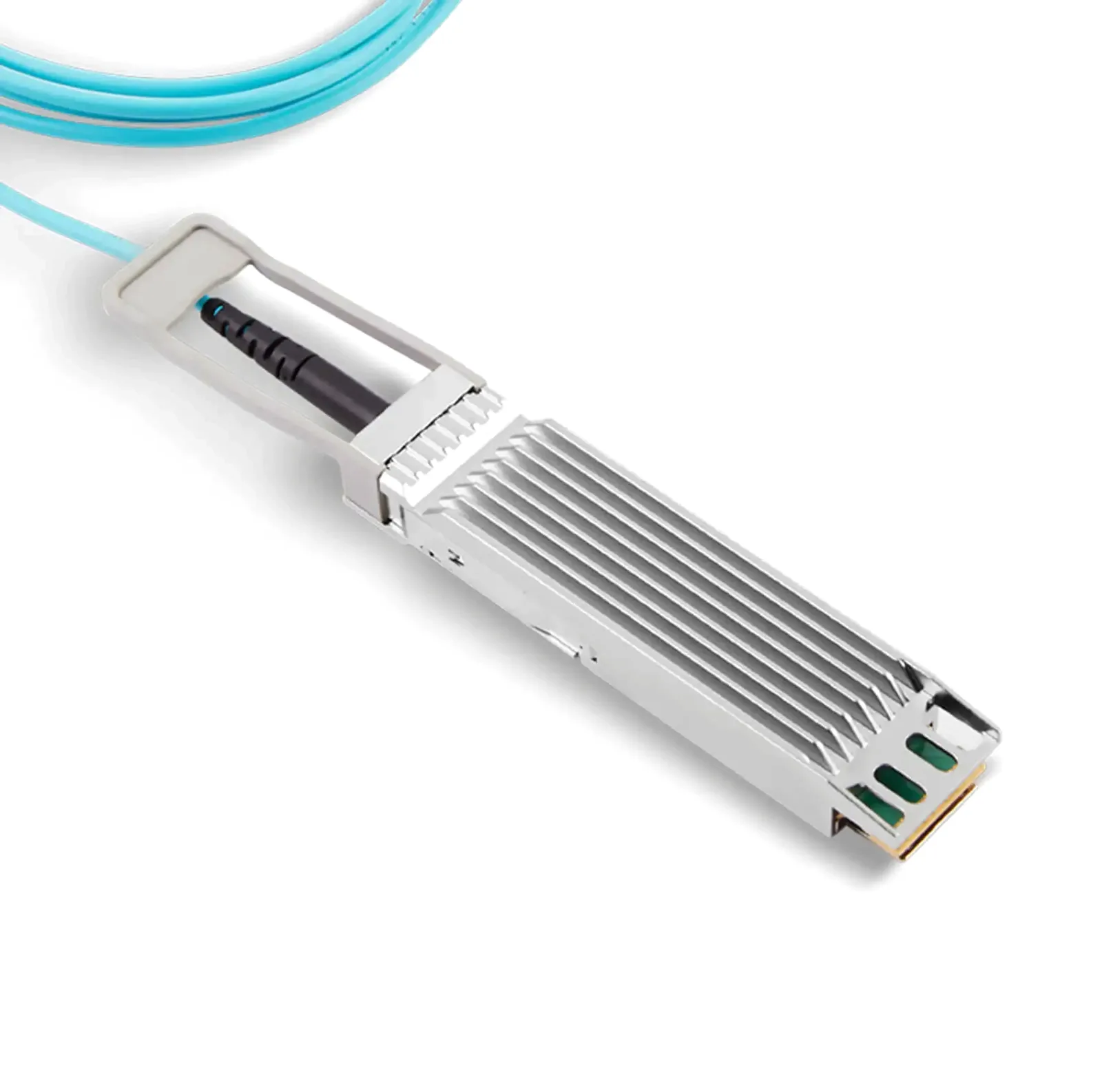

JH-800G-OSFP-A2-AOC

型号：800G OSFP TO 2xOSFP AOC 1M

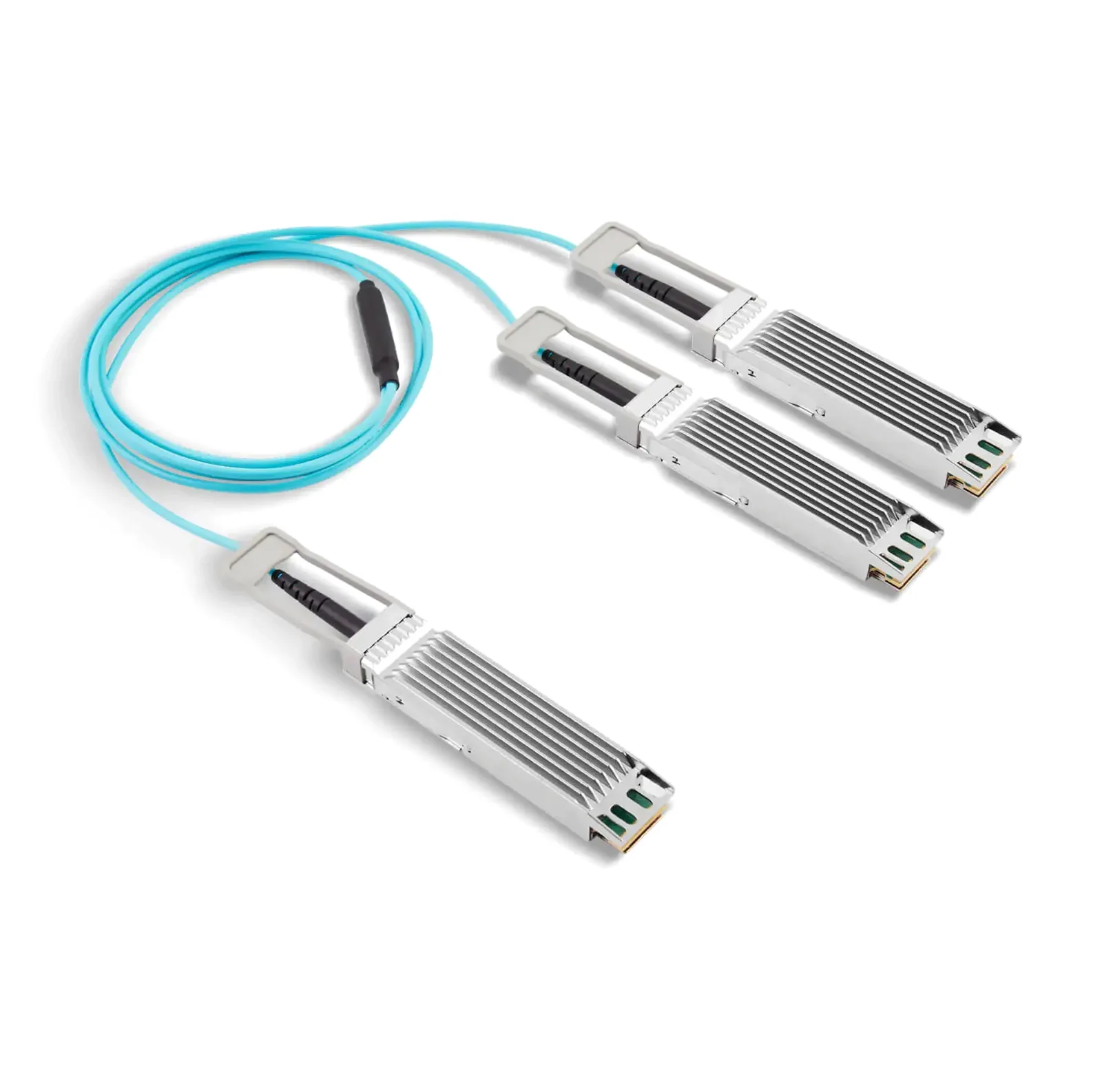

JH-800G-OSFP-A2-AOC is a 2x 400Gb/s twin-port OSFP (Octal Small Form-factor Pluggable) to 2x 400Gb/s twin-port OSFP active optical cable (AOC). It integrates eight high-speed electrical pairs, each supporting up to 100Gb/s with 100G-PAM4 modulation to deliver 800Gb/s links. It is compliant with OSFP MSA (Multi-Source Agreement), CMIS Rev 4.0, SFF-8679, and IEEE 802.3bs standards.

联系我们

产品特性

Hot-pluggable OSFP to 2xOSFP Active Optical Cable assembly
Supports 800Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 14W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 800G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	800G
Distance	1-50M
Wavelength	850nm
Form Factor	OSFP to 2xOSFP
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	14W
