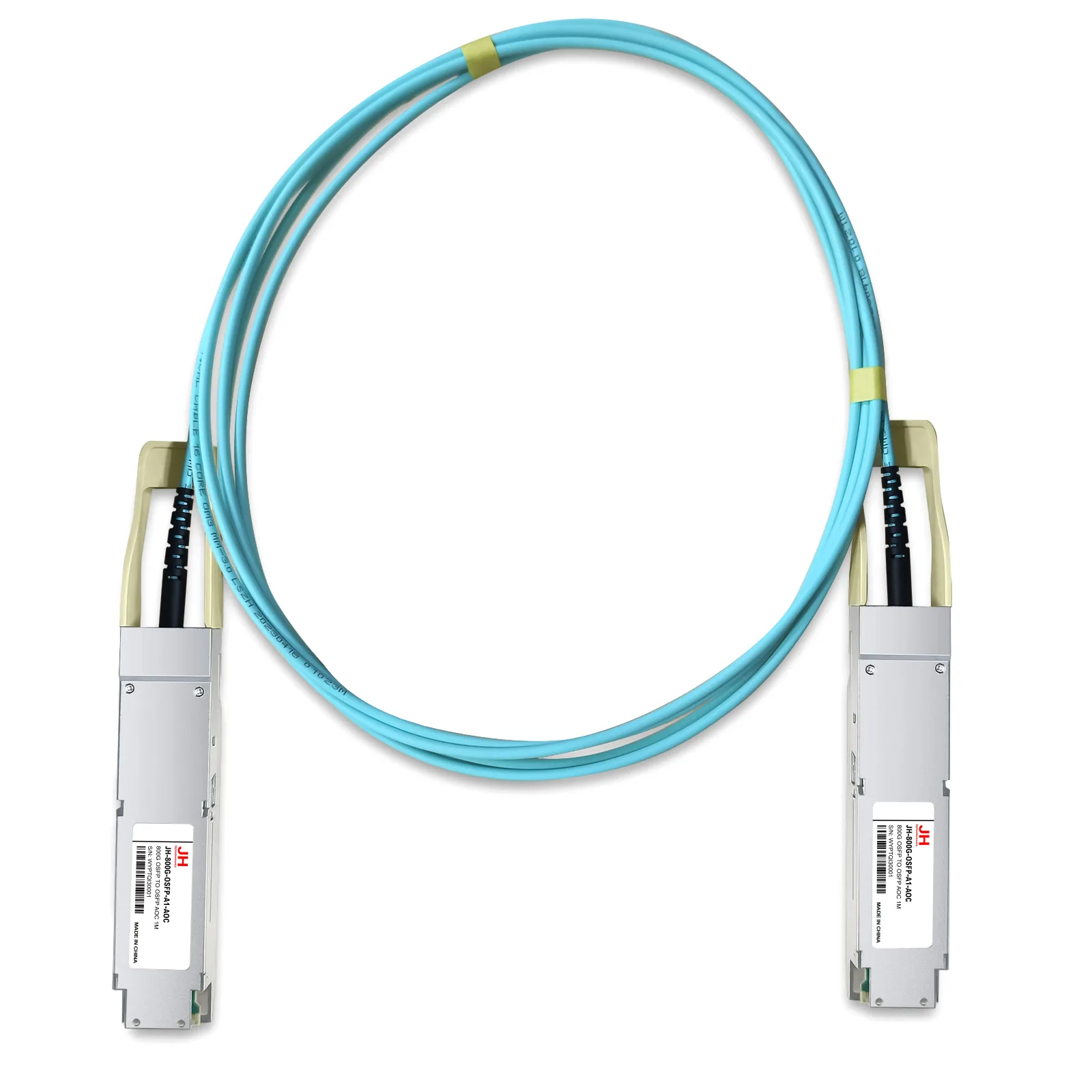

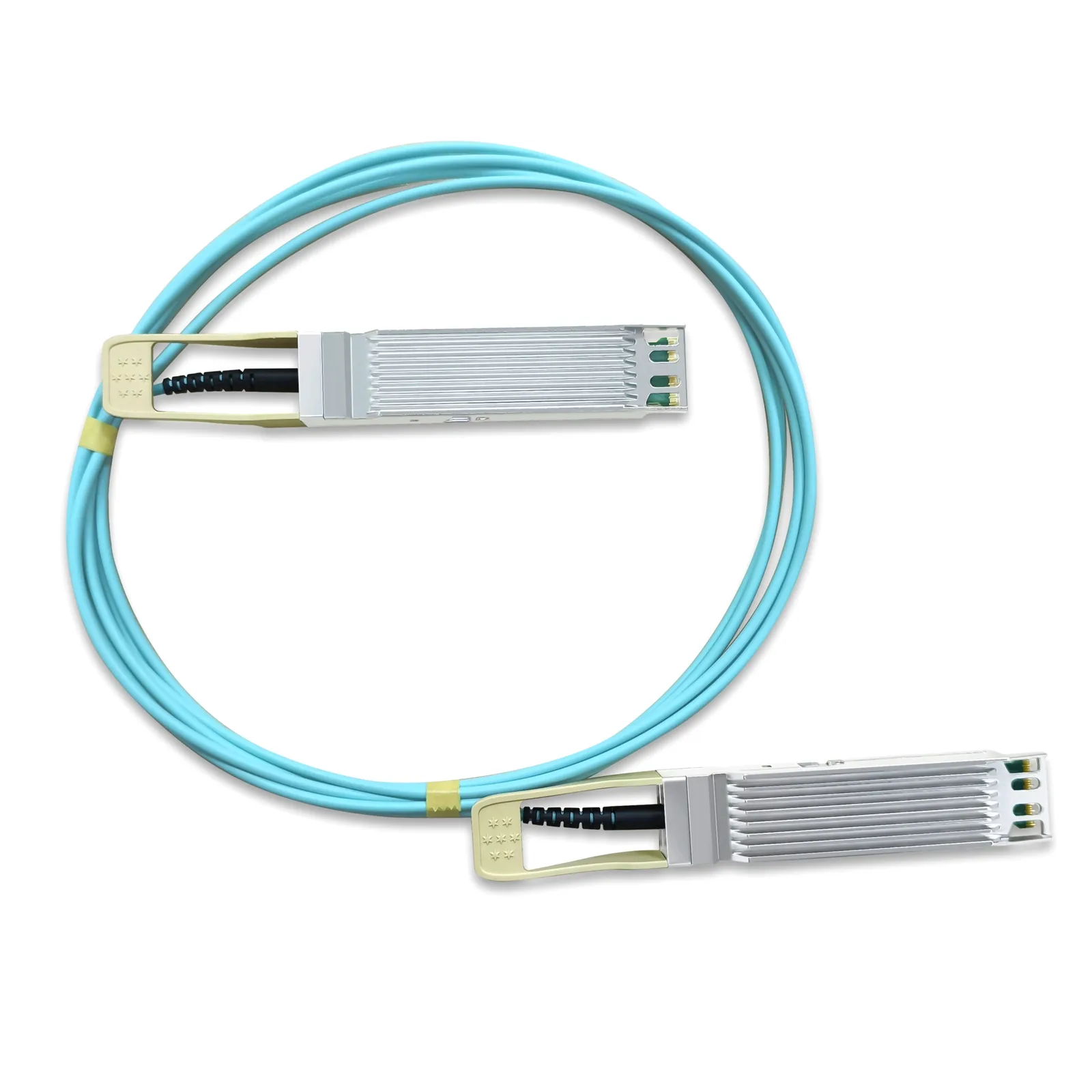

JH-800G-OSFP-A1-AOC

型号：800G OSFP TO OSFP AOC 1M

JH-800G-OSFP-A1-AOC OSFP AOC for Ethernet Applications. This AOC is a high performances module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 8x53.125GBd. Each lane can operate at 106.25Gbps up to 30m using OM3 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

联系我们

产品特性

Hot-pluggable OSFP to OSFP Active Optical Cable assembly
Supports 800Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 14W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 800G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	800G
Distance	1-50M
Wavelength	850nm
Form Factor	OSFP to OSFP
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	14W
