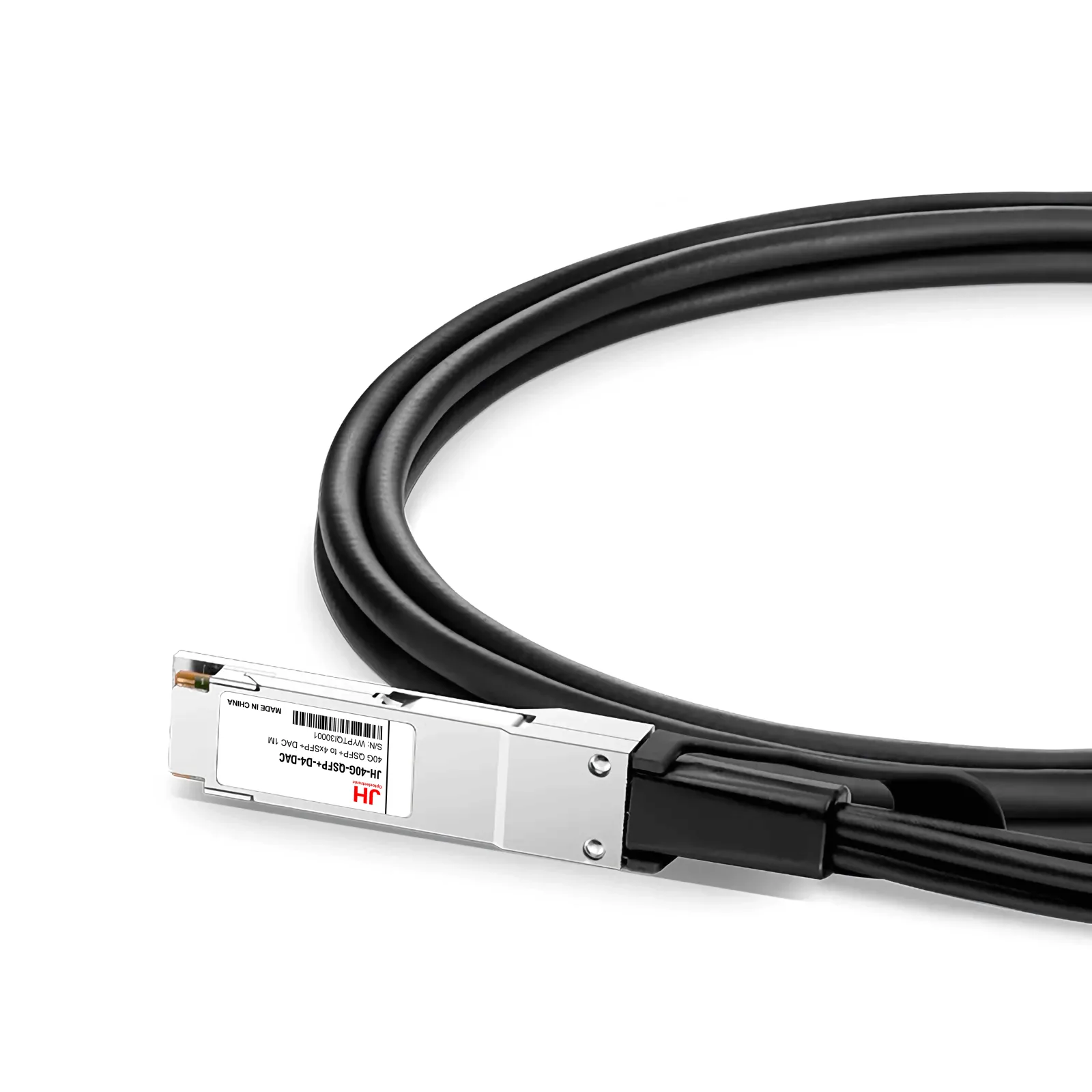

JH-40G-QSFP+-D4-DAC

型号：40G QSFP+ to 4xSFP+ DAC 1M

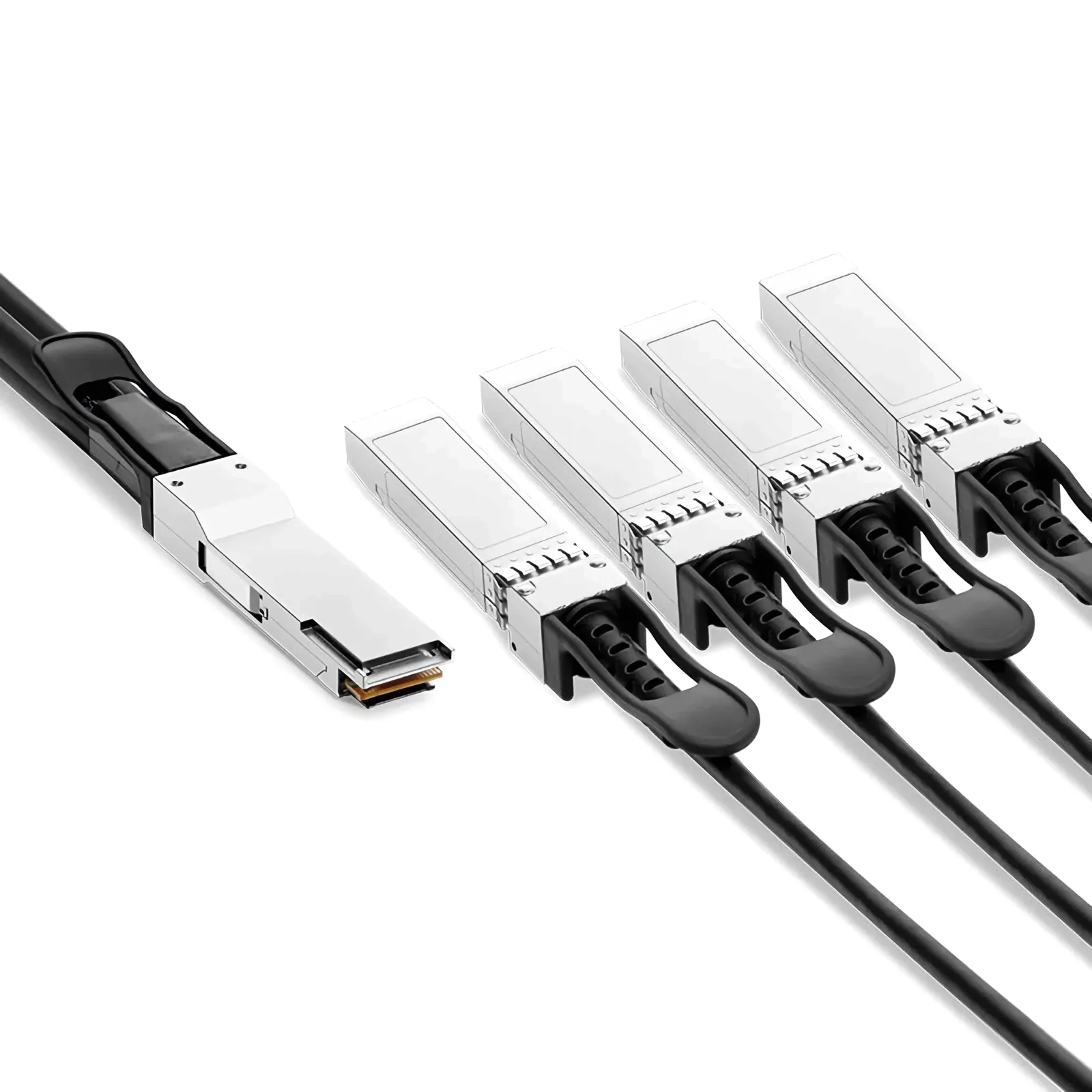

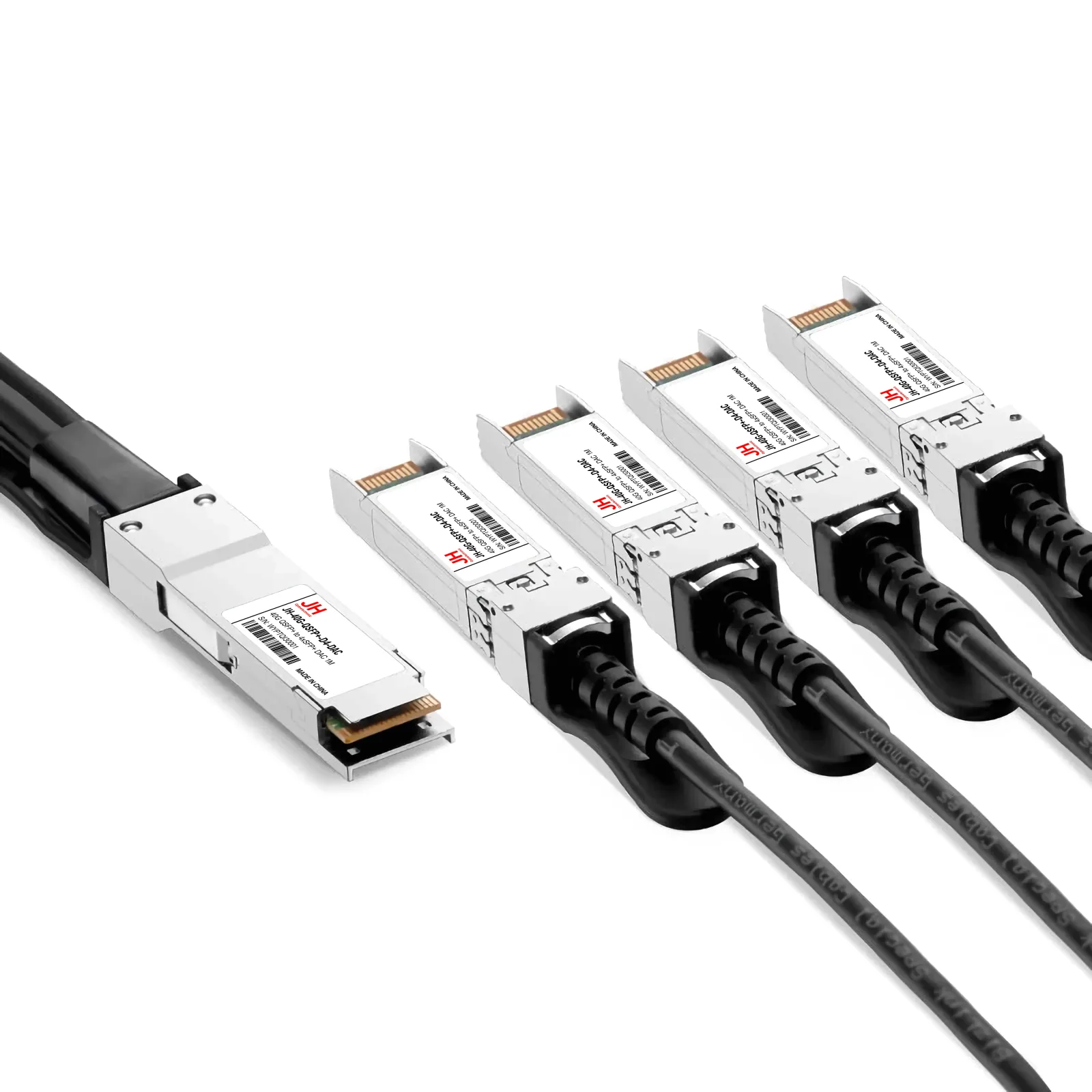

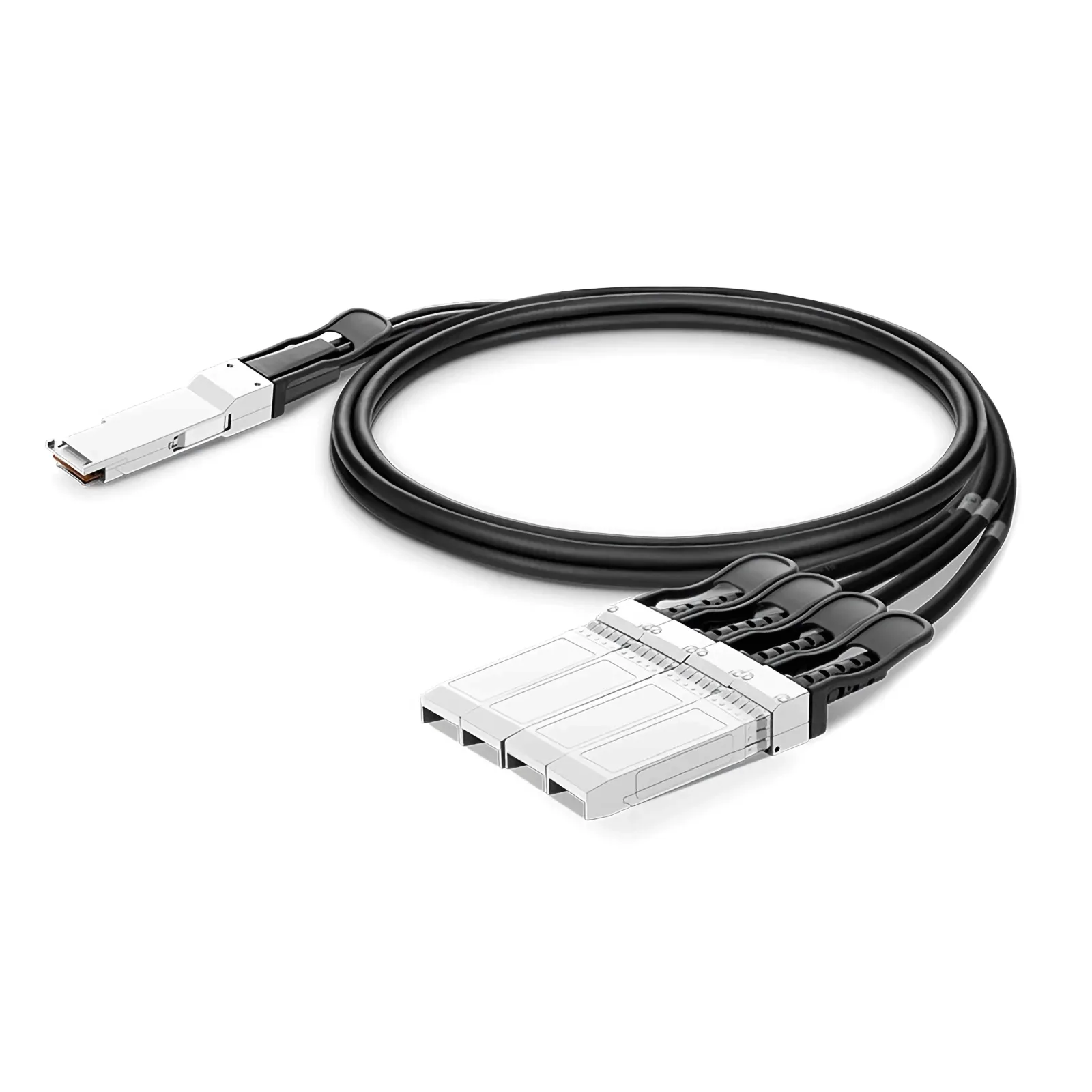

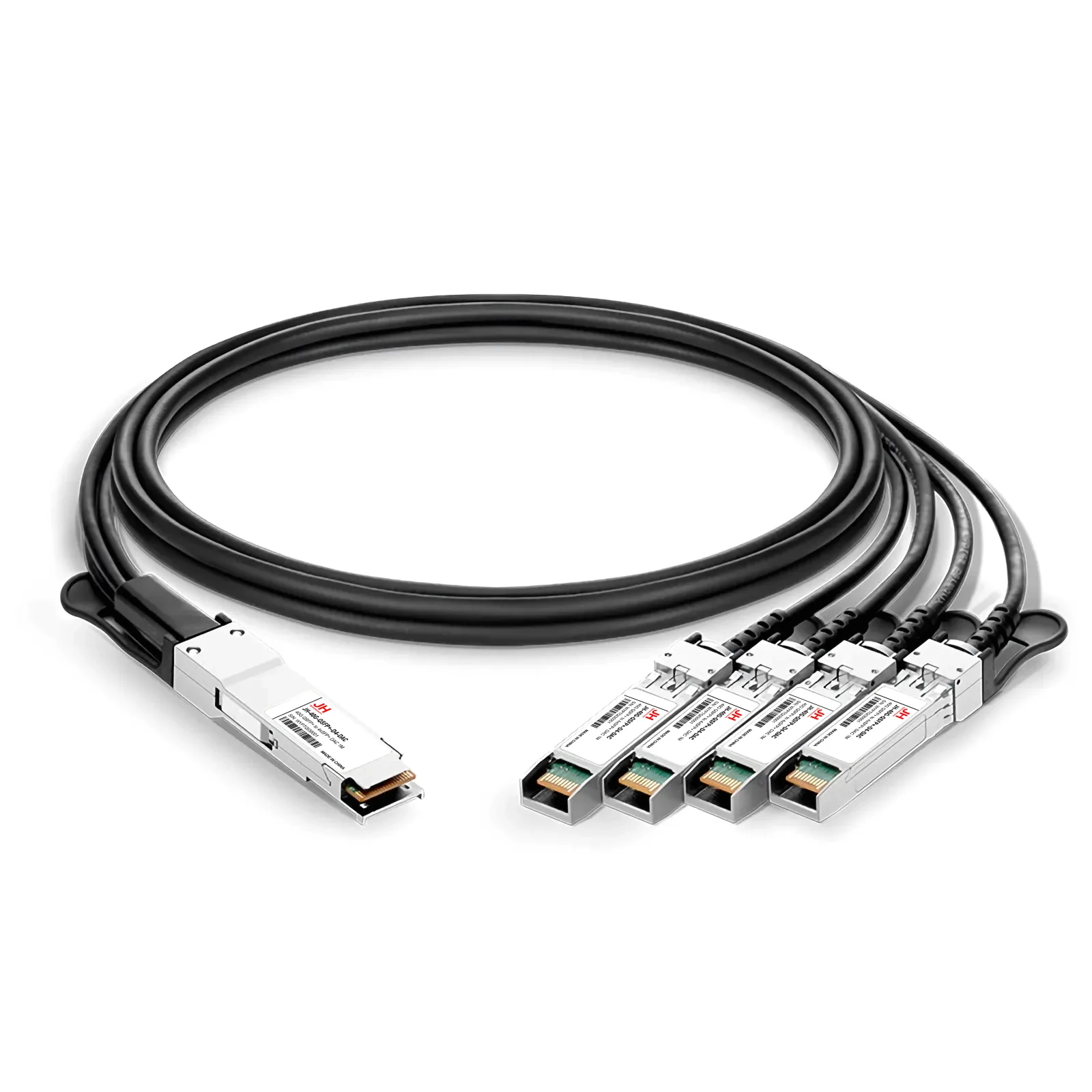

JH-40G-QSFP+-D4-DAC QSFP+ to 4 x 10G SFP+ Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards.

联系我们

产品特性

Hot-pluggable QSFP+ to 4xSFP+ Direct Attach Copper Cable assembly
Supports 40Gbps data rate, compliant with SFF-8436 standards
Maximum power consumption < 0.2W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 4xSFP+ 40G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	40G
Distance	0.5-7M
Wavelength	Copper
Form Factor	QSFP+ to 4xSFP+
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.2W

规格书

规格书下载

Datasheet
