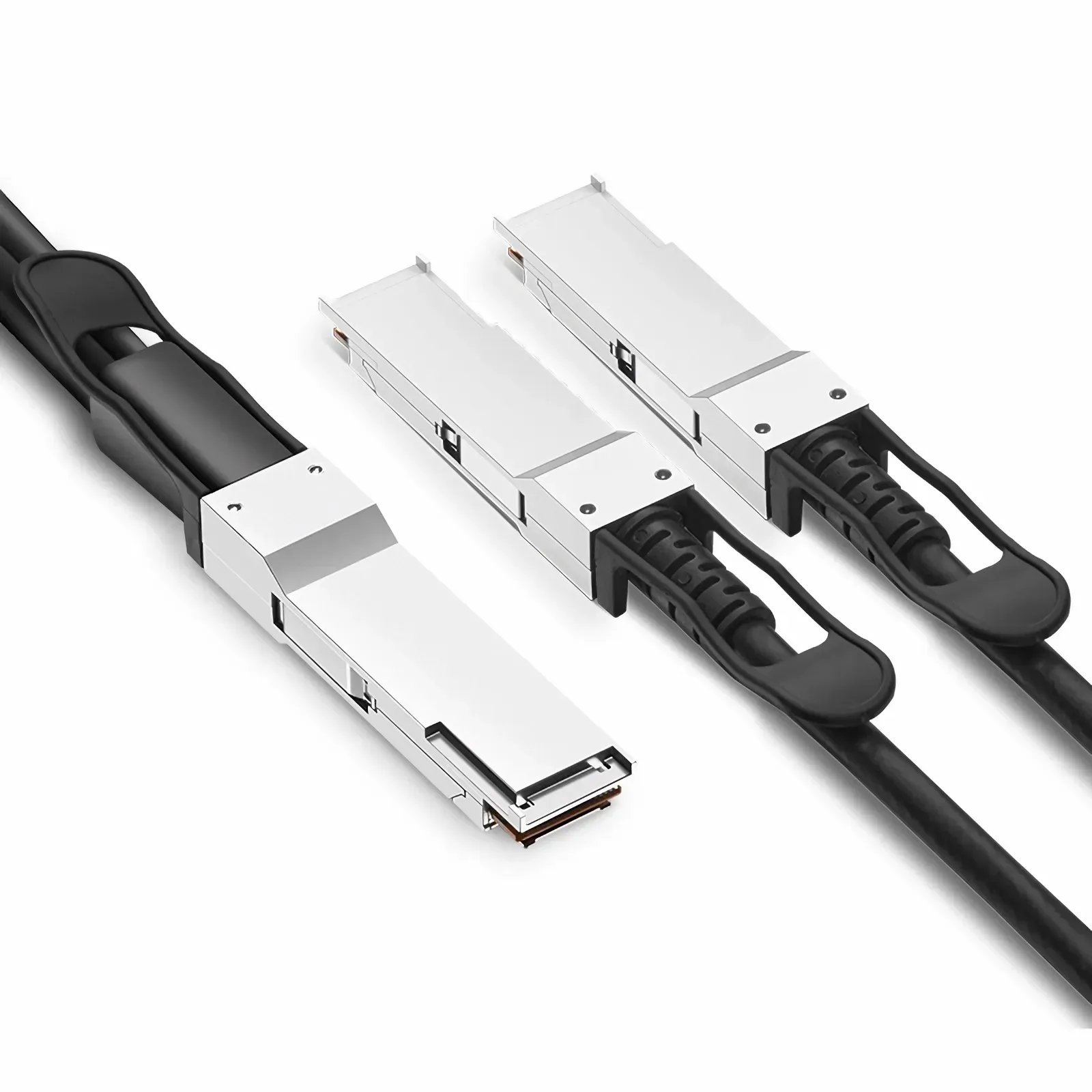

JH-100G-QSFP28-D2-DAC

型号：100G QSFP28 to 2xQSFP28 DAC 1M

JH-100G-QSFP28-D2-DAC Direct Attach Copper cable provides low insertion loss and ultra-low crosstalk. It complies with IEEE 802.3, SFF-8662, and hot-pluggable QSFP28 MSA standards, ensuring compatibility, reliability, and seamless deployment in multi-vendor environments.

联系我们

产品特性

Hot-pluggable QSFP28 to 2xQSFP28 Direct Attach Copper Cable assembly
Supports 100Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 0.3W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 2xQSFP28 100G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	100G
Distance	0.5-5M
Wavelength	Copper
Form Factor	QSFP28 to 2xQSFP28
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.3W

规格书

规格书下载

Datasheet
