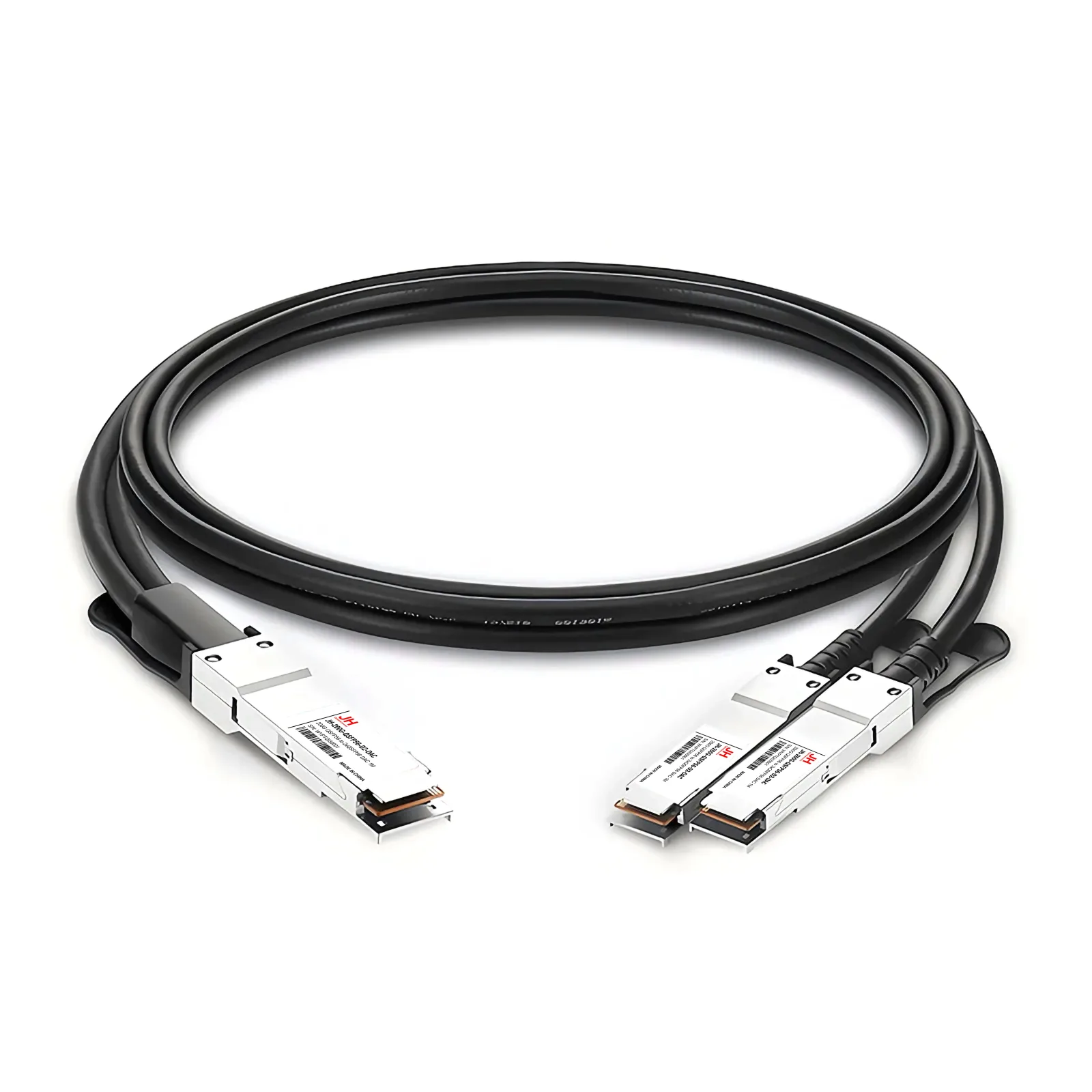

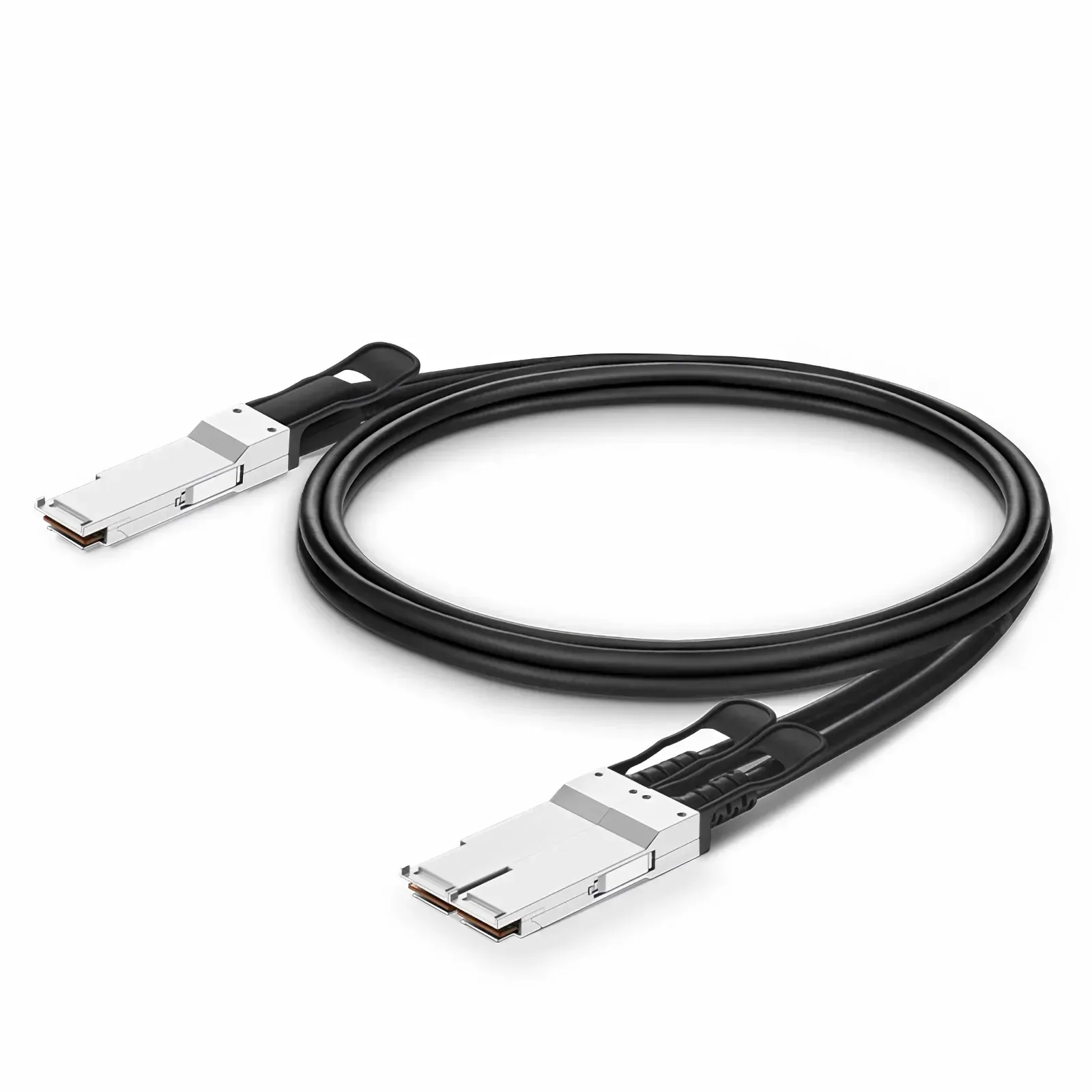

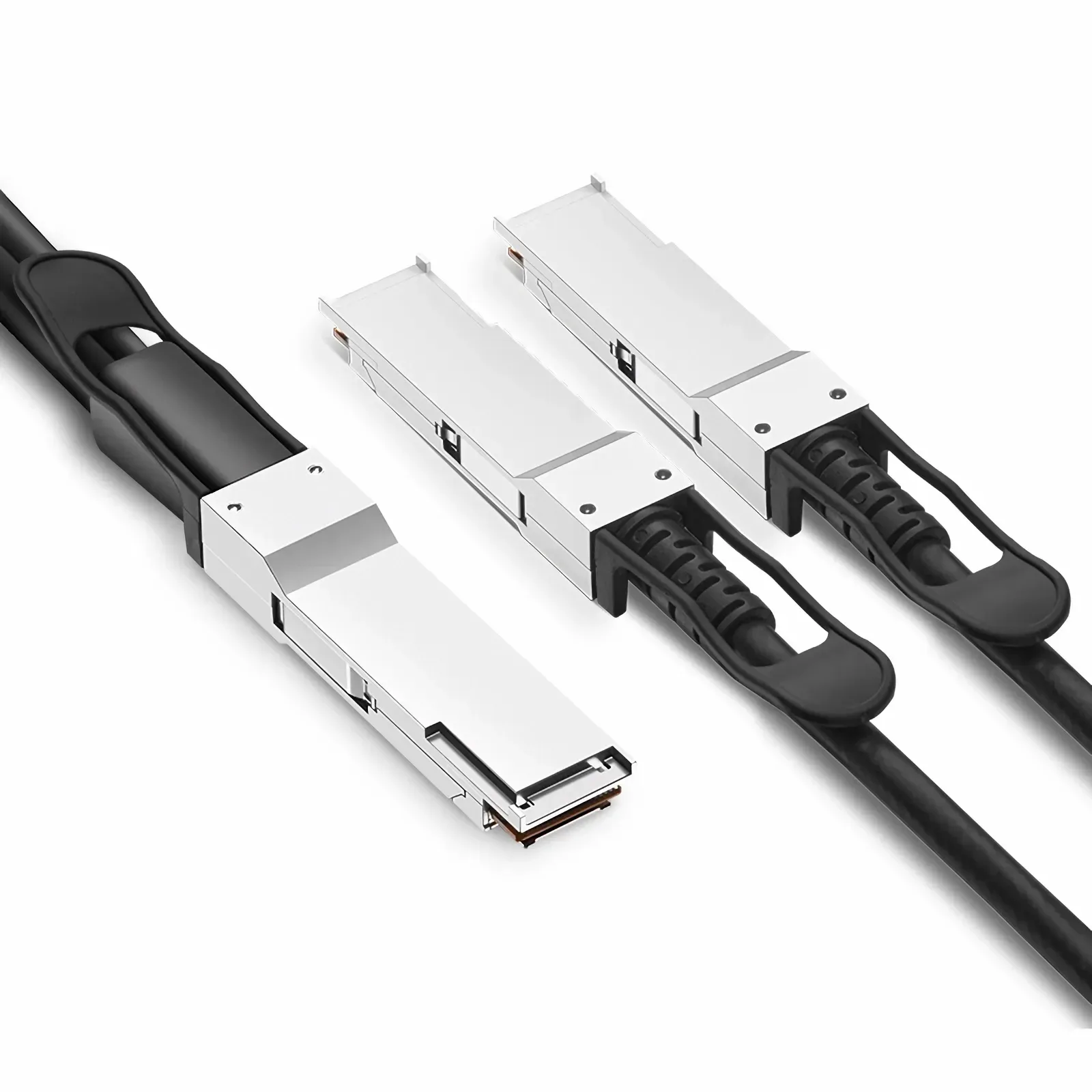

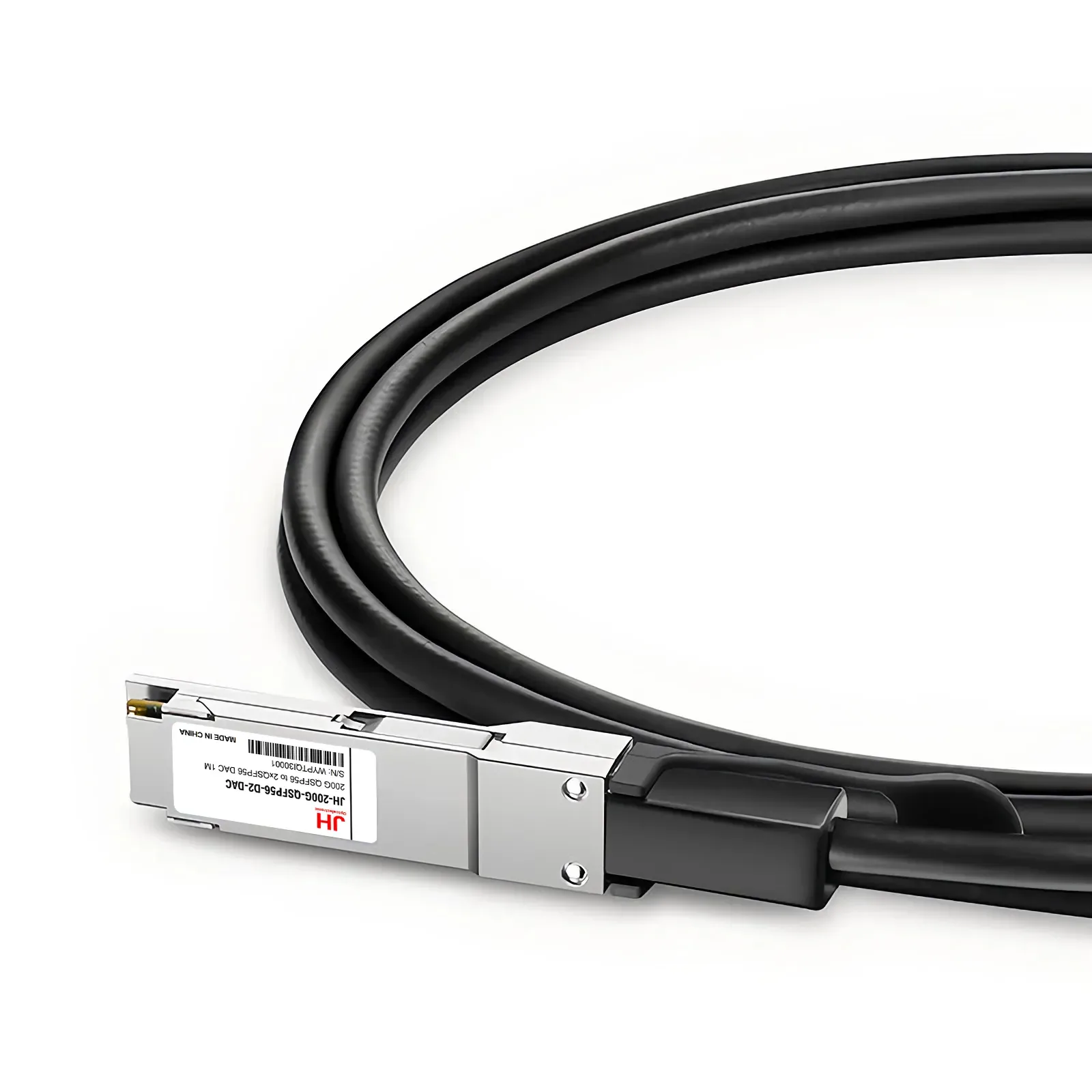

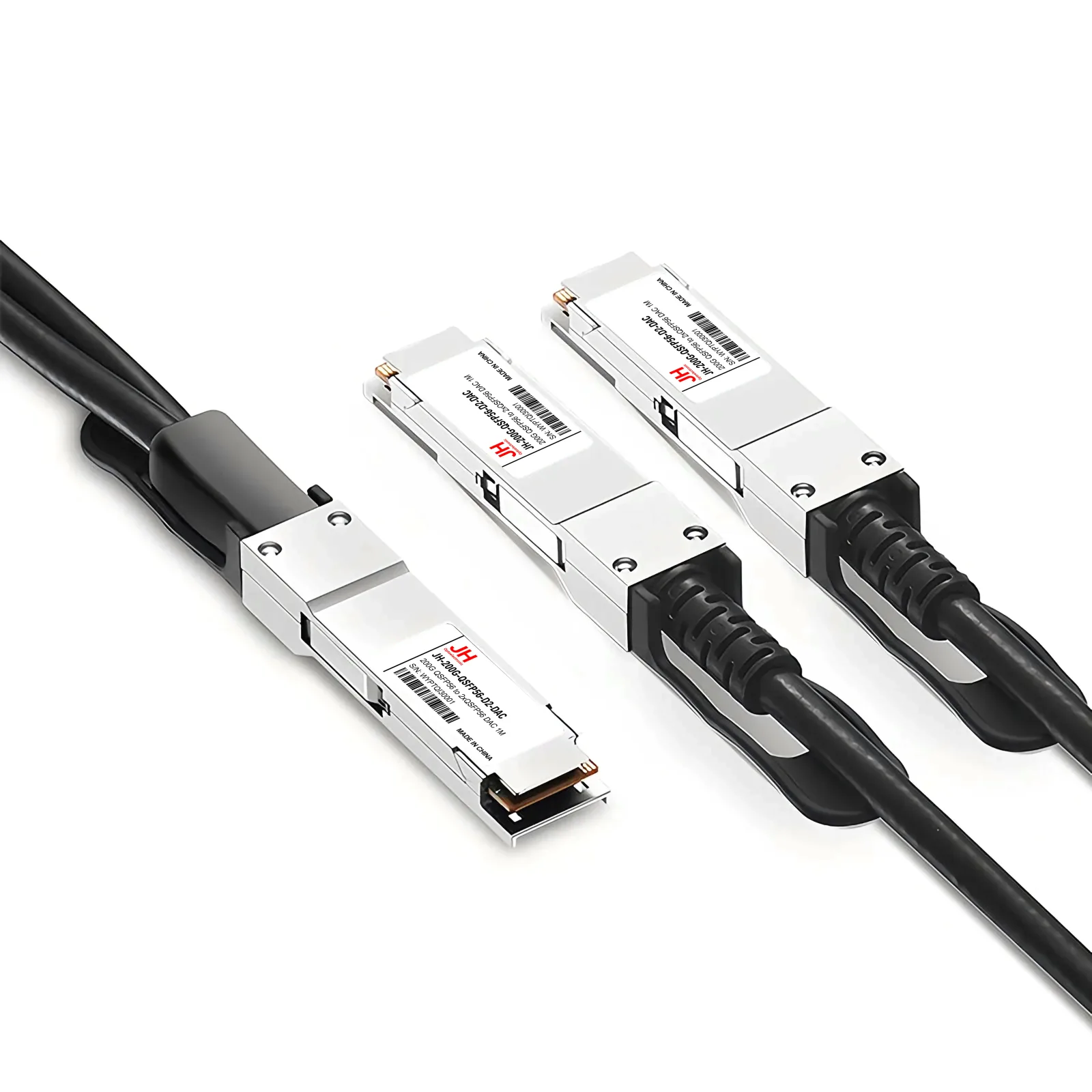

JH-200G-QSFP56-D2-DAC

型号：200G QSFP56 to 2xQSFP56 DAC 1M

JH-200G-QSFP56-D2-DAC QSFP-DD to 2x 100G QSFP28 Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with QSFP-DD MSA, SFF-8661, IEEE 802.3bs-200GAUI-8, IEEE802.3bm-CAUI-4, CMIS 4.0 and SFF-8636 standards. It provides a connection of a 200G QSFP-DD port on one end and to two 100G QSFP28 ports on the other end. It also supports configurations for 80G to 2x 40G applications, providing flexibility for various network setups.

联系我们

产品特性

Hot-pluggable QSFP56 to 2xQSFP56 Direct Attach Copper Cable assembly
Supports 200Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 0.4W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 2xQSFP56 200G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	200G
Distance	0.5-3M
Wavelength	Copper
Form Factor	QSFP56 to 2xQSFP56
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.4W
