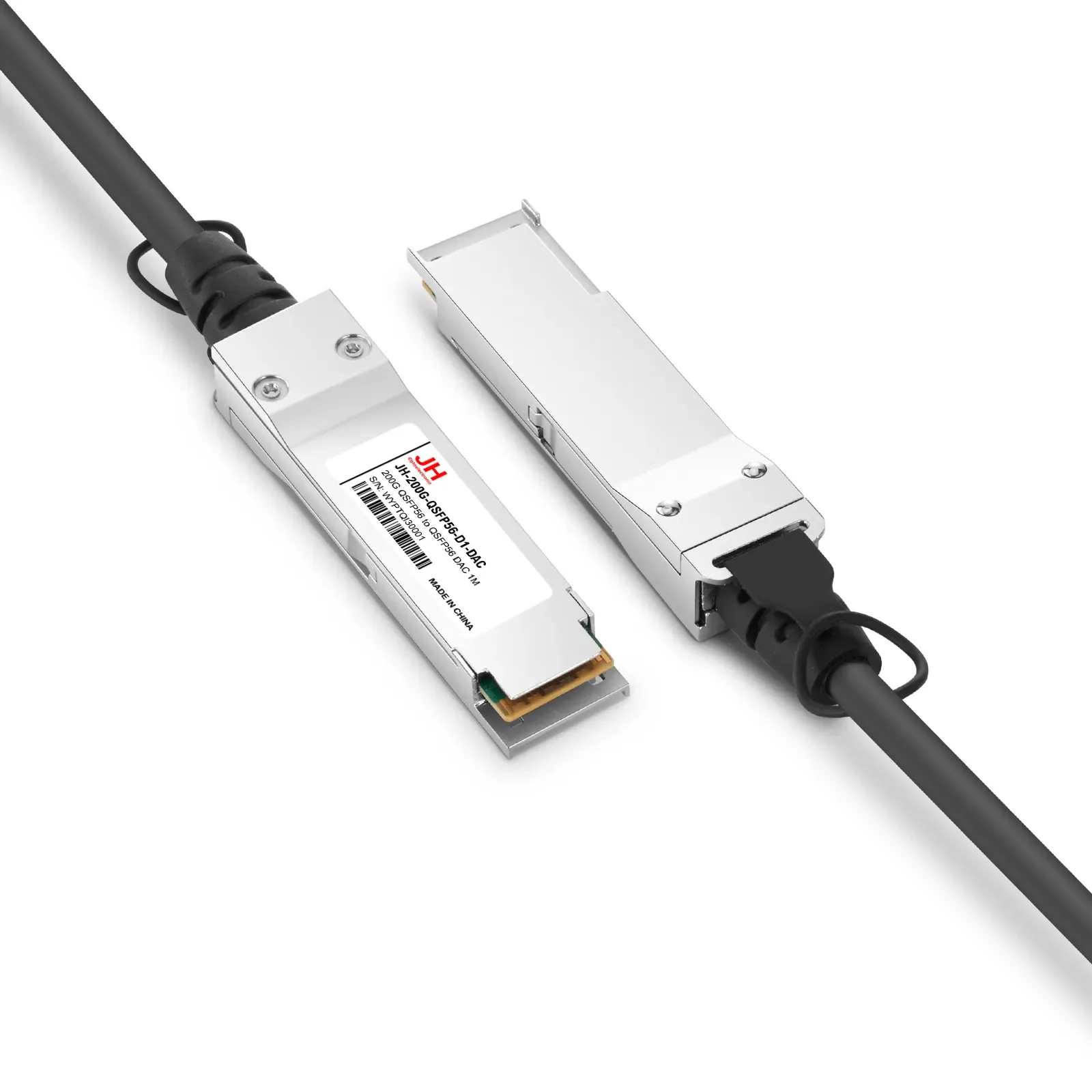

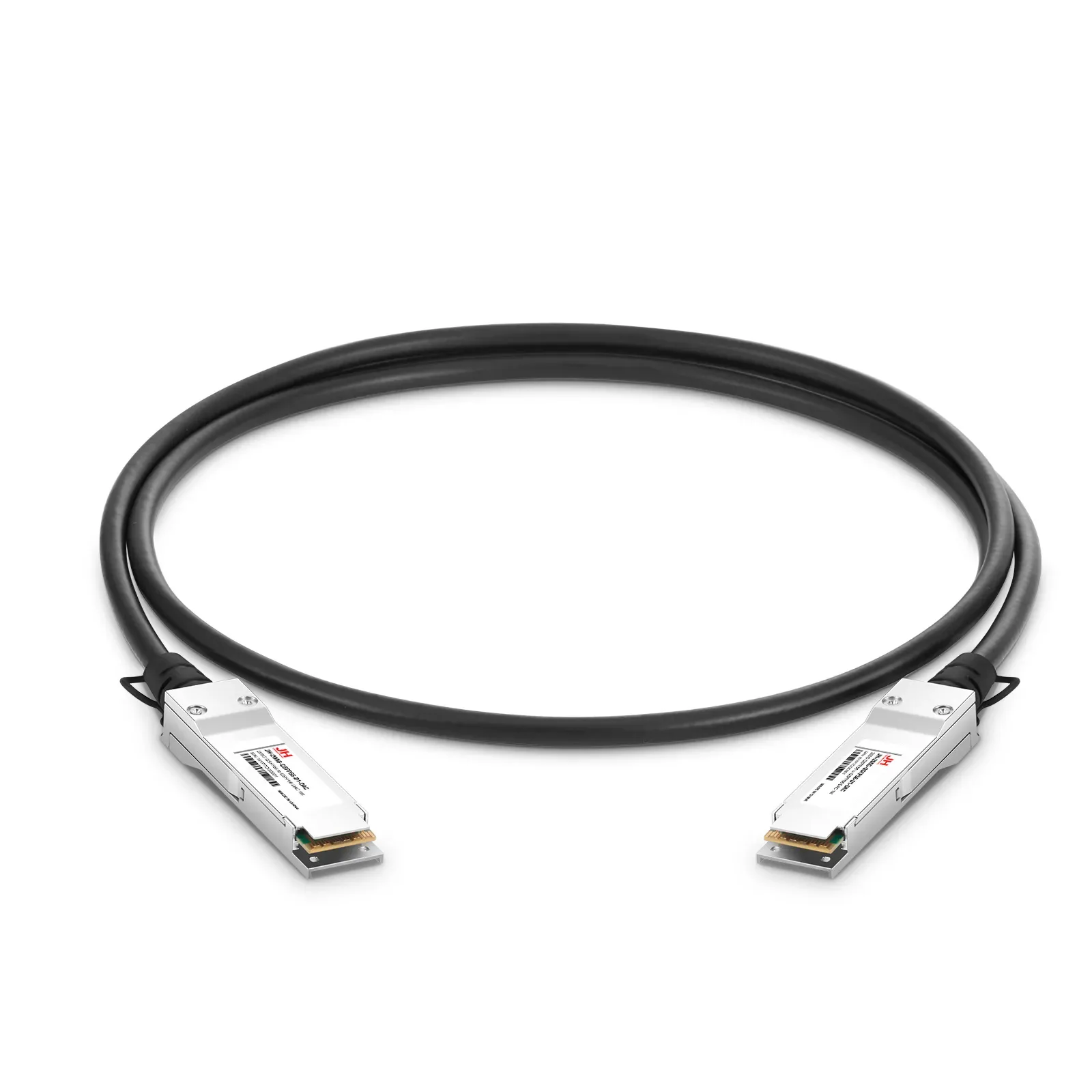

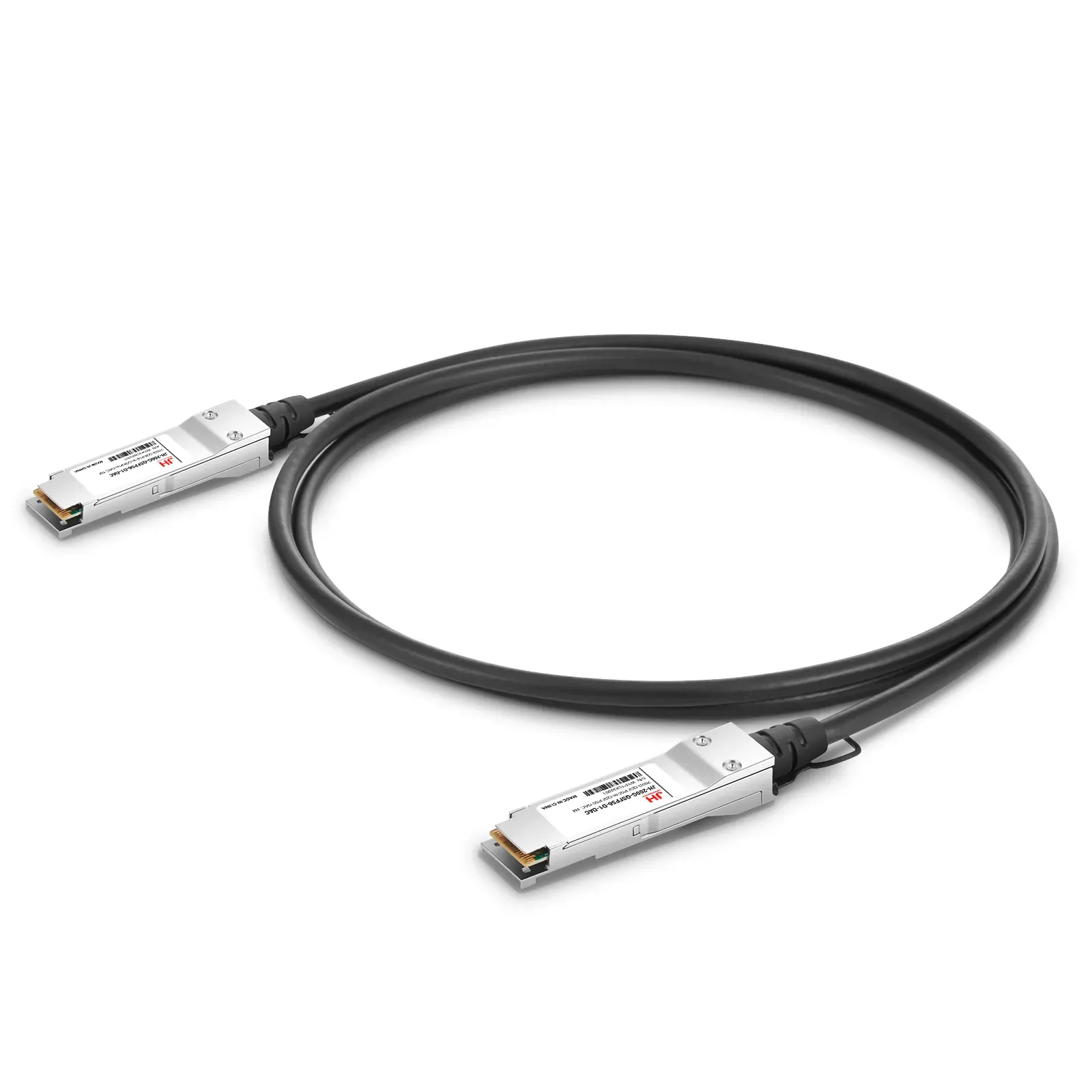

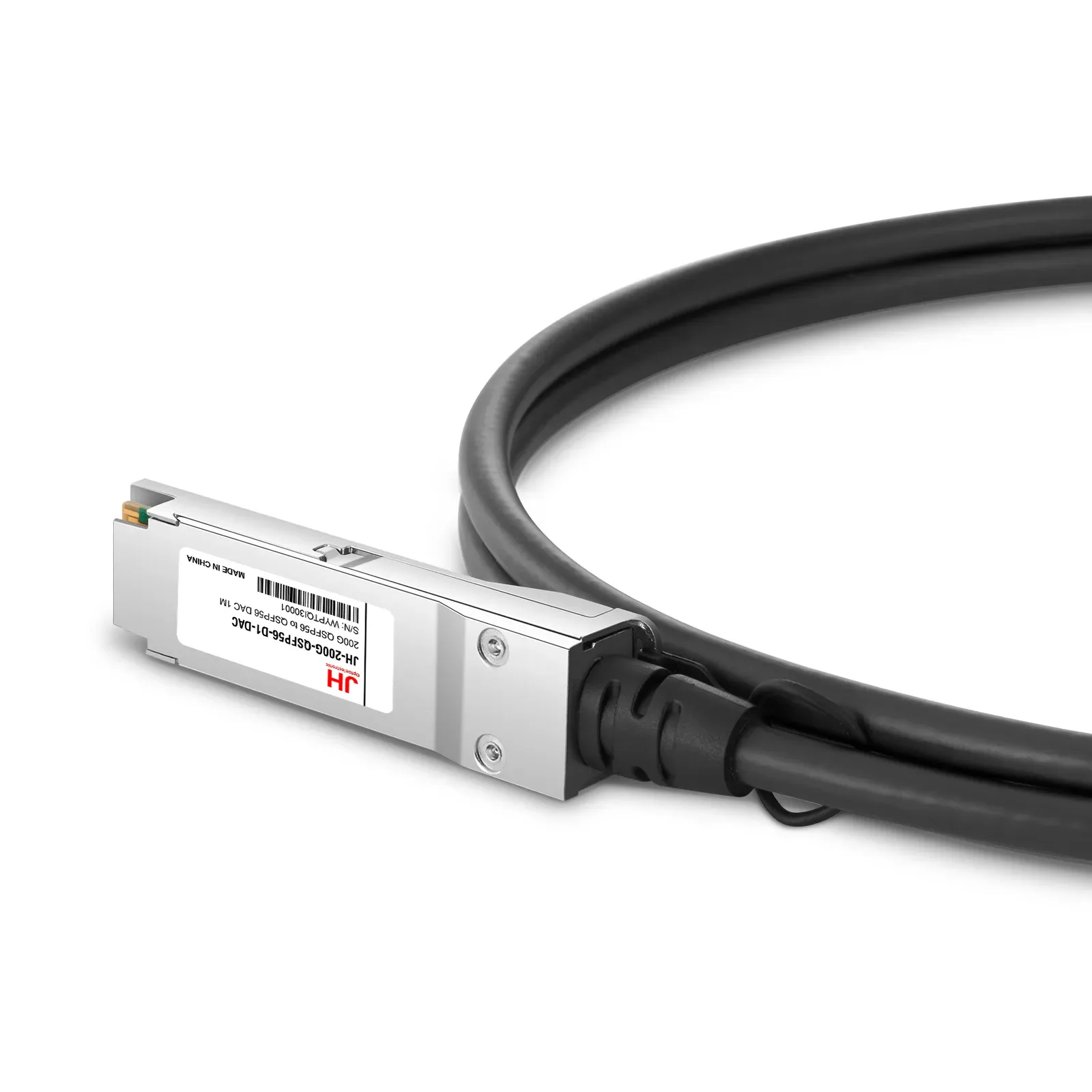

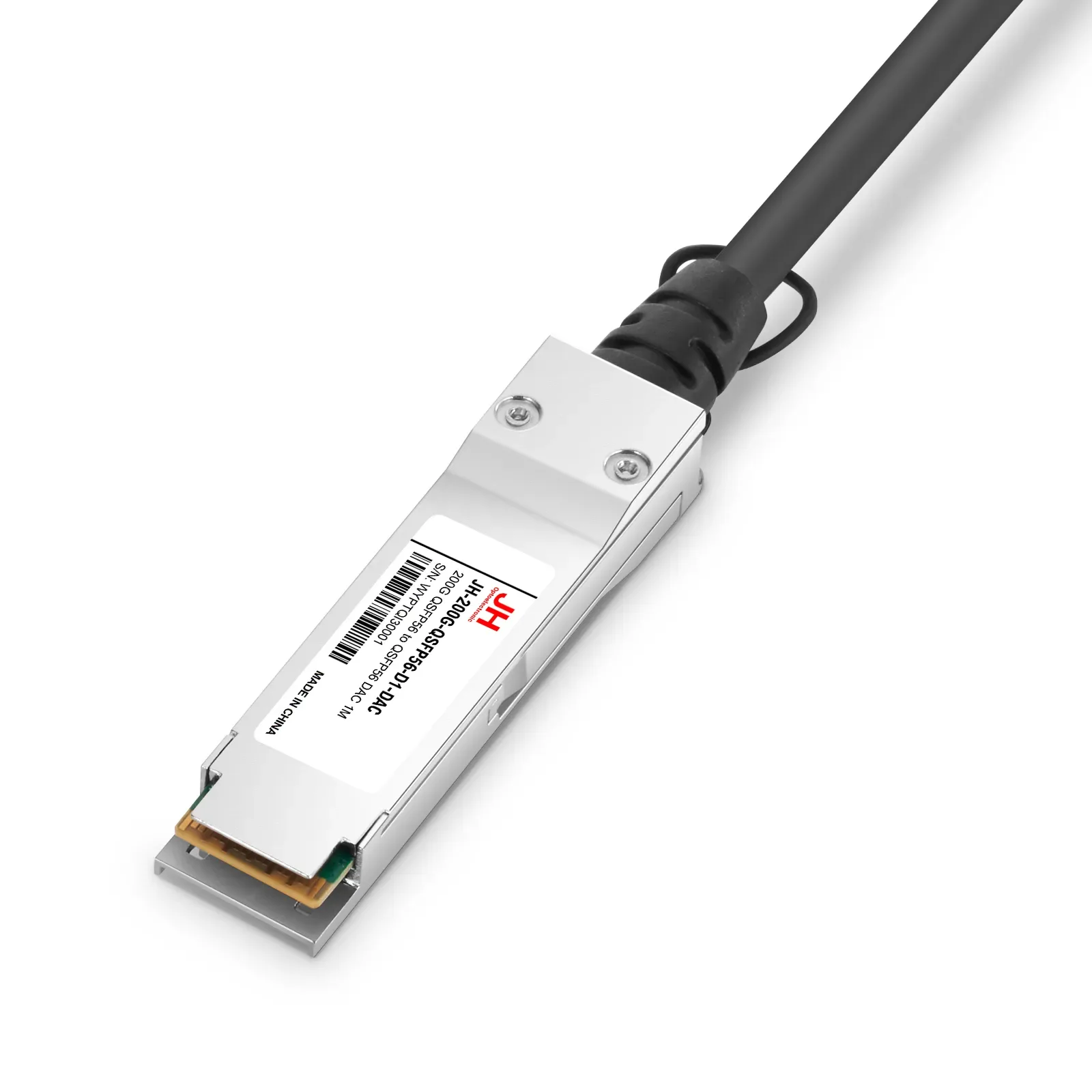

JH-200G-QSFP56-D1-DAC

型号：200G QSFP56 to QSFP56 DAC 1M

JH-200G-QSFP56-D1-DAC QSFP-DD DAC primarily enables high-bandwidth 200G links and supports 200G Ethernet rate. It provides a QSFP-DD to QSFP-DD copper direct-attach solution. 200G QSFP-DD DAC cables are suitable for very short links and offer a cost-effective way to establish a 200-Gigabit link between 200G QSFP-DD ports of switches/routers within racks and across adjacent racks. FS currently offers passive copper cables in lengths of 0.5, 1, 1.5, 2, 2.5 and 3 meters.

联系我们

产品特性

Hot-pluggable QSFP56 to QSFP56 Direct Attach Copper Cable assembly
Supports 200Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 0.4W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center QSFP56 200G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	200G
Distance	0.5-3M
Wavelength	Copper
Form Factor	QSFP56 to QSFP56
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.4W

规格书

规格书下载

Datasheet
