JH-400G-QSFP-DD-D4-DAC

型号：400G QSFP-DD to 4xQSFP56 DAC 1M

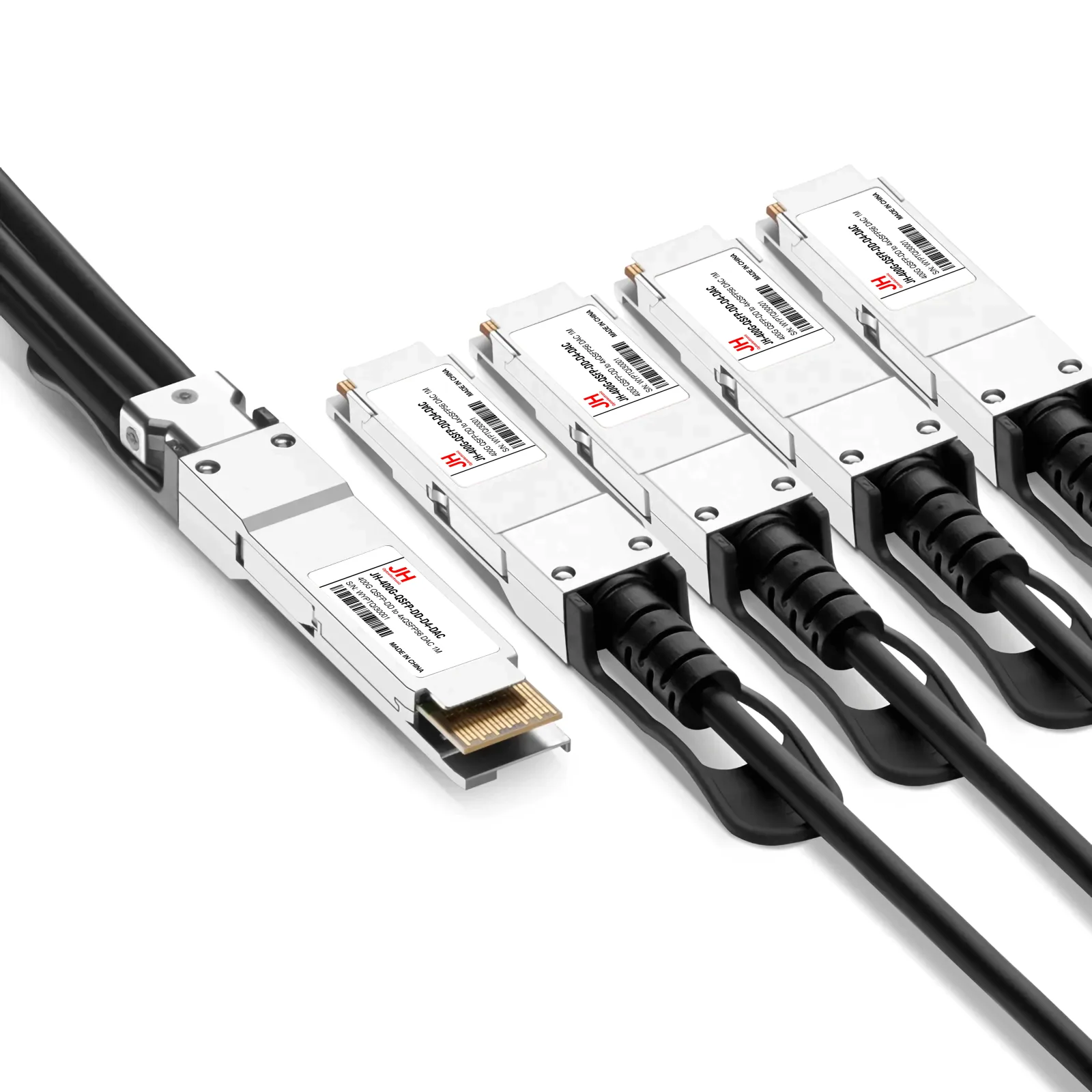

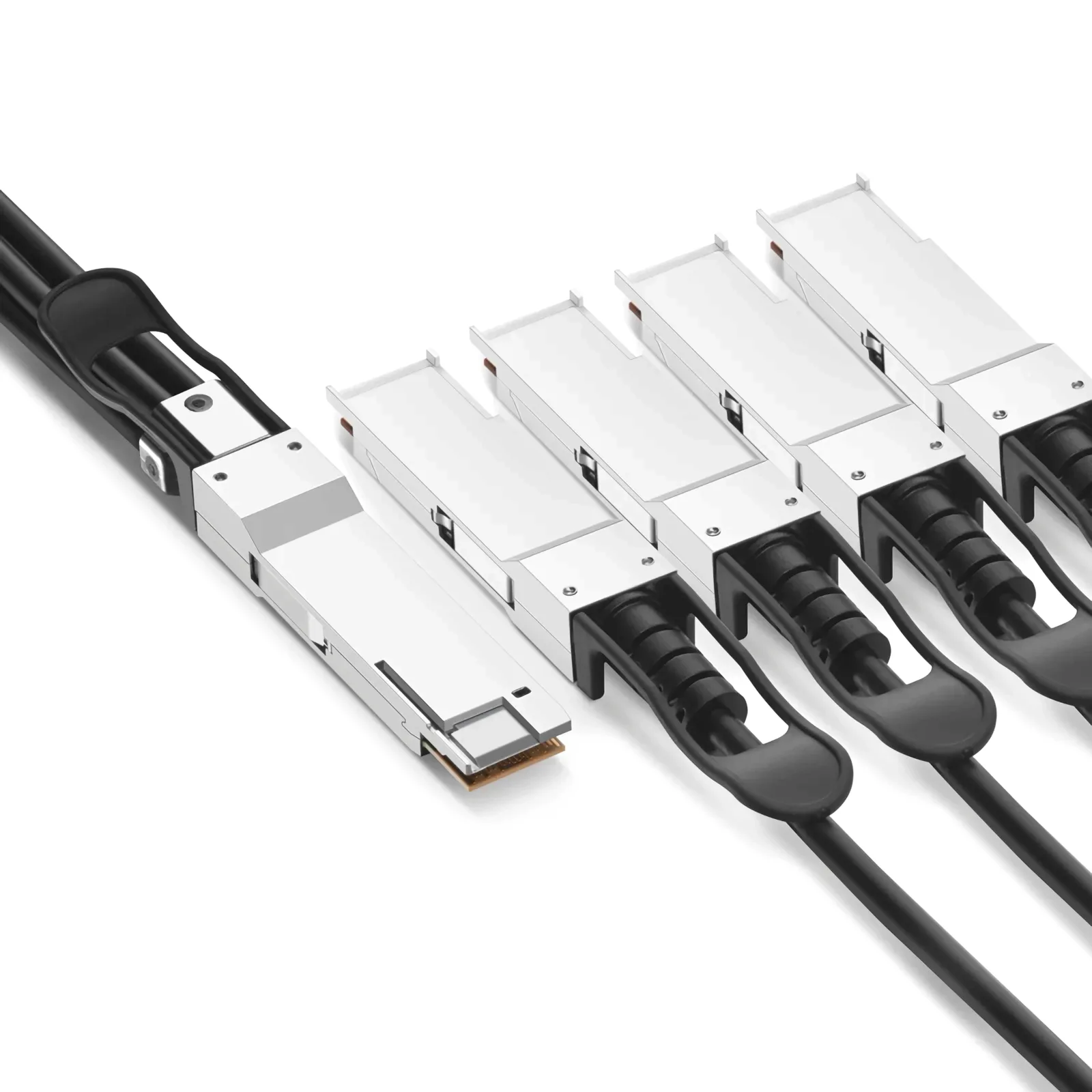

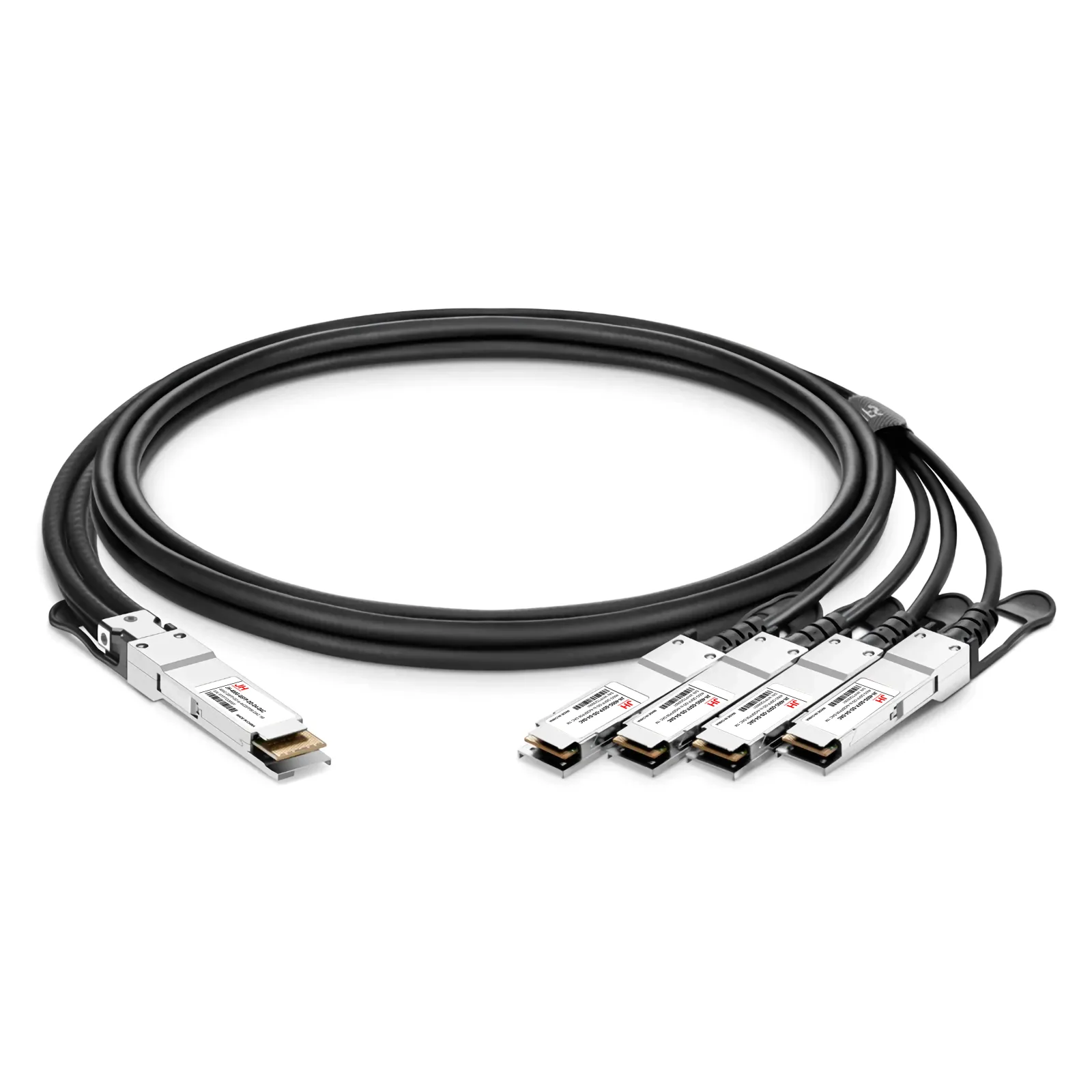

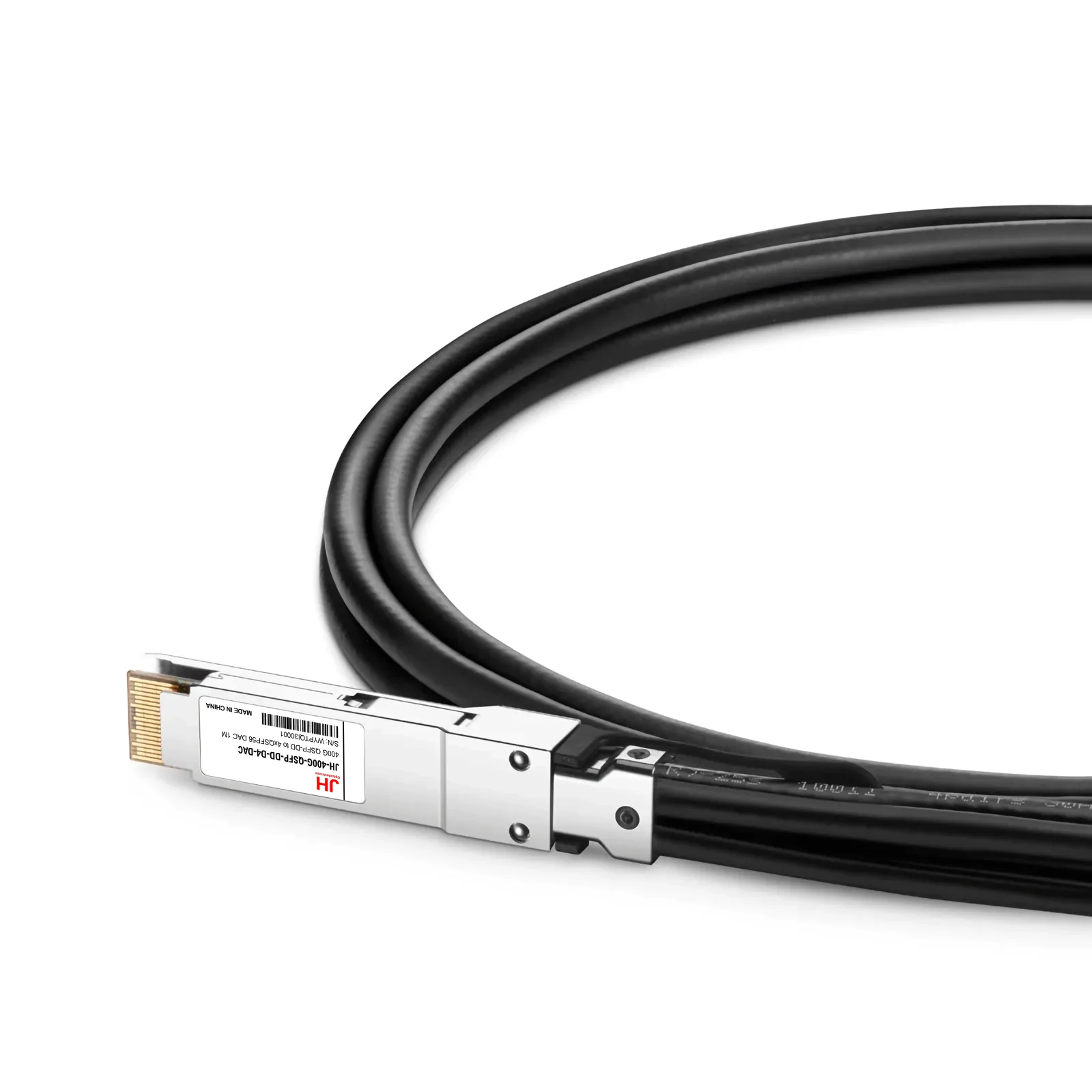

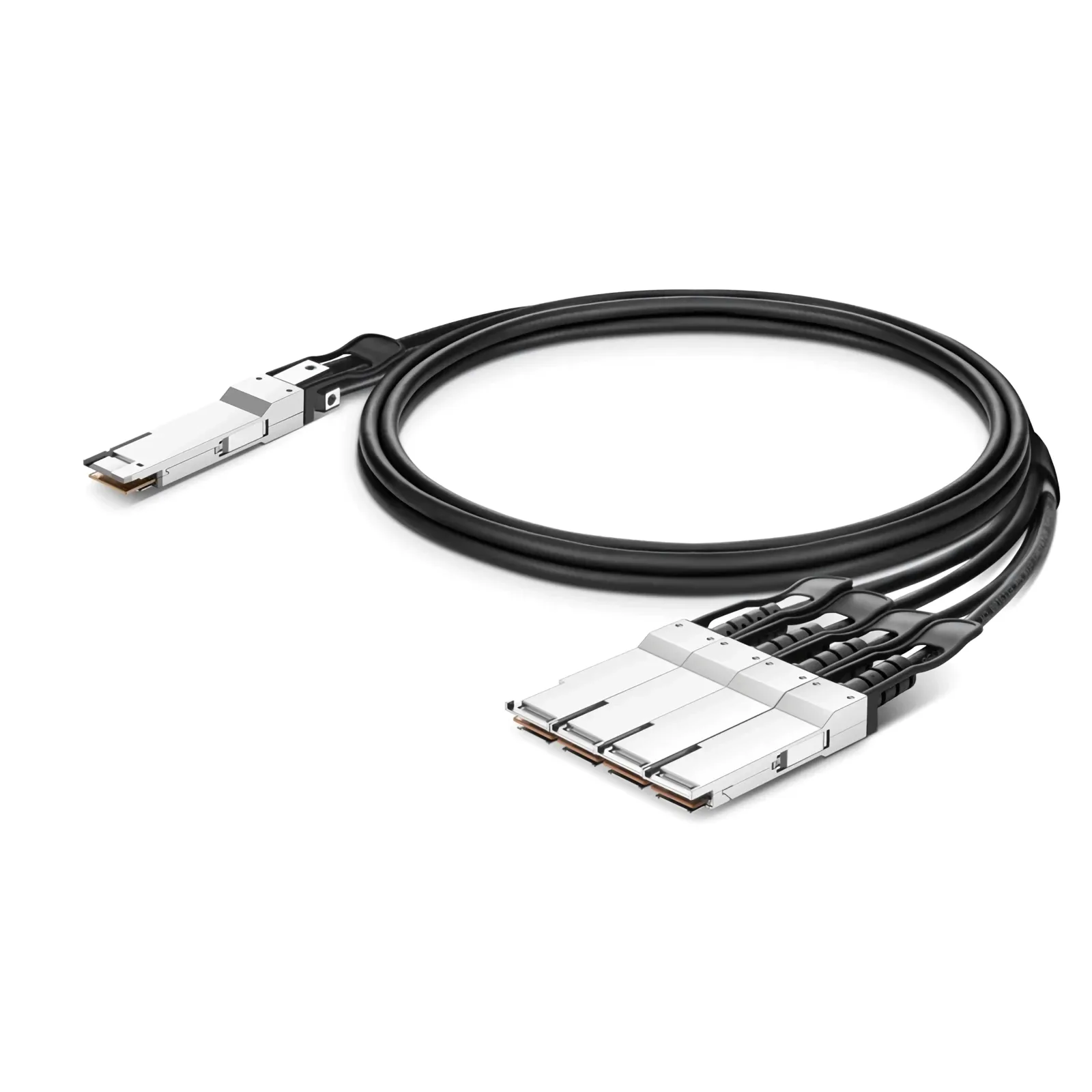

JH-400G-QSFP-DD-D4-DAC QSFP-DD to 4x 100G QSFP56 DAC breakout cable assembly is designed to meet the high density requirements of standard and combo connector configurations. QSFP-DD pluggable solutions enable 400G transmission. This hot-swappable transceiver integrates 8 transmit and 8 receive channels. It is fully compliant with SFF-8665, QSFP-DD MSA, IEEE802.3bj, and IEEE802.3cd standards.

联系我们

产品特性

Hot-pluggable QSFP-DD to 4xQSFP56 Direct Attach Copper Cable assembly
Supports 400Gbps data rate, compliant with QSFP-DD MSA and CMIS 5.0 standards
Maximum power consumption < 0.5W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 4xQSFP56 400G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	400G
Distance	0.5-3M
Wavelength	Copper
Form Factor	QSFP-DD to 4xQSFP56
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.5W

规格书

规格书下载

Datasheet
