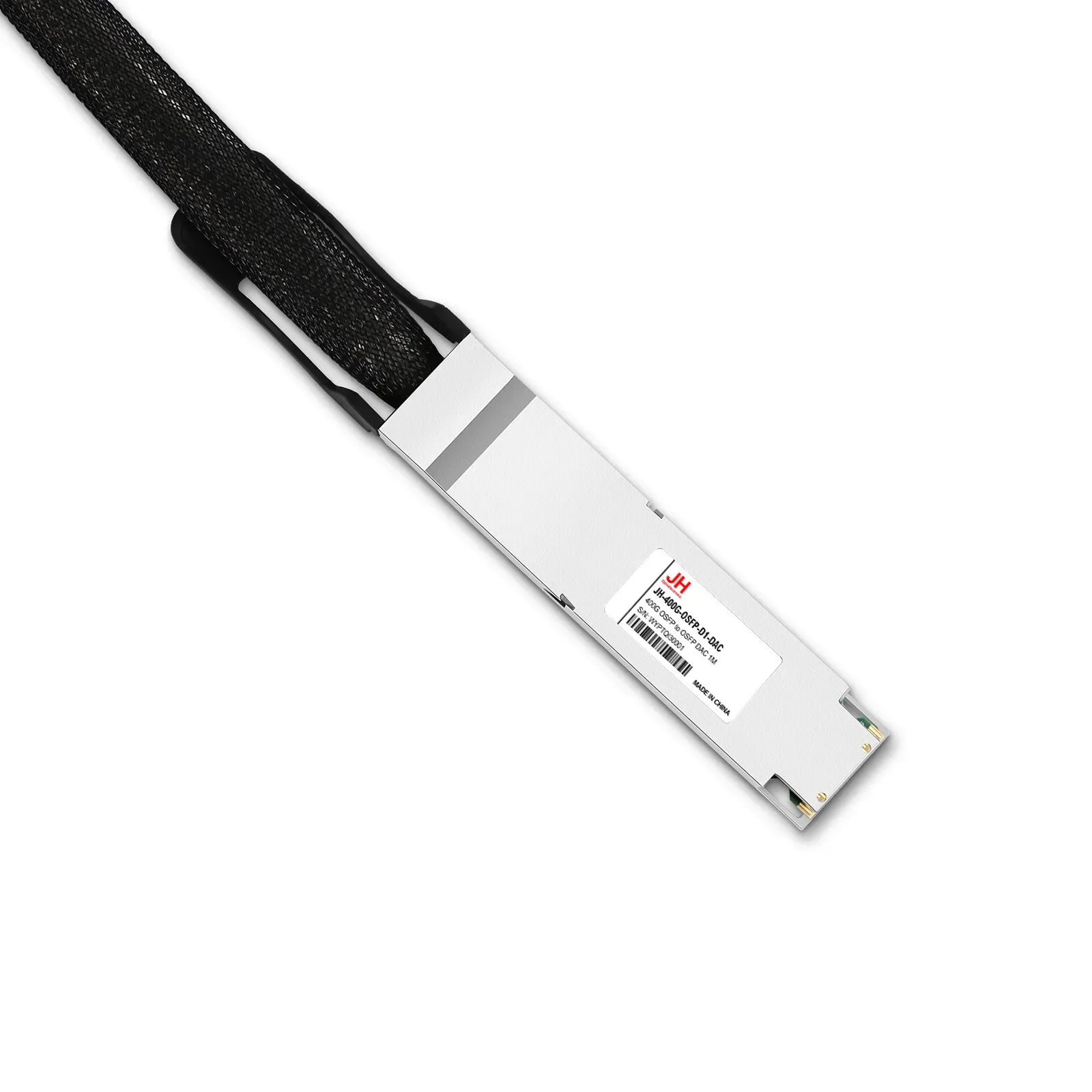

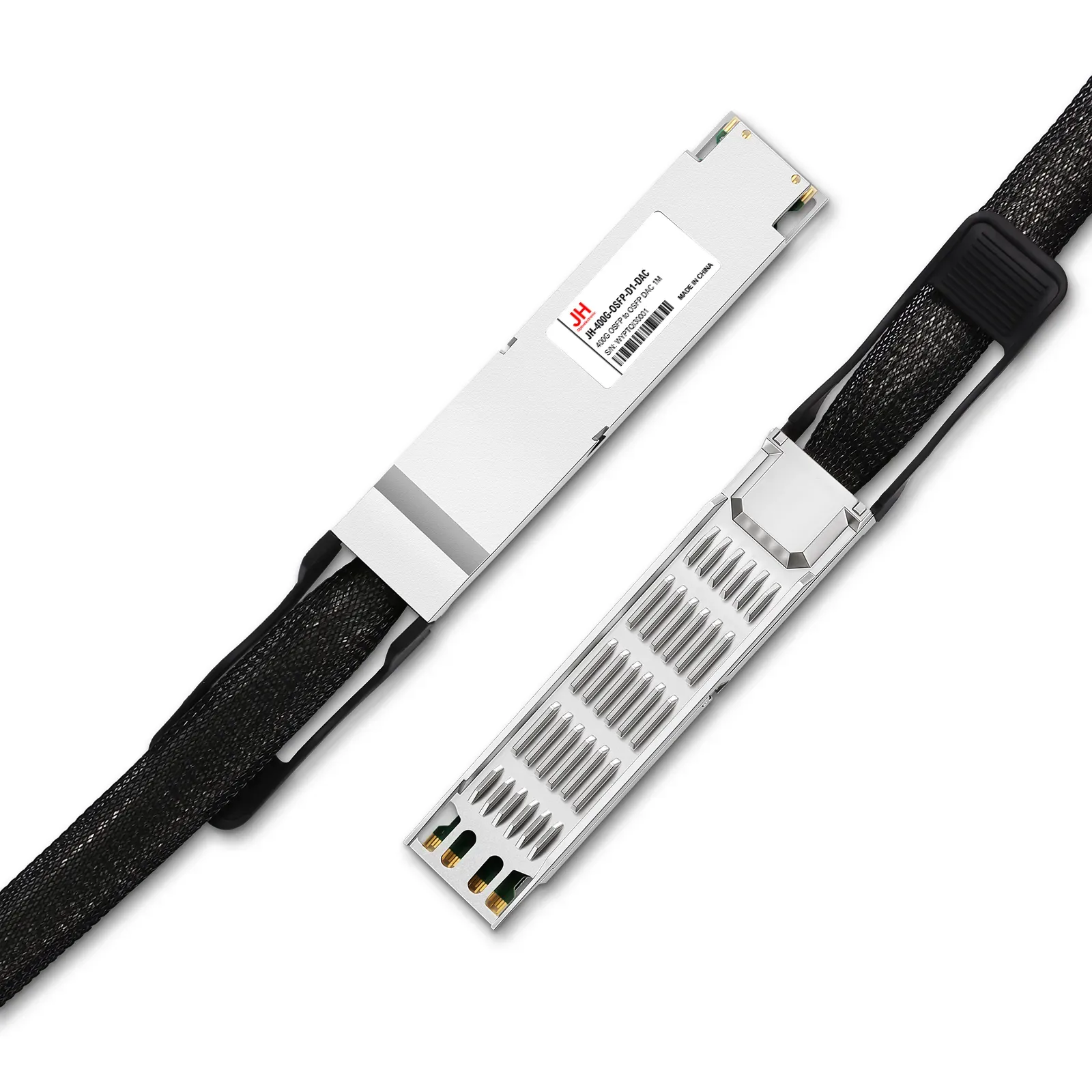

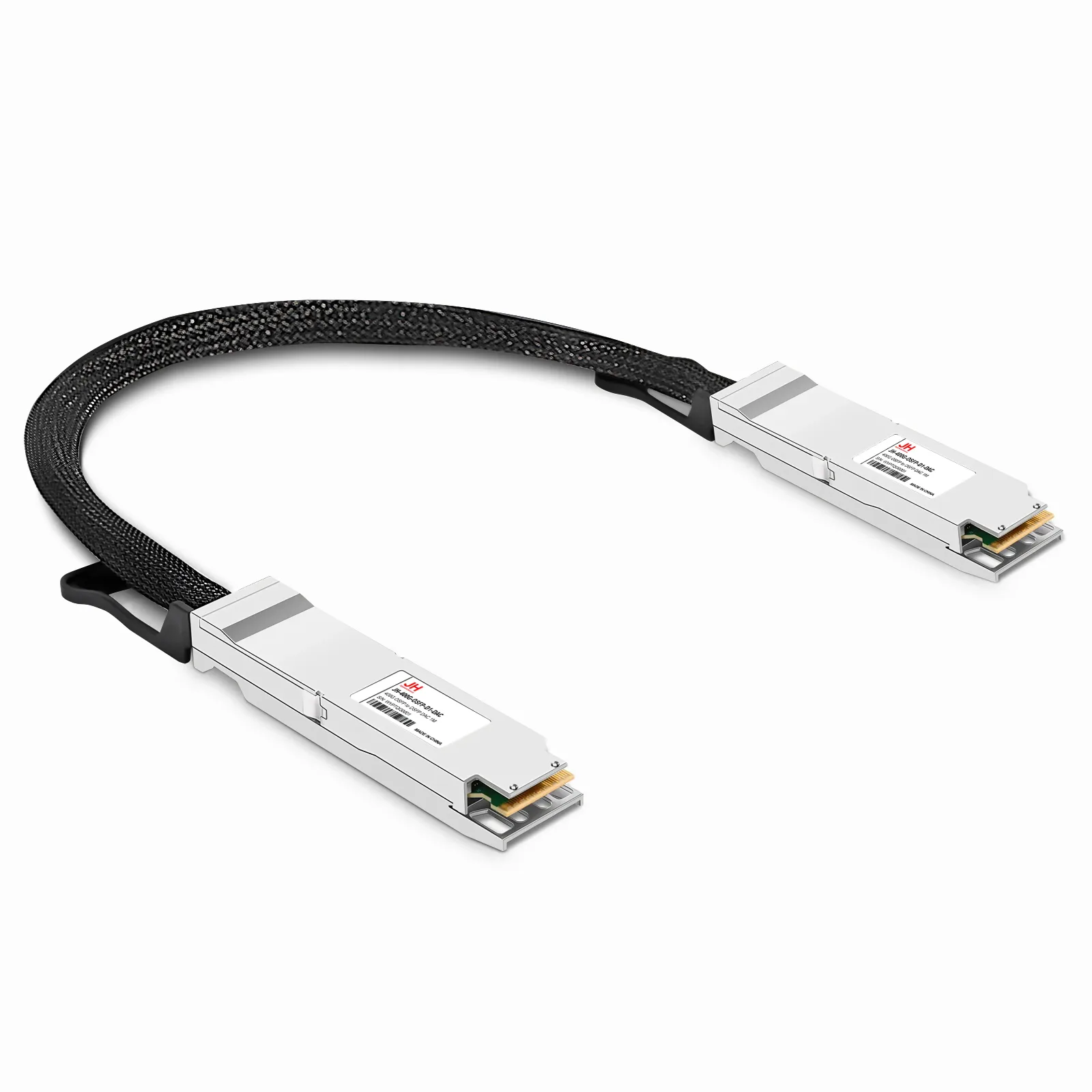

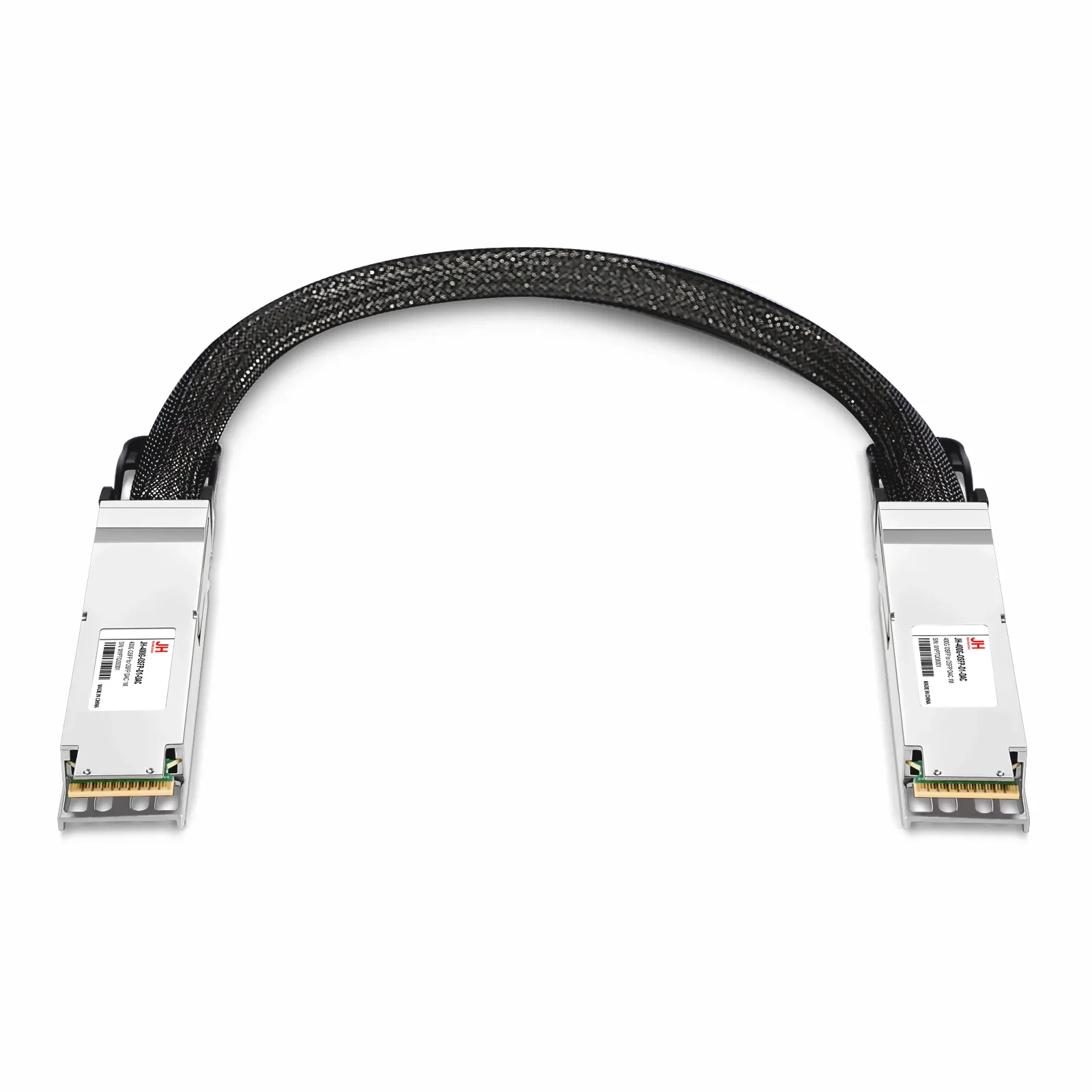

JH-400G-OSFP-D1-DAC

型号：400G OSFP to OSFP DAC 1M

JH-400G-OSFP-D1-DAC OSFP DAC provides an OSFP-to-OSFP copper direct-attach solution. It is designed with ultra-low loss materials, square rings, twisted pair cable 8 wires and shell extension construction for superior mechanical properties and bending performance and used only in air-cooled switches.

联系我们

产品特性

Hot-pluggable OSFP to OSFP Direct Attach Copper Cable assembly
Supports 400Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 0.5W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center OSFP 400G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	400G
Distance	0.5-3M
Wavelength	Copper
Form Factor	OSFP to OSFP
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.5W
