JH-SFP-GE-TS

型号：10/100/1000M SFP RJ45 Copper 100M

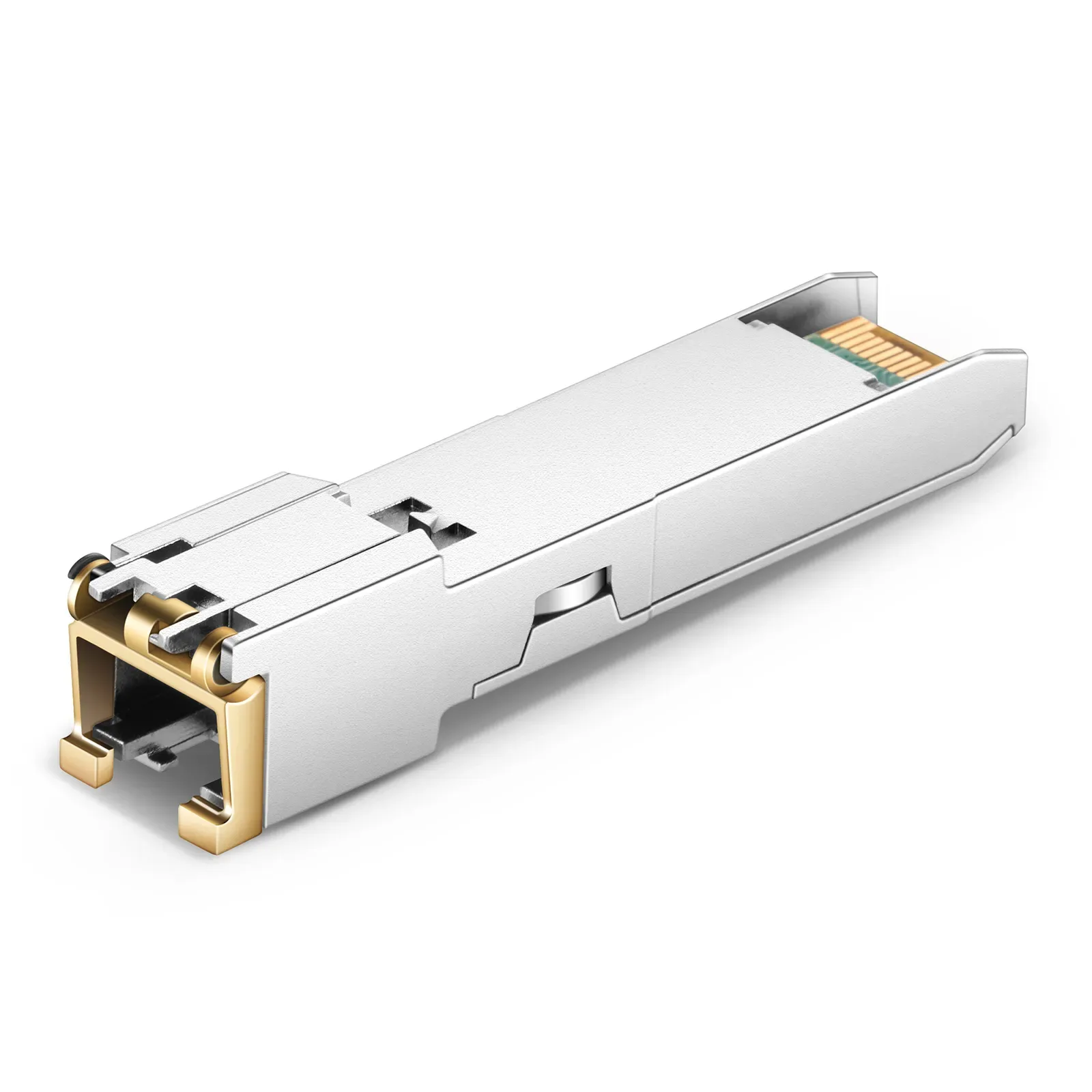

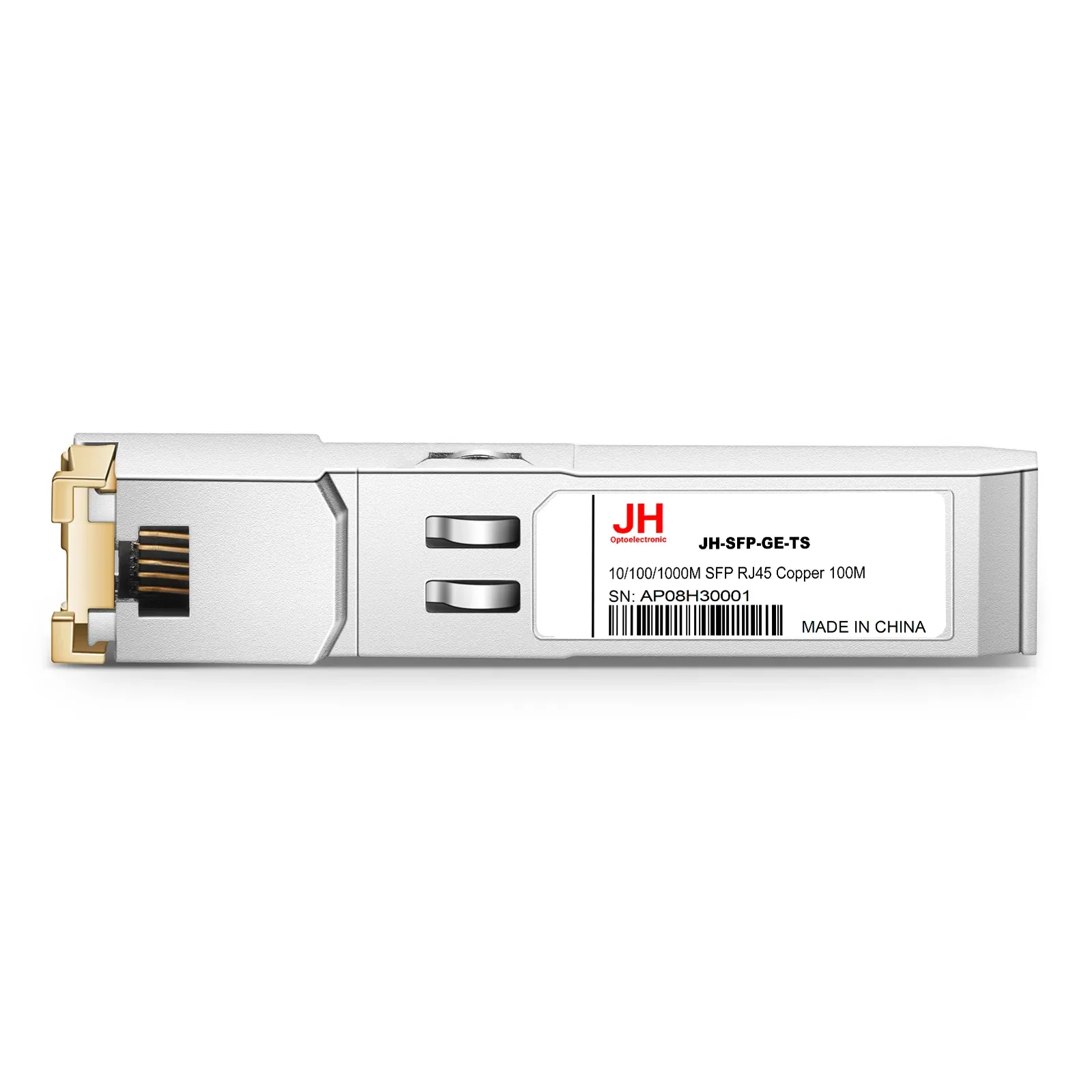

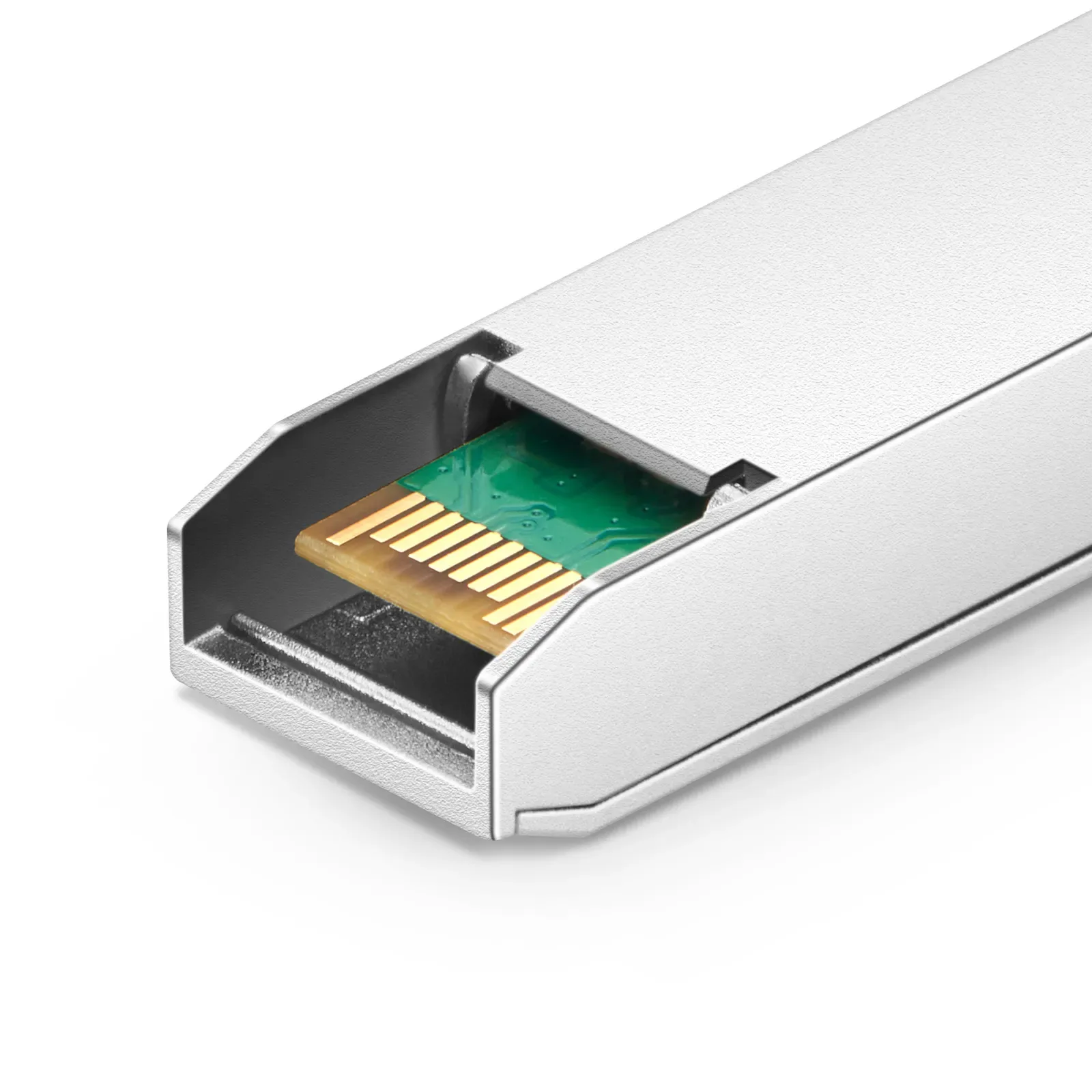

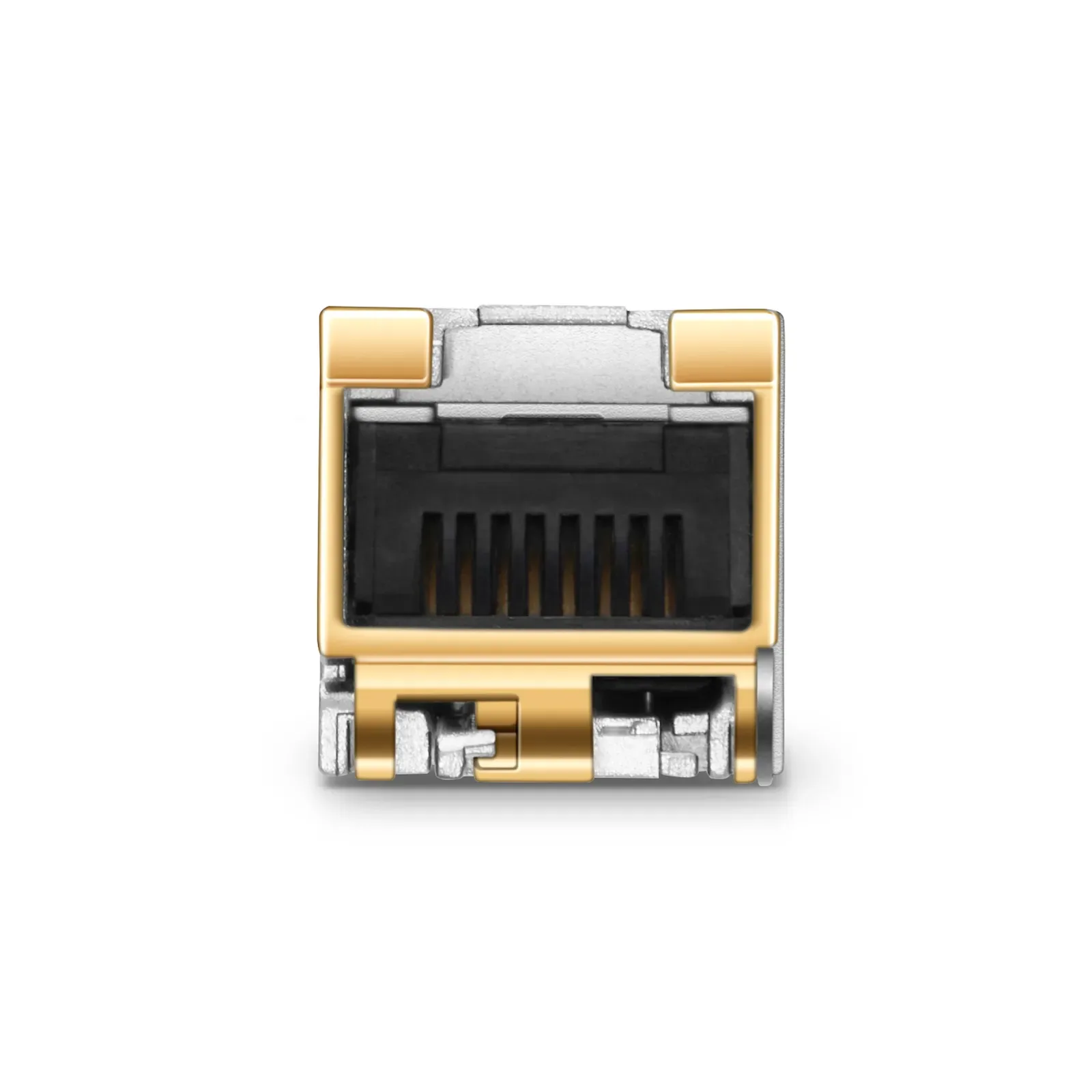

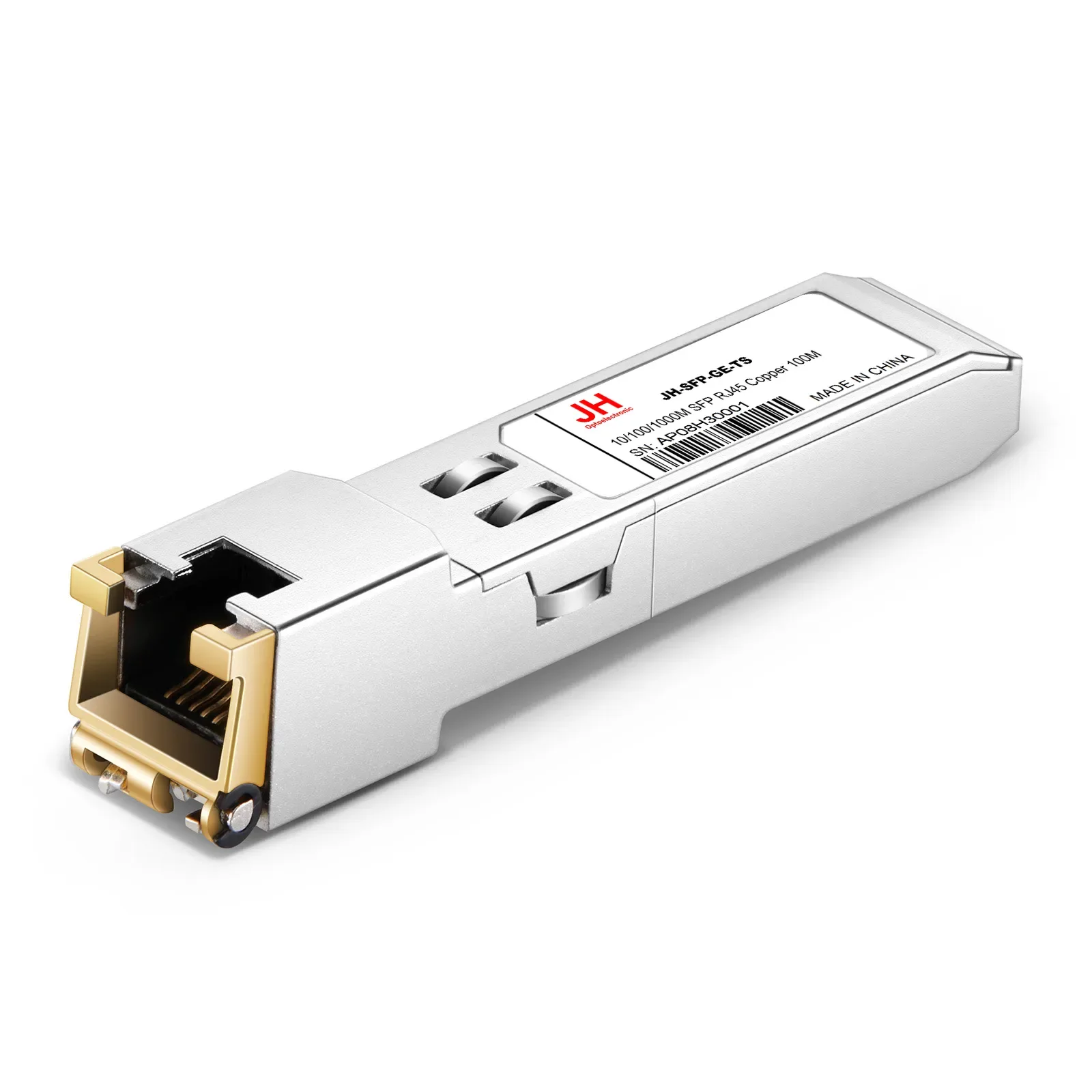

JH-SFP-GE-TS supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

联系我们

产品特性

  • Hot-pluggable SFP form factor
  • Supports 10/100/1000Mbps auto-negotiation rate, compliant with IEEE 802.3ab Gigabit Ethernet standard
  • Maximum power consumption < 1.2W
  • Commercial operating temperature range: 0~70/-40~85
  • Single +3.3V power supply
  • Supports auto-negotiation, link training, ESD protection, low power consumption design, hot-swappable
  • Compliant with relevant safety standards, ESD protection
  • Compliant with RoHS 2.0 environmental protection standard, lead-free design
  • Enterprise LAN, 1000BASE-T

规格参数

Data Rate 1.25G
Distance 1000M
Wavelength Copper
Form Factor SFP
Connector RJ45
Case Temperature 0~70/-40~85
Voltage Supply 3.3V
Transmitter /
Receiver /
TX Power /
Receiver Sensitivity /
Power consumption（Max） 1.5W
