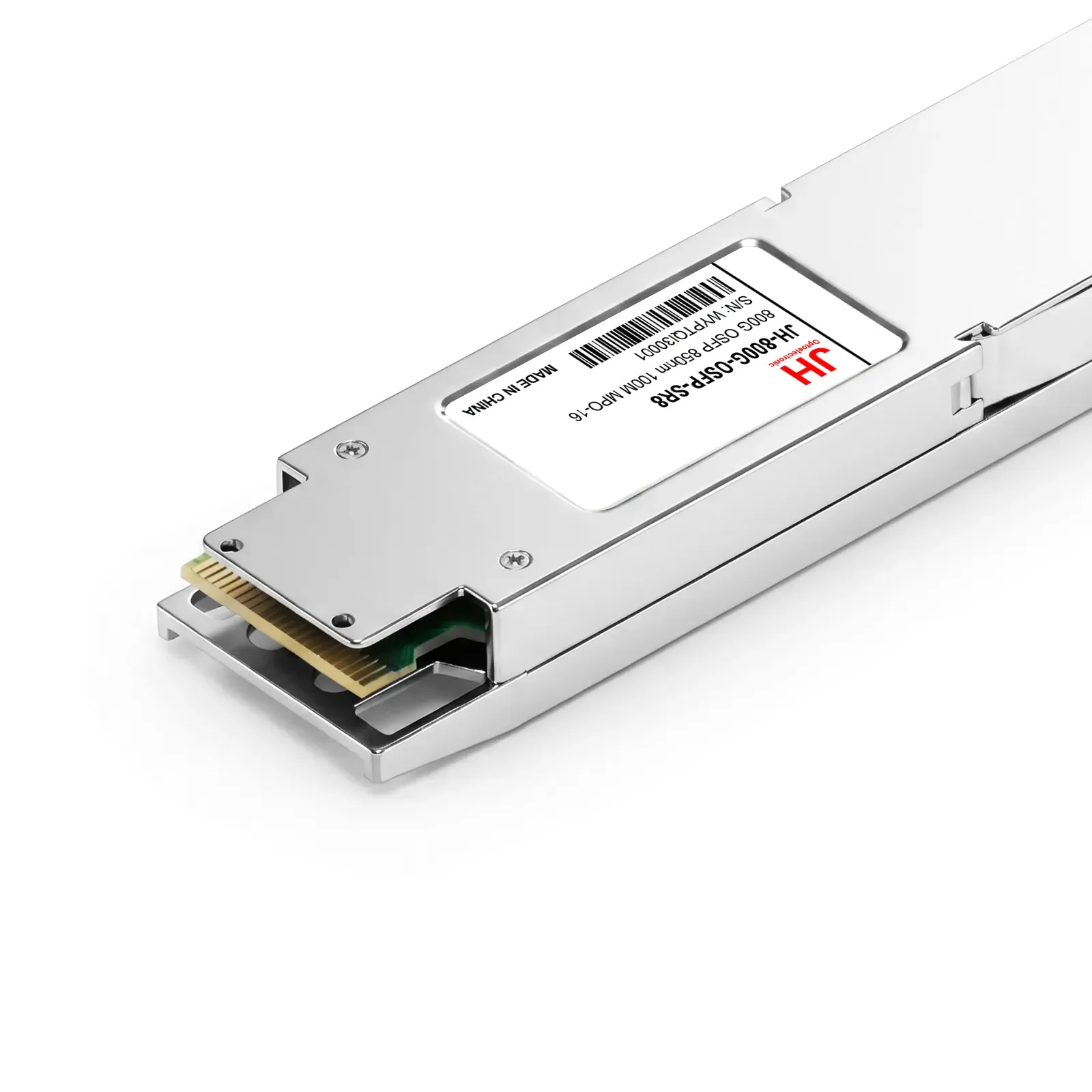

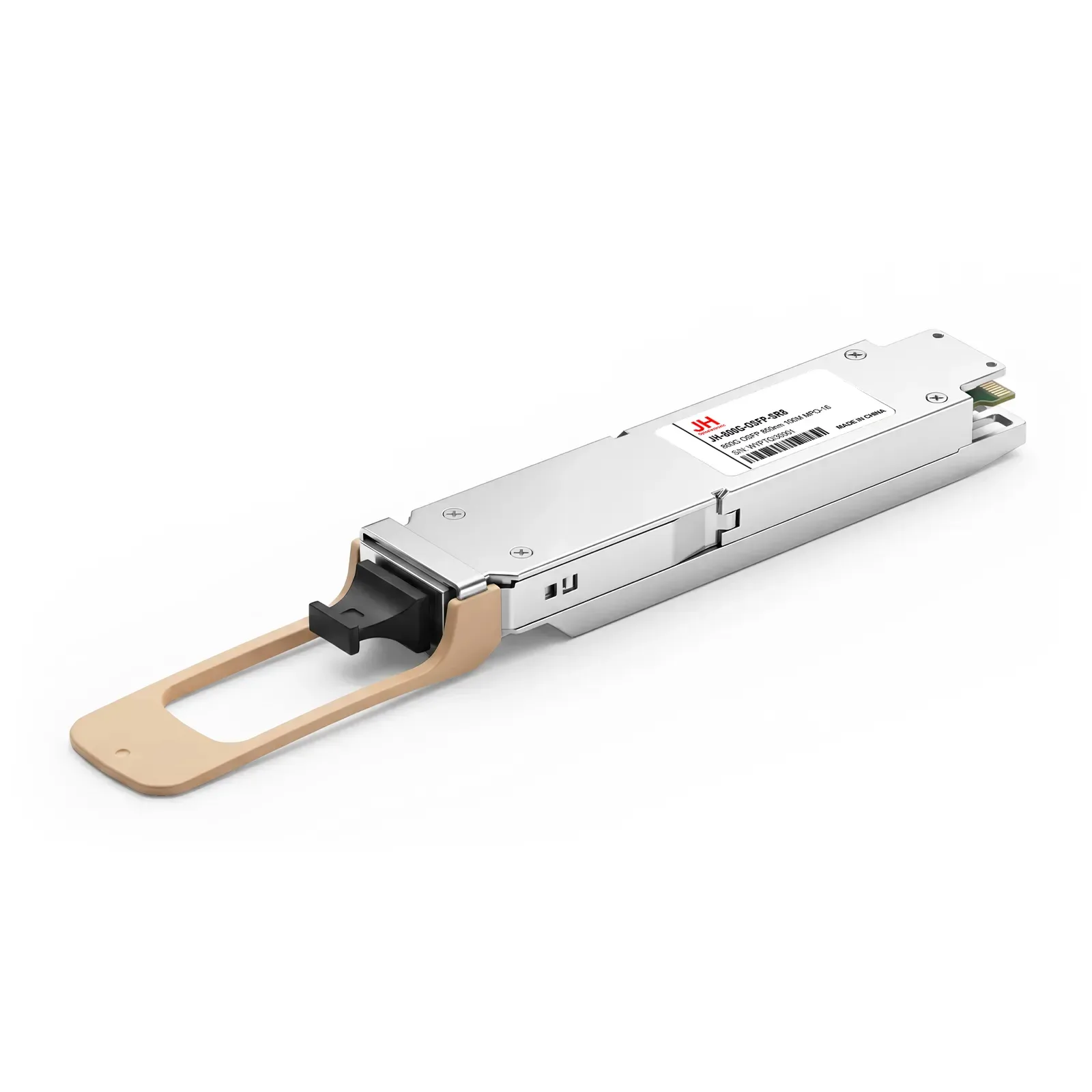

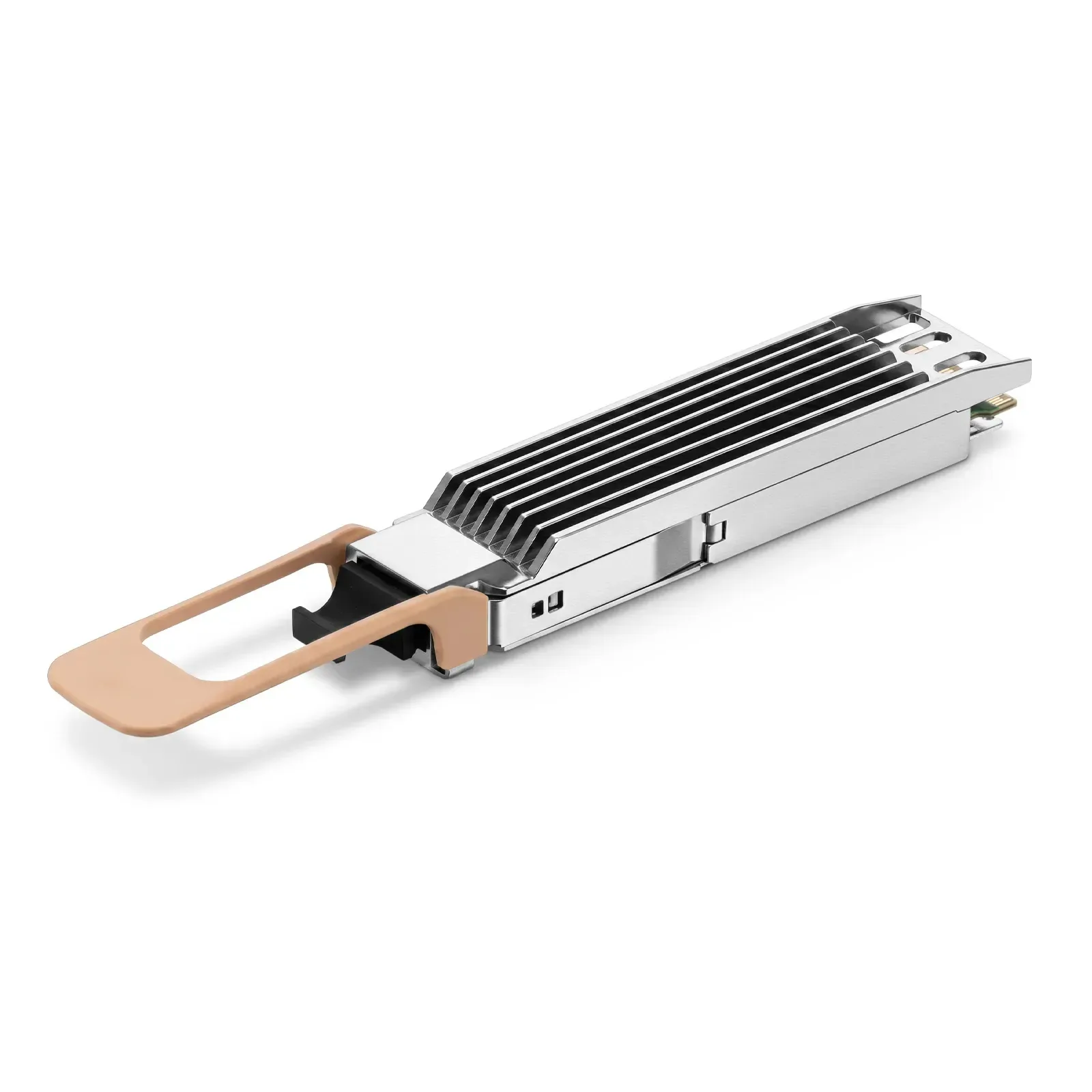

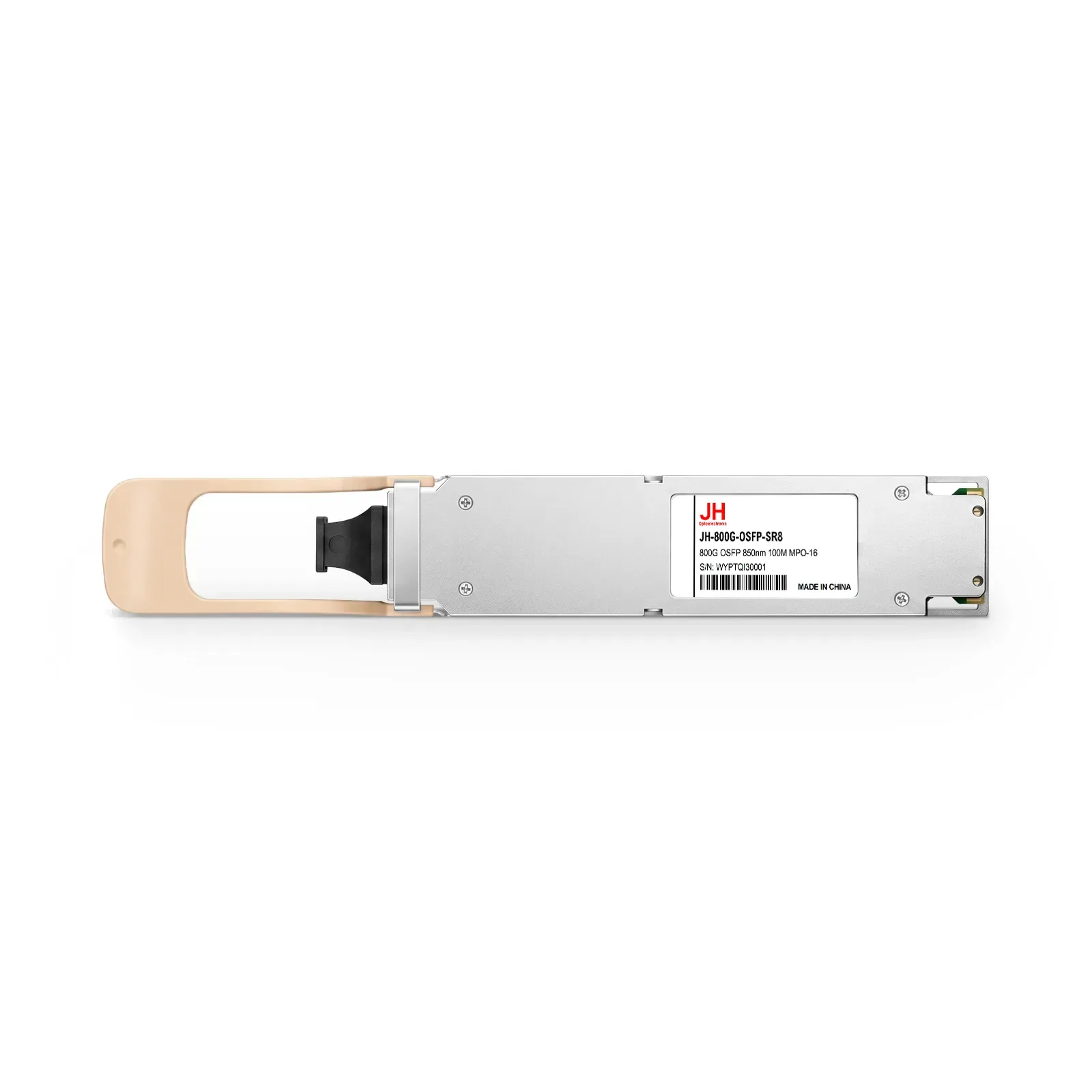

JH-800G-OSFP-SR8

型号：800G OSFP 850nm 100M MPO-16

JH-800G-OSFP-SR8 module is designed for 800GBASE Ethernet and 800Gb/s 2xNDR InfiniBand systems with transmission distance up to 100m over OM4 multimode fiber (MMF), using an 850nm wavelength with an MTP/MPO-16 connector. This transceiver is compliant with IEEE P802.3ck and OSFP MSA standards. Built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for various applications, including Ethernet, InfiniBand, data centers, high-performance computing networks, and enterprise core and distribution layers.

联系我们

产品特性

Hot-pluggable OSFP form factor
Supports 800Gbps data rate (8x100G PAM4), compliant with IEEE 802.3df standard
Maximum power consumption < 16W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 5.0 digital diagnostic monitoring, 100G/lane PAM4, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Hyperscale Data Center, Spine-Leaf Fabric

规格参数

Data Rate	800G
Distance	100M
Wavelength	850nm
Form Factor	OSFP

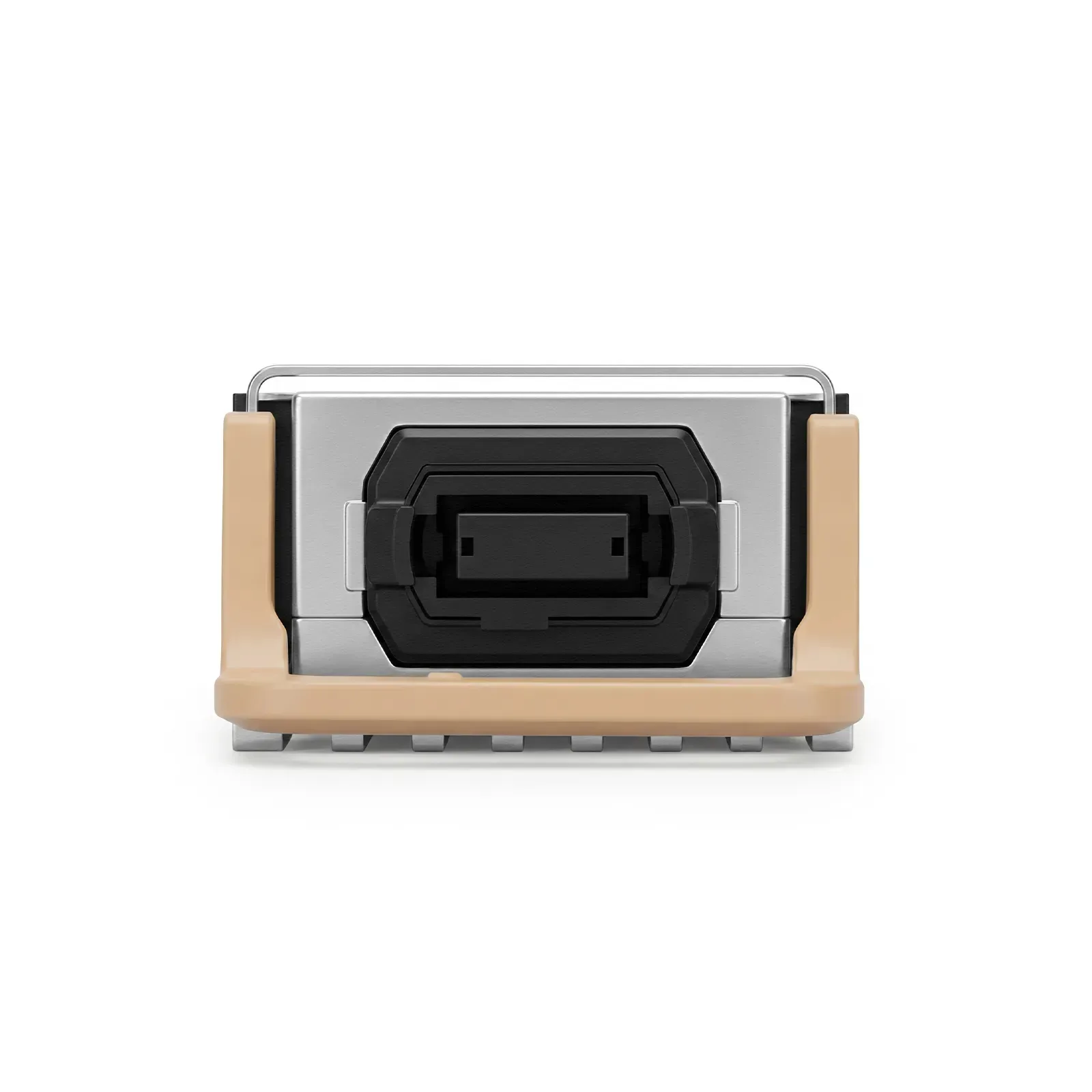

Connector	MPO-16
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~4
Receiver Sensitivity	-6.4
Power consumption（Max）	16W
