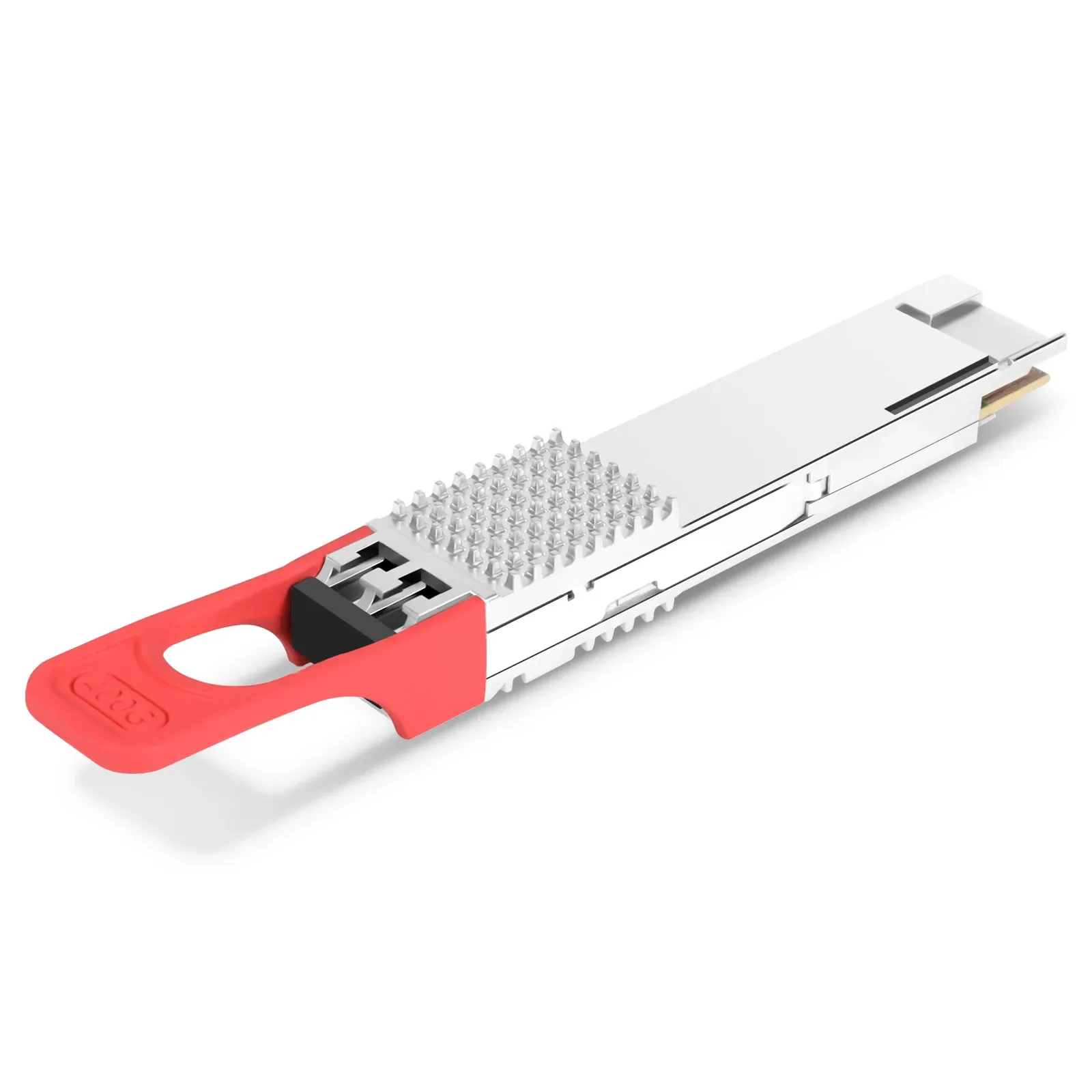

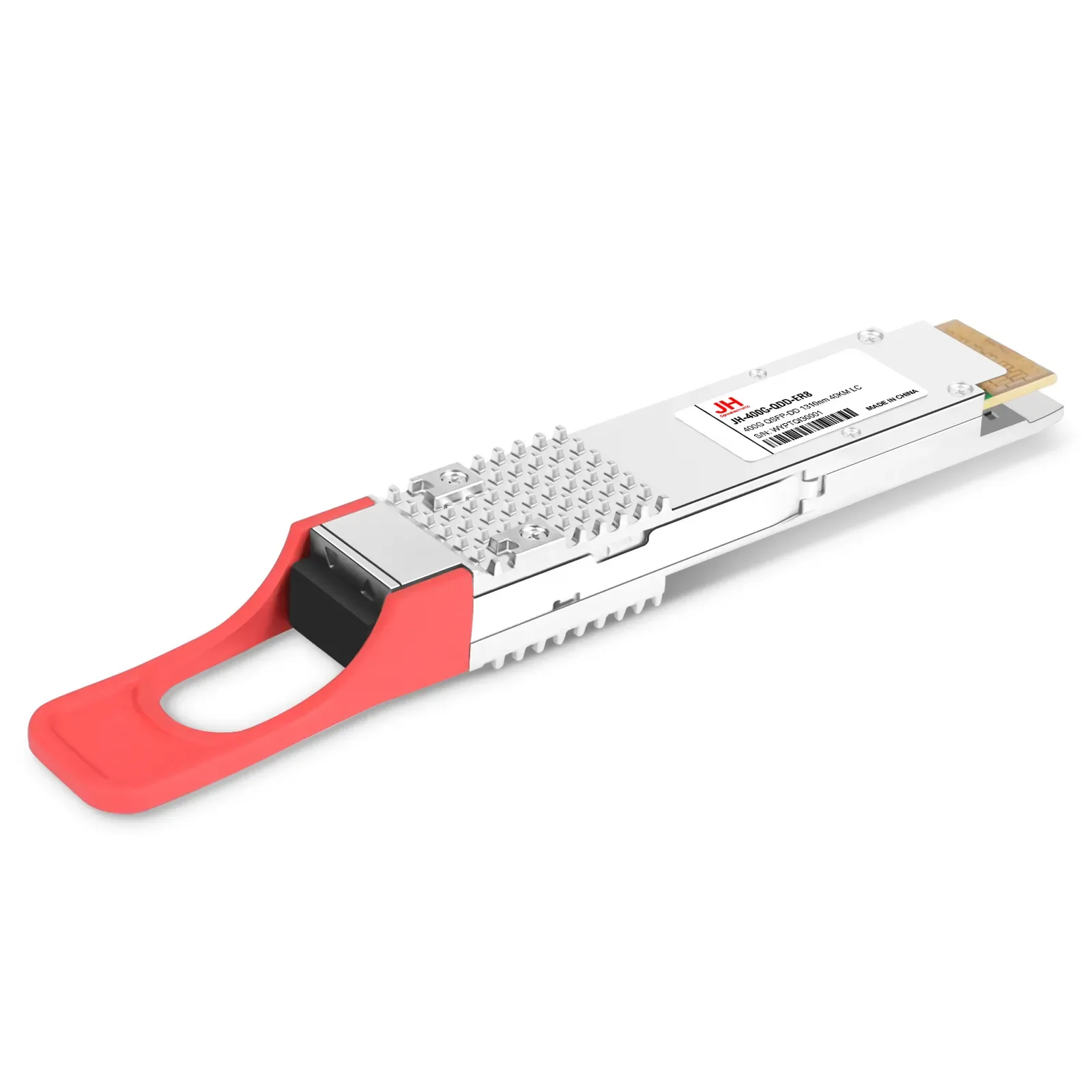

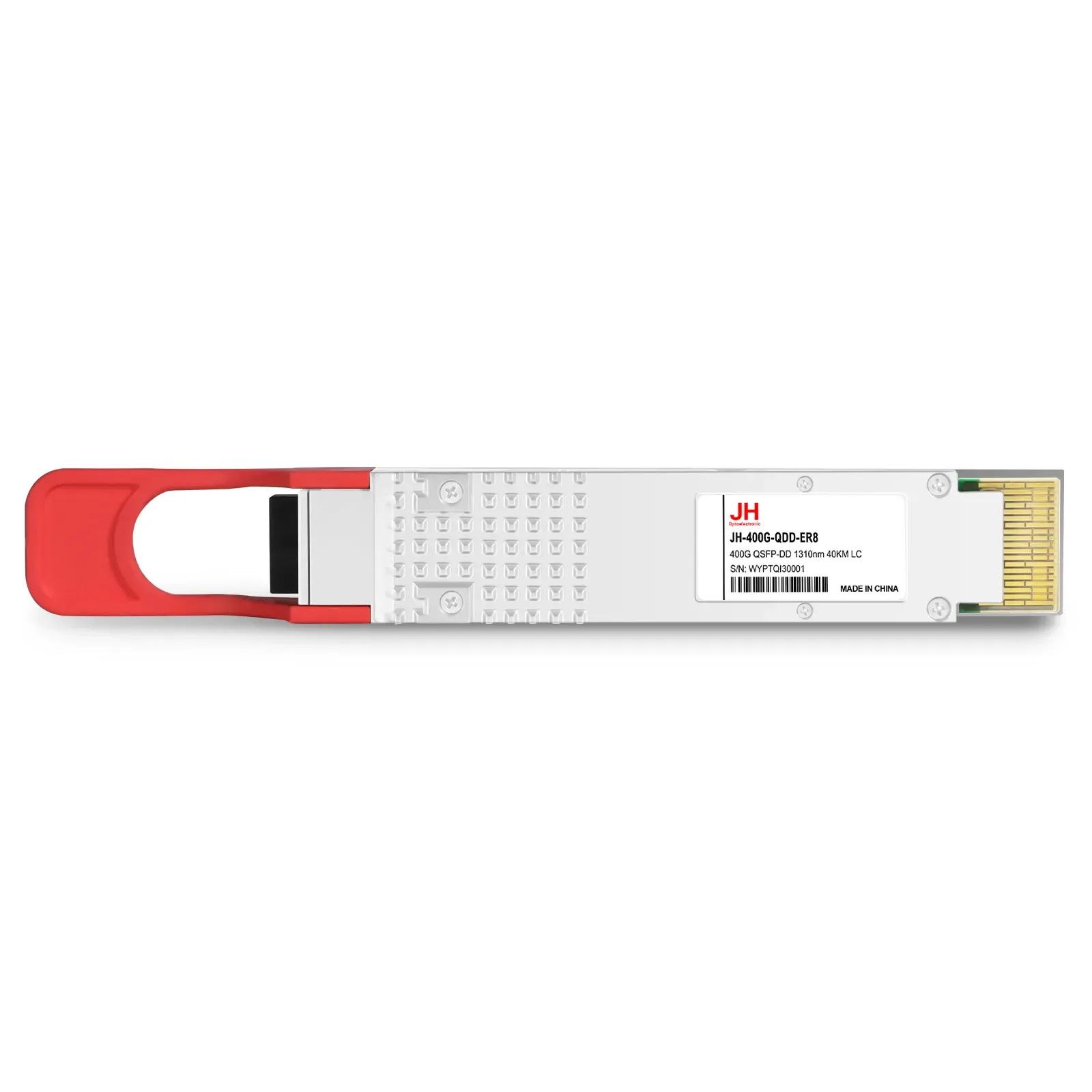

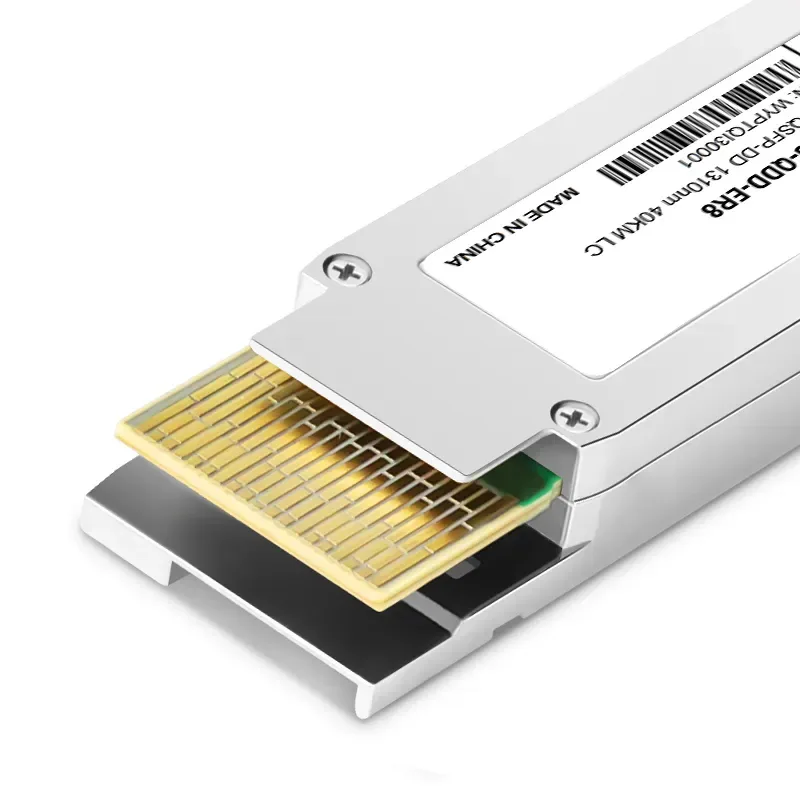

JH-400G-QDD-ER8

型号：400G QSFP-DD 1310nm 40KM LC

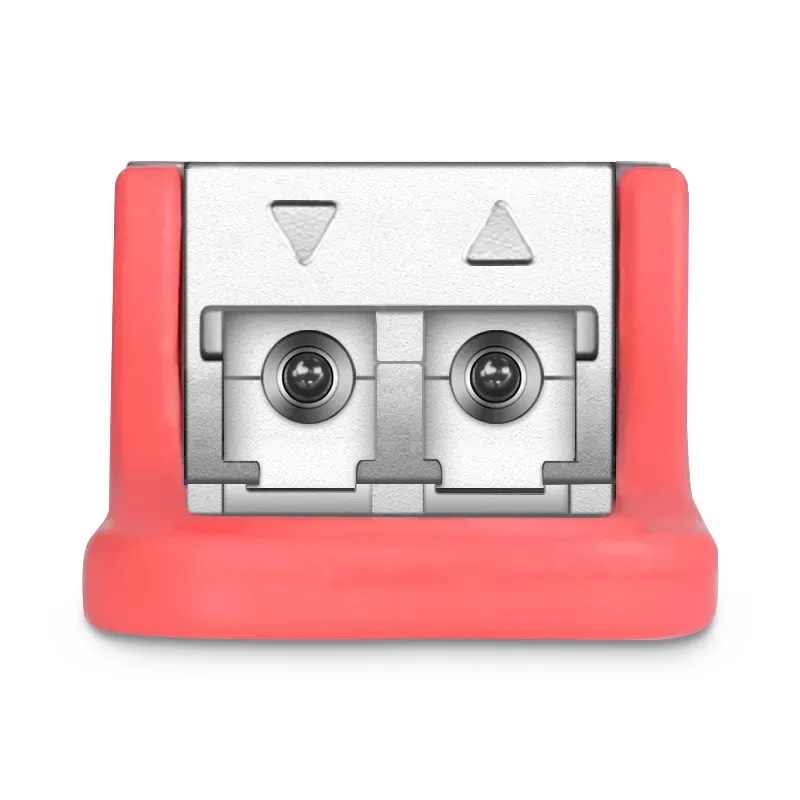

JH-400G-QDD-ER8 module, Duplex LC connector, up to 40km over parallel single-mode fiber. It is compliant to IEEE 802.3cn protocol and 400GAUI-8, QSFP-DD HW Rev 5.0 and QSFP-DD CMIS Rev 4.0 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

联系我们

产品特性

Hot-pluggable QSFP-DD form factor
Supports 400Gbps data transmission rate, compliant with IEEE 802.3cu 400G Ethernet standard
Maximum power consumption < 15.4W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 4.0 digital diagnostic monitoring, 50G/lane PAM4, EML laser, APD receiver, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro DCI, Regional Aggregation

规格参数

Data Rate	400G
Distance	40KM
Wavelength	1310nm
Form Factor	QSFP-DD
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	APD
TX Power	-0.6~5.6
Receiver Sensitivity	-16.1
Power consumption（Max）	15.4W
