型号：400G QSFP-DD 1310nm 500M MPO-12

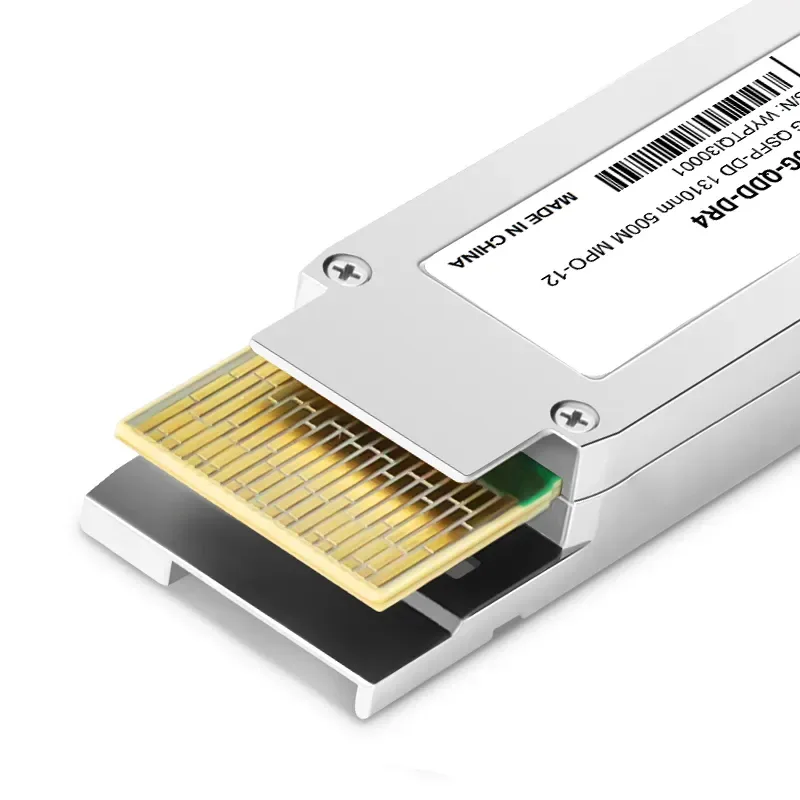

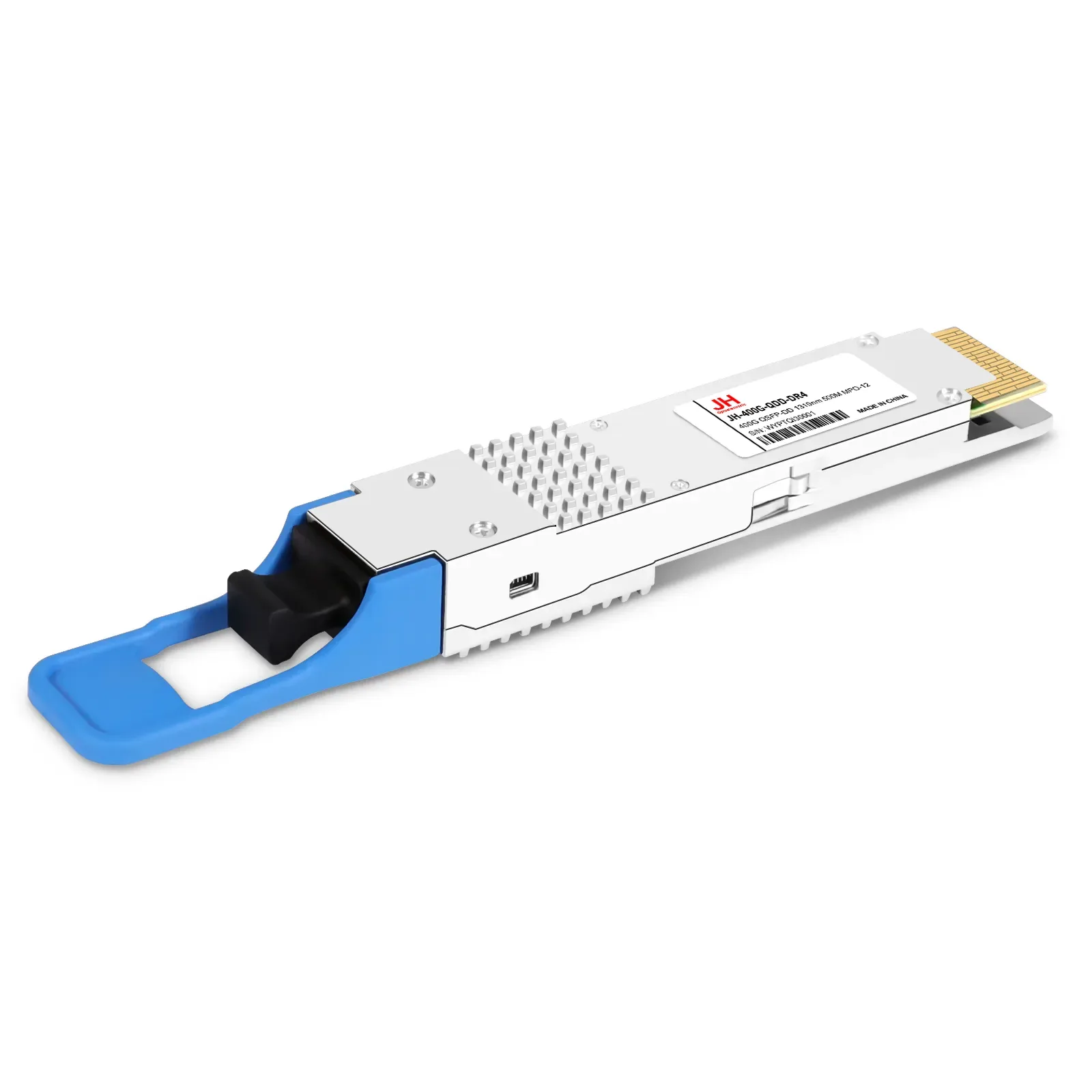

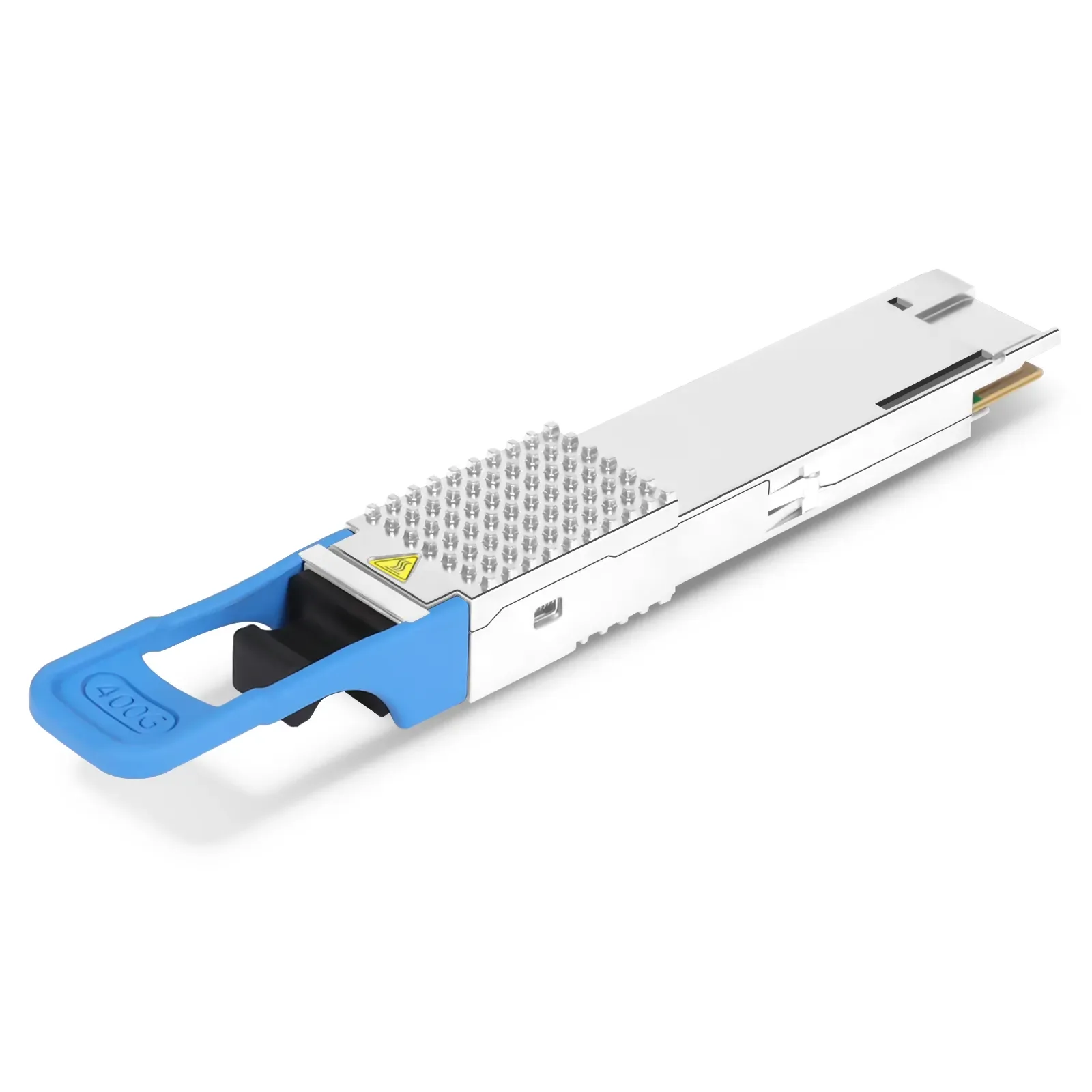

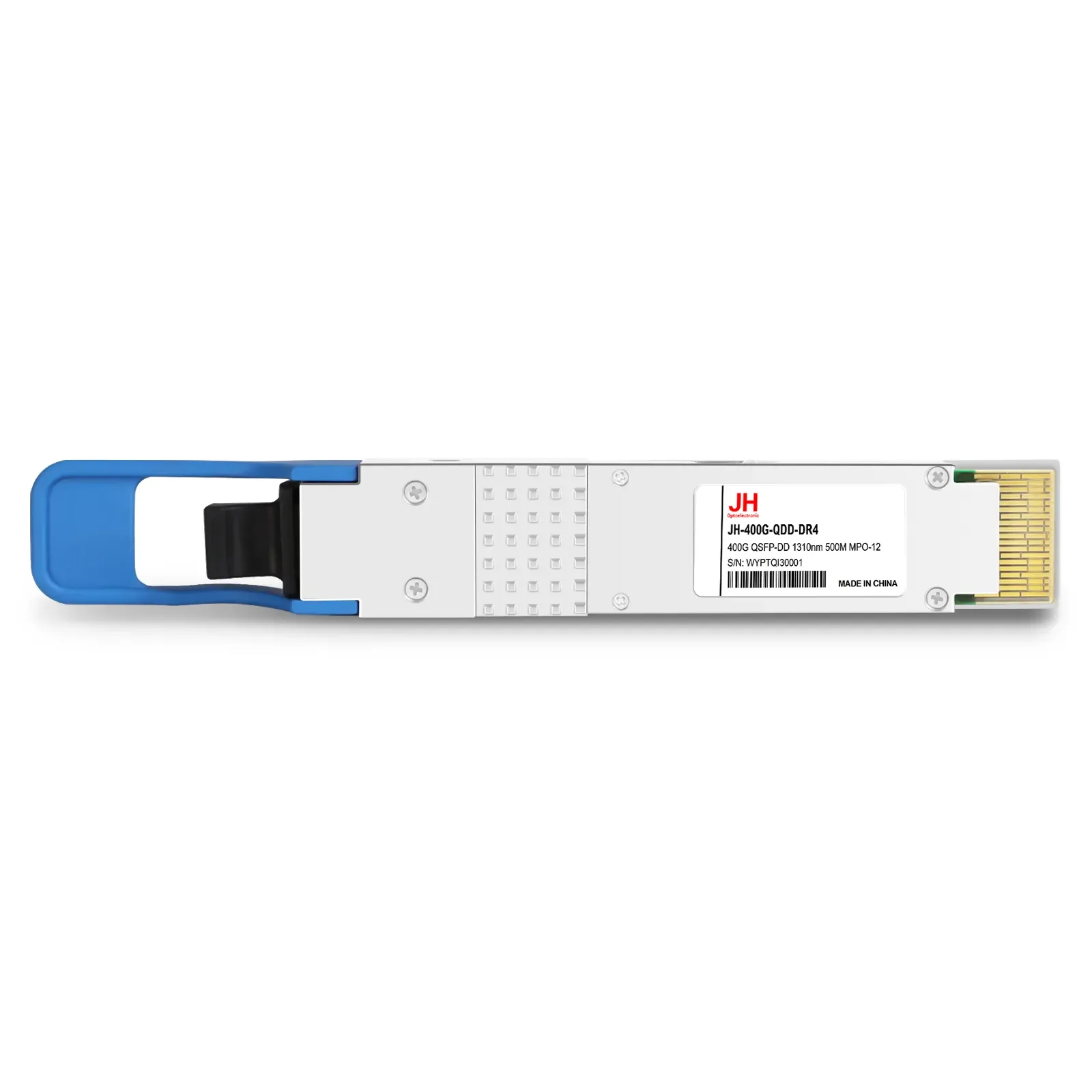

JH-400G-QDD-DR4 module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-DR-100G. It is a cost-effective and lower power consumption solution for 400GBASE data center.
| Data Rate | 400G |
| Distance | 500M |
| Wavelength | 1310nm |
| Form Factor | QSFP-DD |
| Connector | MPO-12 |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | PIN |
| TX Power | -2.9~4 |
| Receiver Sensitivity | -5.9 |
| Power consumption（Max） | 12W |
