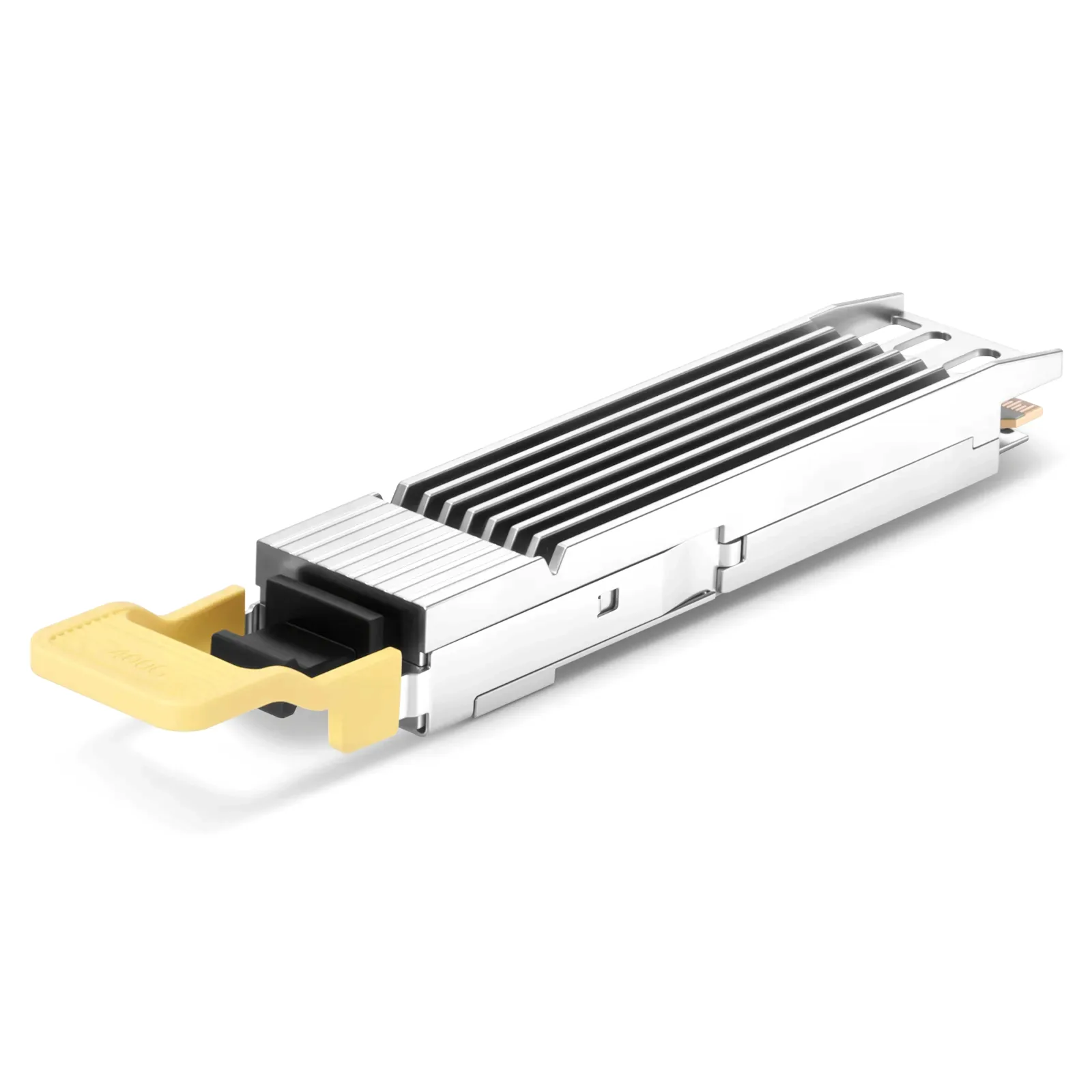

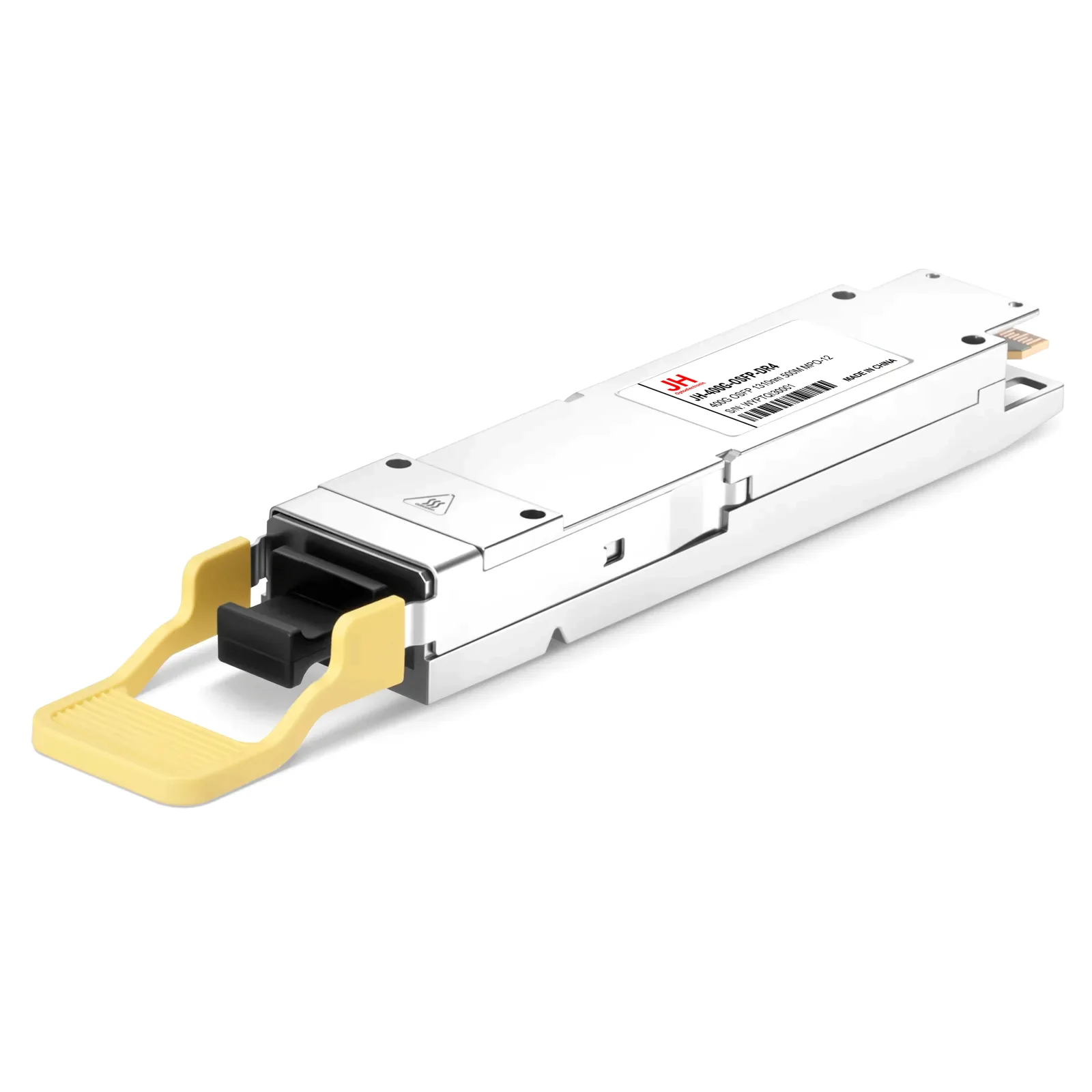

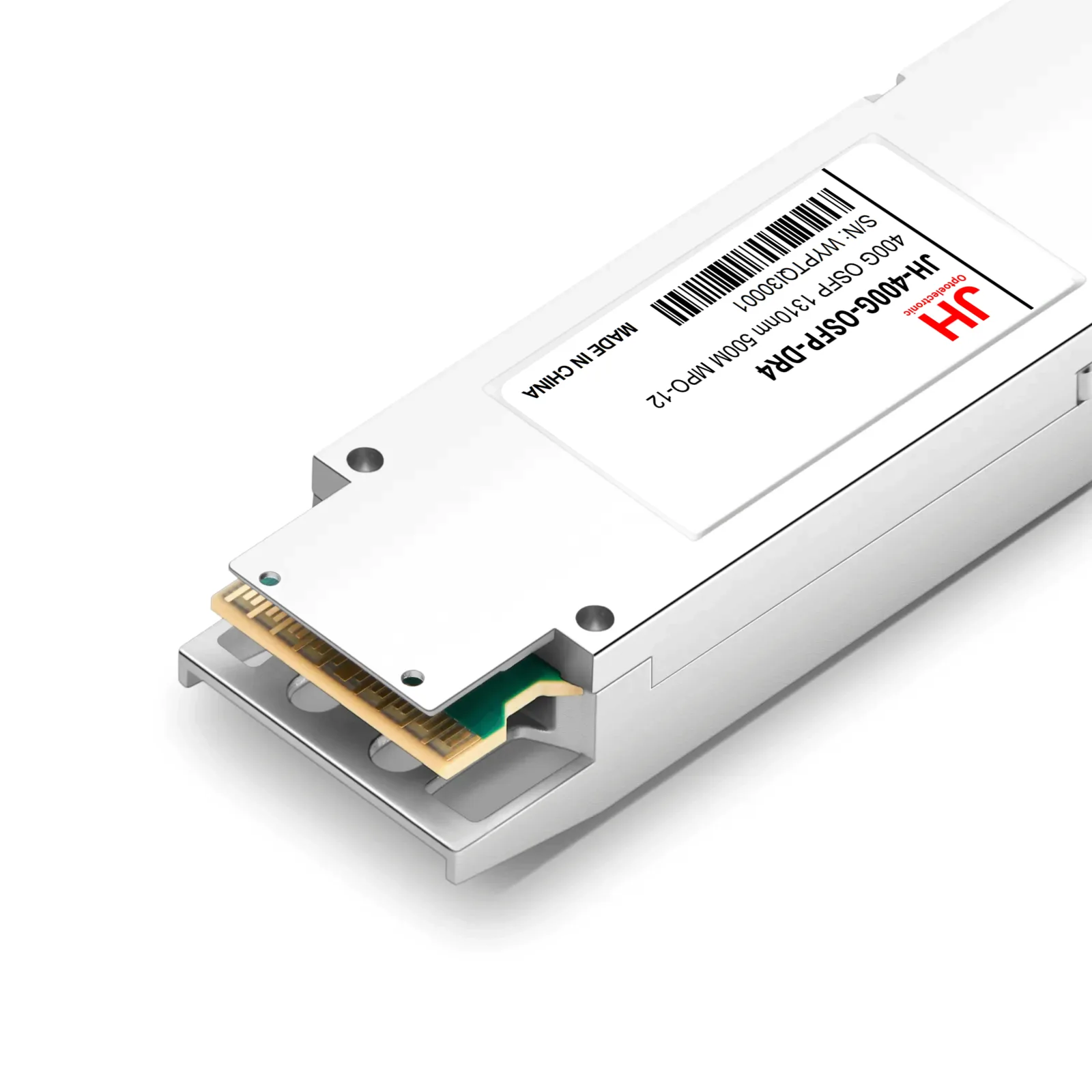

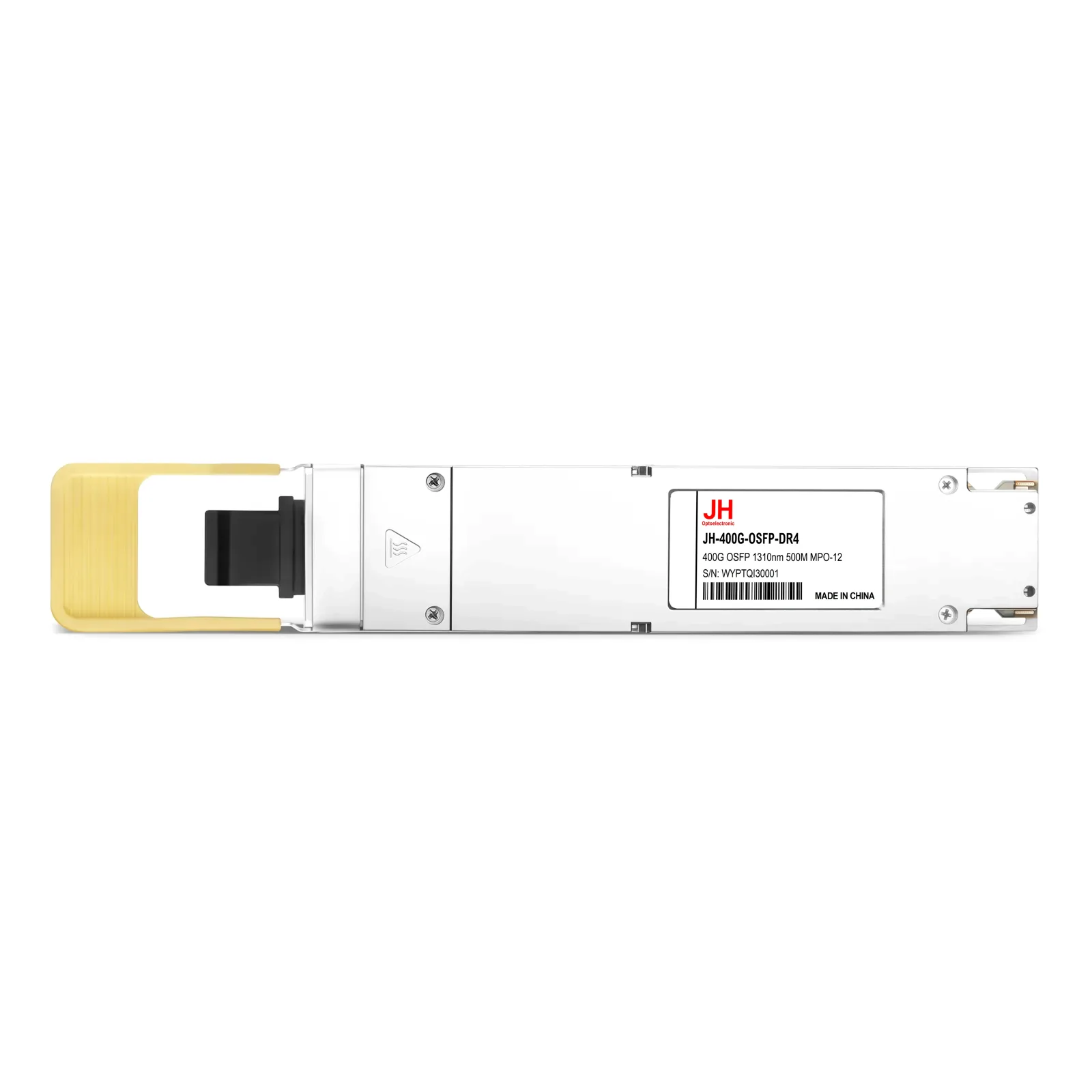

型号：400G OSFP 1310nm 500M MPO-12
JH-400G-OSFP-DR4 is designed for Ethernet air-cooled switches, delivering low latency, low power consumption, and high reliability. It supports uplink connections in spine-leaf architectures, such as from an 800G switch to a 400G switch, as well as downlink connectivity from 400G switches to 100G switches(via 4x100G-DR breakout). It is the ideal solution for HPC computing, AI, and cloud data centers.
| Data Rate | 400G |
| Distance | 500M |
| Wavelength | 1310nm |
| Form Factor | OSFP |

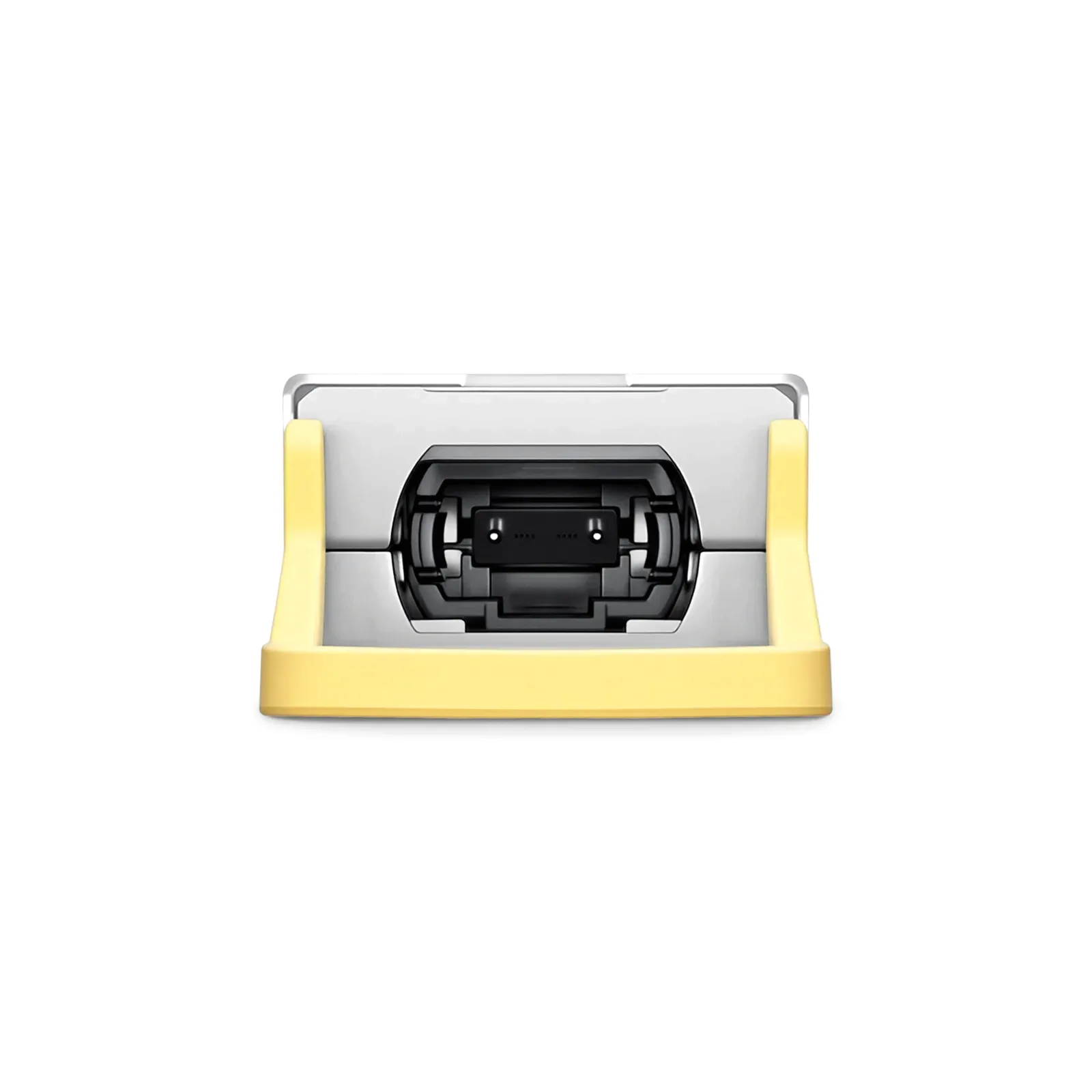

| Connector | MPO-12 |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | SiPh |
| Receiver | SiPh |
| TX Power | -2.9~4 |
| Receiver Sensitivity | -5.9 |
| Power consumption（Max） | 10W |
