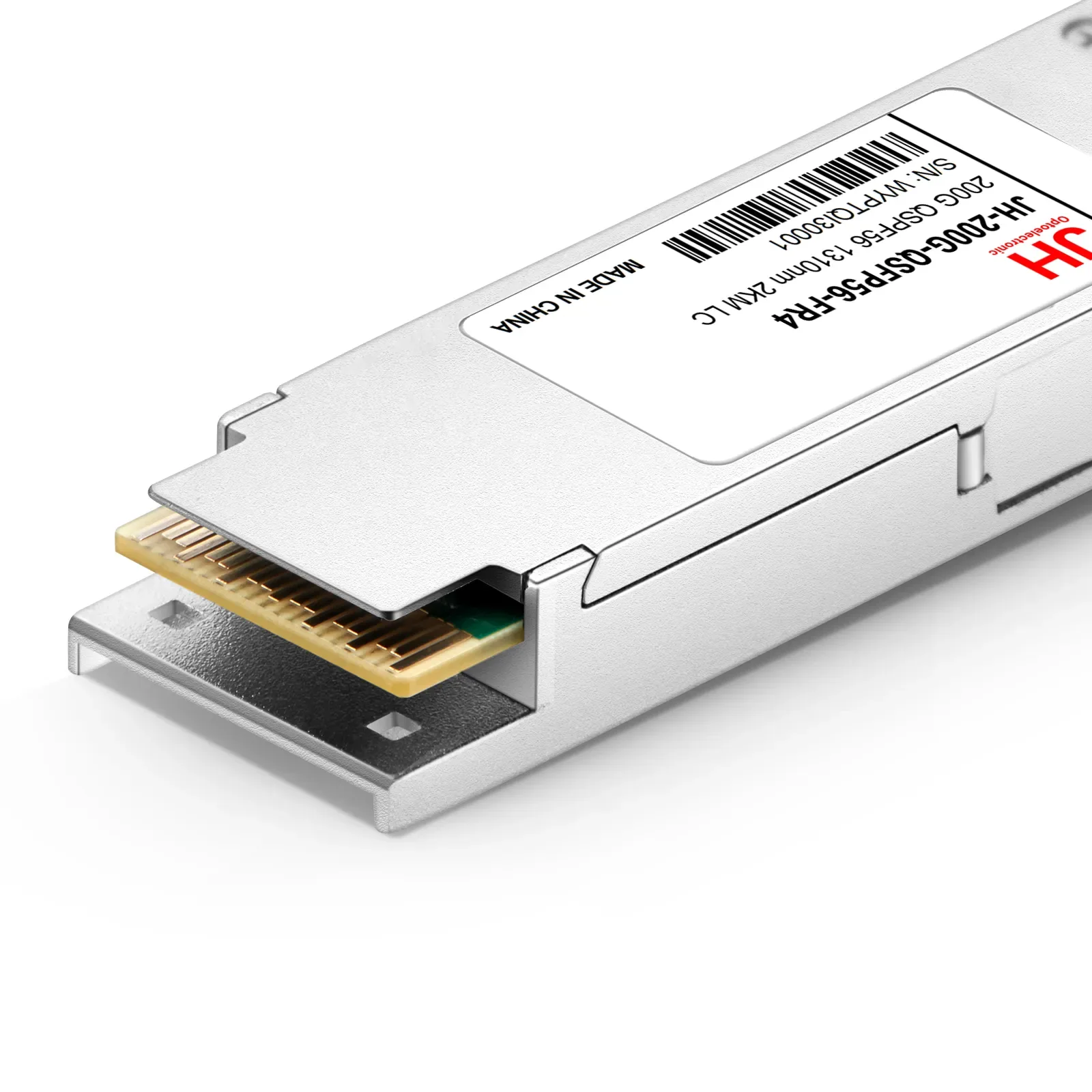

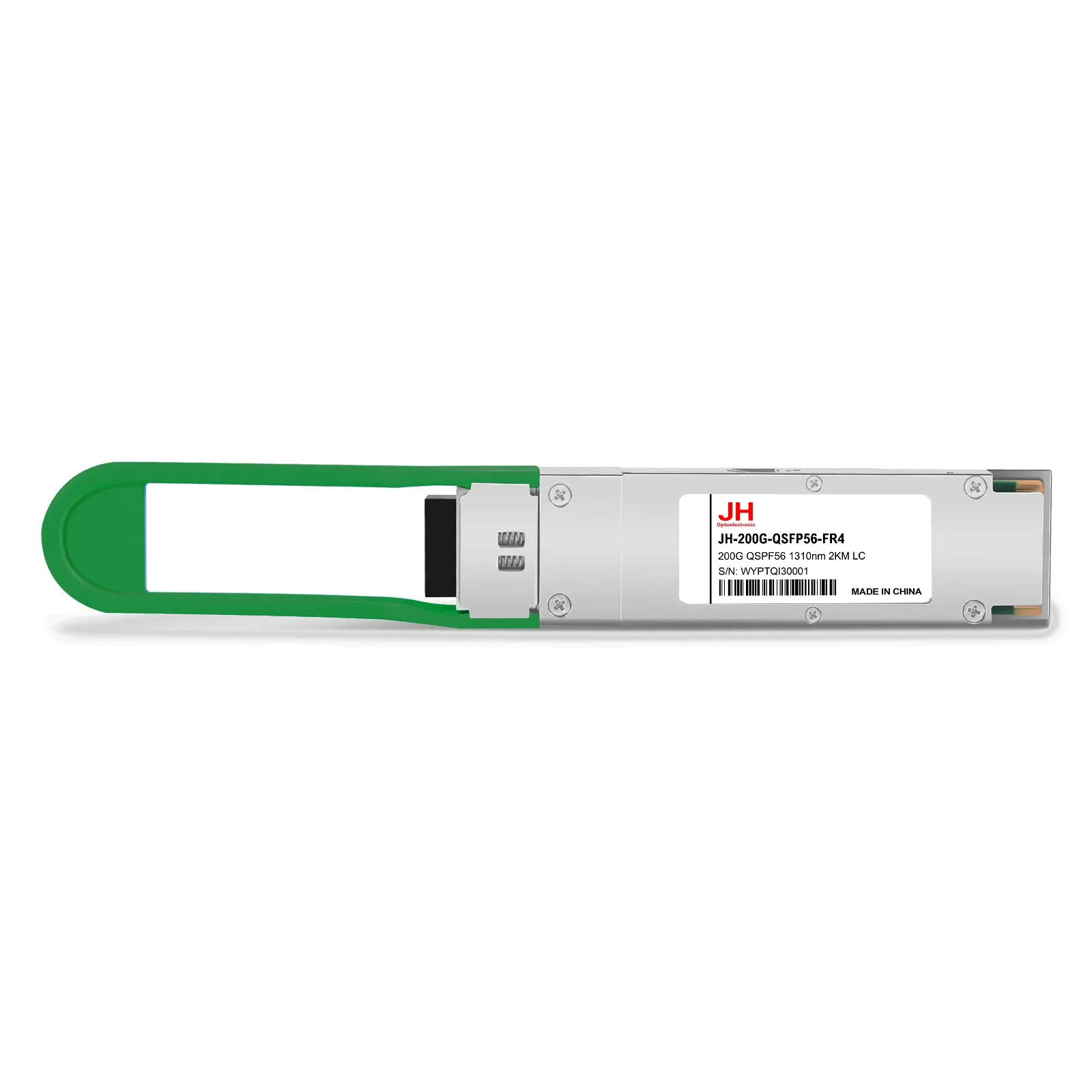

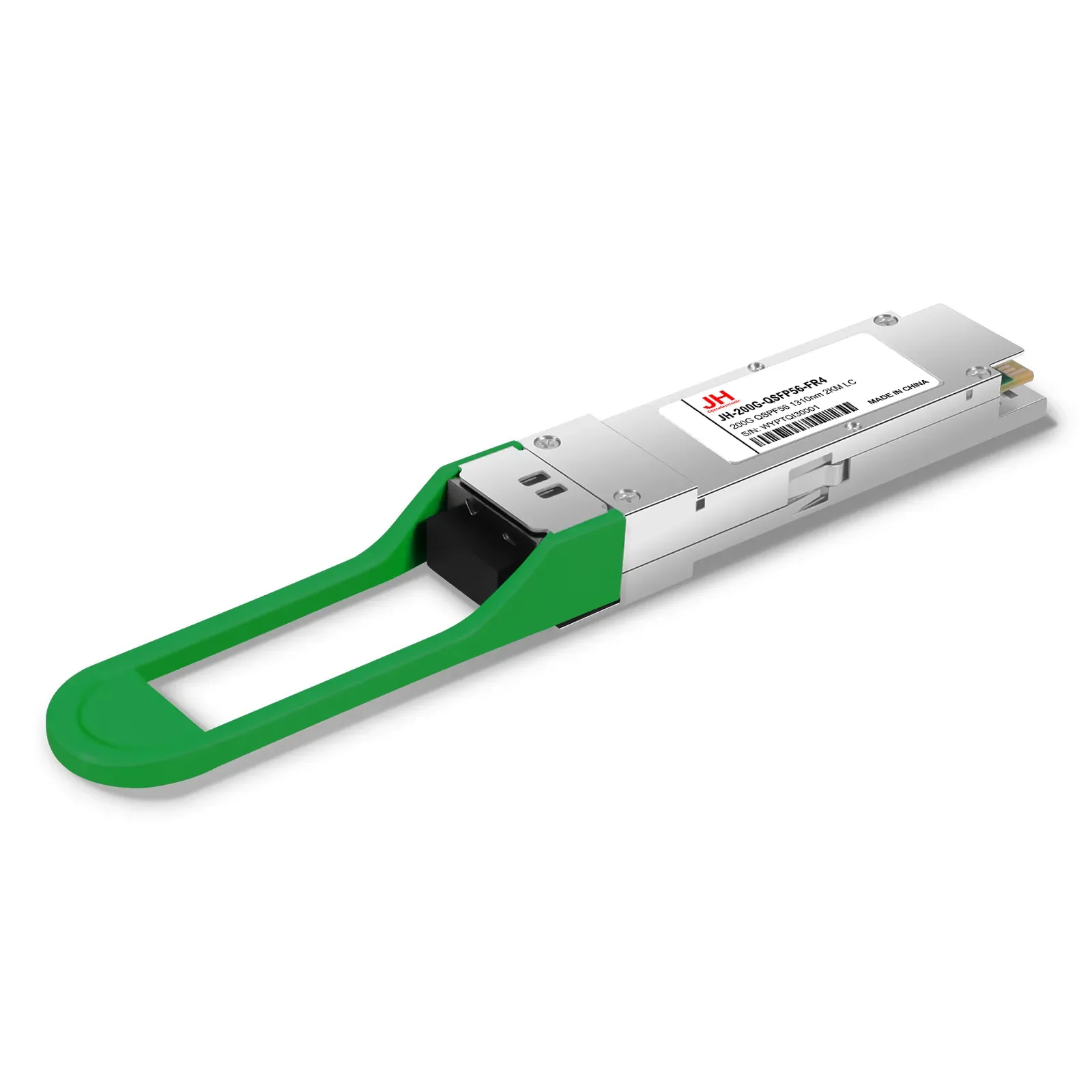

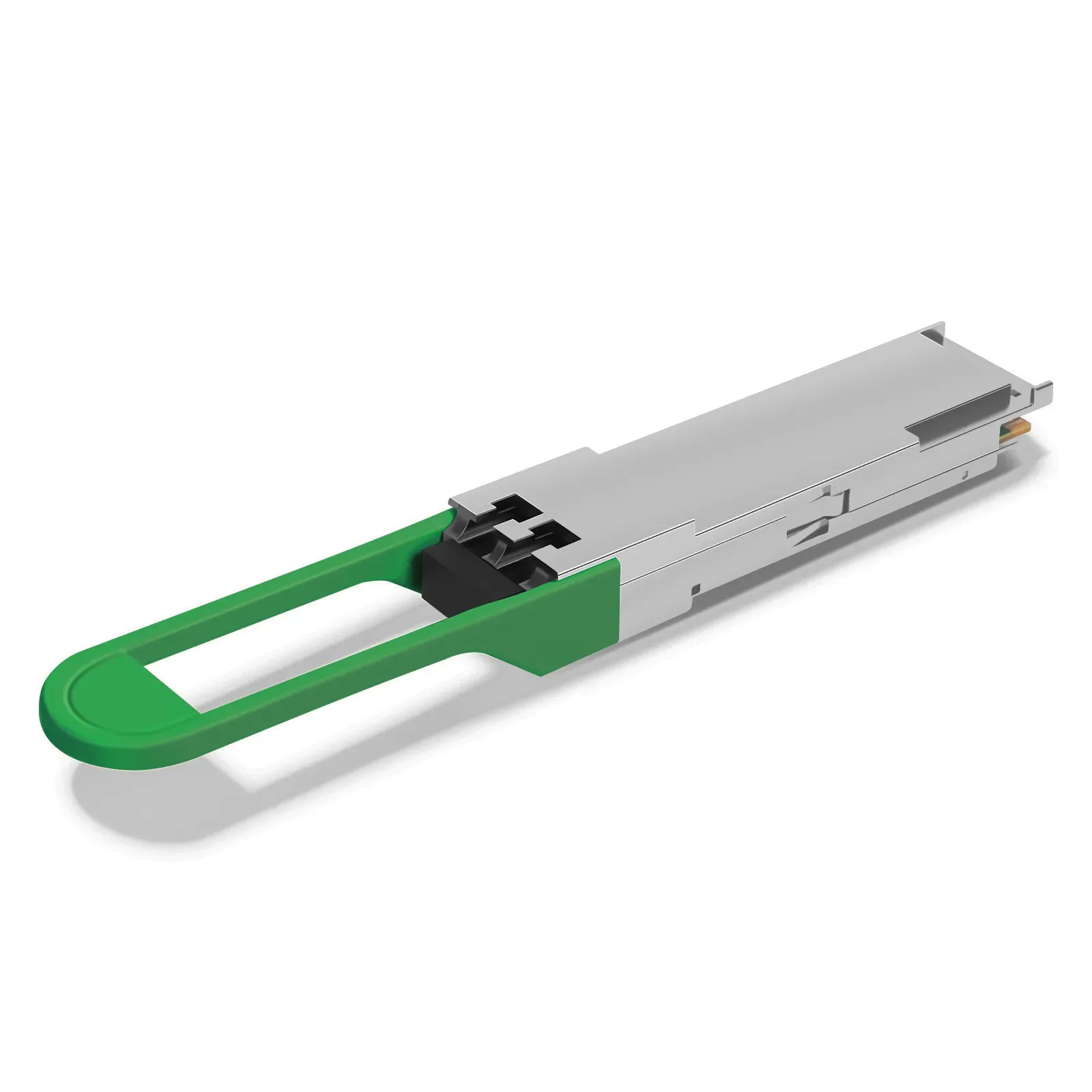

JH-200G-QSFP56-FR4

型号：200G QSFP56 1310nm 2KM LC

JH-200G-QSFP56-FR4 Module is designed for 200GBASE Ethernet link up to 2km over single-mode fiber (SMF) using a wavelength of 1271nm to 1331nm with duplex LC connectors. The module supports four electrical interface channels and operates in 50G PAM4 coding mode, resulting in 200G (4x50G) data rates. It is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024 and SFF-8679 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, InfiniBand HDR, data centers, and cloud networks.

联系我们

产品特性

Hot-pluggable QSFP56 form factor
Supports 200Gbps data rate (4x50G PAM4), compliant with IEEE 802.3cd 200G Ethernet standard
Maximum power consumption < 5.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, PAM4 CWDM4 wavelength multiplexing, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud DCI, Intra-Facility Connectivity

规格参数

Data Rate	200G
Distance	2KM
Wavelength	1310nm
Form Factor	QSFP56

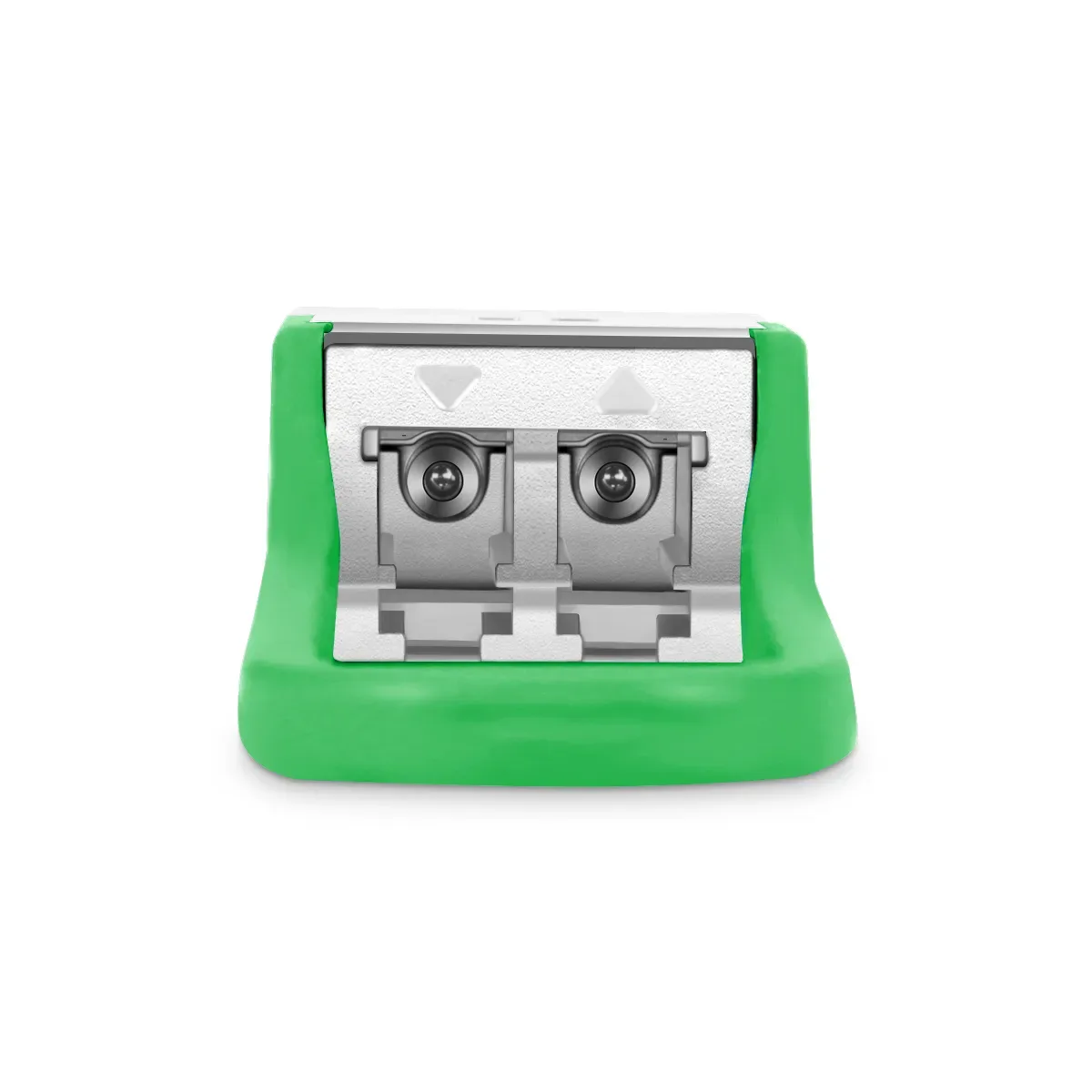

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DML
Receiver	PIN
TX Power	-4.2~4.7
Receiver Sensitivity	-8.2
Power consumption（Max）	5.5W
