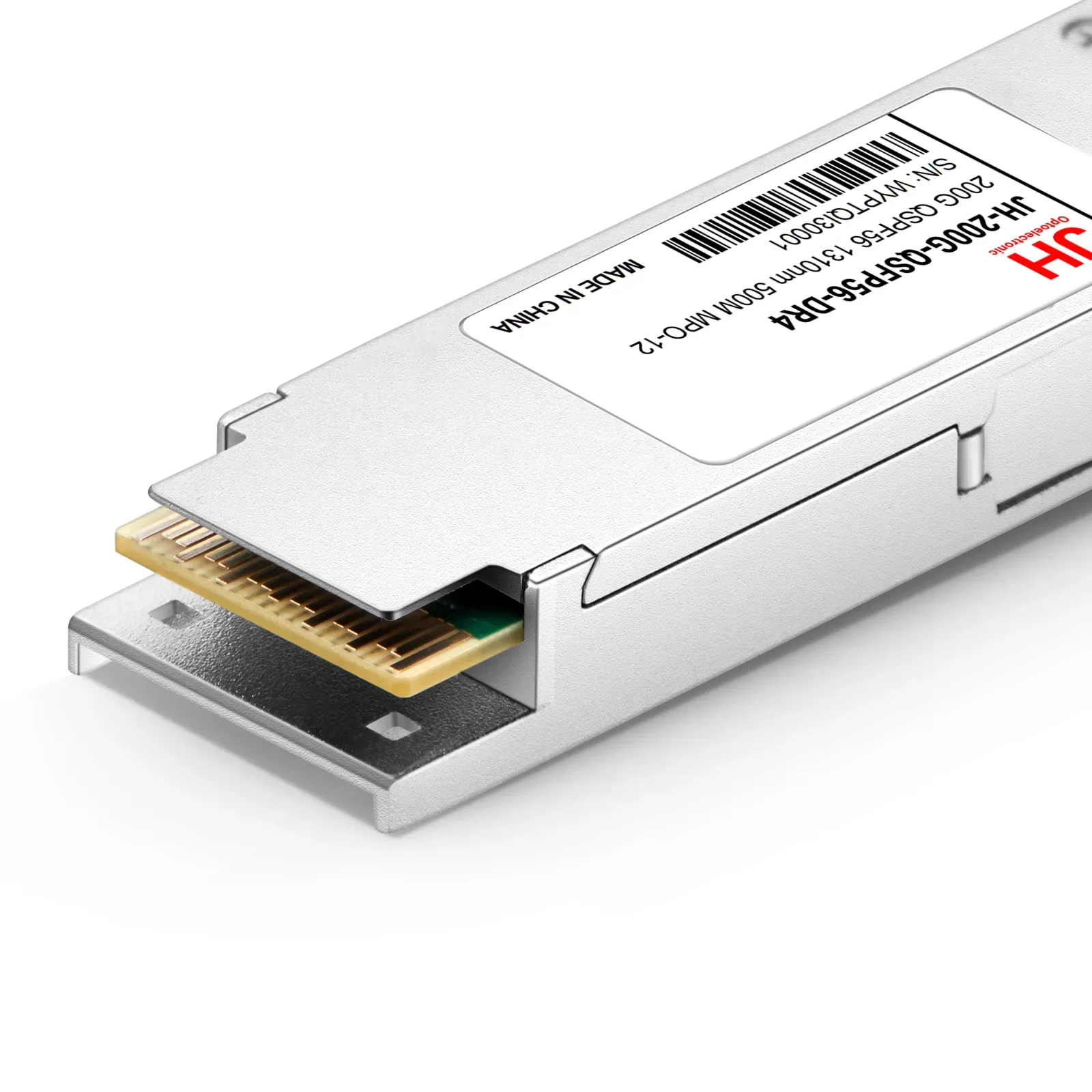

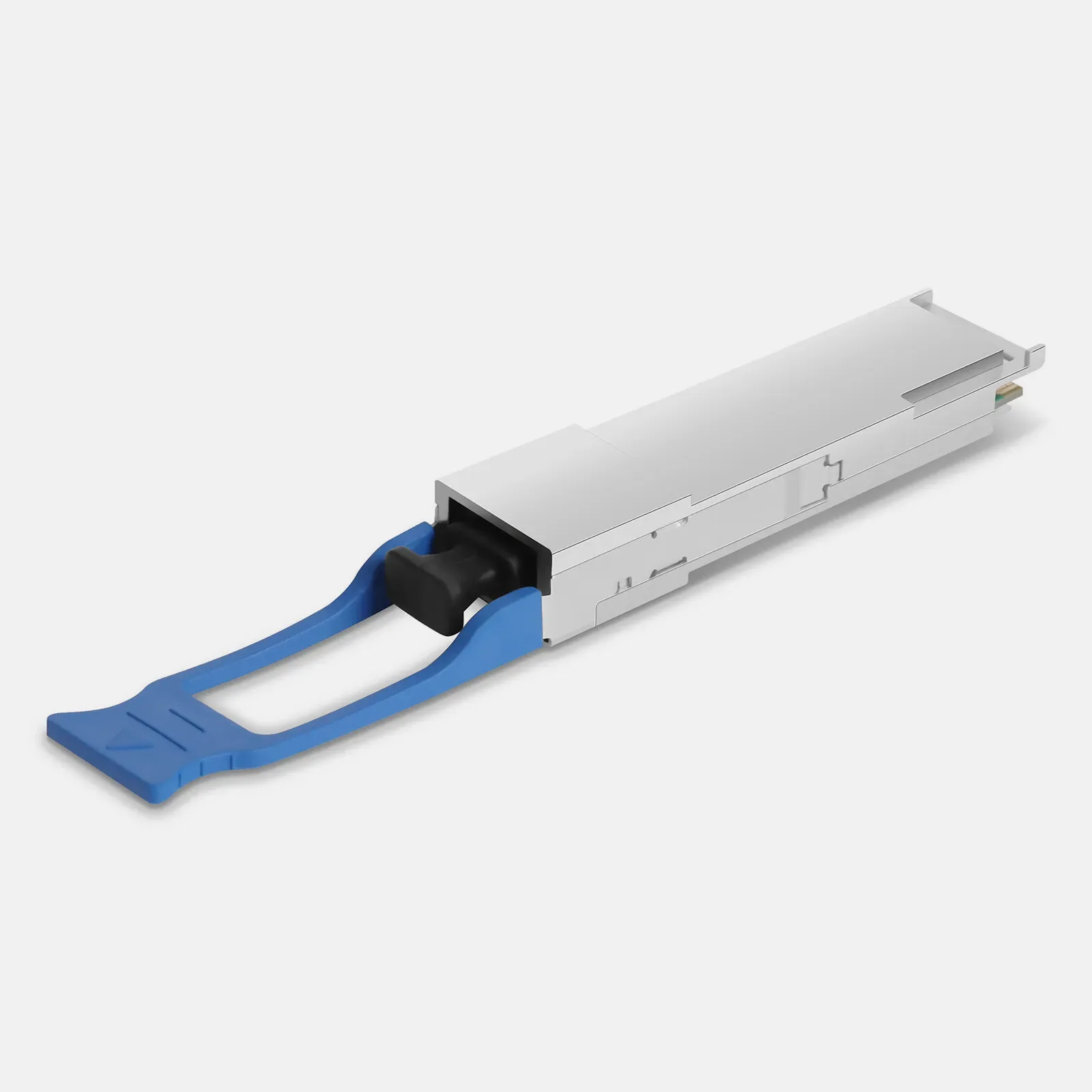

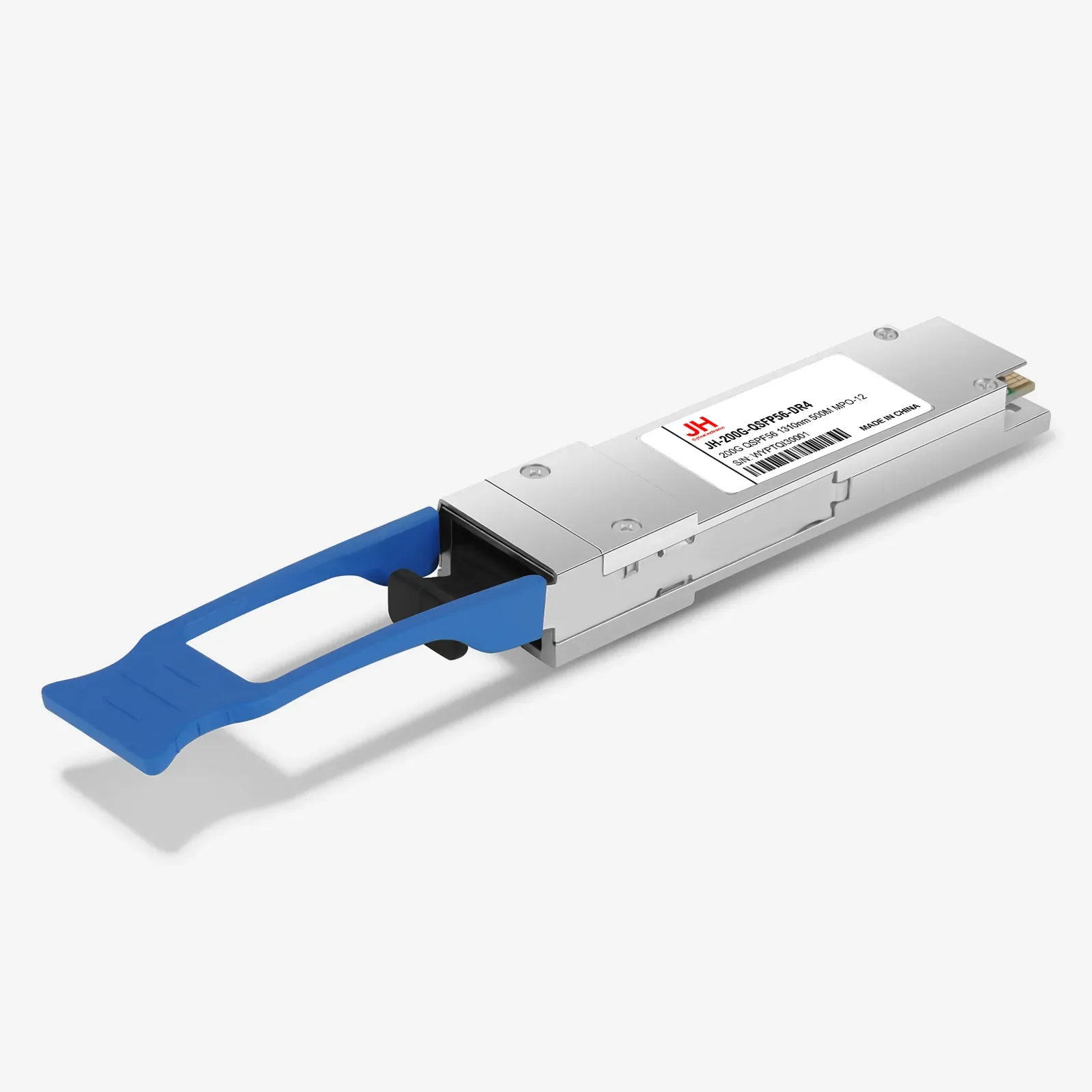

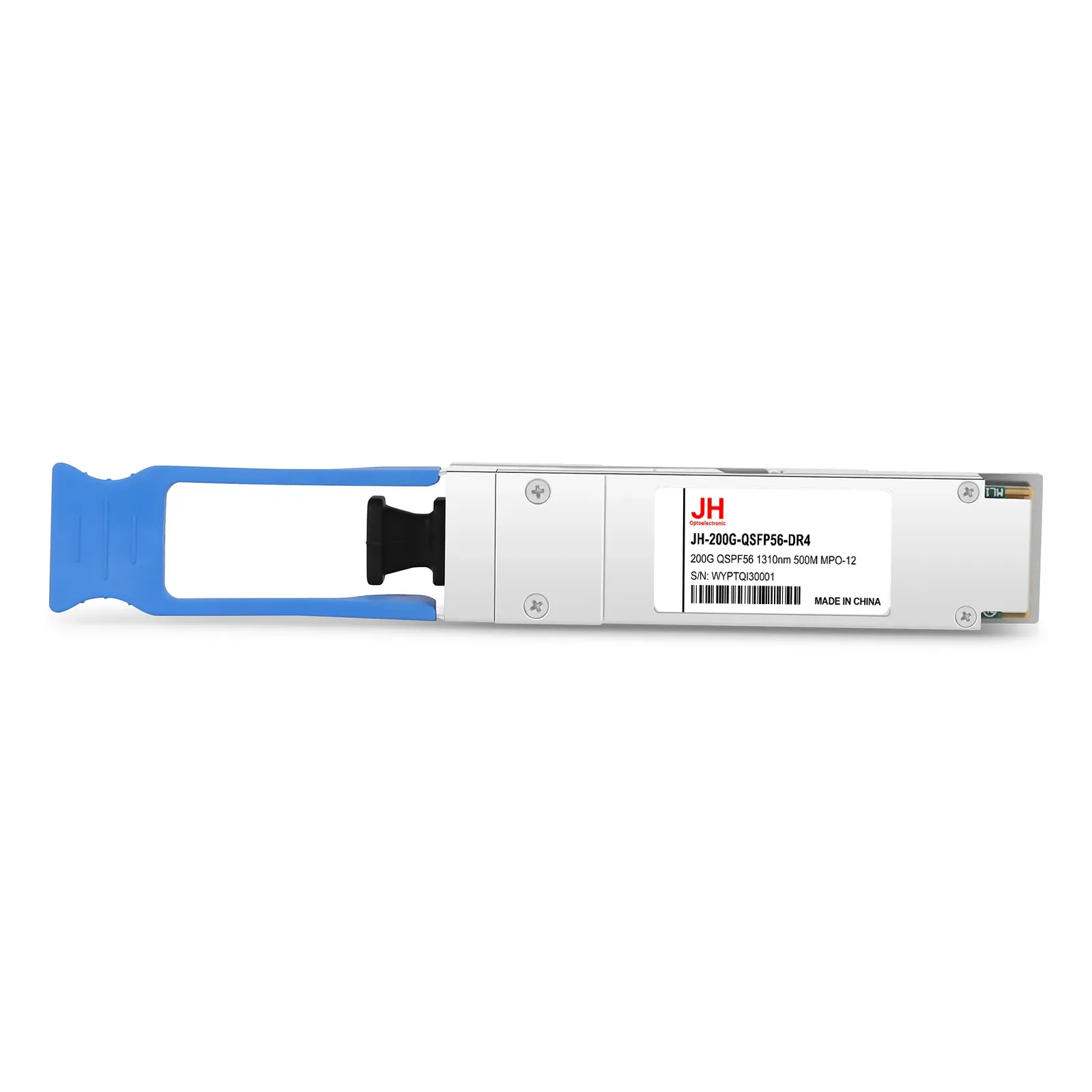

JH-200G-QSFP56-DR4

型号：200G QSFP56 1310nm 500M MPO-12

JH-200G-QSFP56-DR4 module is used for short to medium distance interconnections between devices within data centers and is compliant with IEEE 802.3bs 200GBASE-DR4 Ethernet transport protocol and is also compatible with InfiniBand HDR transport protocol. It uses 4 pairs of parallel single-mode fiber for transmission with a central wavelength of 1310nm and a distance of up to 500m (with FEC enabled).

联系我们

产品特性

Hot-pluggable QSFP56 form factor
Supports 200Gbps data rate (4x50G PAM4), compliant with IEEE 802.3cd 200G Ethernet standard
Maximum power consumption < 5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, PAM4 modulation, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud Data Center, Leaf-Spine Fabric

规格参数

Data Rate	200G
Distance	500M
Wavelength	1310nm
Form Factor	QSFP56

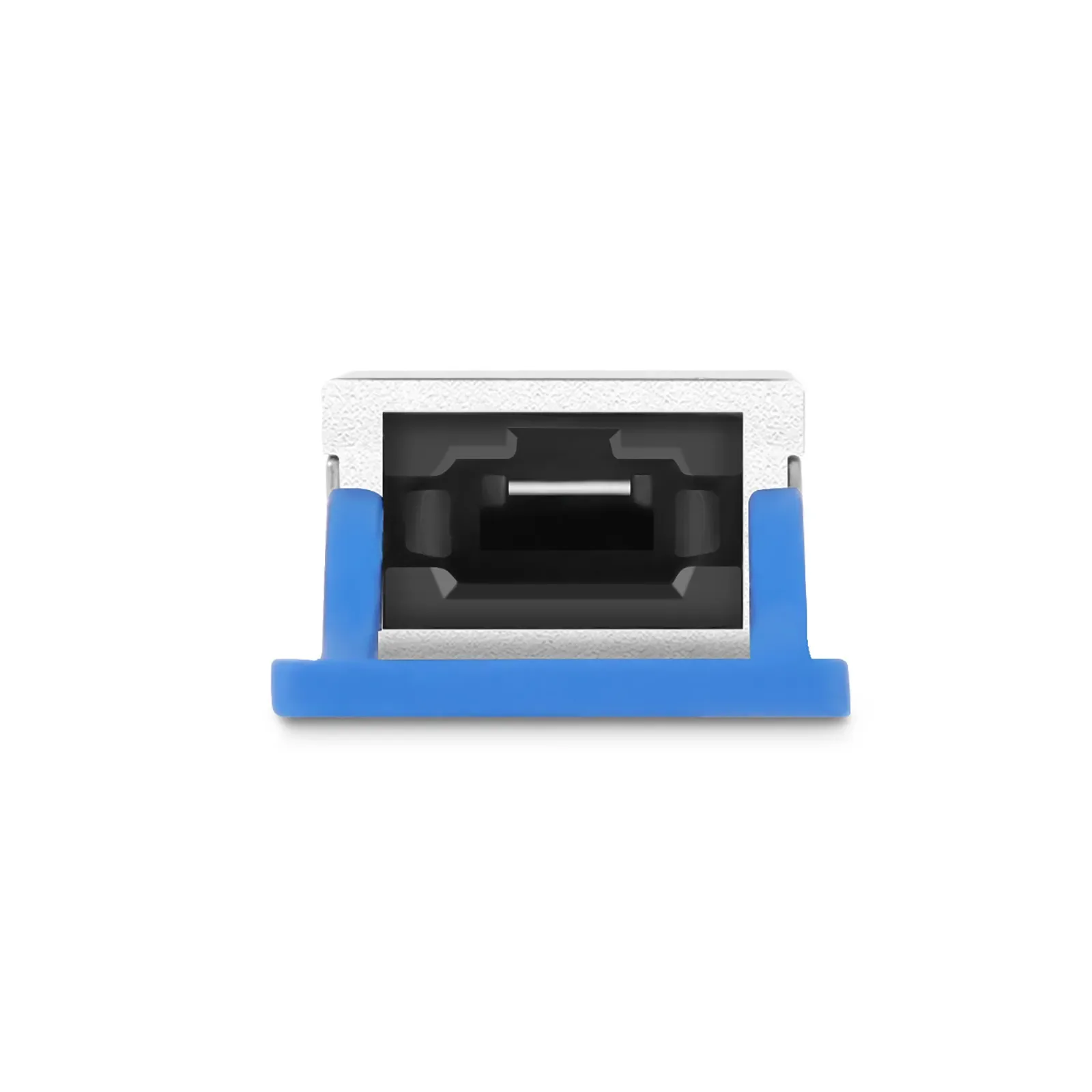

Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-5.1~3
Receiver Sensitivity	-8.1
Power consumption（Max）	5W
