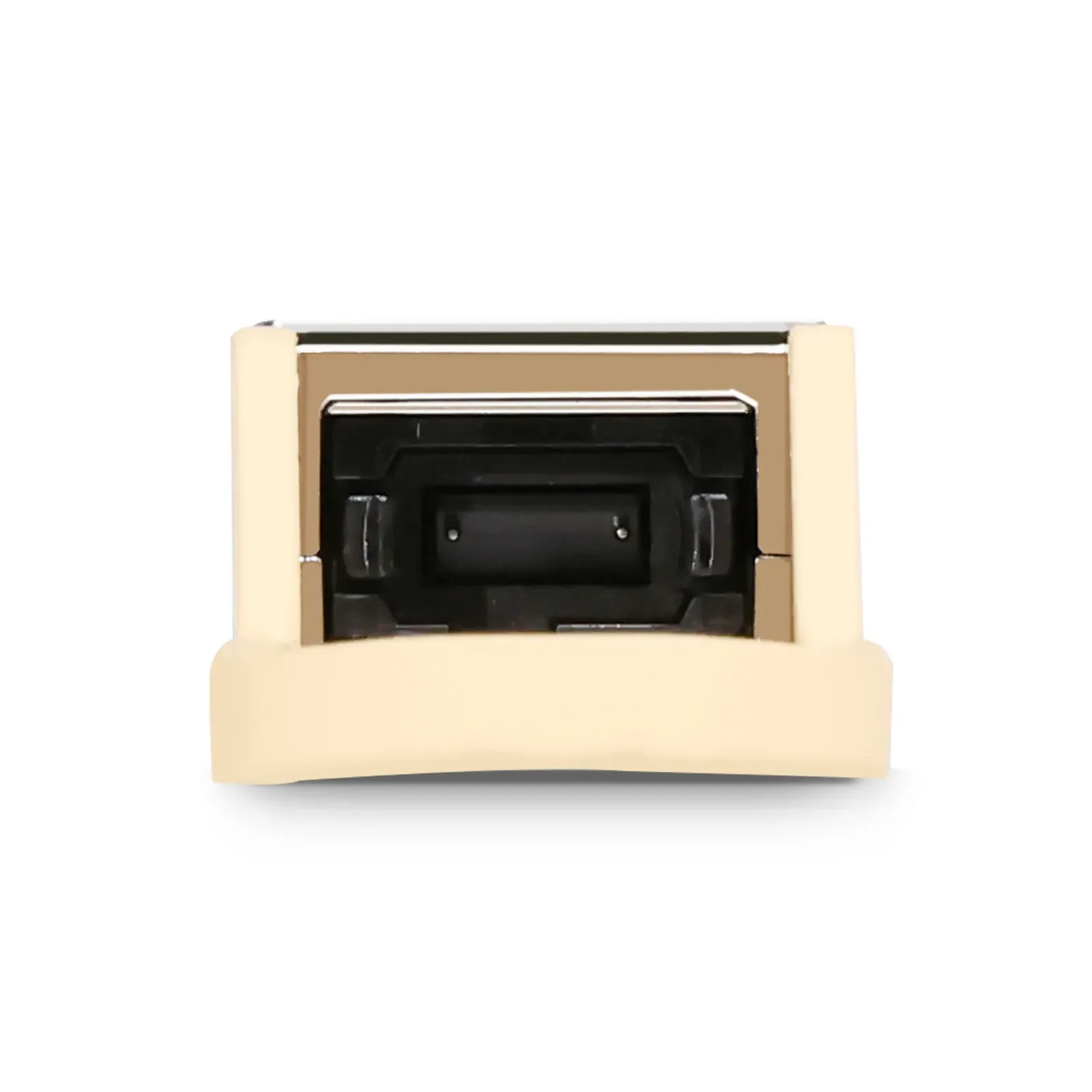

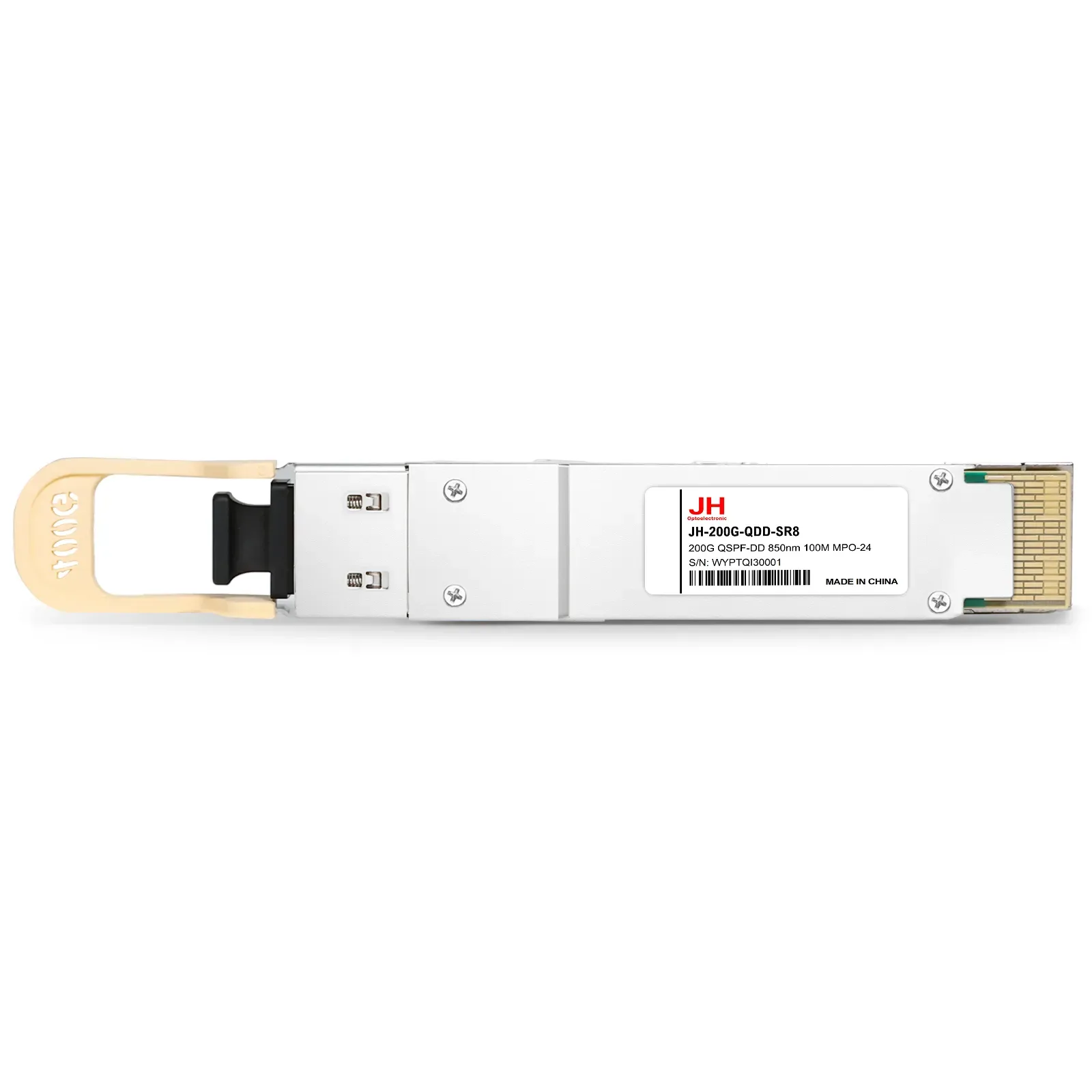

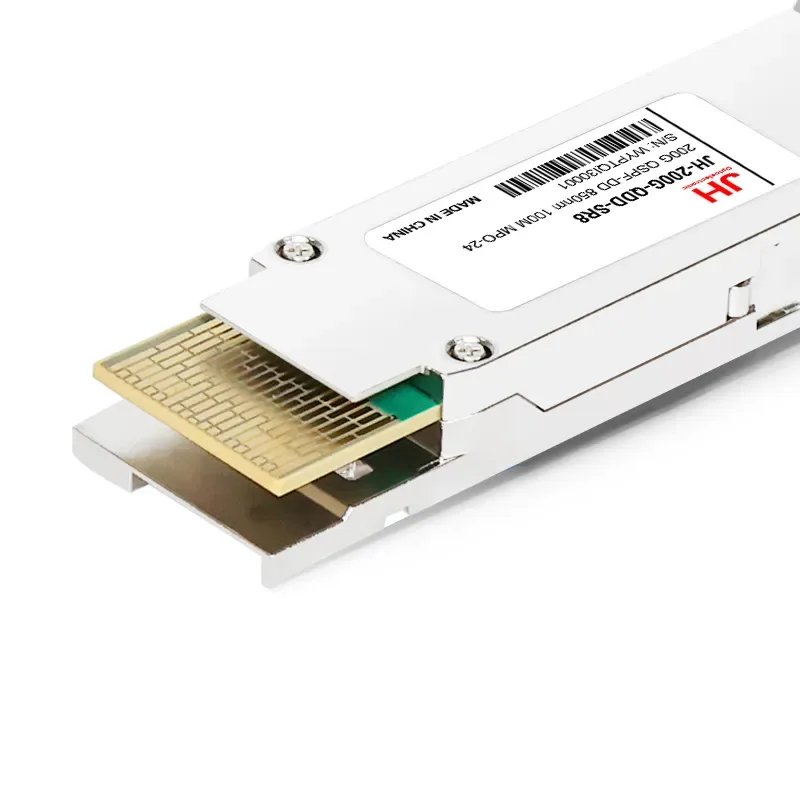

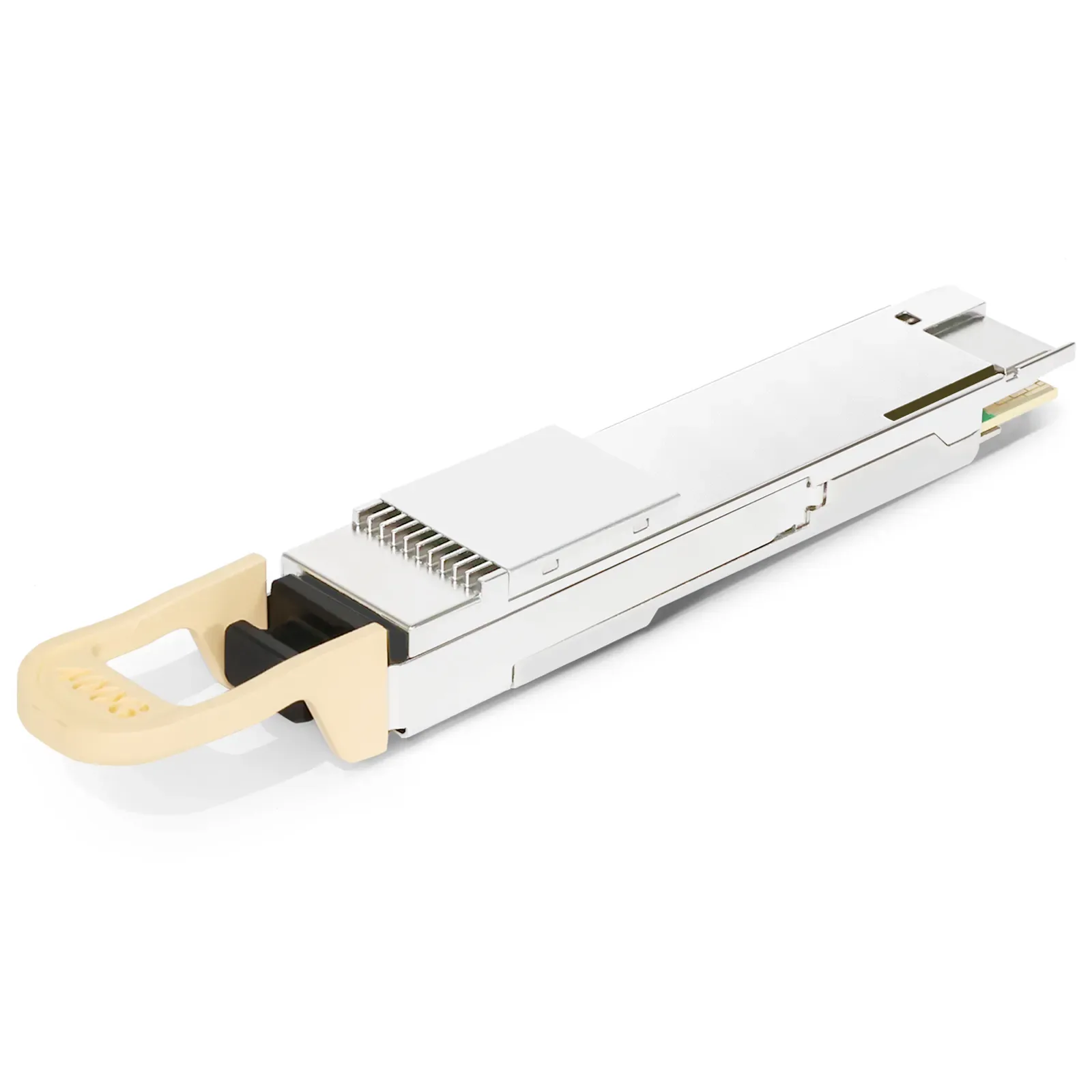

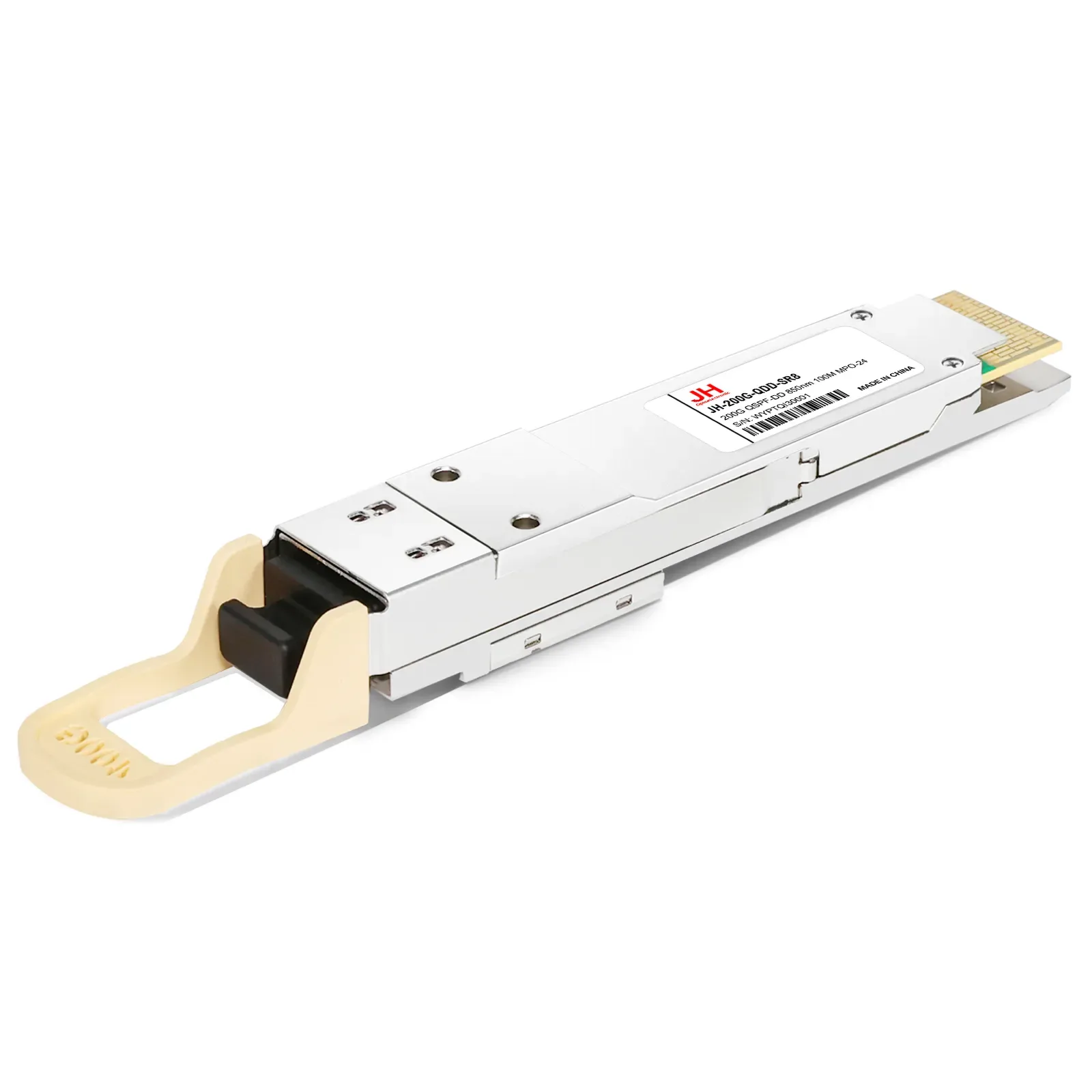

JH-200G-QDD-SR8

型号：200G QSFP-DD 850nm 100M MPO-24

JH-200G-QDD-SR8 supports up to 100m link lengths over multimode fiber (MMF) via MTP/MPO-24/UPC connectors. This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2×100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.

联系我们

产品特性

Hot-pluggable QSFP-DD form factor
Supports 200Gbps data rate (8x25G NRZ), compliant with IEEE 802.3cd standard
Maximum power consumption < 5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 4.0 digital diagnostic monitoring, 25G/lane NRZ, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Hyperscale DC Spine-Leaf, High-Density Aggregation

规格参数

Data Rate	200G
Distance	100M
Wavelength	850nm
Form Factor	QSFP-DD
Connector	MPO-24
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-8.4~2.4
Receiver Sensitivity	-5.2
Power consumption（Max）	5W
