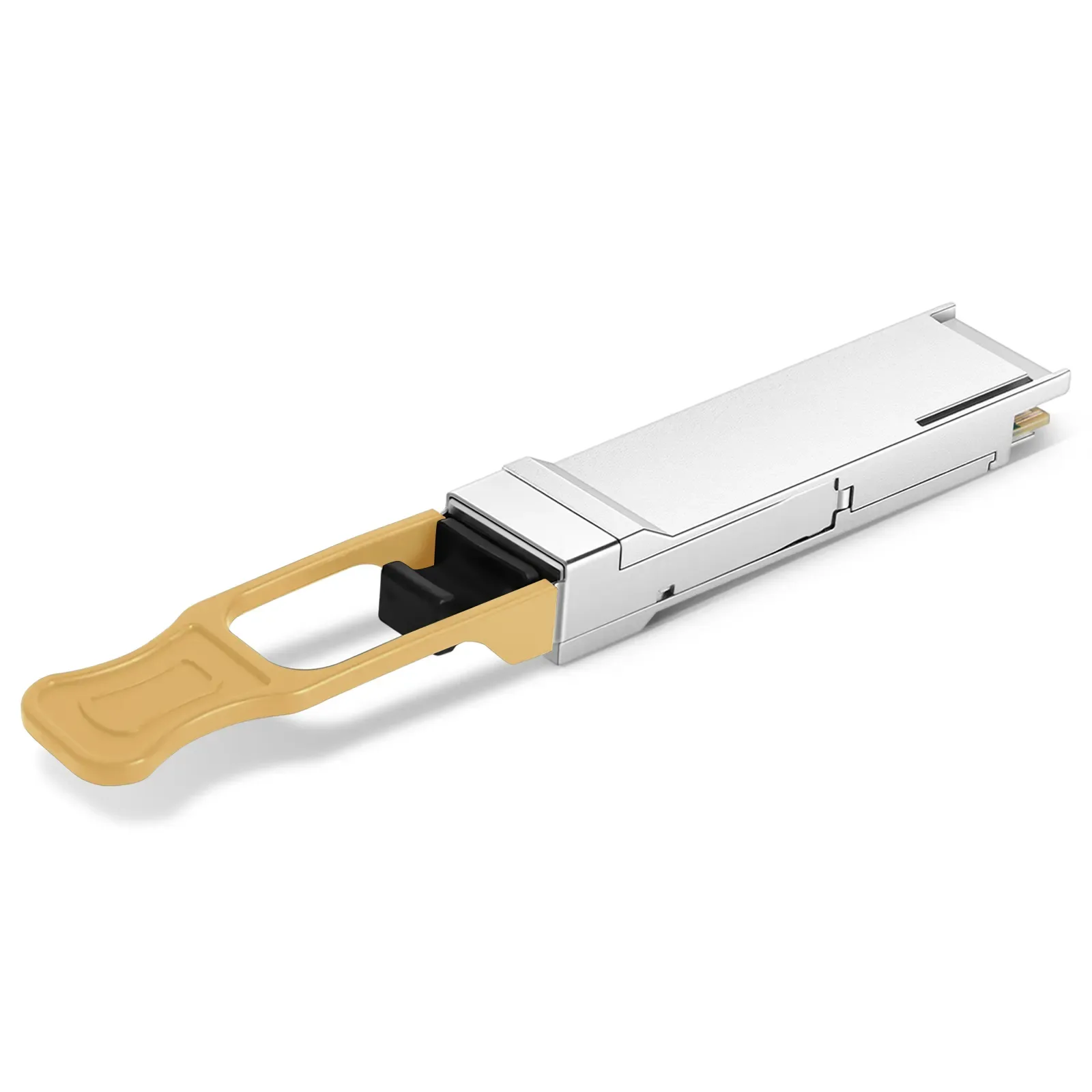

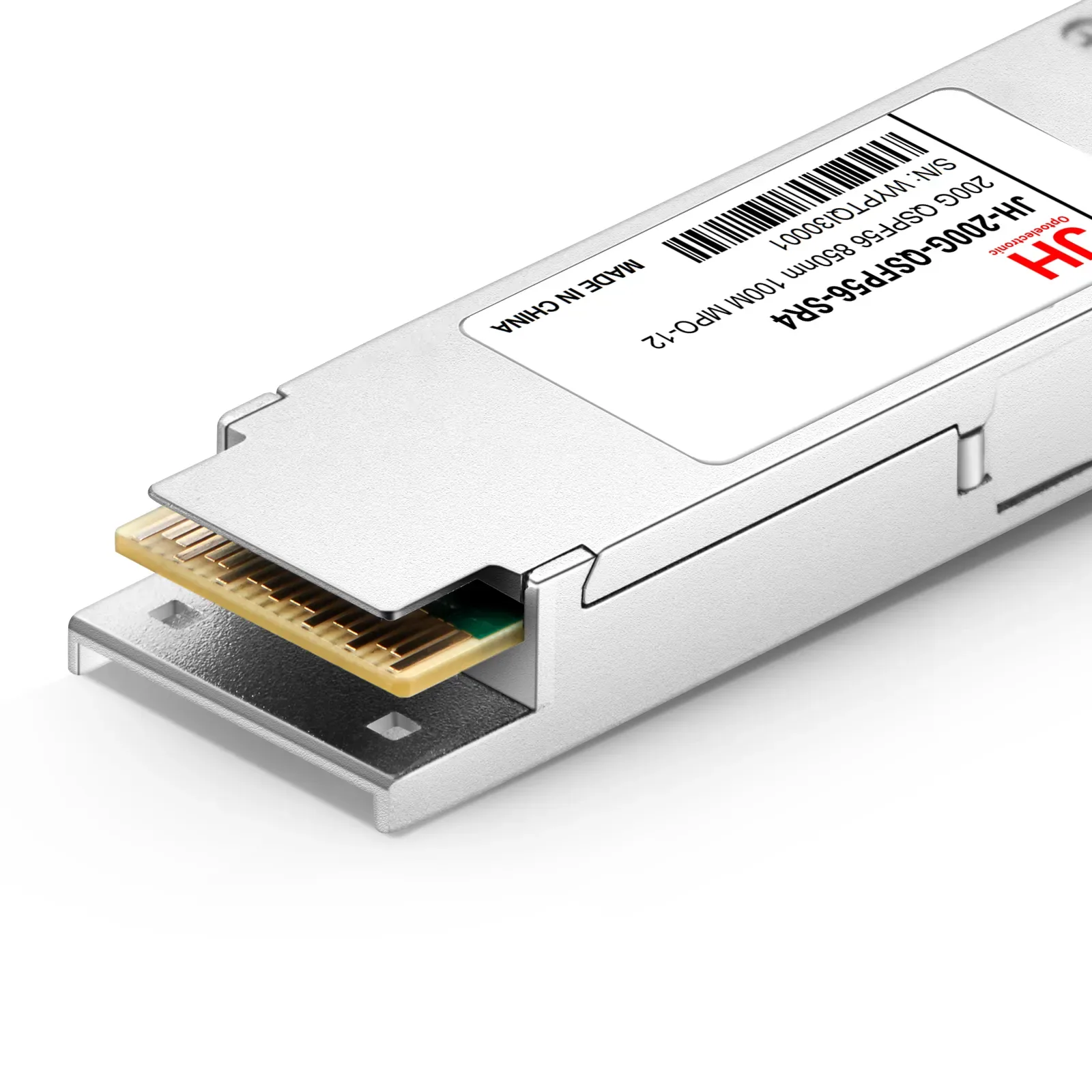

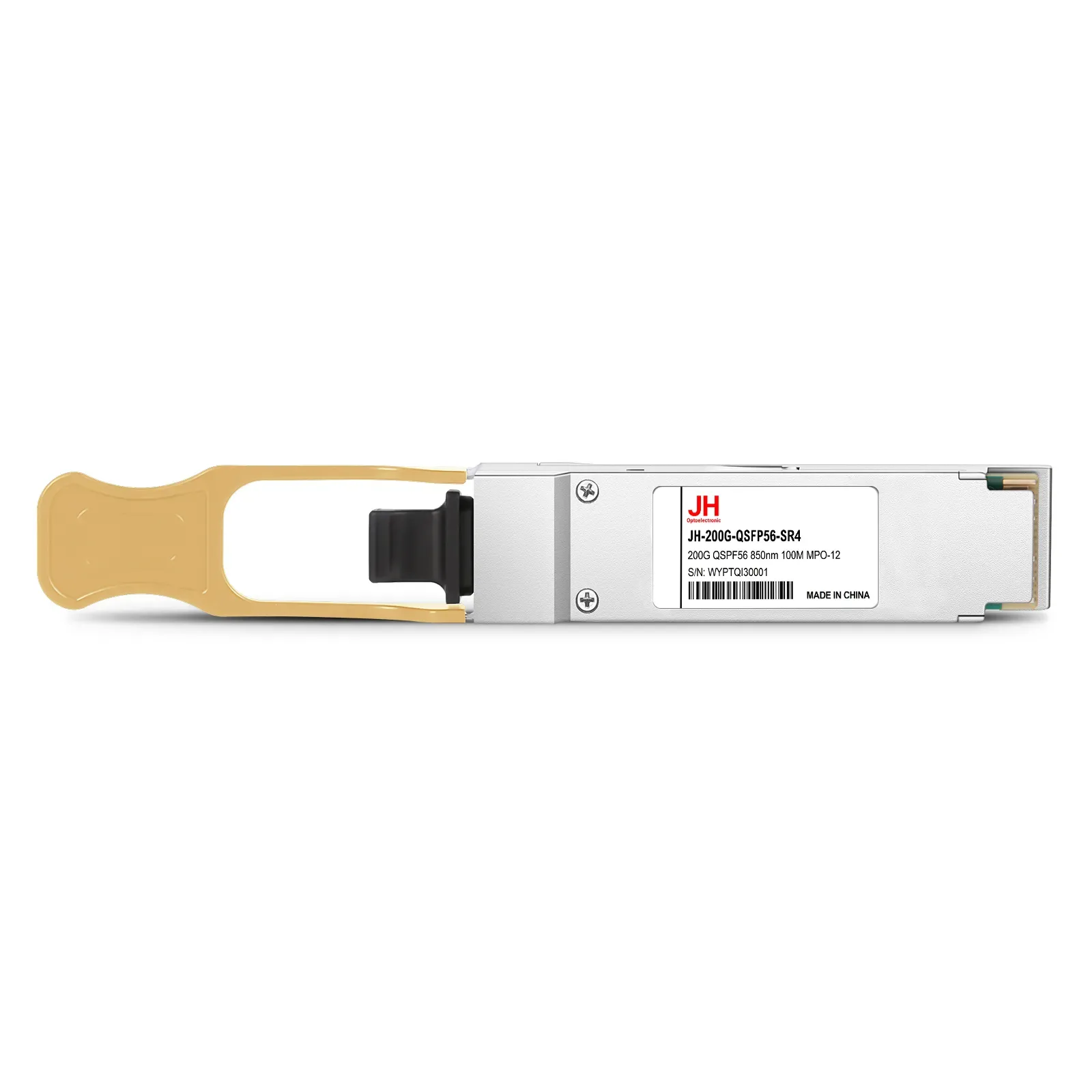

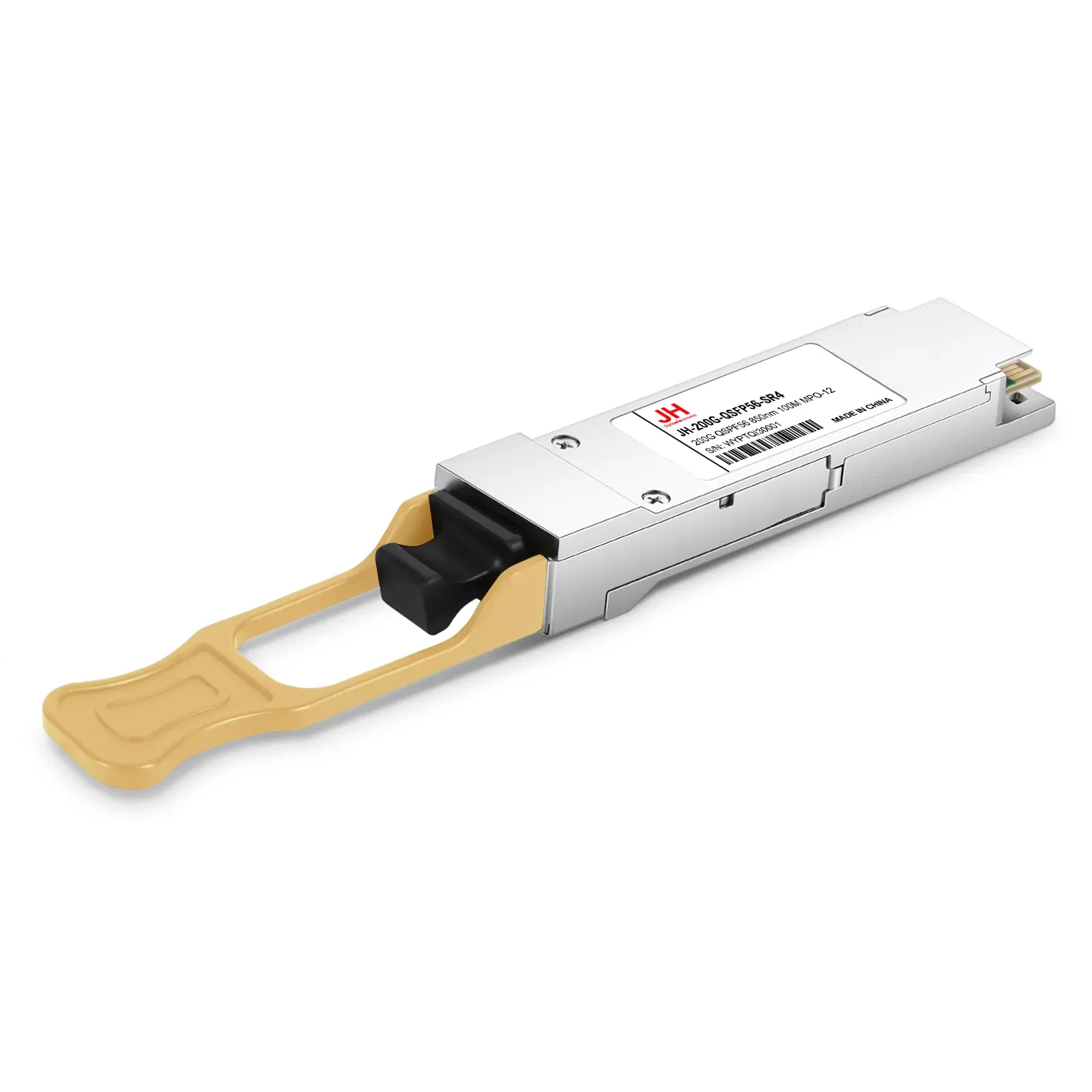

JH-200G-QSFP56-SR4

型号：200G QSFP56 850nm 100M MPO-12

JH-200G-QSFP56-SR4 supports speeds up to 200 Gb/s, short-range distance reaching up to 100m over 12 parallel multimode fiber (MMF) OM4. QSFP56-200G-SR4 is designed based on PAM4 (Pulse Amplitude Modulation 4-level) modulation technology, DSP (Digital Signal Processing) chip, and QSFP56 form factor. The 200GBASE-SR4 QSFP56 transceiver is compliant with IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636. QSFPTEK 200G NVIDIA Ethernet compatible optics are 100% tested in NVIDIA Ethernet host devices, supporting both 4x 50G Ethernet, it is ideal for high-performance end-to-end systems. Used in QM8700 Switches.

联系我们

产品特性

Hot-pluggable QSFP56 form factor
Supports 200Gbps data rate (4x50G PAM4), compliant with IEEE 802.3cd 200G Ethernet standard
Maximum power consumption < 5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, 50G PAM4 modulation, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Spine-Leaf, Server Access

规格参数

Data Rate	200G
Distance	100M
Wavelength	850nm
Form Factor	QSFP56

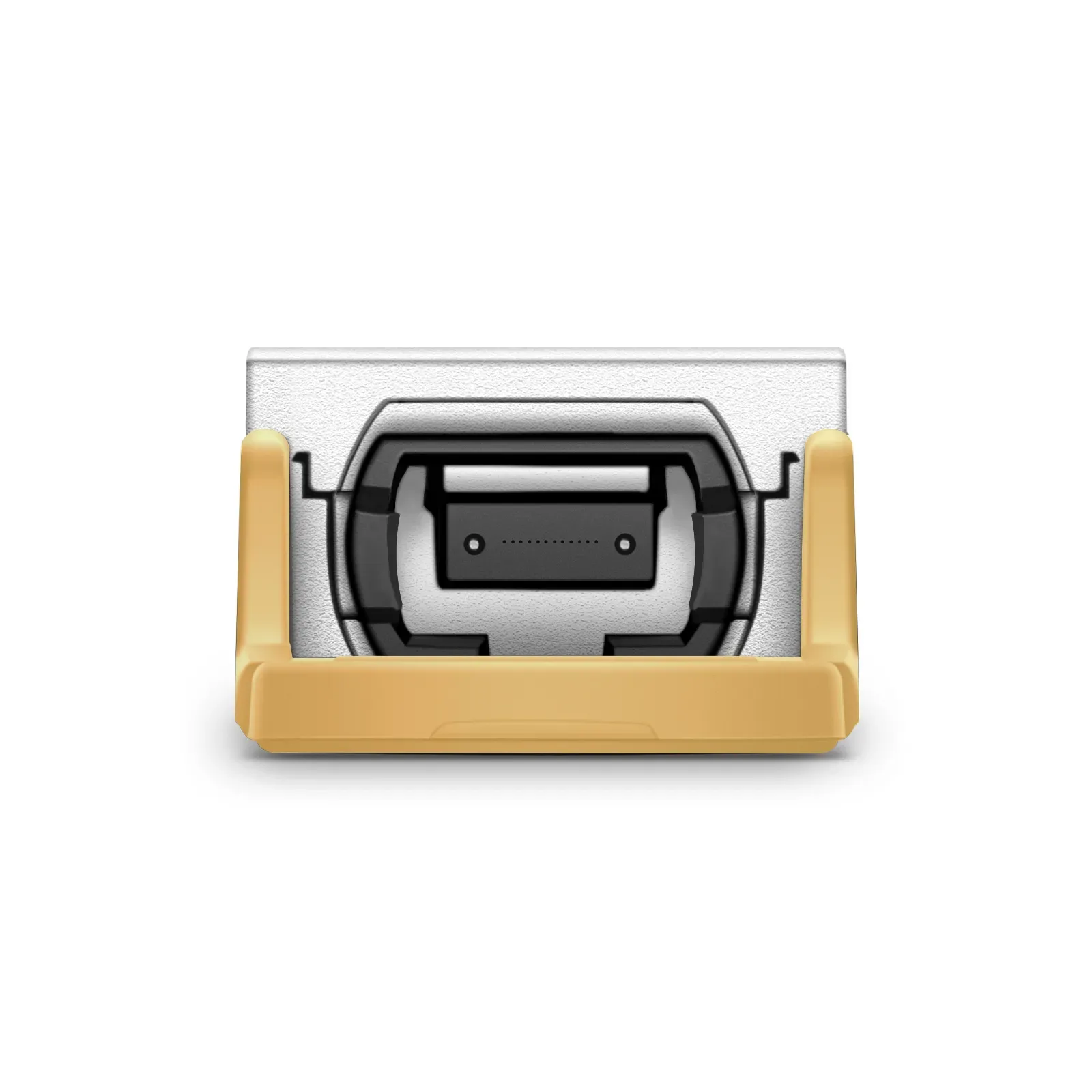

Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-6.5~4
Receiver Sensitivity	-7.9
Power consumption（Max）	5W
