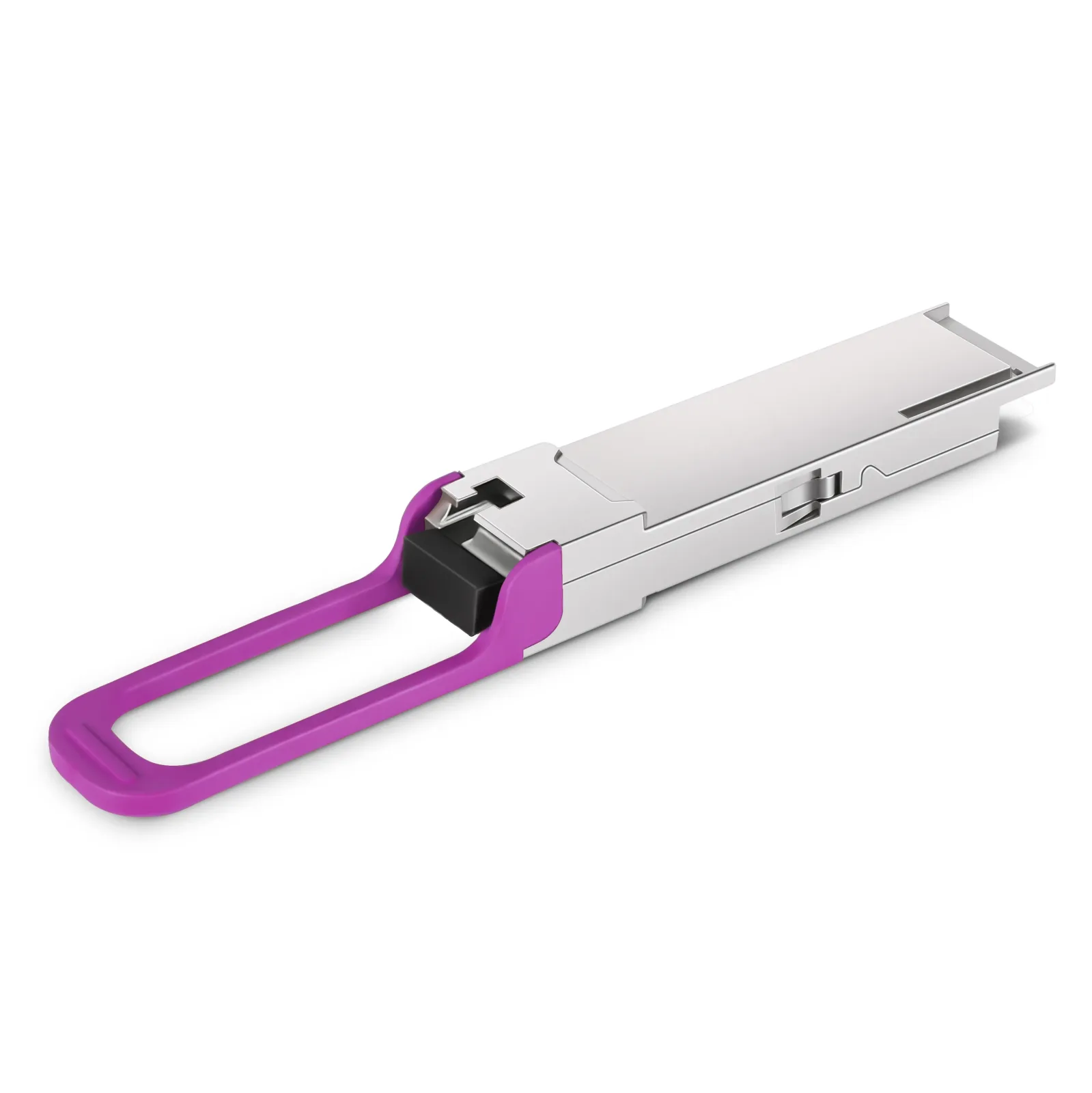

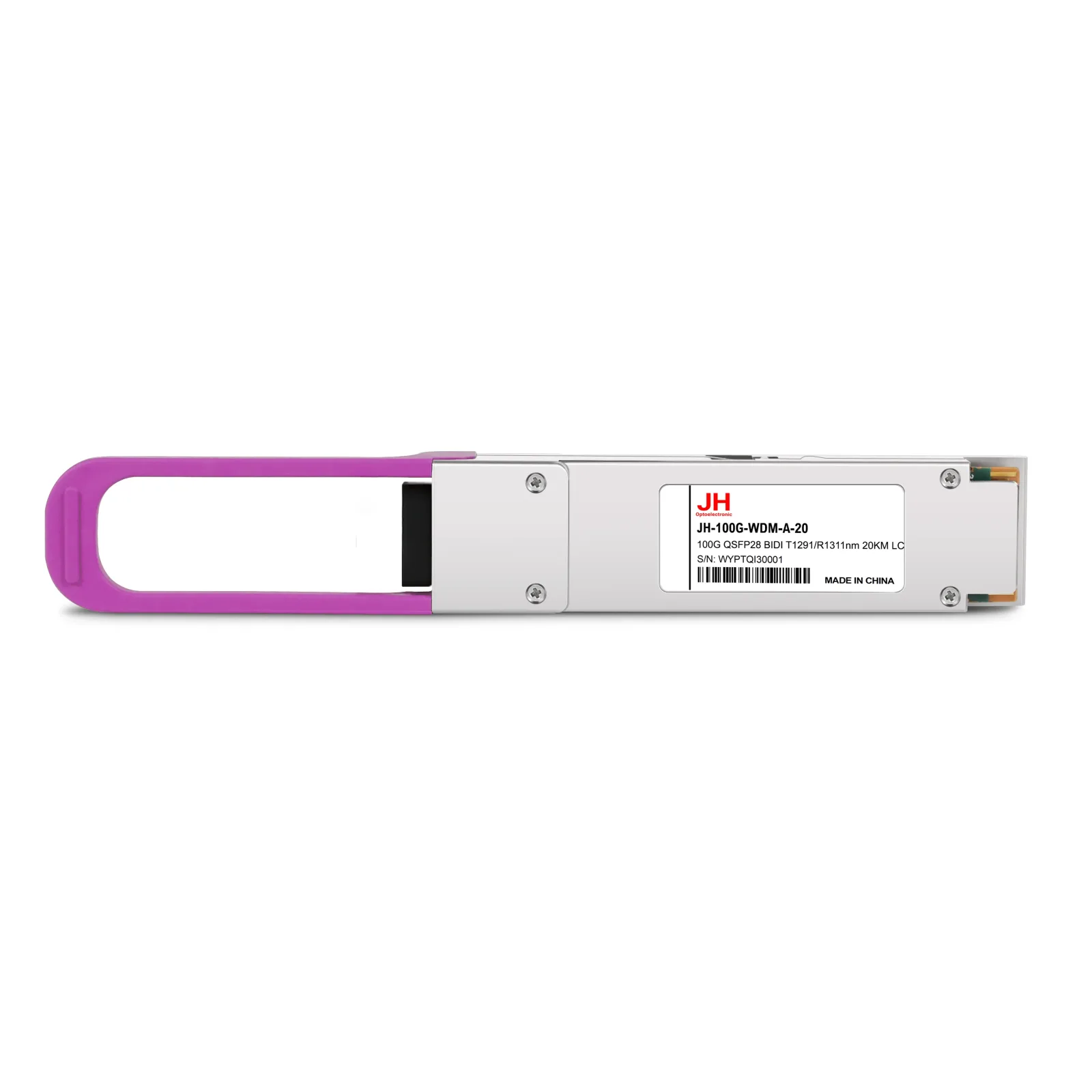

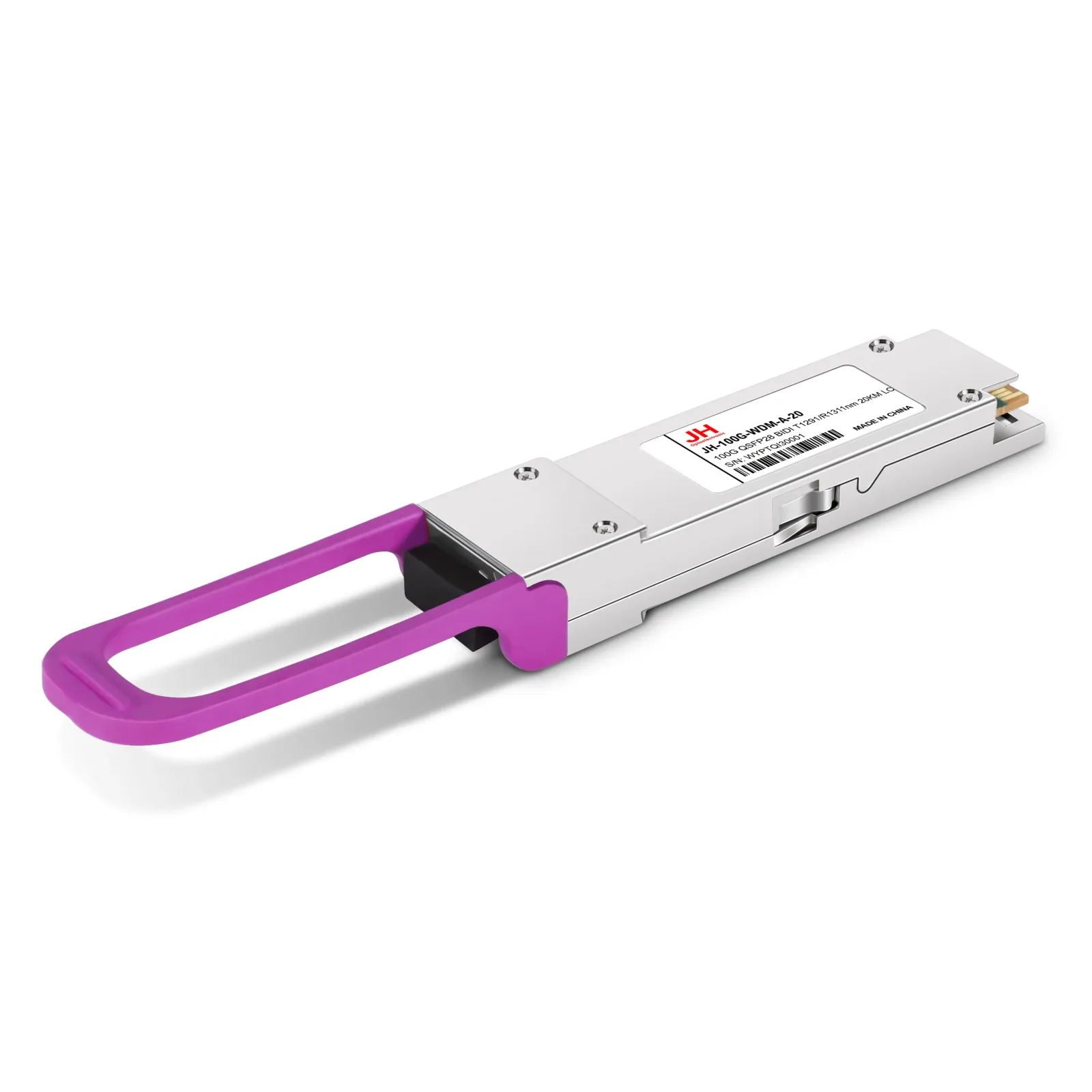

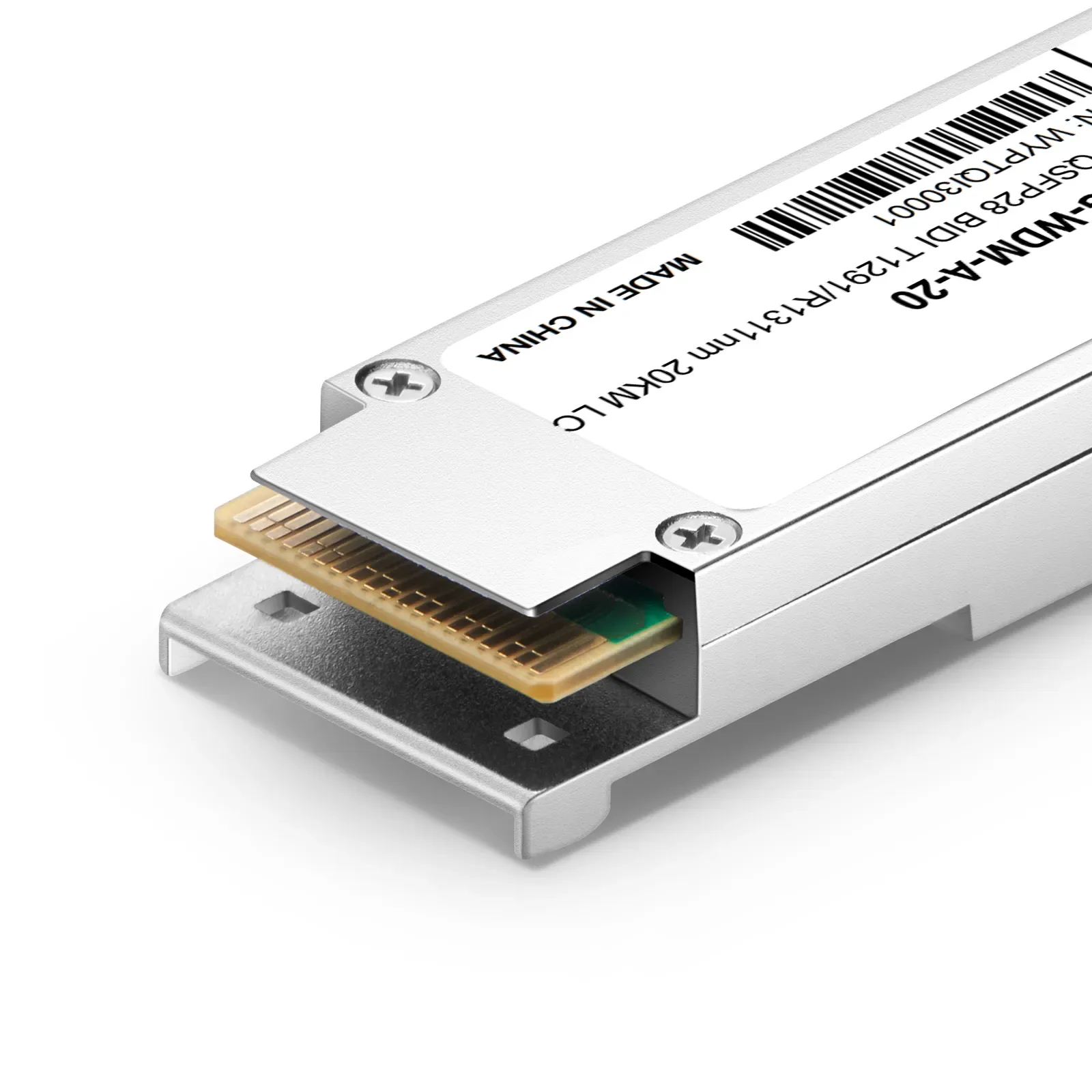

JH-100G-WDM-A-20

型号：100G QSFP28 BIDI T1291/R1311nm 20KM LC

JH-100G-WDM-A-20 uses the wavelengths of TX1291nm/RX1311nm with PAM4 signals for up to 20km transmission over single-mode fiber. The module supports 103.125/106.25Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver is fully compliant with QSFP28 MSA, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data rate (4x25G NRZ), compliant with IEEE 802.3bm 100G Ethernet standard
Maximum power consumption < 4.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, single-fiber BIDI technology, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro Access, ISP Distribution

规格参数

Data Rate	100G
Distance	20KM
Wavelength	BIDI
Form Factor	QSFP28
Connector	BIDI
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	PIN
TX Power	-0.2~6.6
Receiver Sensitivity	-9
Power consumption（Max）	4.5W
