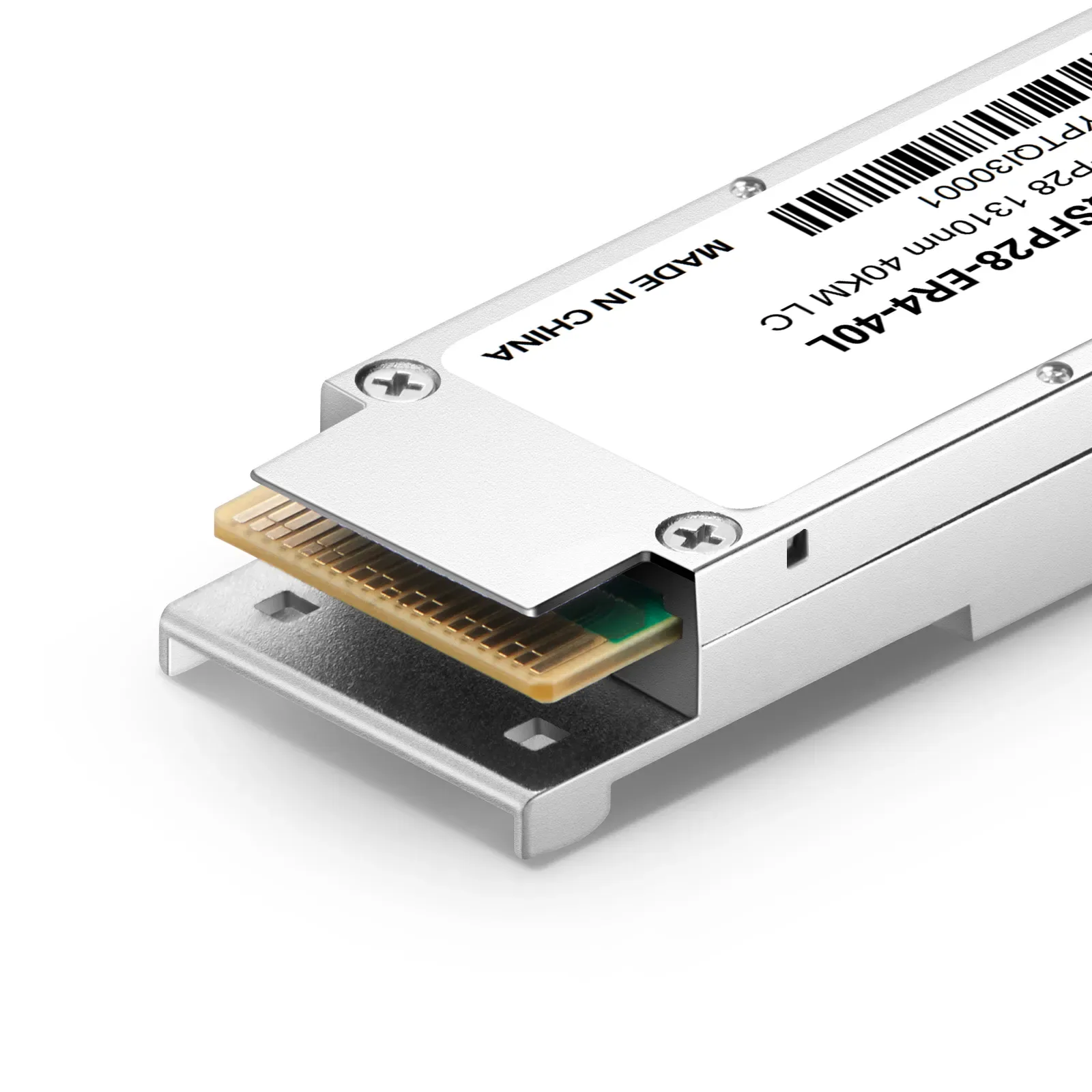

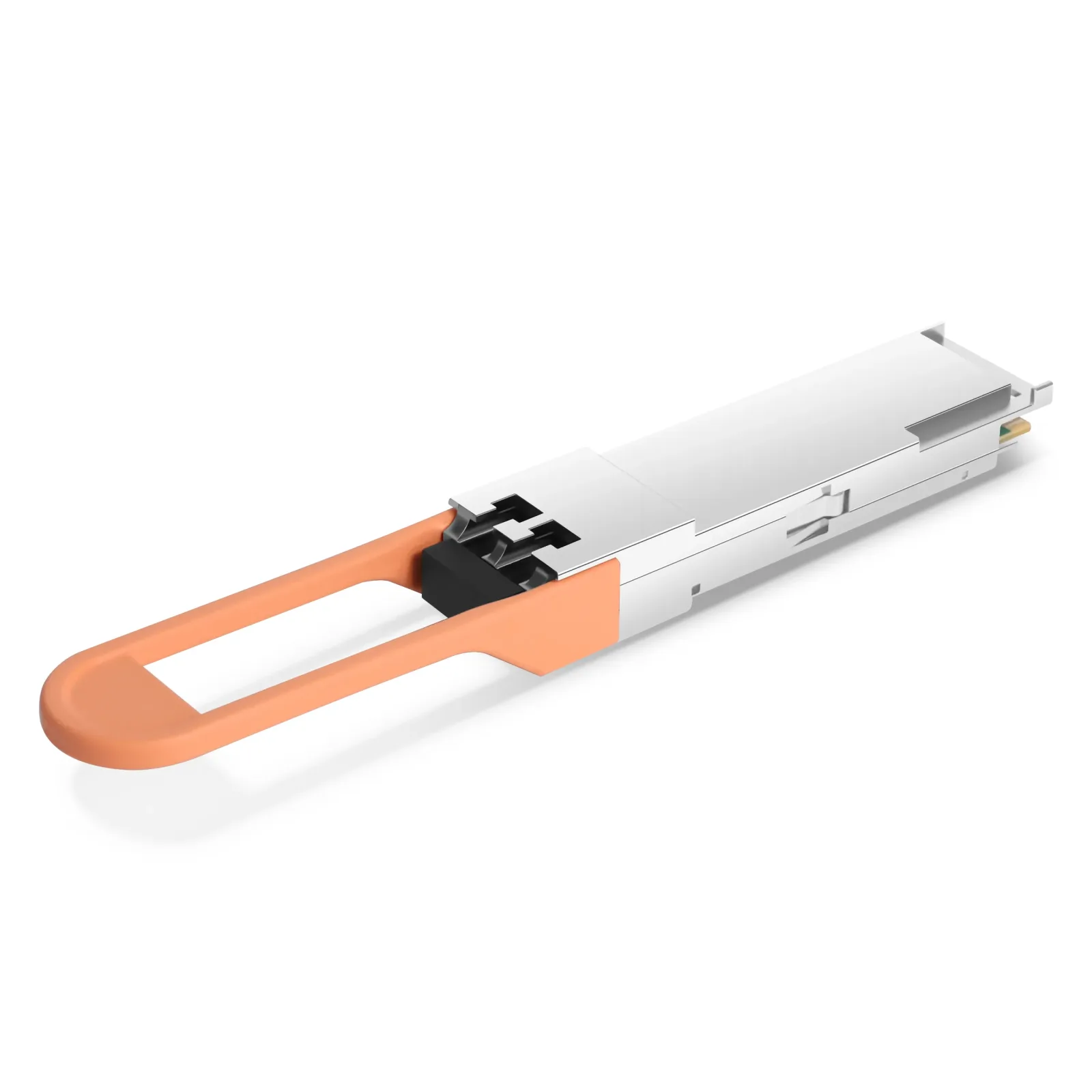

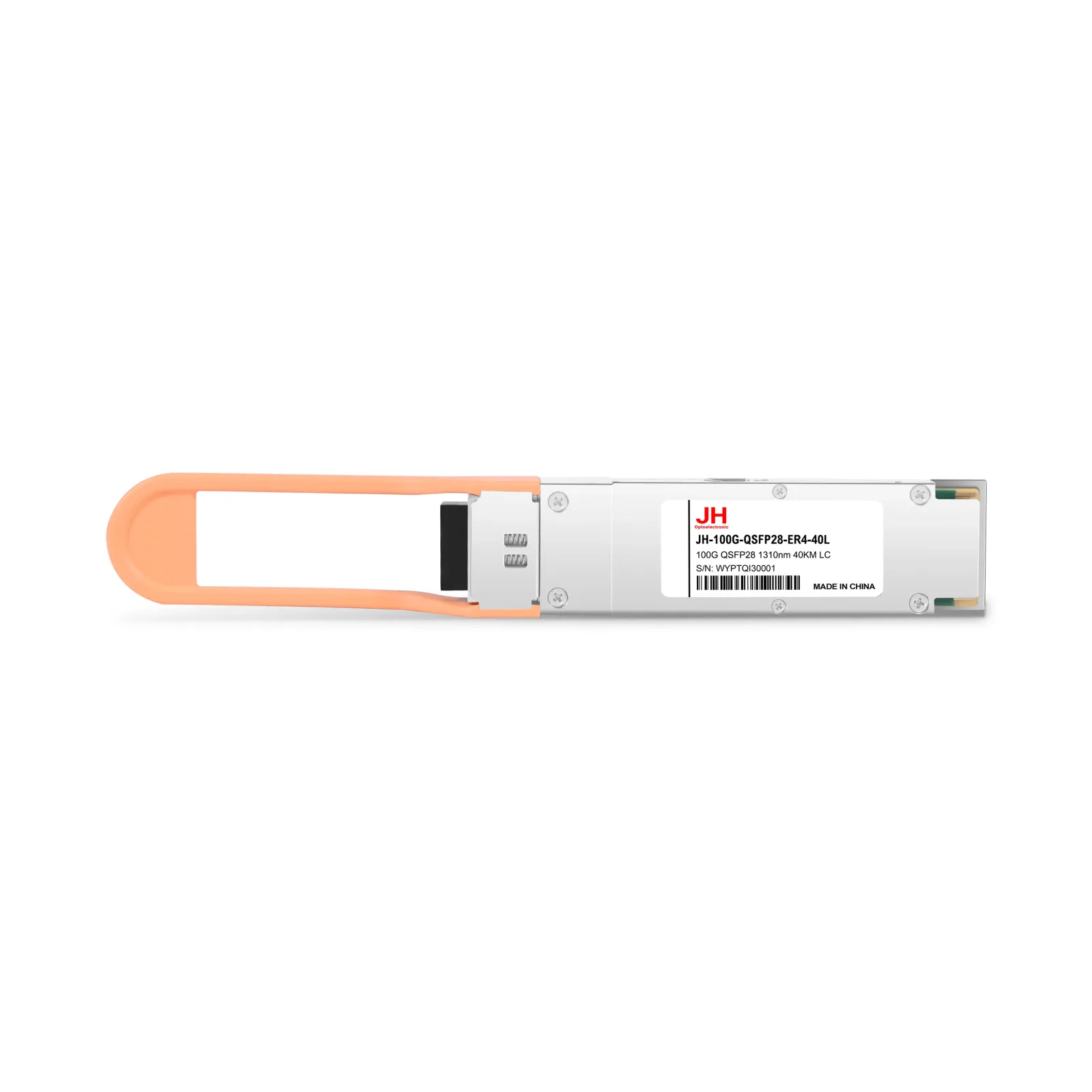

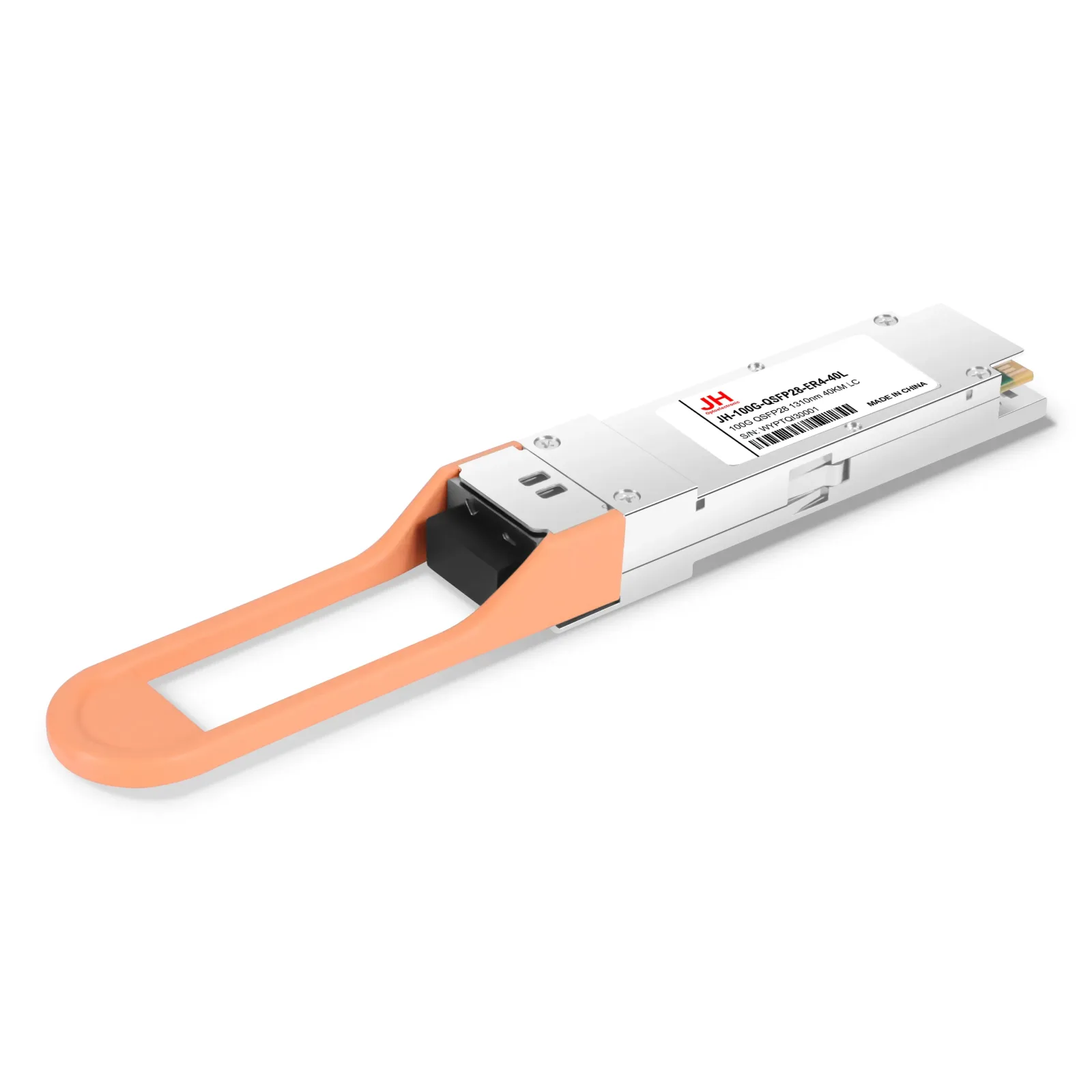

JH-100G-QSFP28-ER4-40L

型号：100G QSFP28 1310nm 40KM LC

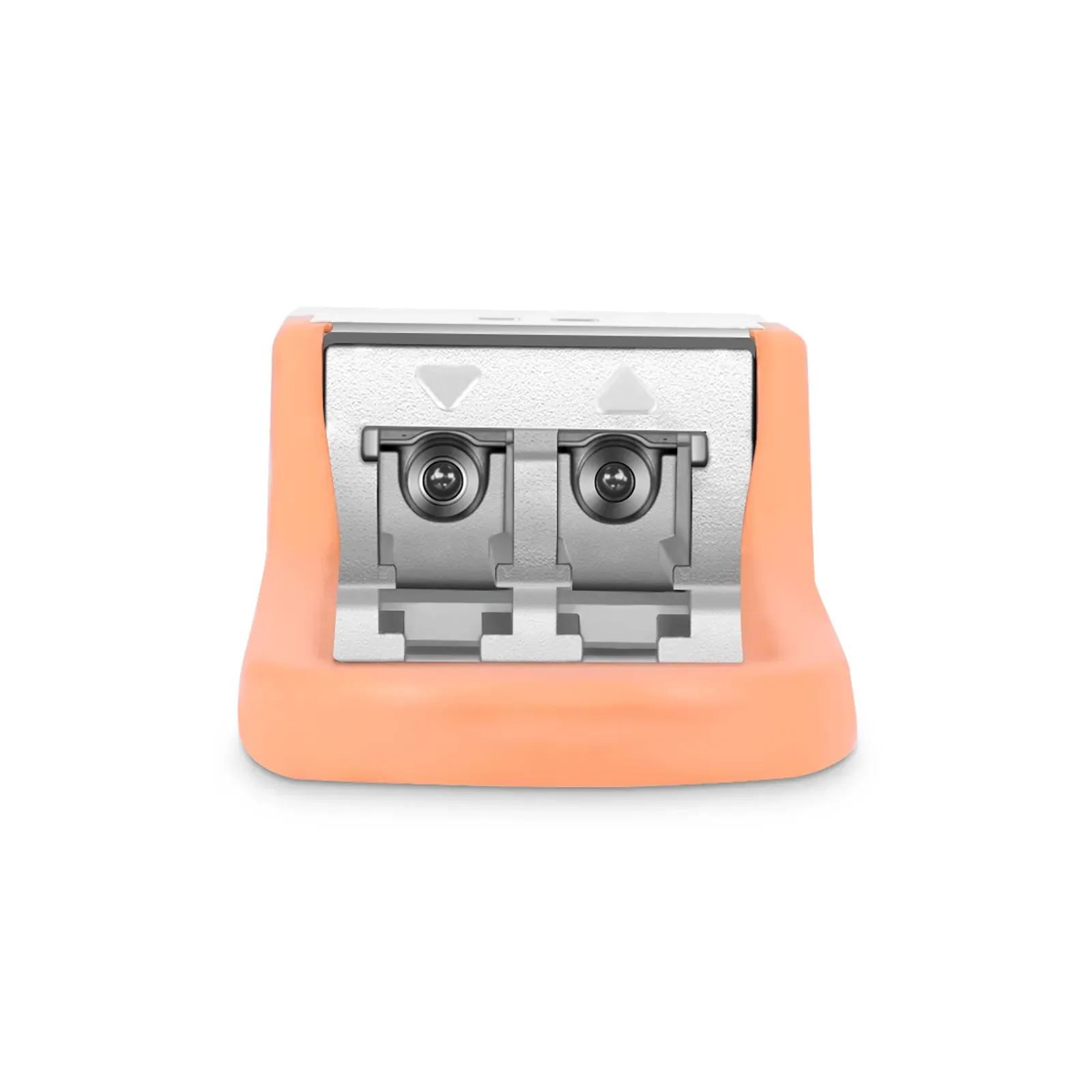

JH-100G-QSFP28-ER4-40L supports 100GBASE Ethernet links up to 40km over single-mode fiber using duplex LC connectors. It operates on four LWDM wavelengths with integrated multiplexing and demultiplexing. With a BOX+FPC+PCBA separated design, the module delivers enhanced reliability, sealing, and thermal performance. It complies with IEEE 802.3ba standards and provides digital diagnostics via the I2C interface for real-time monitoring.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data rate (4x25G NRZ), compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, LAN-WDM, EML laser, APD receiver, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro Access, ISP Distribution

规格参数

Data Rate	100G
Distance	40KM
Wavelength	1310nm
Form Factor	QSFP28
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	APD
TX Power	-2.5~4.5
Receiver Sensitivity	-14.6
Power consumption（Max）	5W
