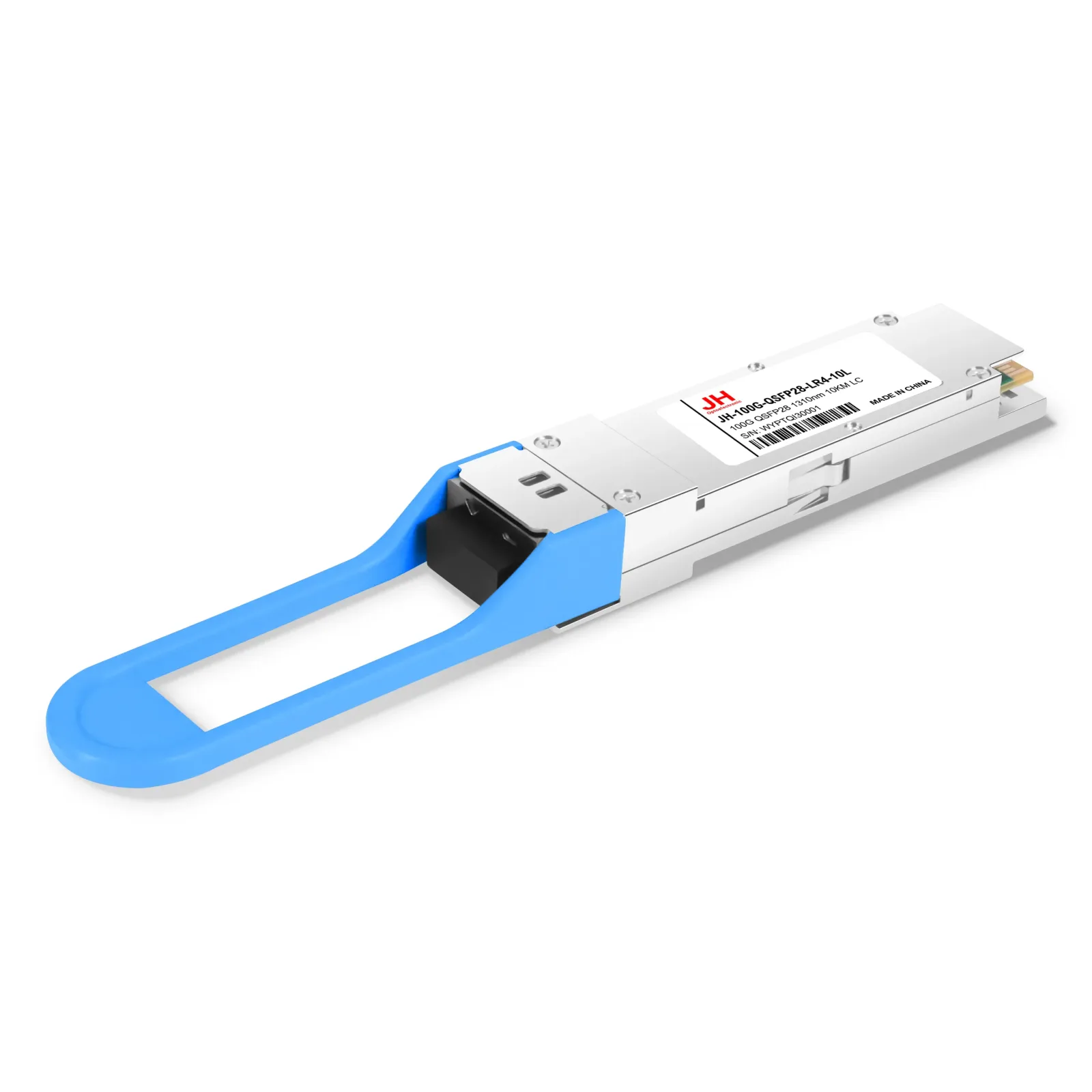

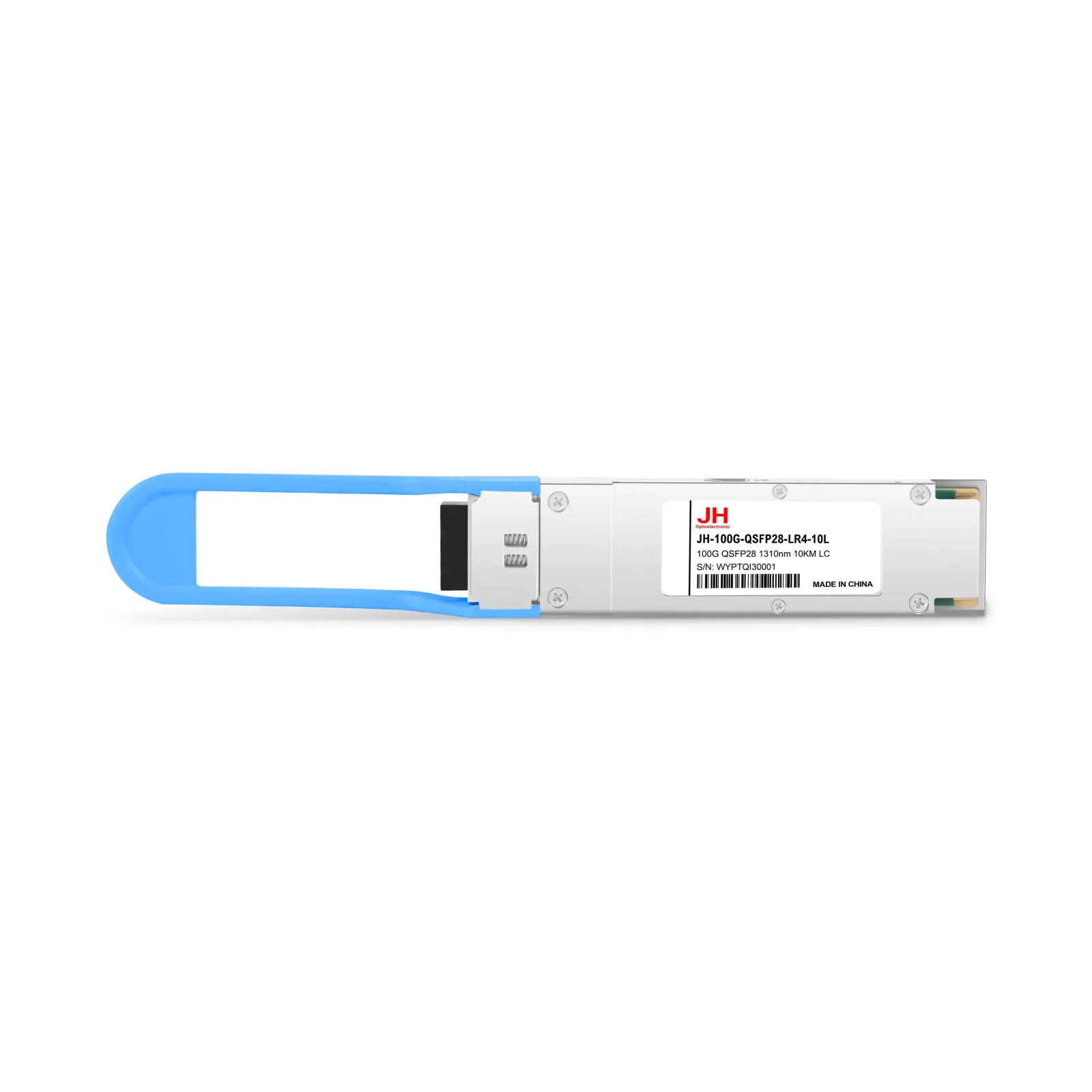

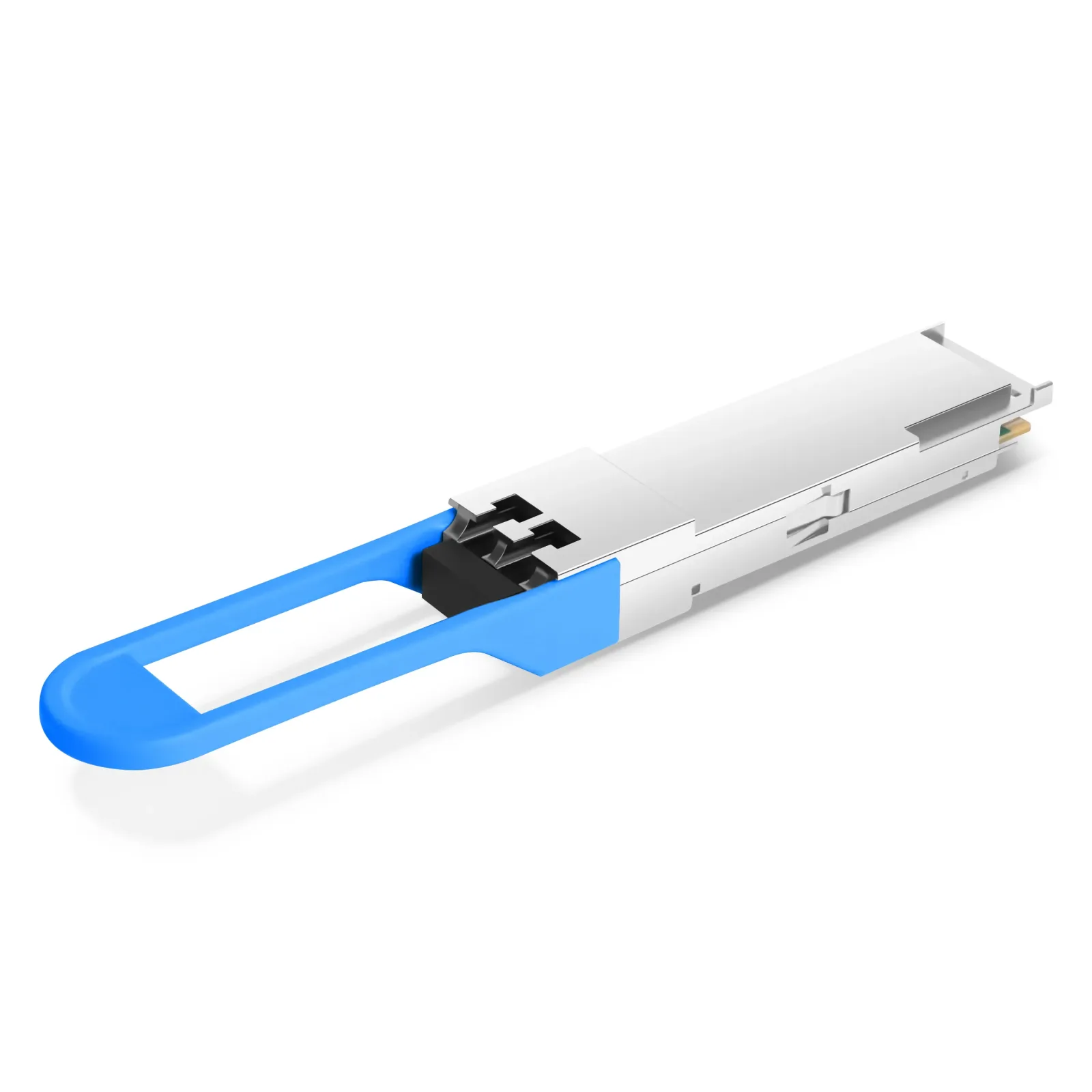

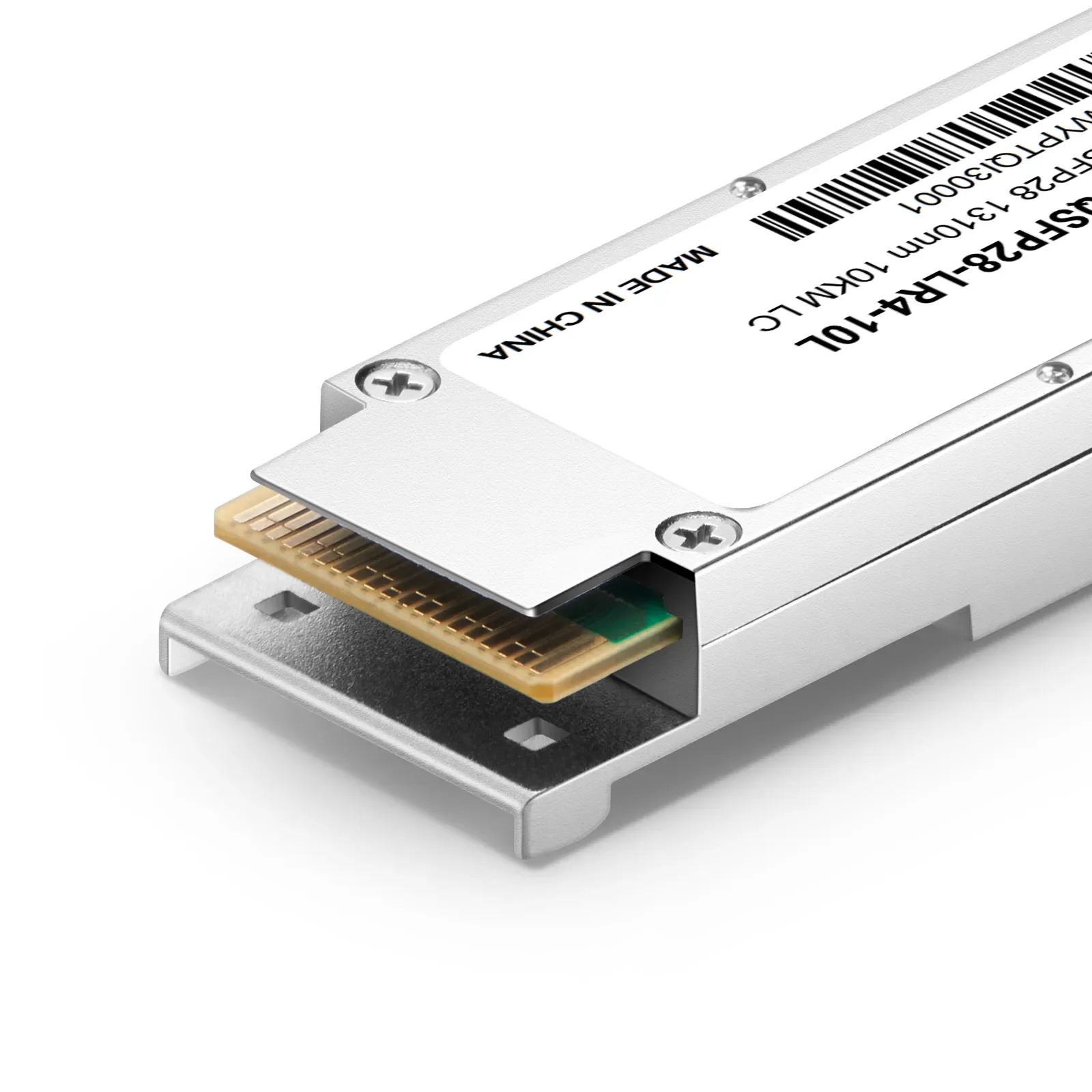

JH-100G-QSFP28-LR4-10L

型号：100G QSFP28 1310nm 10KM LC

JH-100G-QSFP28-LR4-10L provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data rate (4x25G NRZ), compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 4.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, LAN-WDM wavelength multiplexing, 25G NRZ, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Aggregation, Campus Backbone

规格参数

Data Rate	100G
Distance	10KM
Wavelength	1310nm
Form Factor	QSFP28

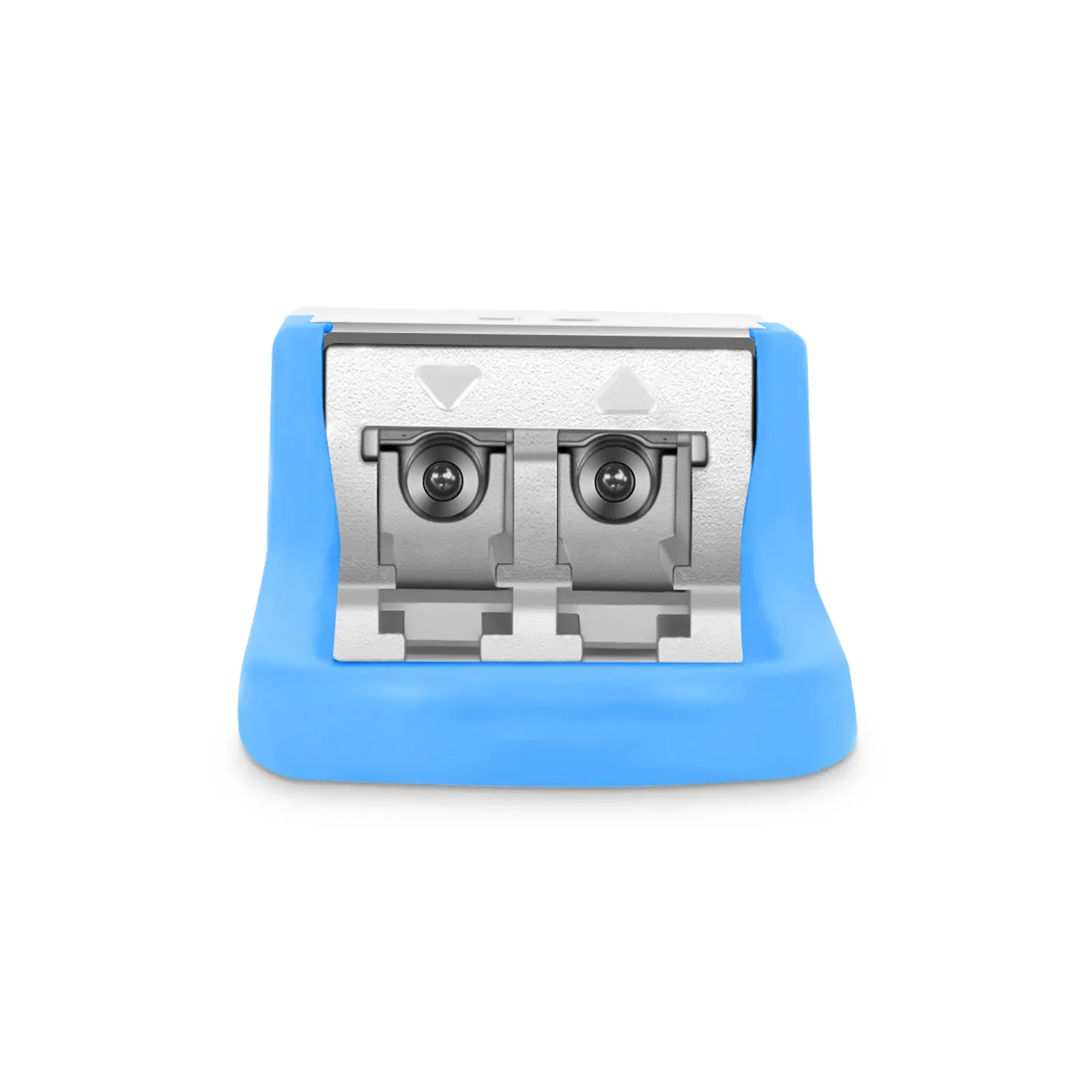

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	PIN
TX Power	-4.3~4.5
Receiver Sensitivity	-10.6
Power consumption（Max）	4.5W
