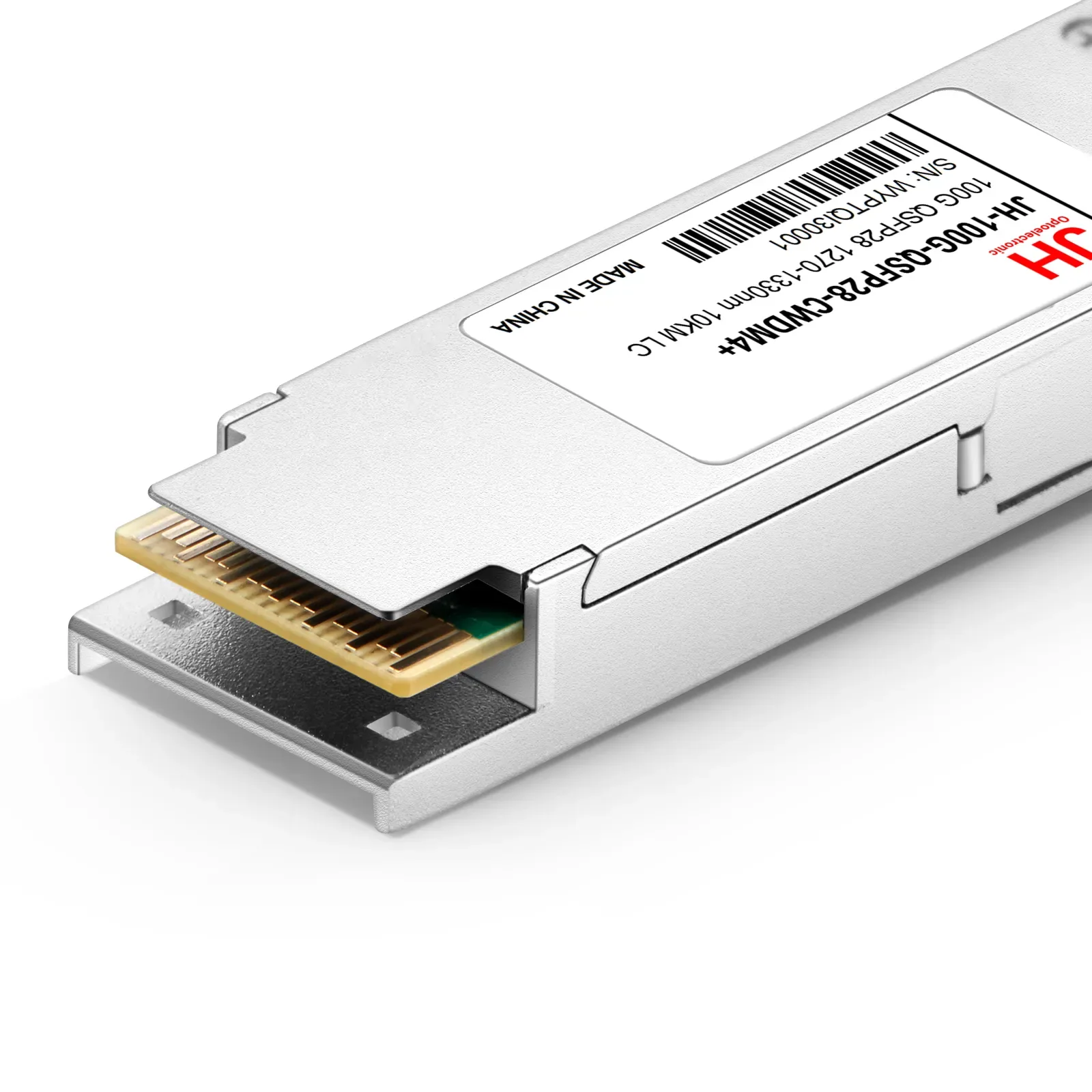

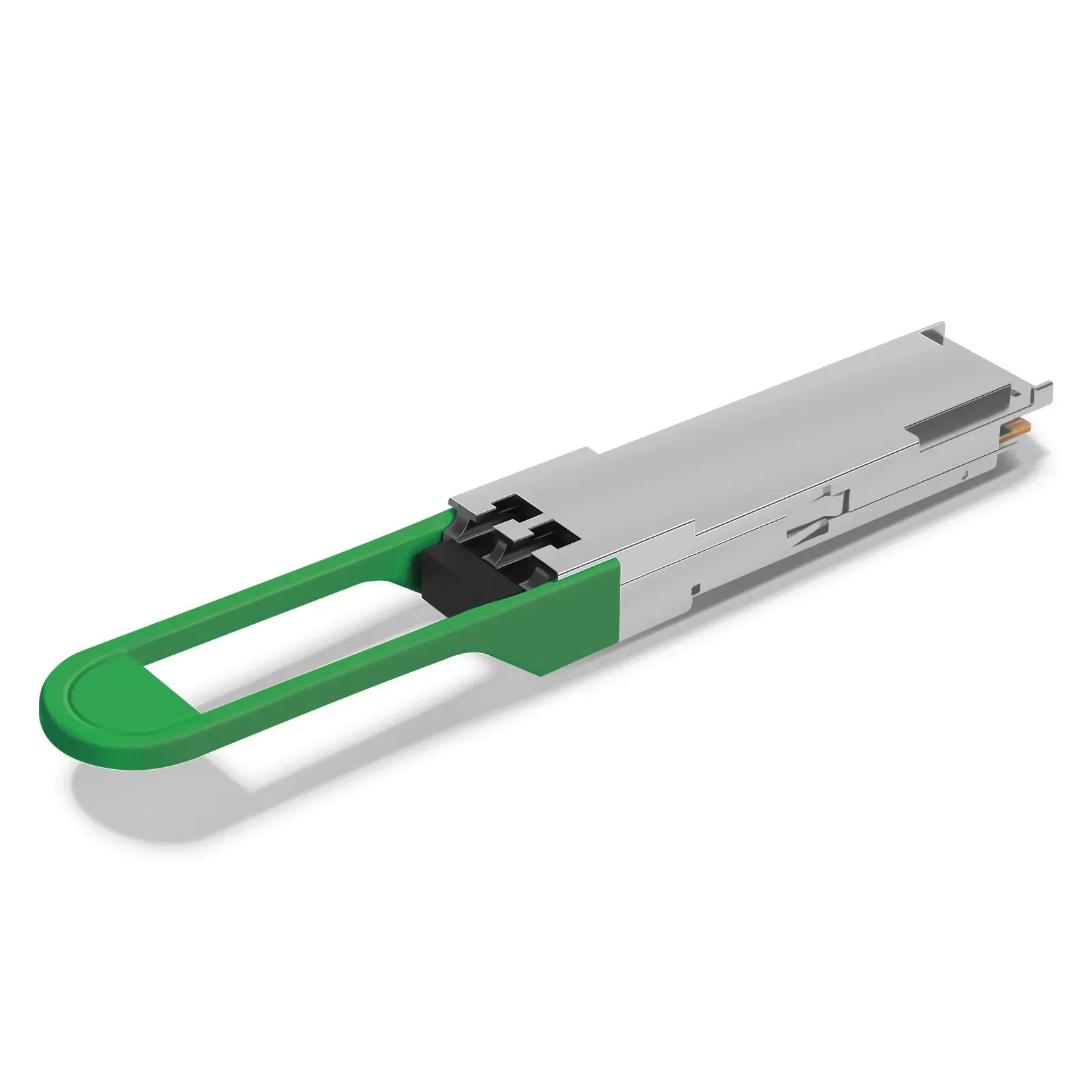

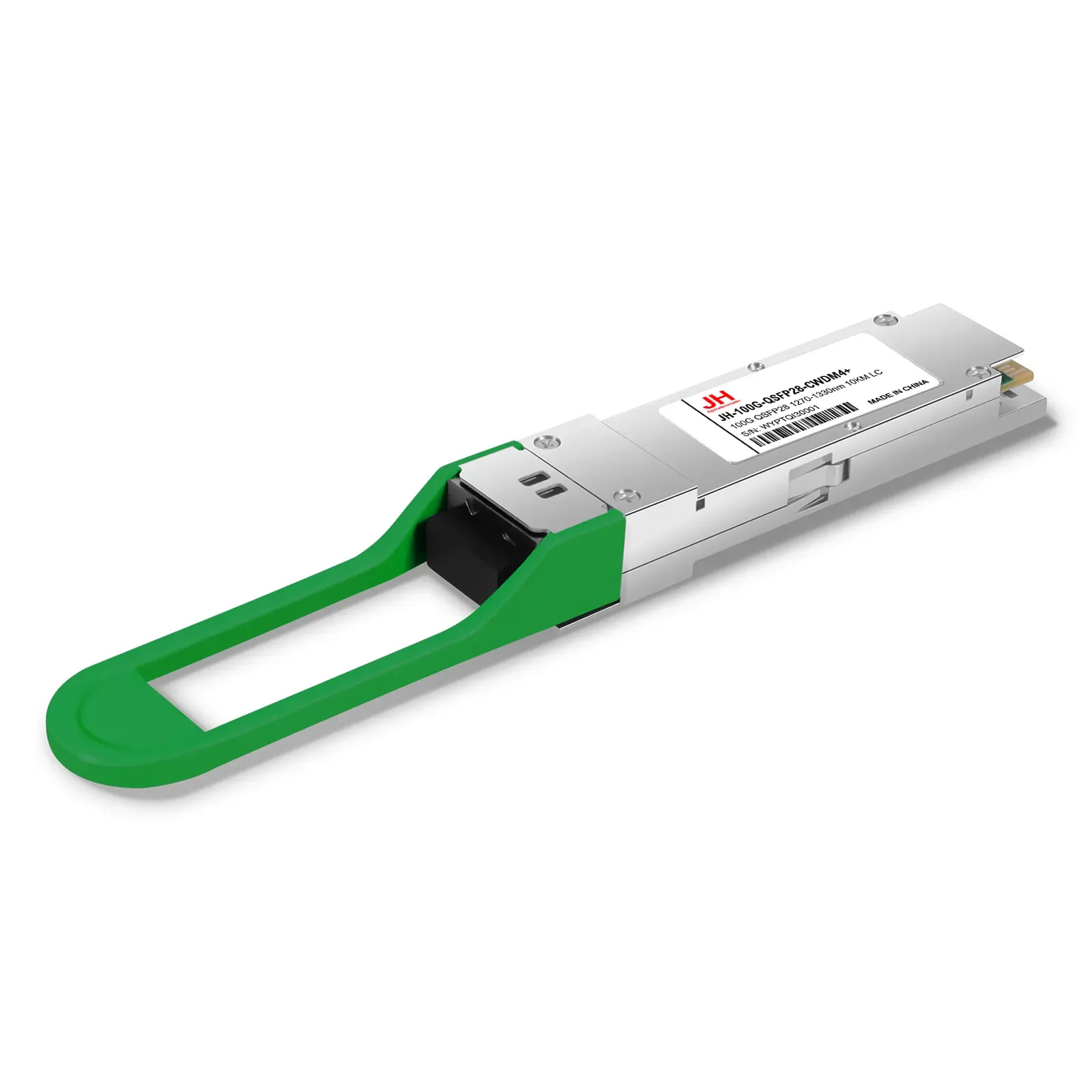

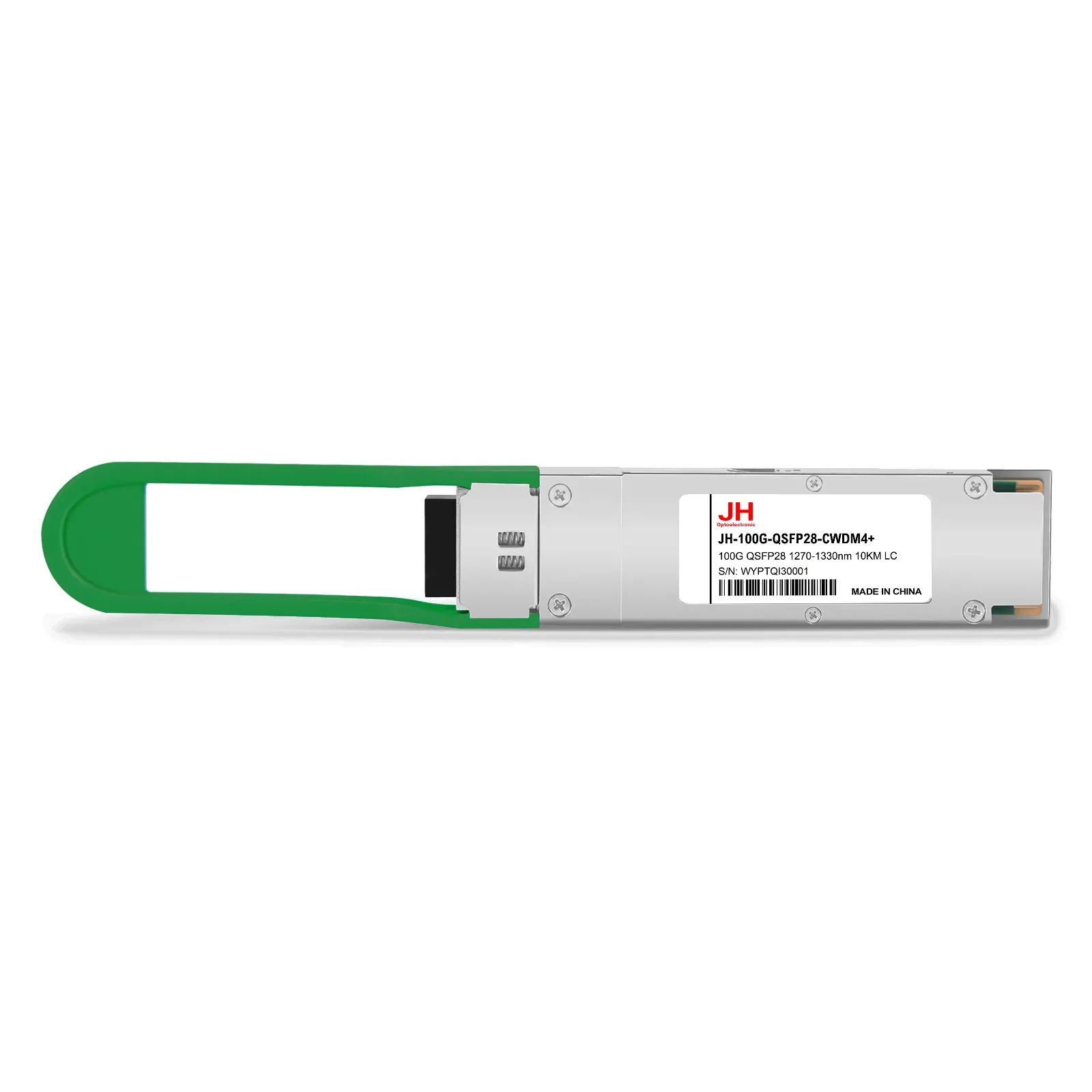

JH-100G-QSFP28-CWDM4+

型号：100G QSFP28 1270-1330nm 10KM LC

JH-100G-QSFP28-CWDM4+ Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331nm. This transceiver is compliant with QSFP28 Extended CWDM4 MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data transmission rate, compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro Carrier, CWDM Transport

规格参数

Data Rate	100G
Distance	10KM
Wavelength	1330nm
Form Factor	QSFP28

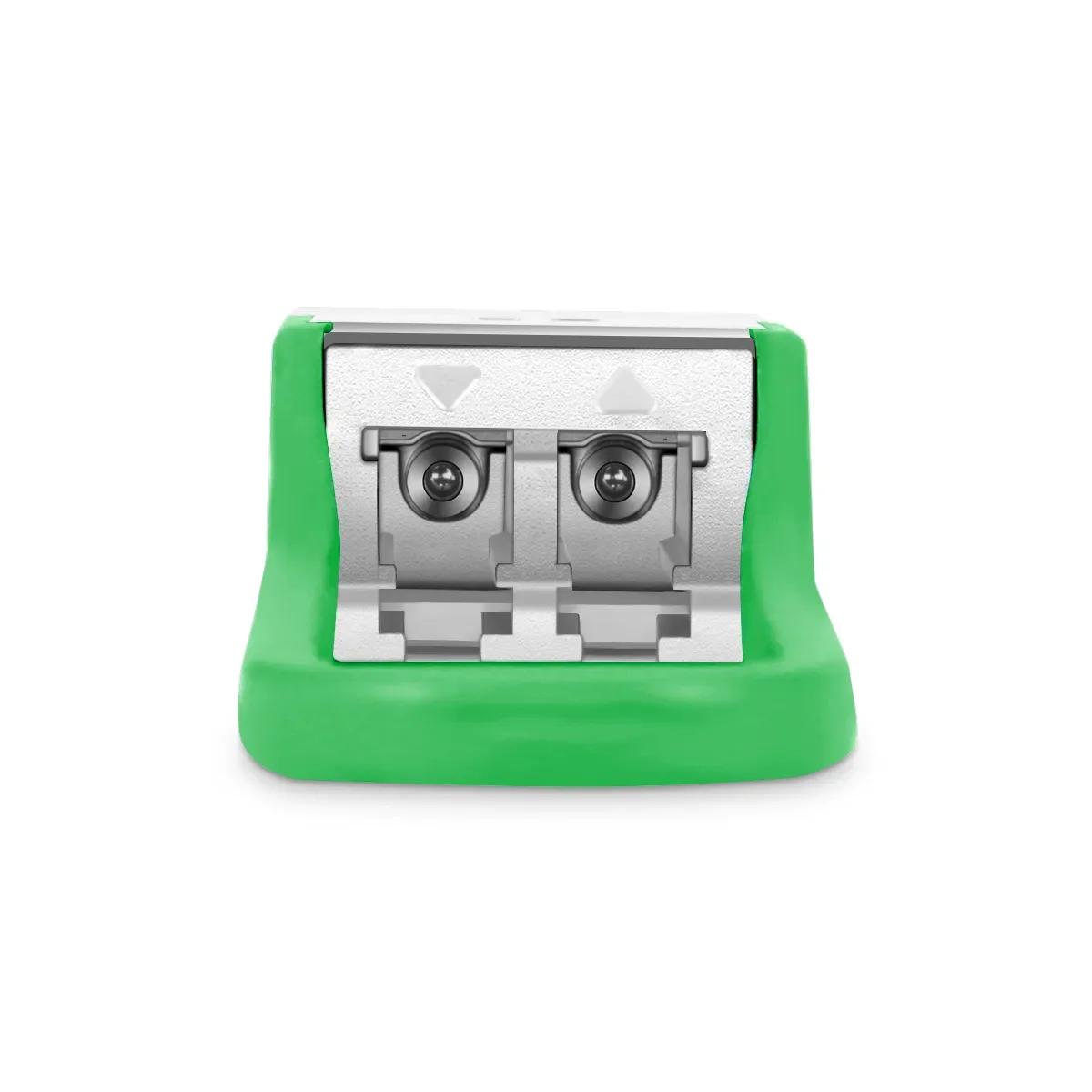

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-4~2.5
Receiver Sensitivity	-12
Power consumption（Max）	3.5W
