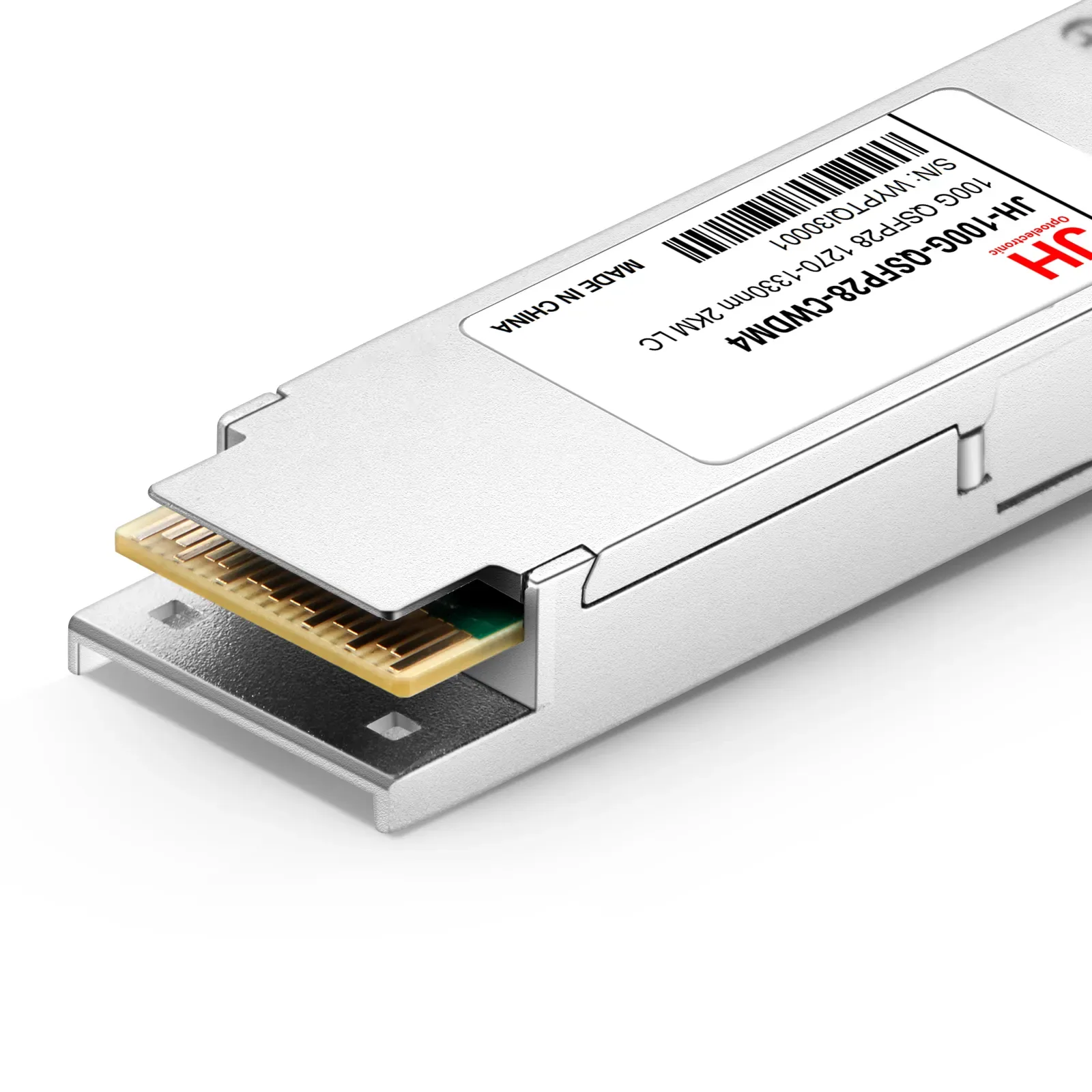

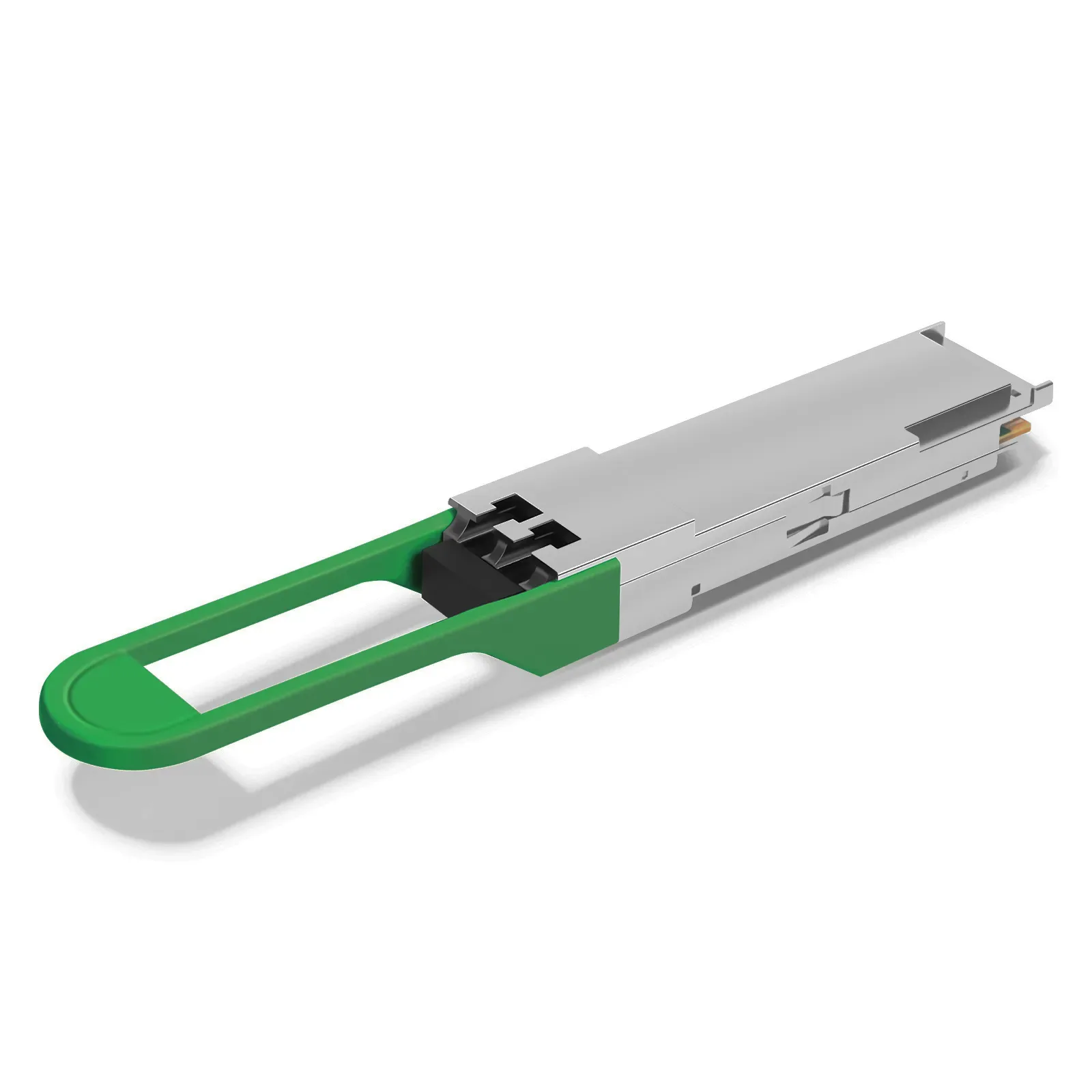

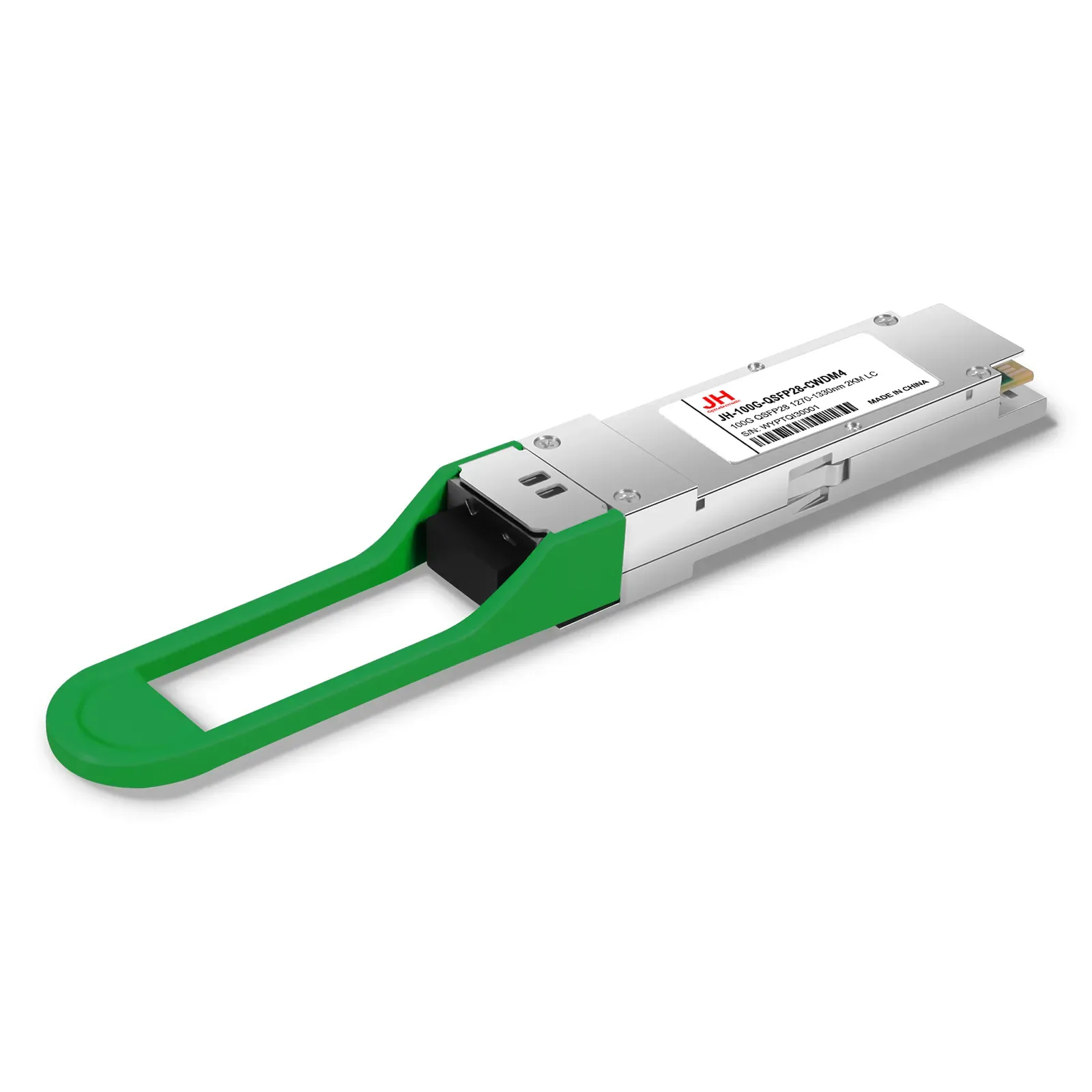

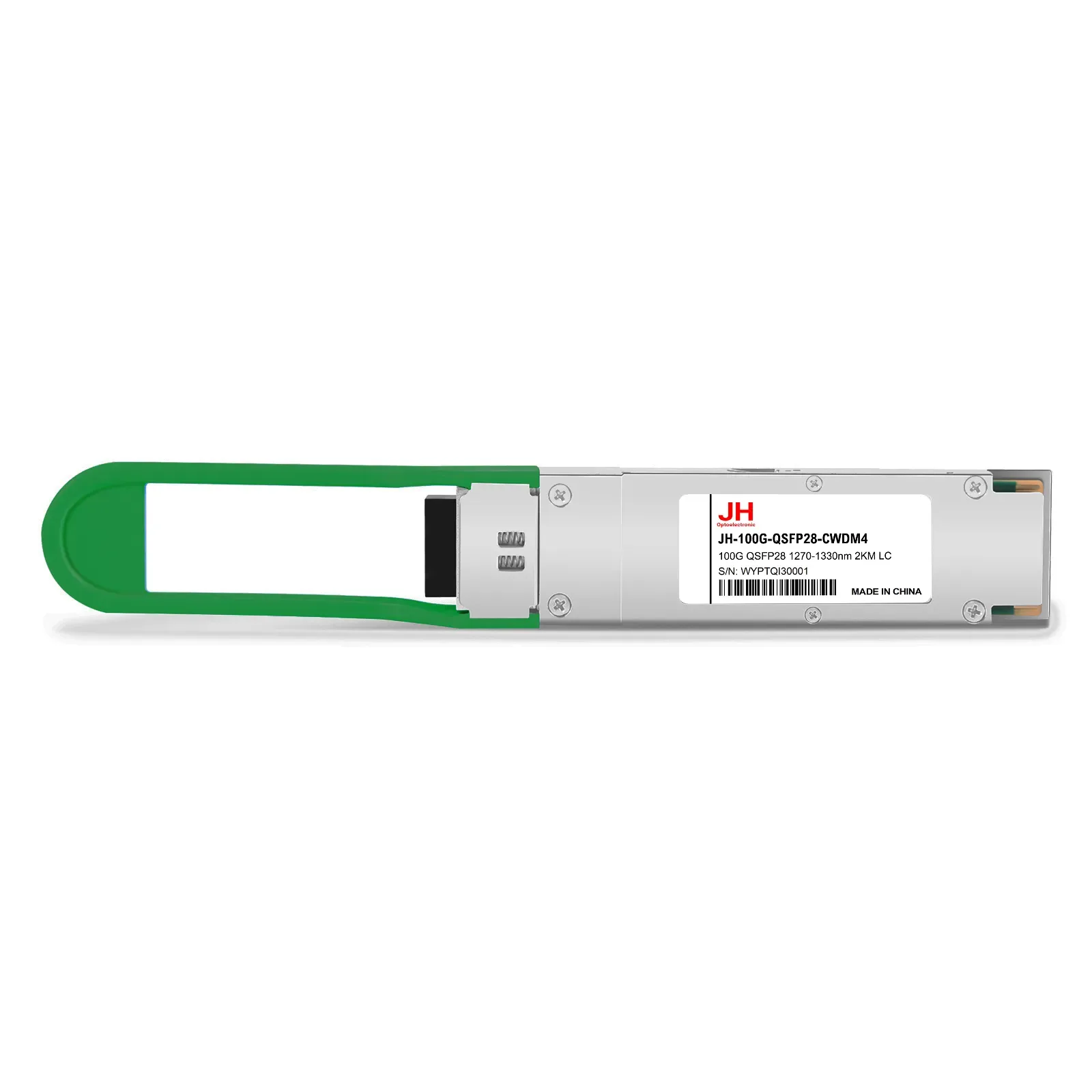

JH-100G-QSFP28-CWDM4

型号：100G QSFP28 1270-1330nm 2KM LC

JH-100G-QSFP28-CWDM4 transceiver supports 100GBASE Ethernet up to 2km over single-mode fiber with duplex LC connectors. It operates on four CWDM wavelengths (1271, 1291, 1311, and 1331 nm) and complies with IEEE 802.3ba/802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636, and ITU-T G.694.2 standards. Digital diagnostics are accessible via the I2C interface. With its hot-swappable design and reliable performance, it is ideal for data centers, high-performance computing, and enterprise core and distribution networks.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data transmission rate, compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Interconnect, CWDM Aggregation

规格参数

Data Rate	100G
Distance	2KM
Wavelength	1330nm
Form Factor	QSFP28

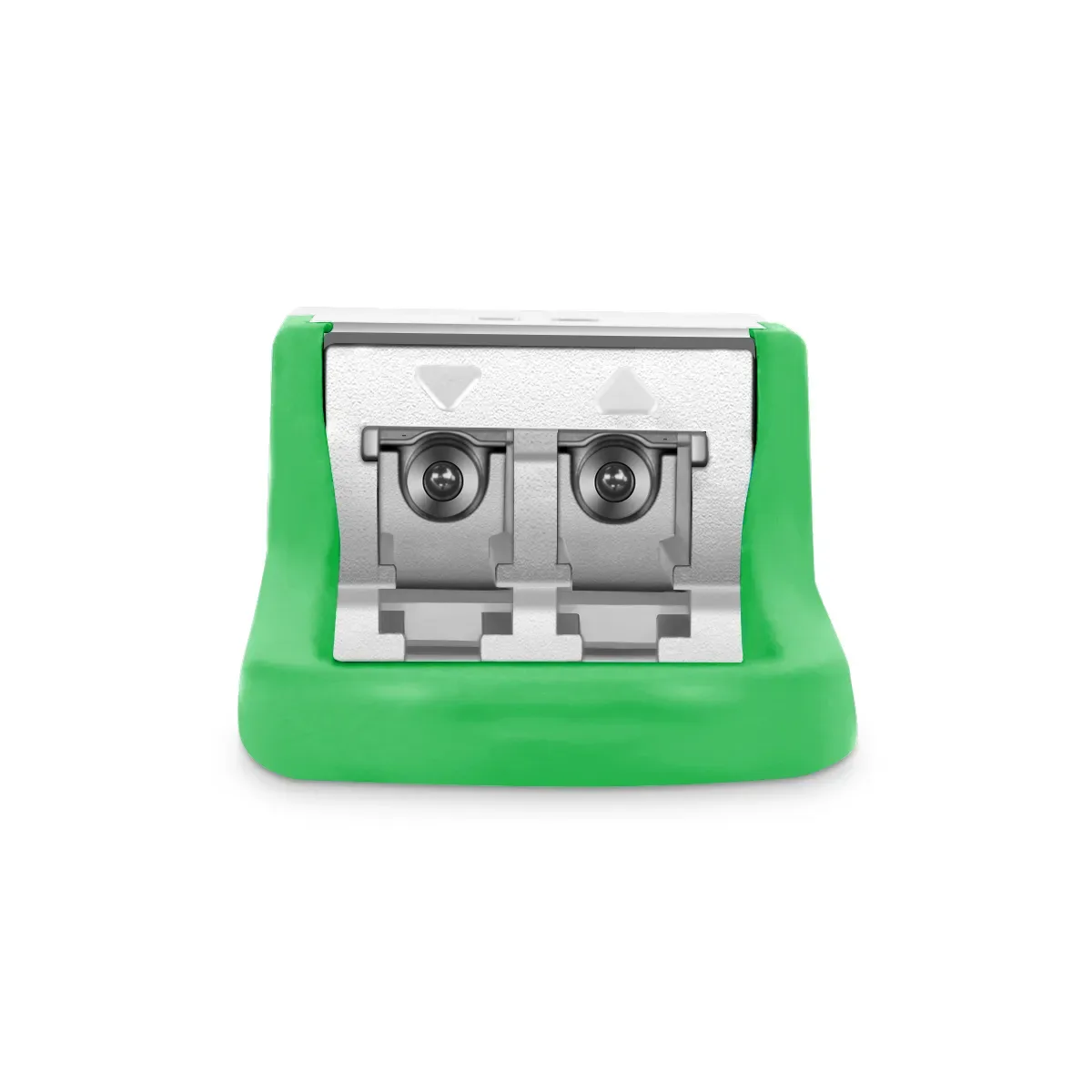

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-6.5~2.5
Receiver Sensitivity	-10
Power consumption（Max）	3.5W
