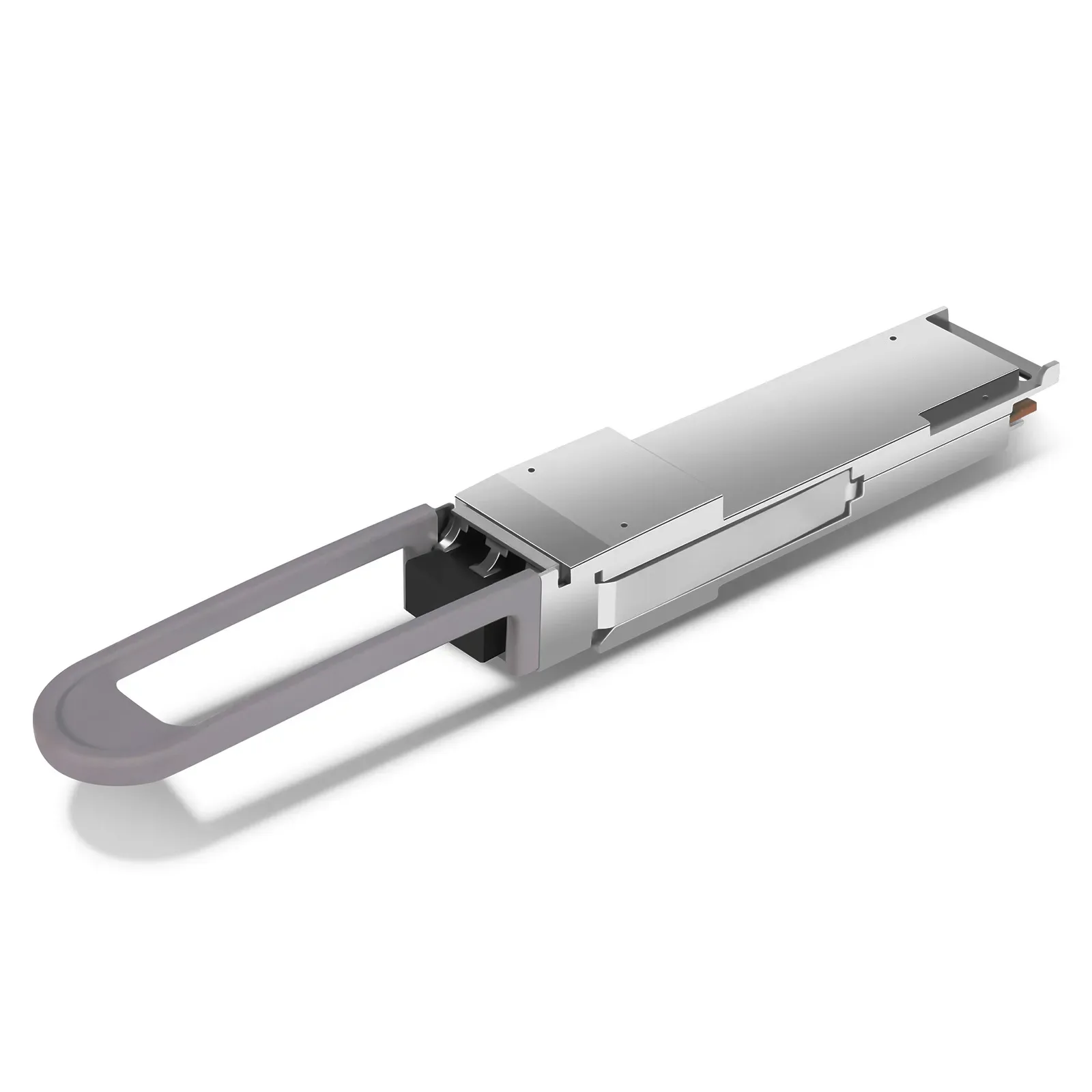

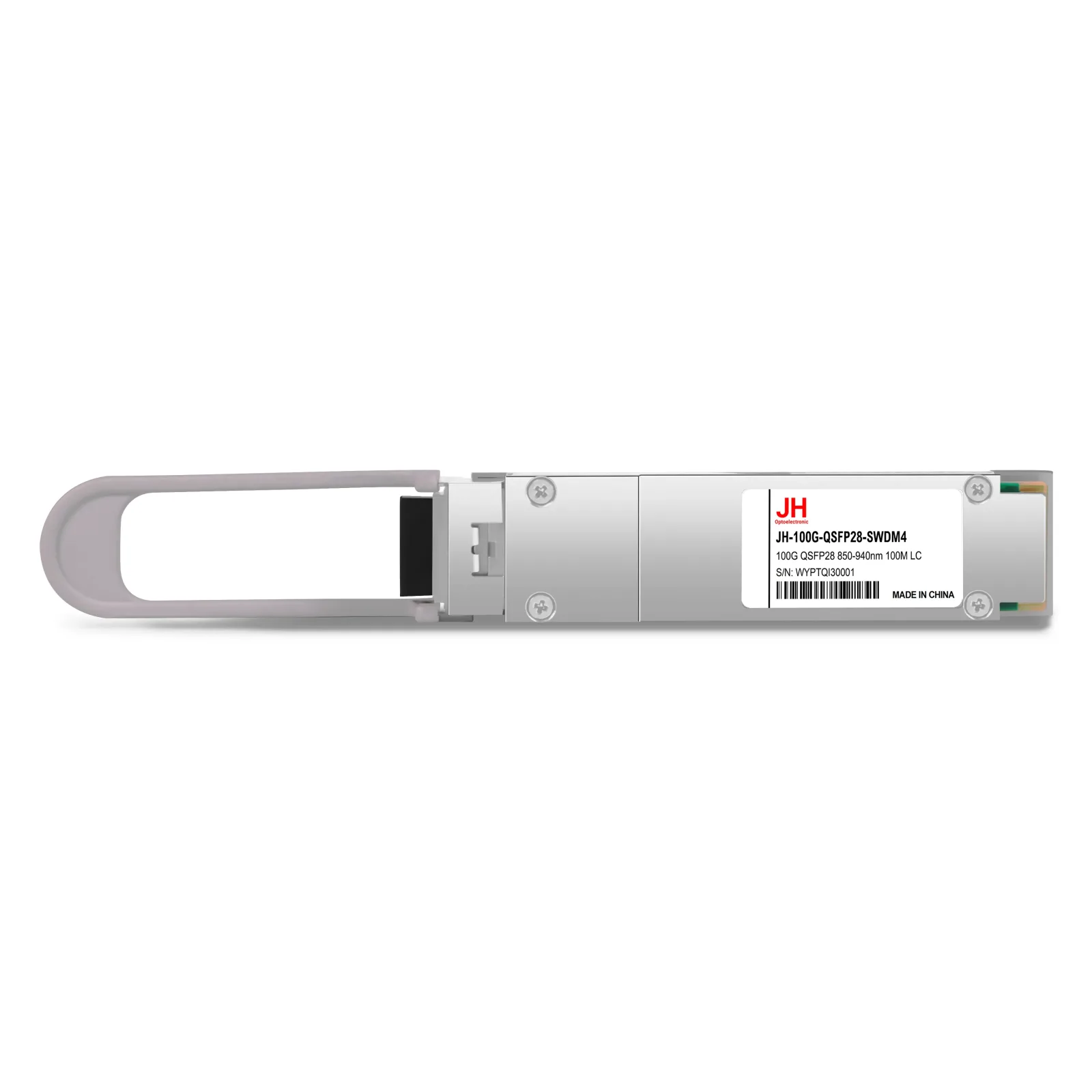

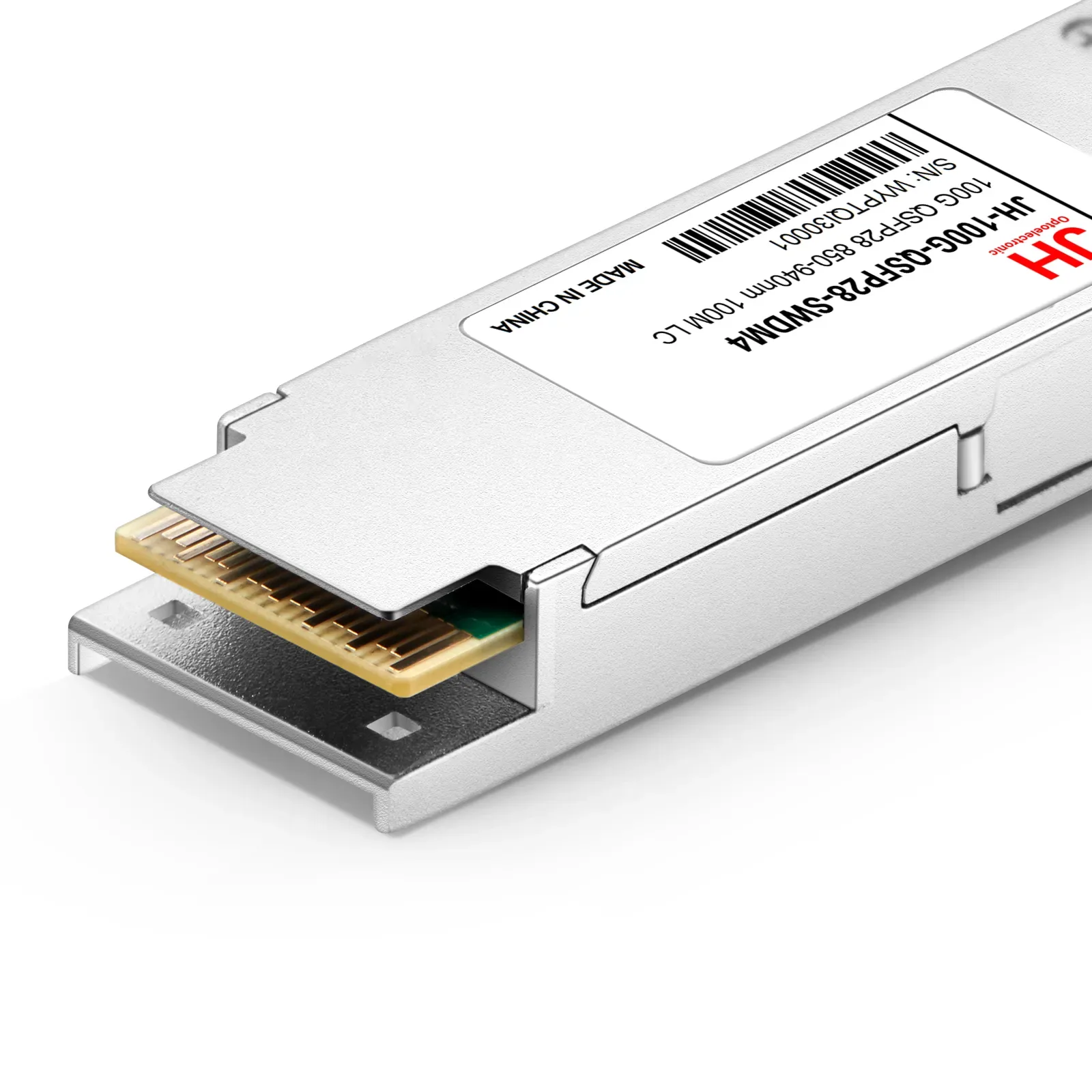

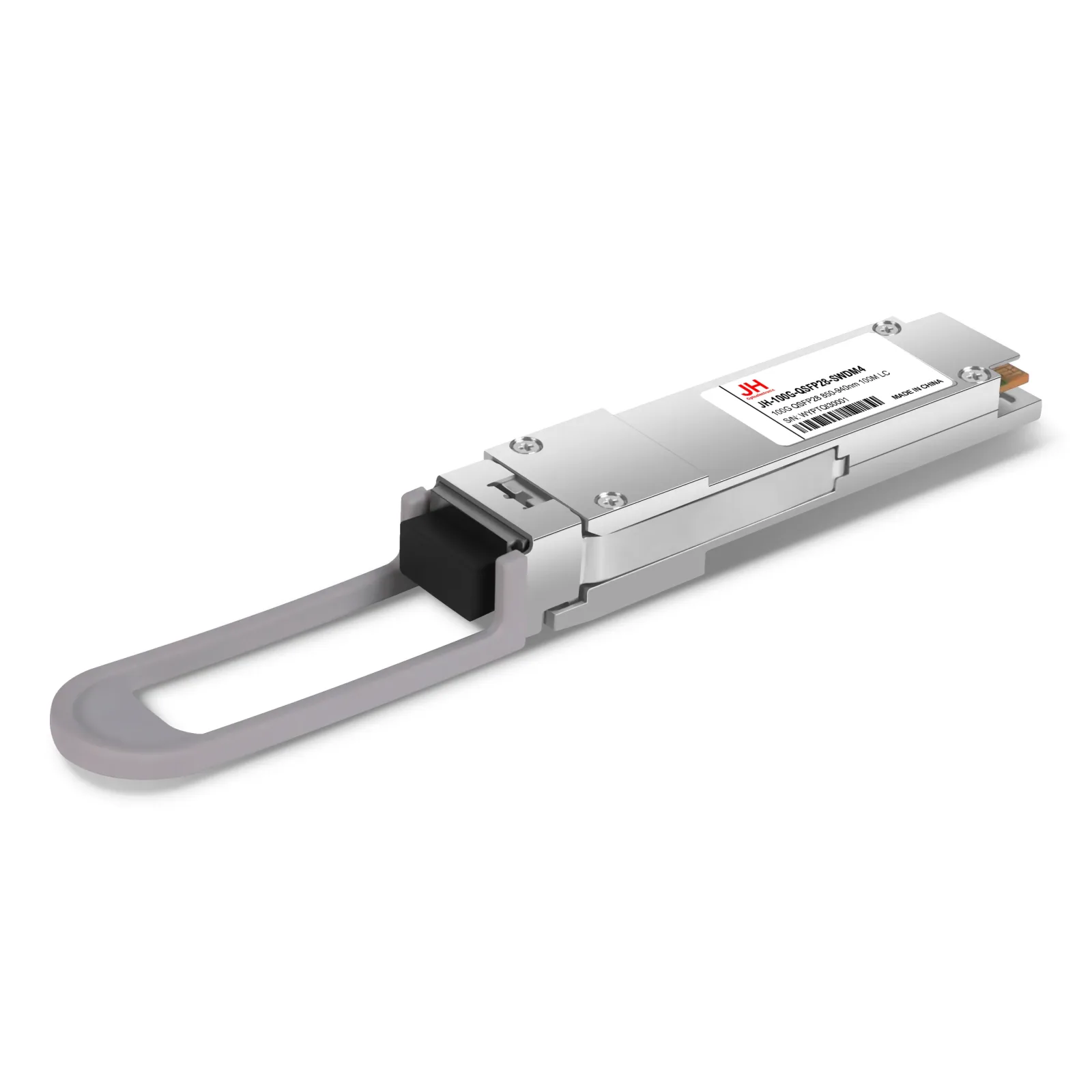

JH-100G-QSFP28-SWDM4

型号：100G QSFP28 850-940nm 100M LC

JH-100G-QSFP28-SWDM4 supports short-reach 100G connections over duplex LC multimode fiber. It delivers up to 75m on OM3, 100m on OM4, and 150m on OM5 using four wavelengths that carry 4×25G over existing duplex MMF infrastructure, enabling a seamless upgrade from 10G/40G to 100G. The module complies with QSFP28 MSA and IEEE 802.3bm CAUI-4 specifications, and provides digital diagnostics via the I2C interface for real-time monitoring.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data transmission rate, compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center, Duplex MMF Backbone

规格参数

Data Rate	100G
Distance	100M
Wavelength	BIDI
Form Factor	QSFP28

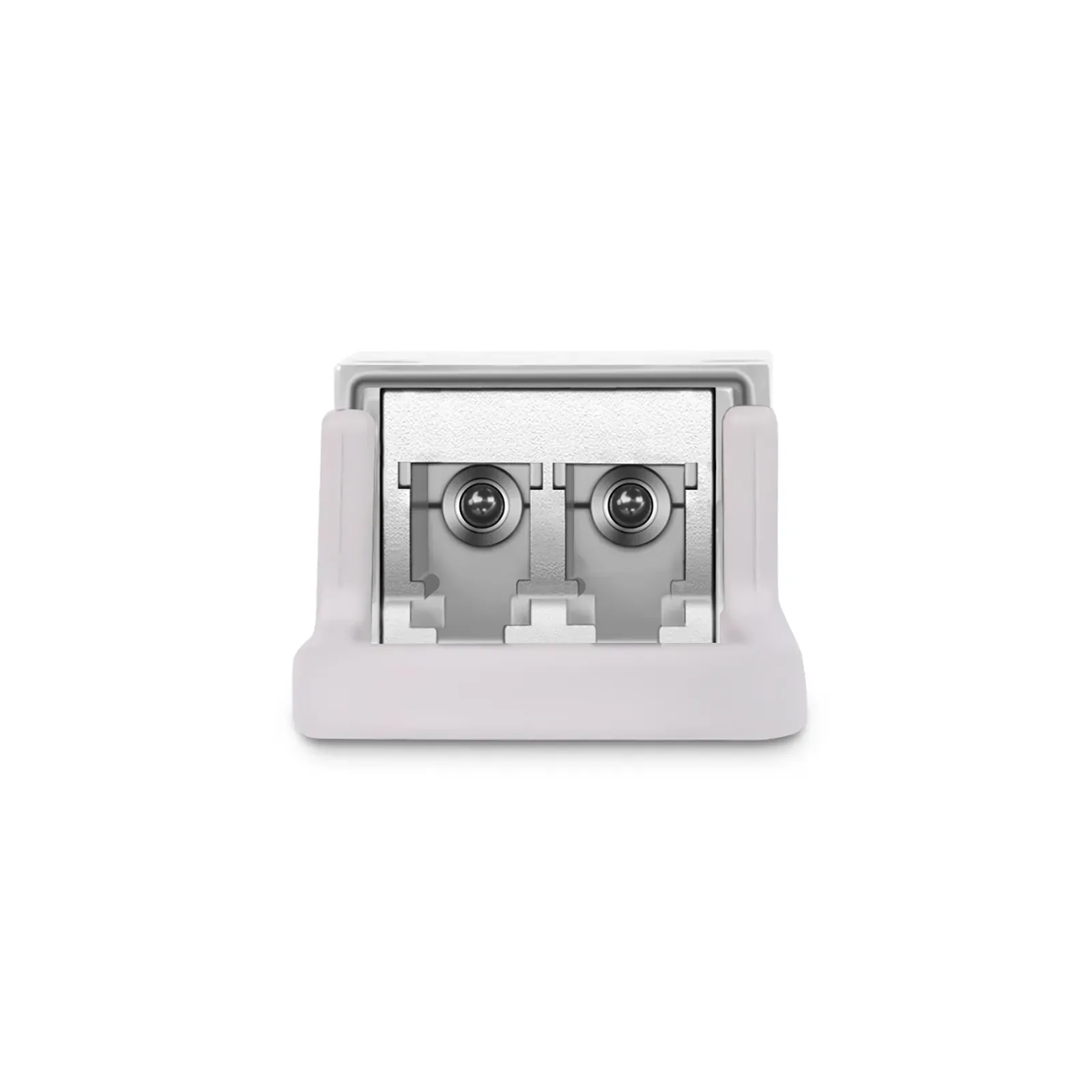

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-9.5~3.4
Receiver Sensitivity	-8.8
Power consumption（Max）	3.5W
