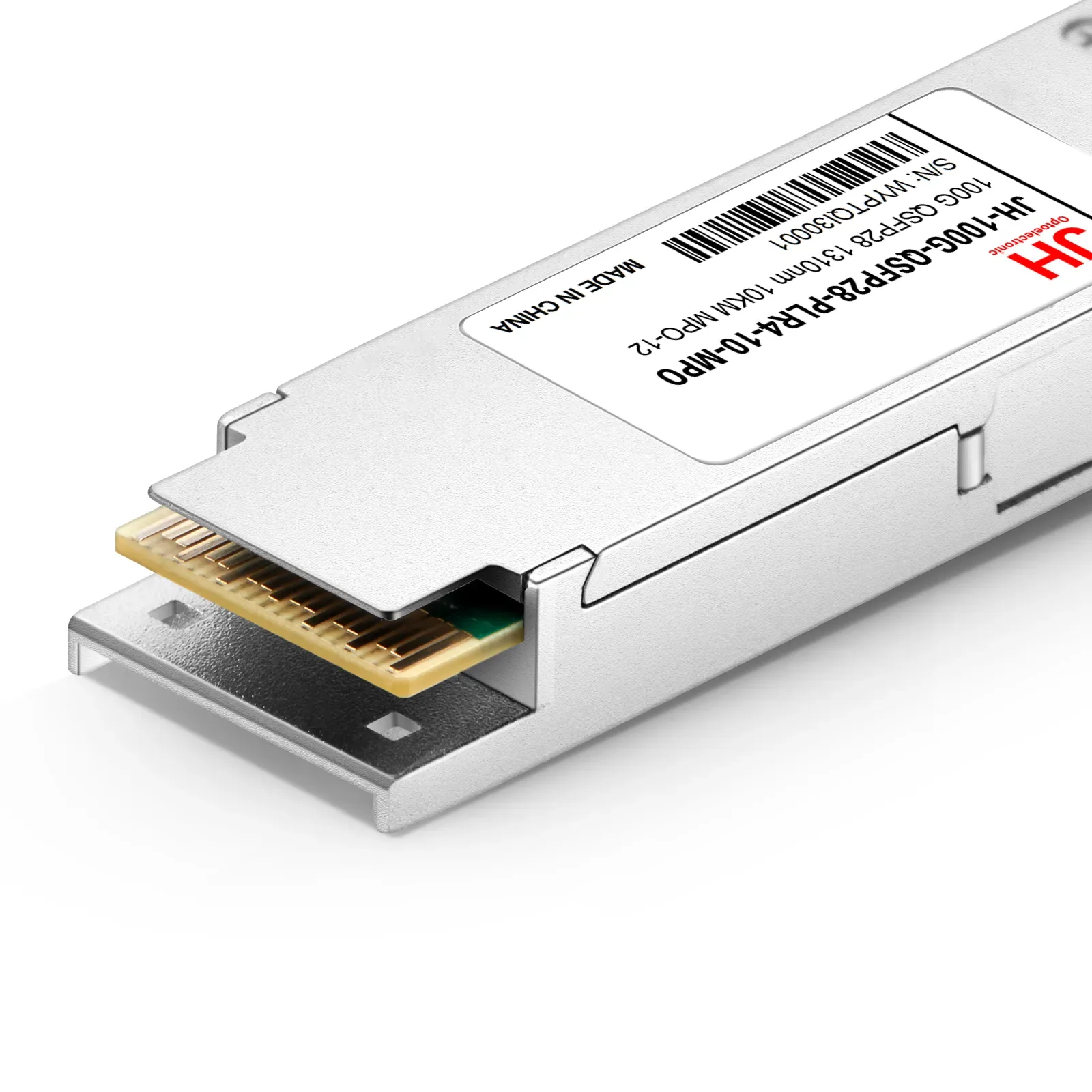

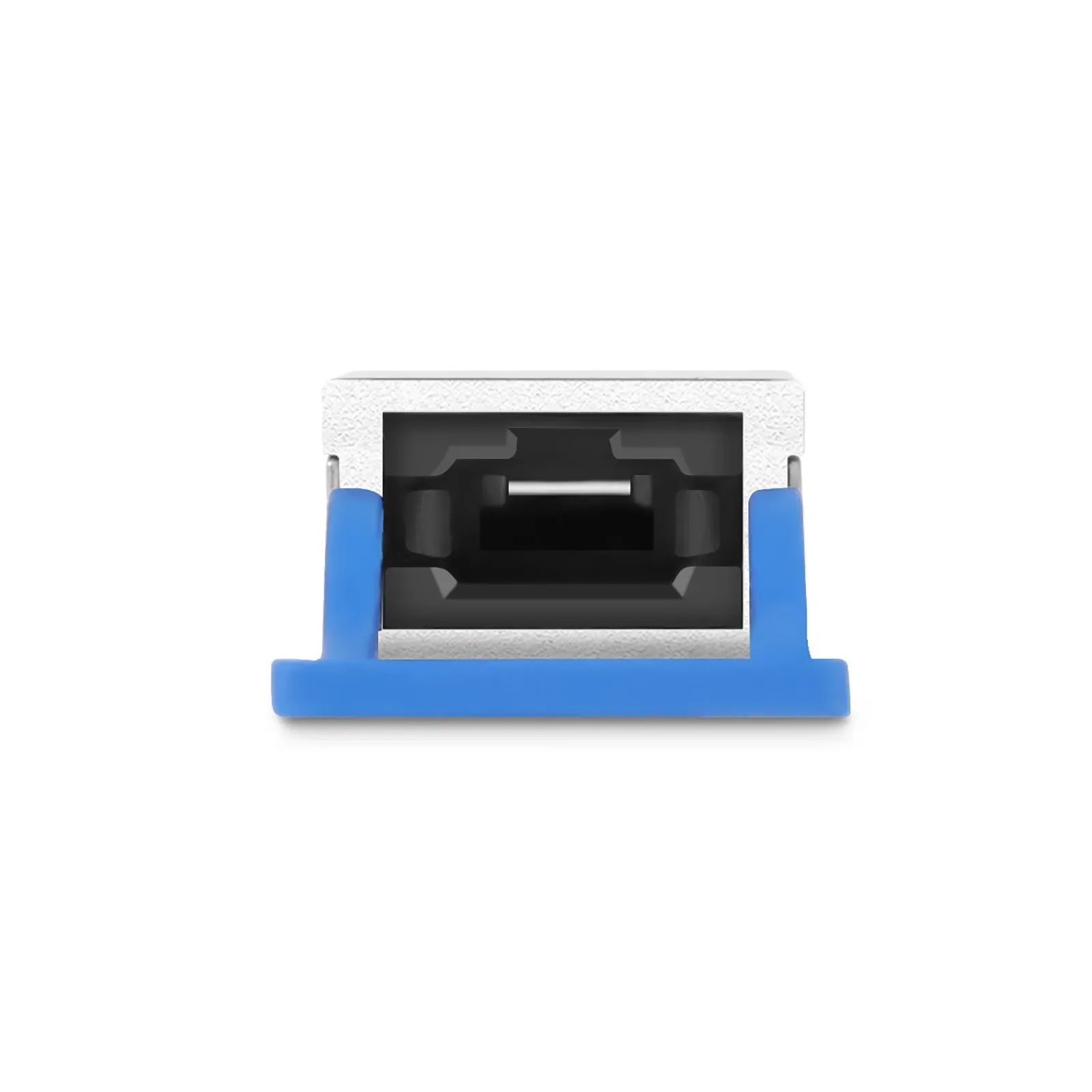

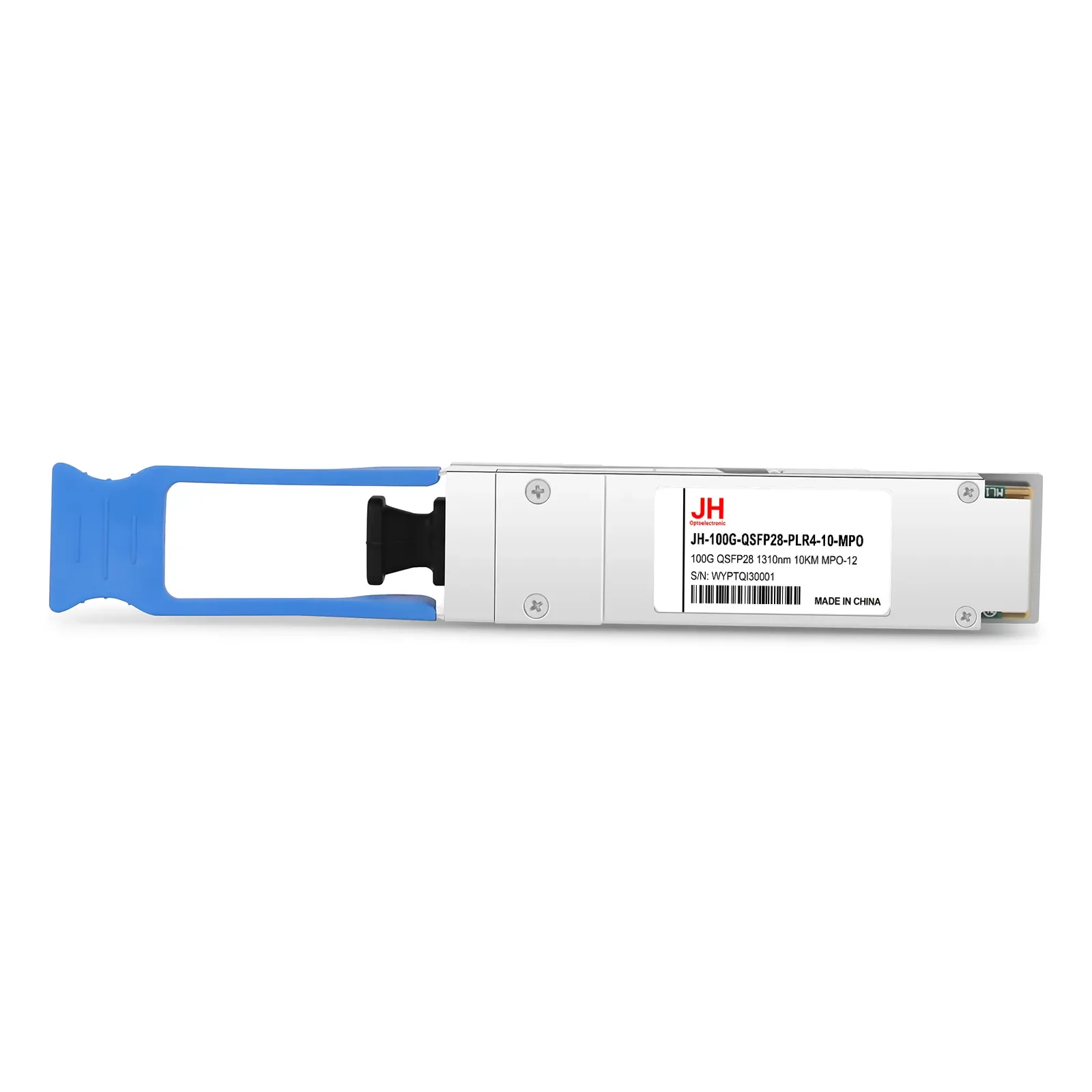

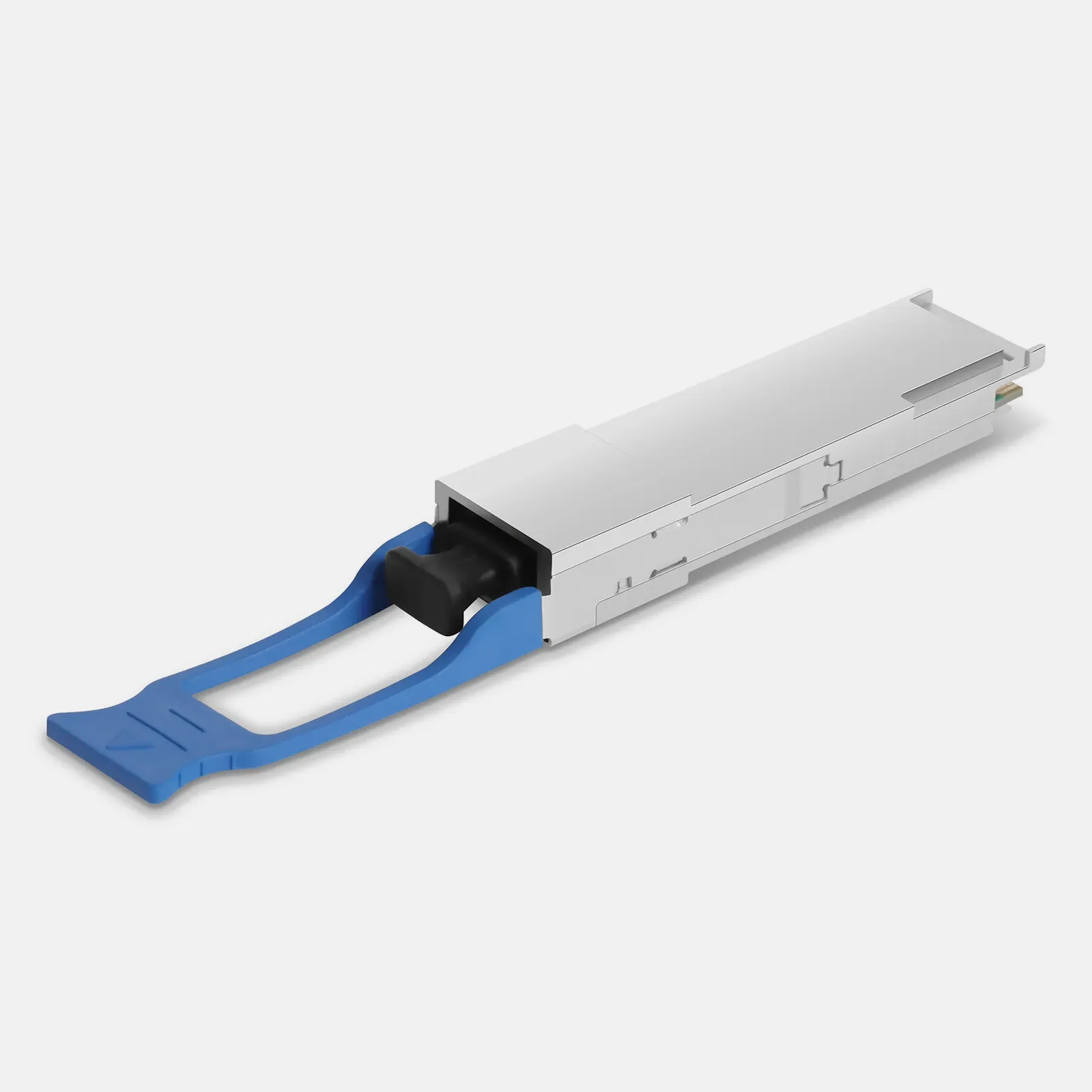

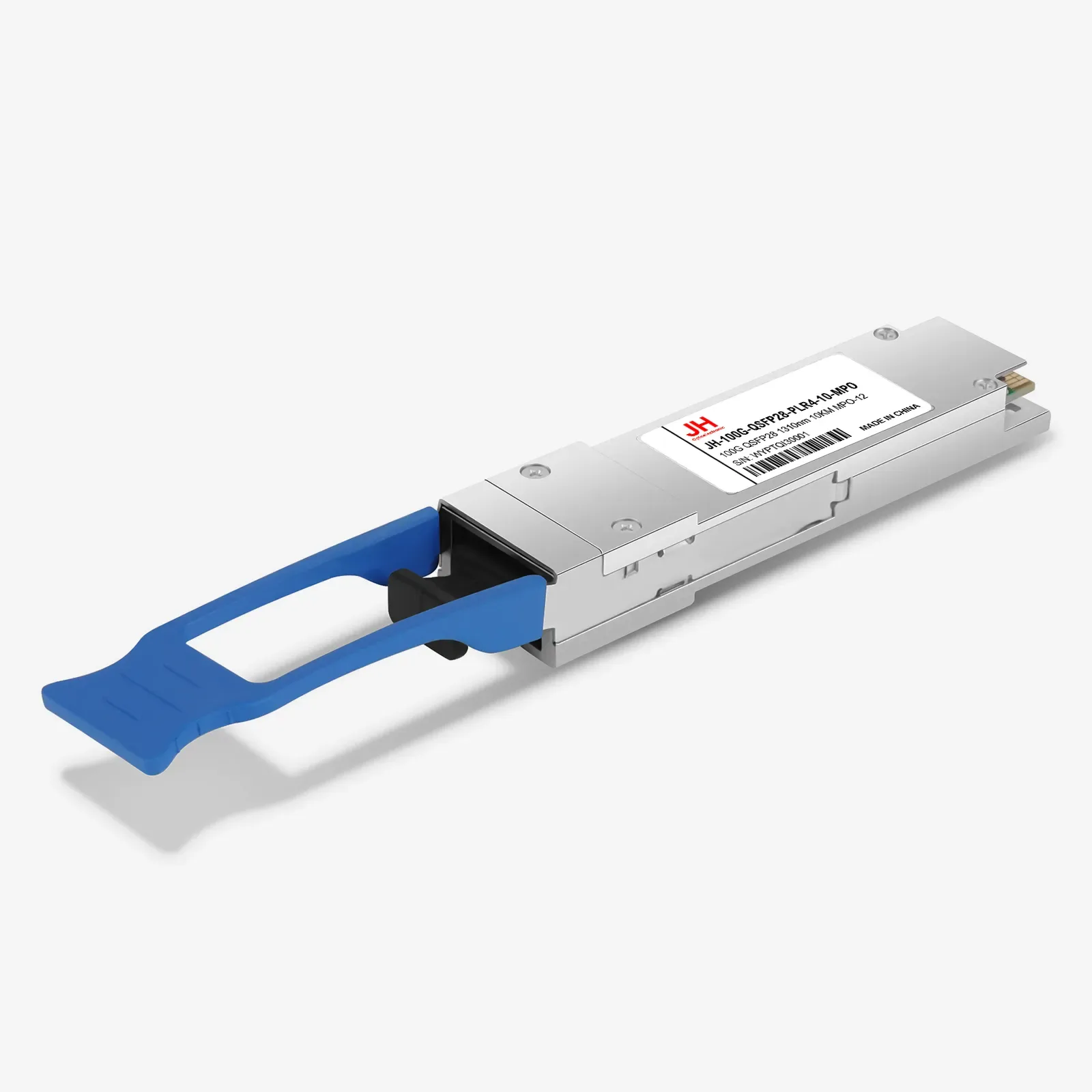

型号：100G QSFP28 1310nm 10KM MPO-12
JH-100G-QSFP28-PLR4-10-MPO Transceiver transceiver module supports link lengths of up to 10km over single-mode fiber (SMF) with MTP/MPO-12 connector. This transceiver is compliant with SFF-8636 and QSFP28 MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 100G ethernet and data center interconnect applications.
| Data Rate | 100G |
| Distance | 10KM |
| Wavelength | 1310nm |
| Form Factor | QSFP28 |
| Connector | MPO-12 |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | DFB |
| Receiver | PIN |
| TX Power | -5~2.2 |
| Receiver Sensitivity | -12 |
| Power consumption（Max） | 3.5W |
