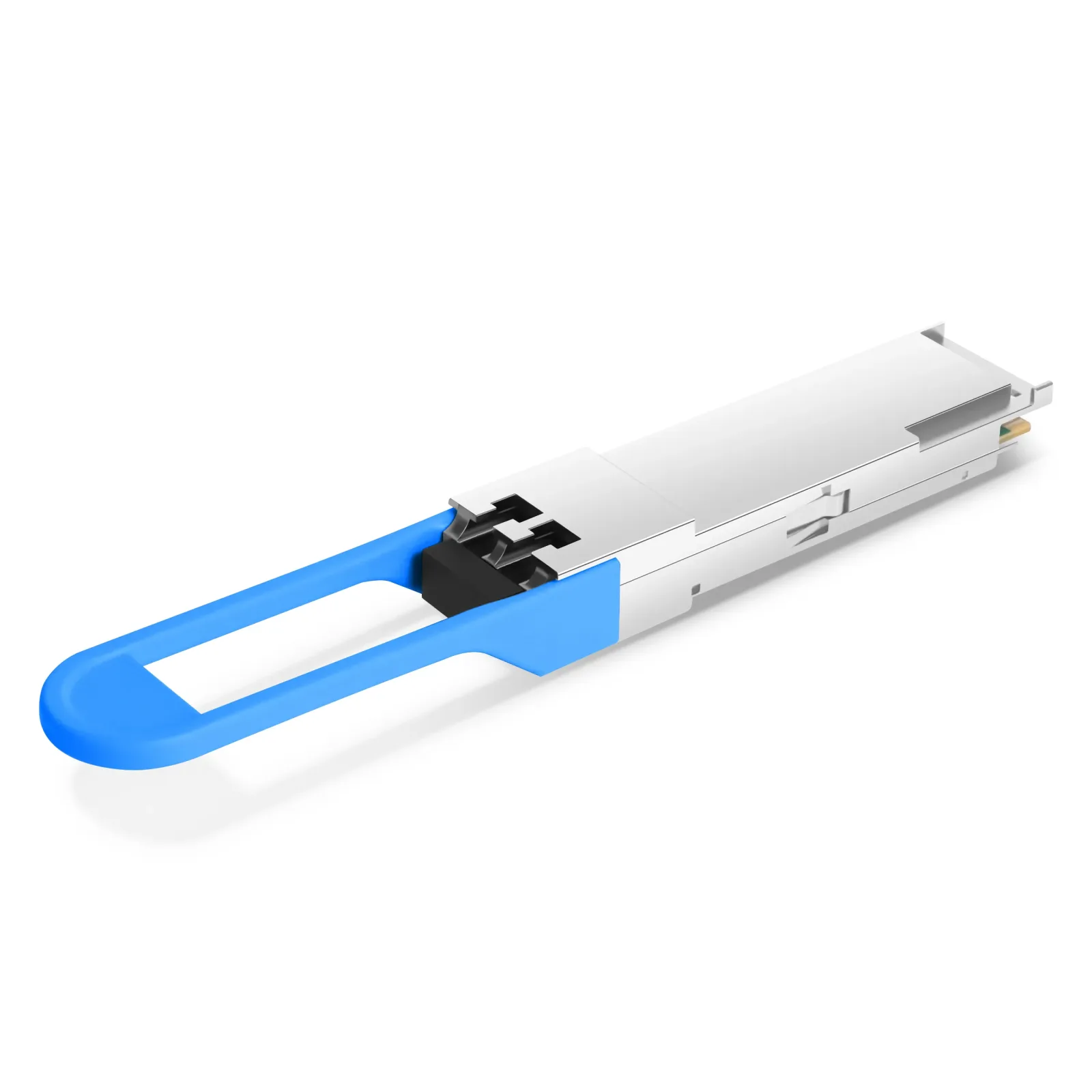

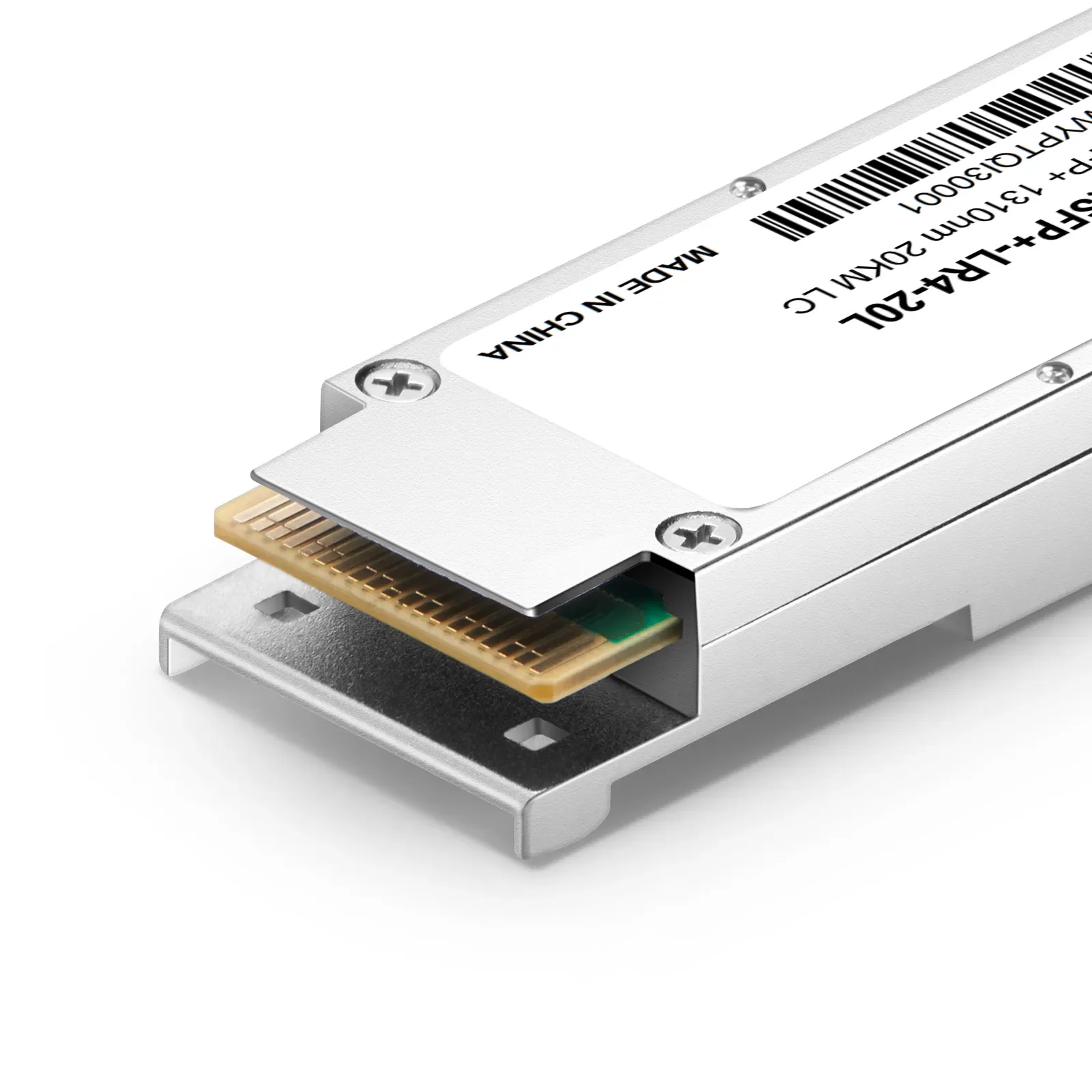

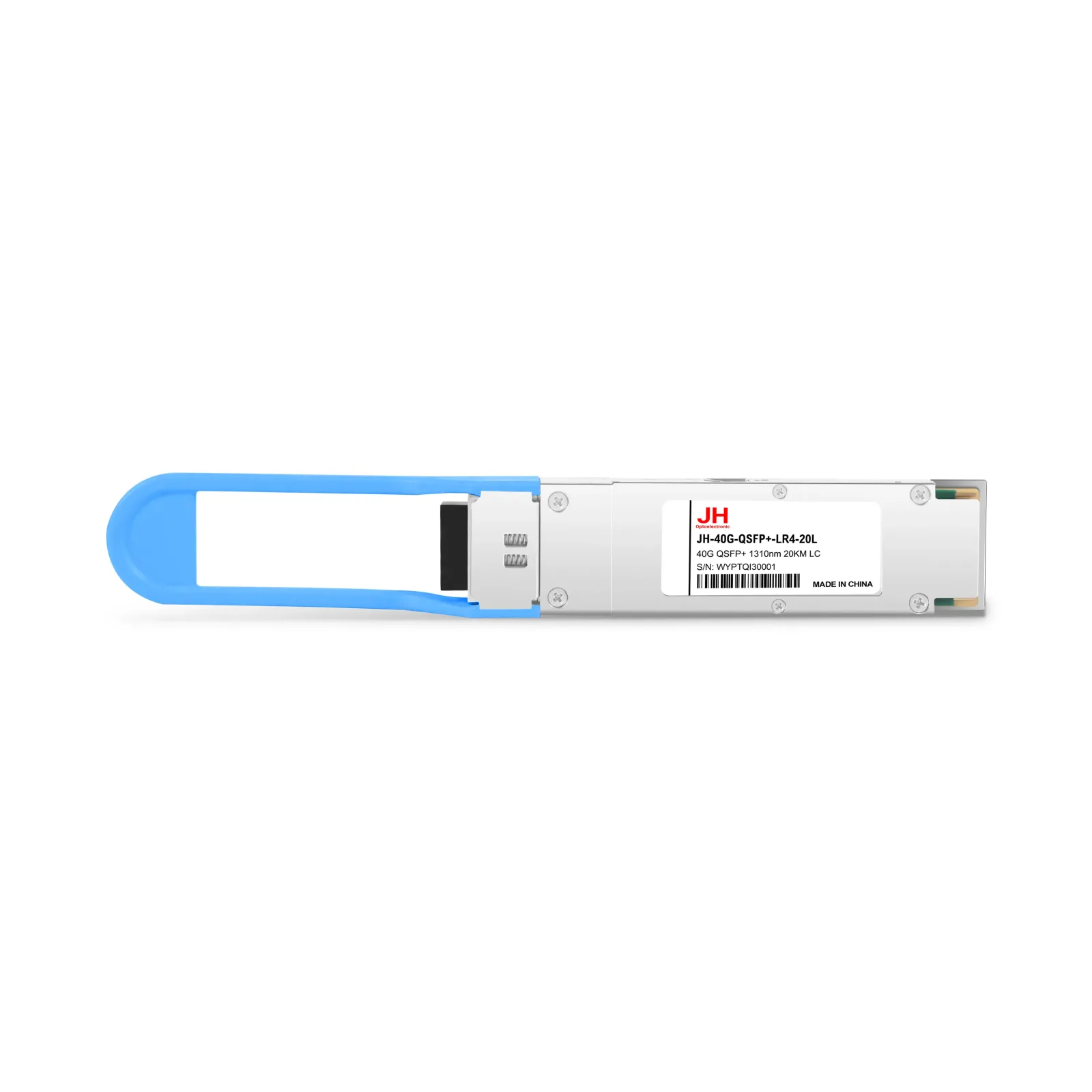

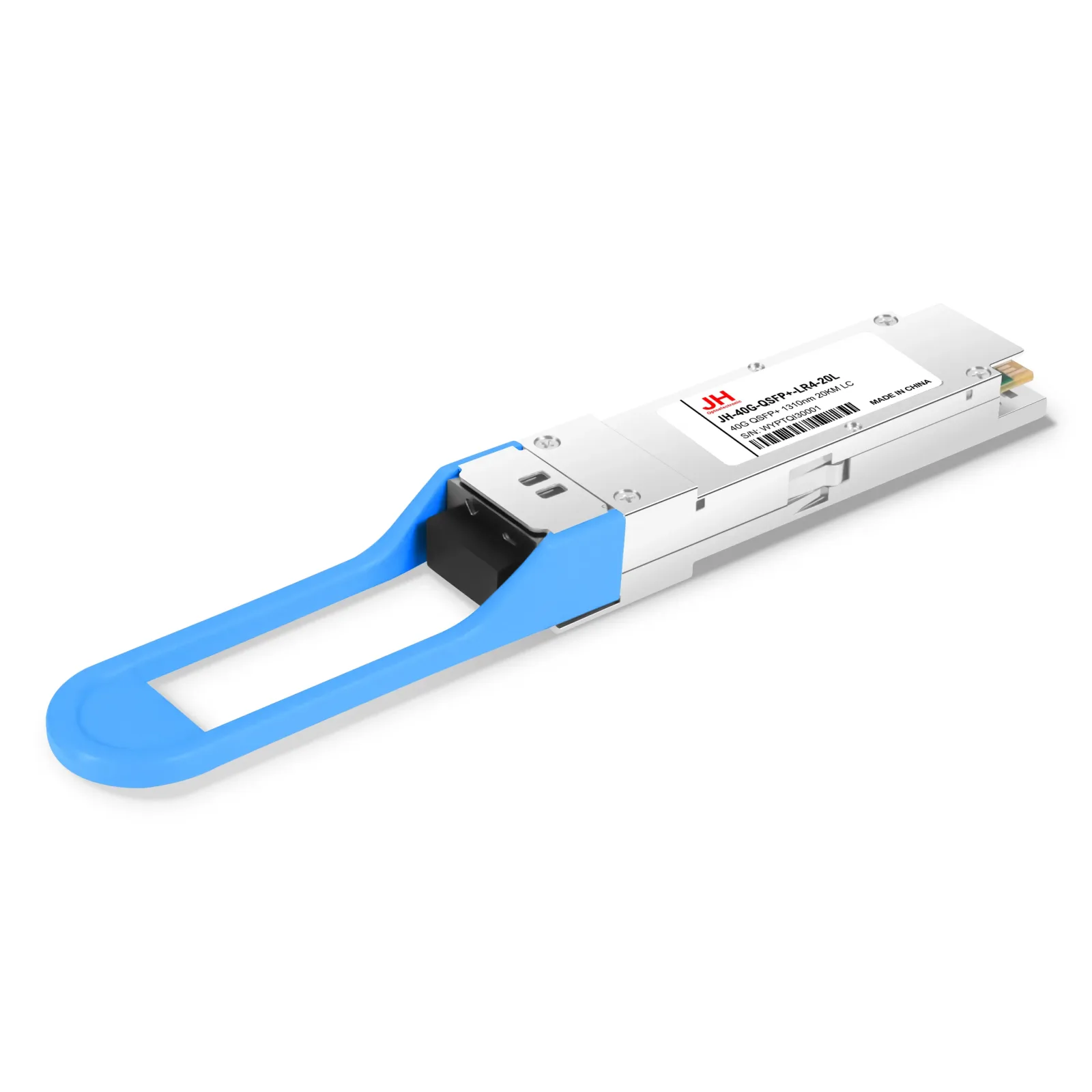

JH-40G-QSFP+-LR4-20L

型号：40G QSFP+ 1310nm 20KM LC

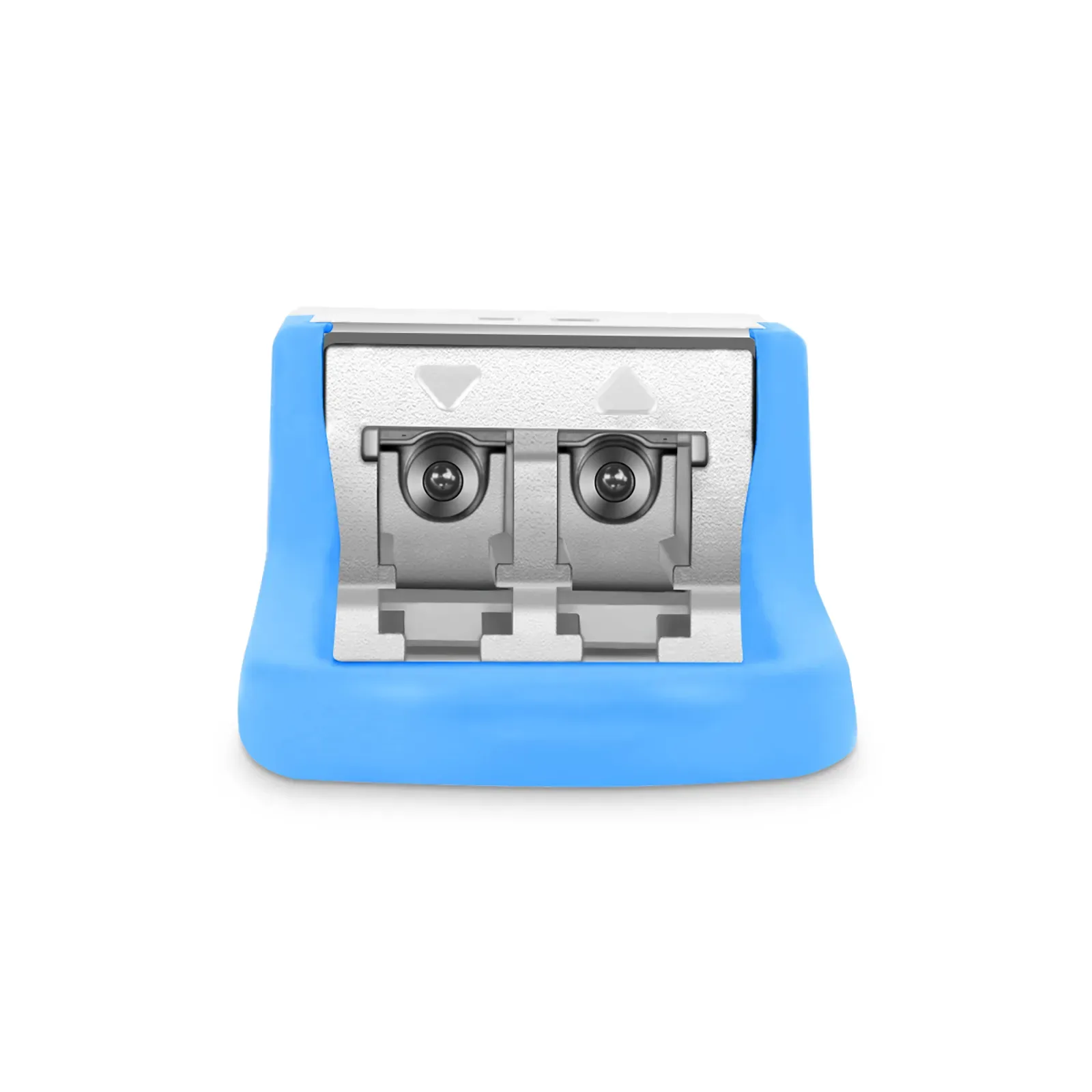

JH-40G-QSFP+-LR4-20L is designed for use in 40GBASE Ethernet throughput up to 20km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with SFF-8436 QSFP+ MSA and RoHS standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications

联系我们

产品特性

Hot-pluggable QSFP+ form factor
Supports 40Gbps data transmission rate, compliant with IEEE 802.3ba 40G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, CWDM wavelength multiplexing, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro DCI, Campus Backbone

规格参数

Data Rate	40G
Distance	20KM
Wavelength	1310nm
Form Factor	QSFP+
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-5~2.3
Receiver Sensitivity	-12
Power consumption（Max）	3.5W
