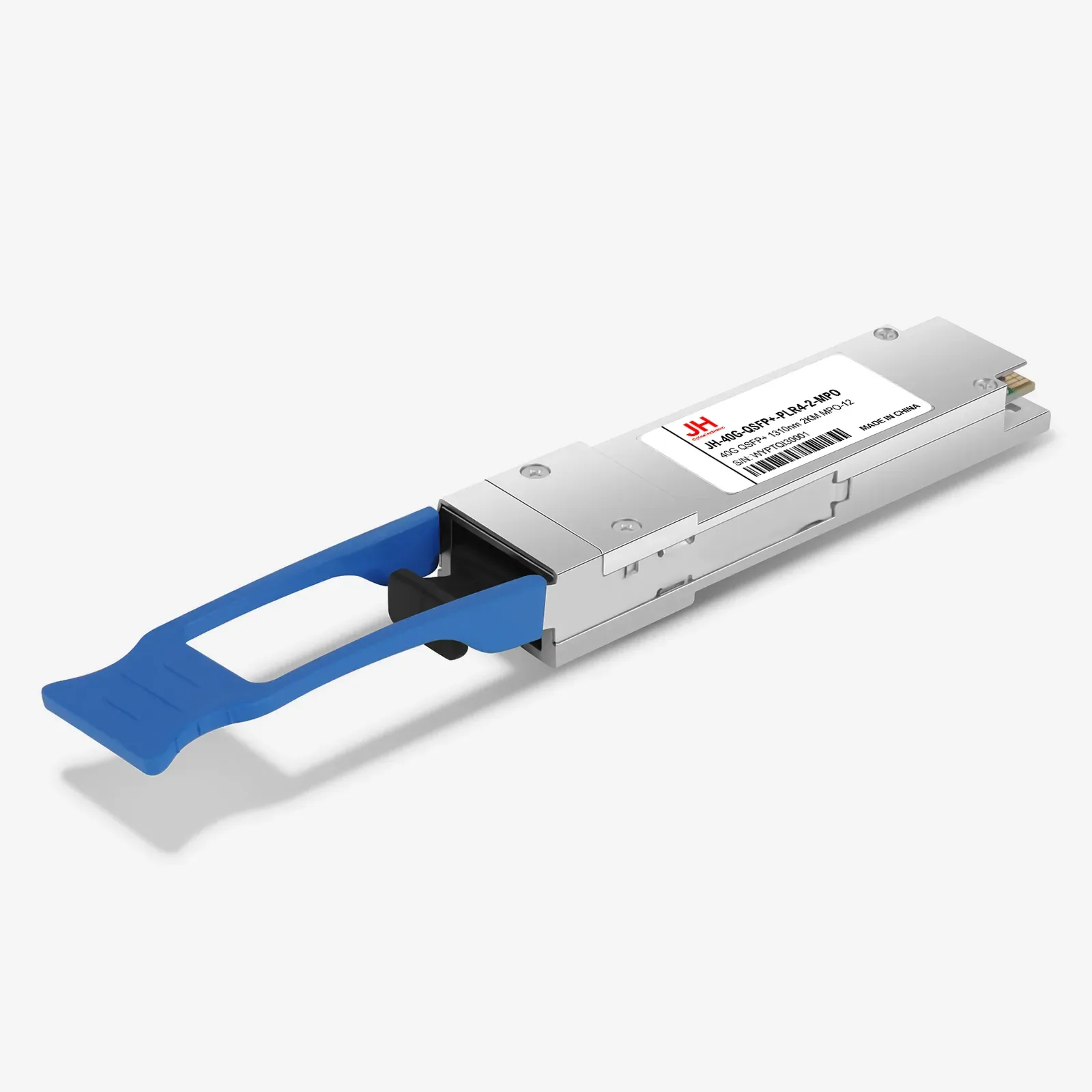

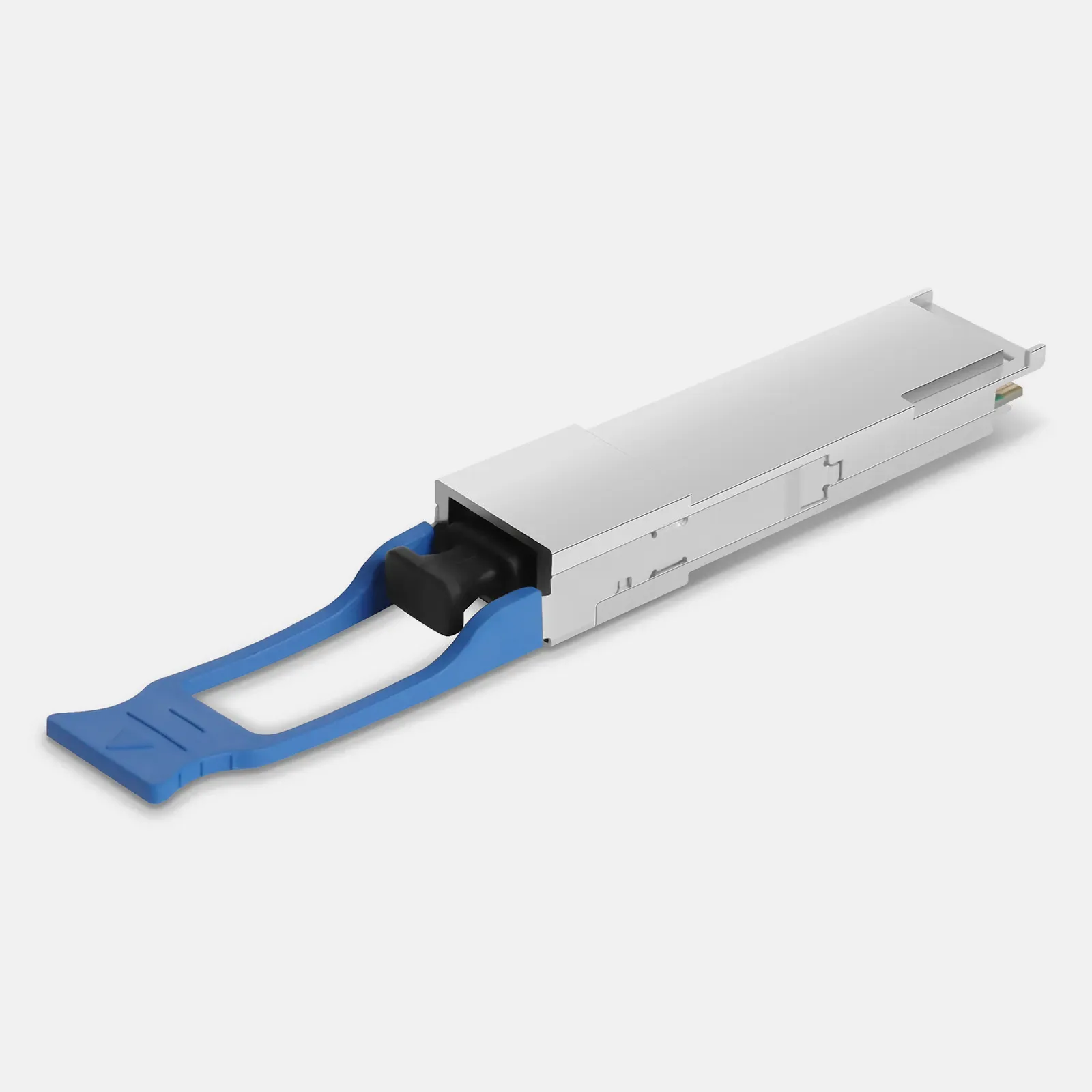

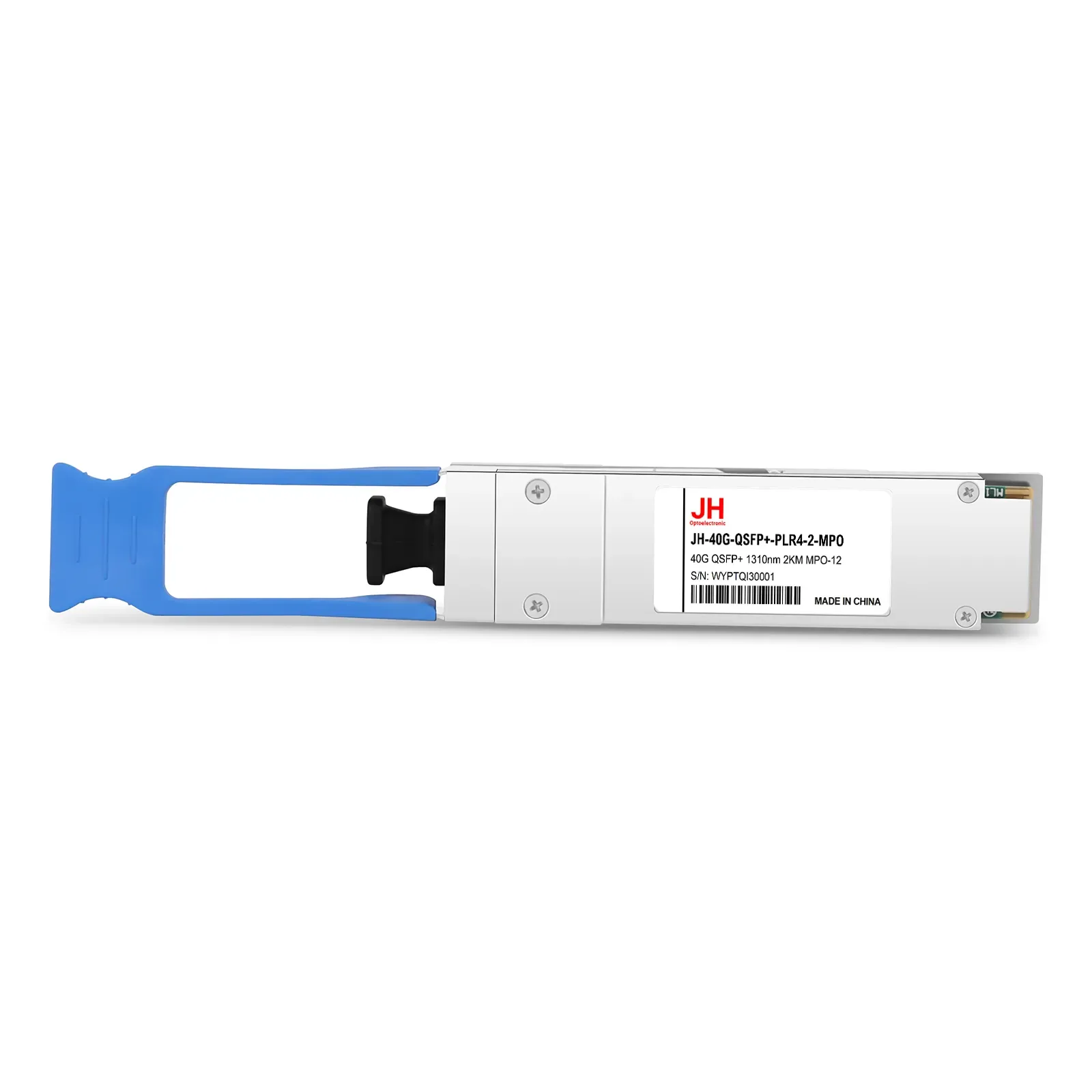

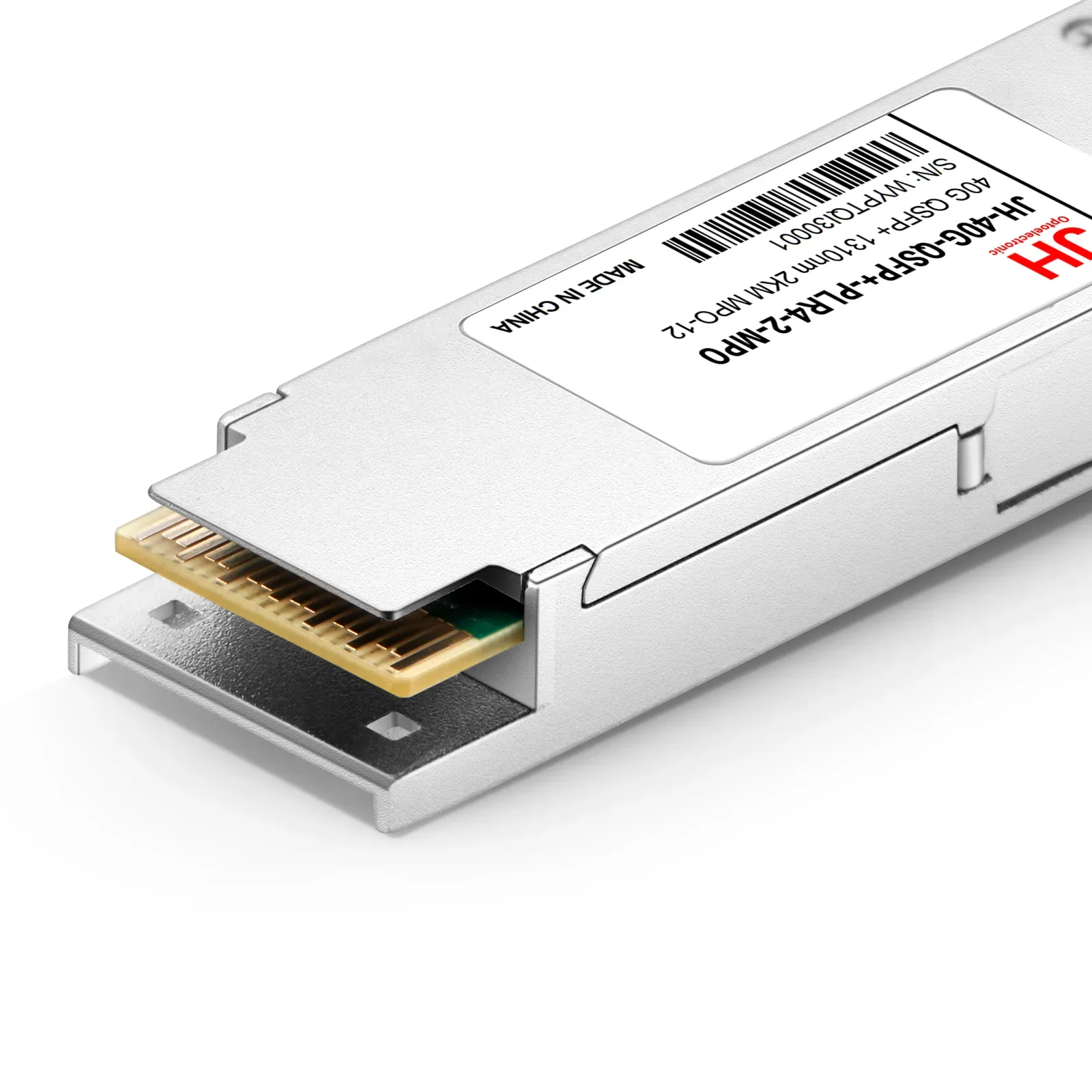

JH-40G-QSFP+-PLR4-2-MPO

型号：40G QSFP+ 1310nm 2KM MPO-12

JH-40G-QSFP+-PLR4-2-MPO is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with 100G PSM4 MSA. Digital diagnostics functions are also available via the I2C interface, as specified by the 100G PSM4 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications

联系我们

产品特性

Hot-pluggable QSFP+ form factor
Supports 40Gbps data transmission rate, compliant with IEEE 802.3ba 40G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, CWDM wavelength multiplexing, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Aggregation, Campus Backbone

规格参数

Data Rate	40G
Distance	2KM
Wavelength	1310nm
Form Factor	QSFP+

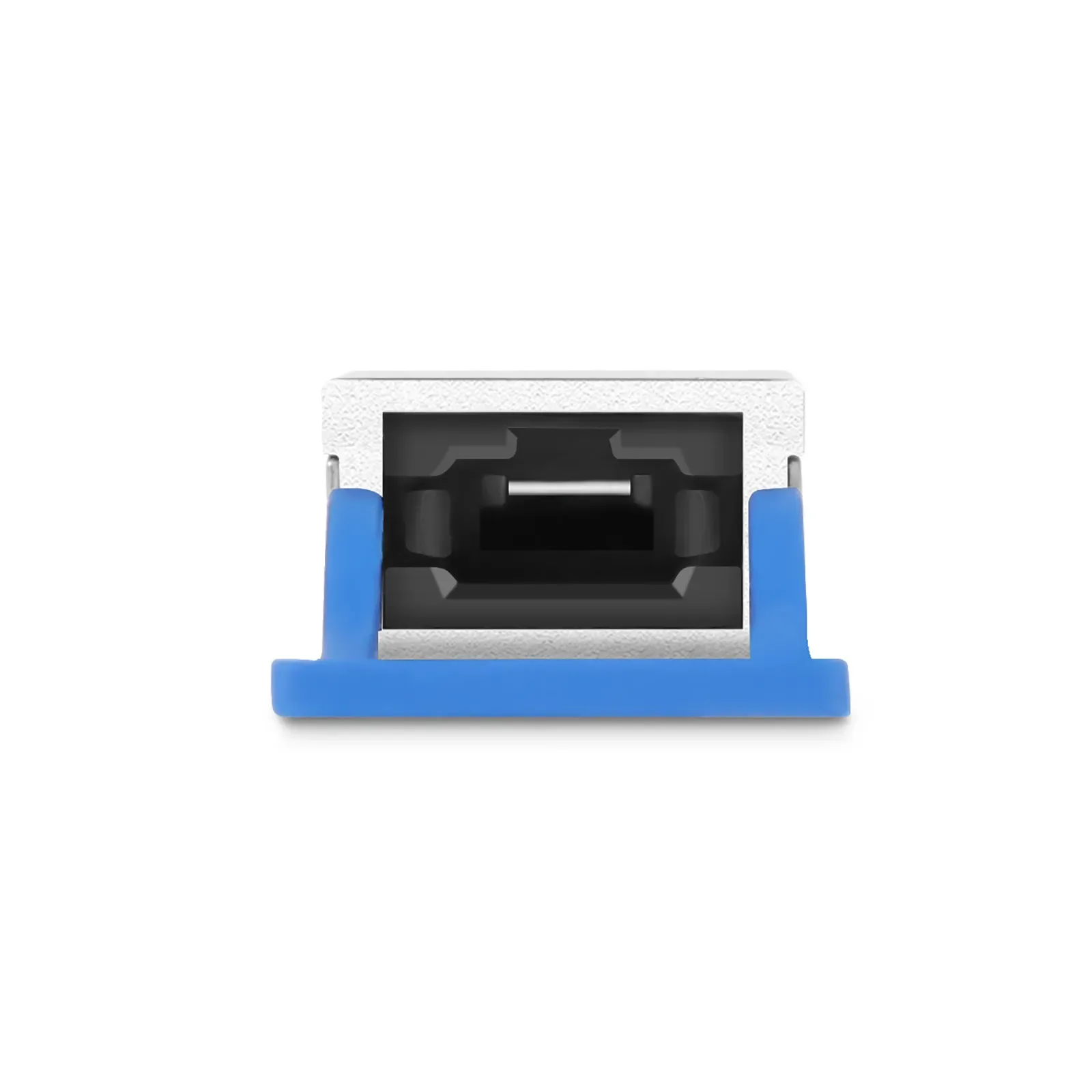

Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-8.2~0.5
Receiver Sensitivity	-12.6
Power consumption（Max）	3.5W
