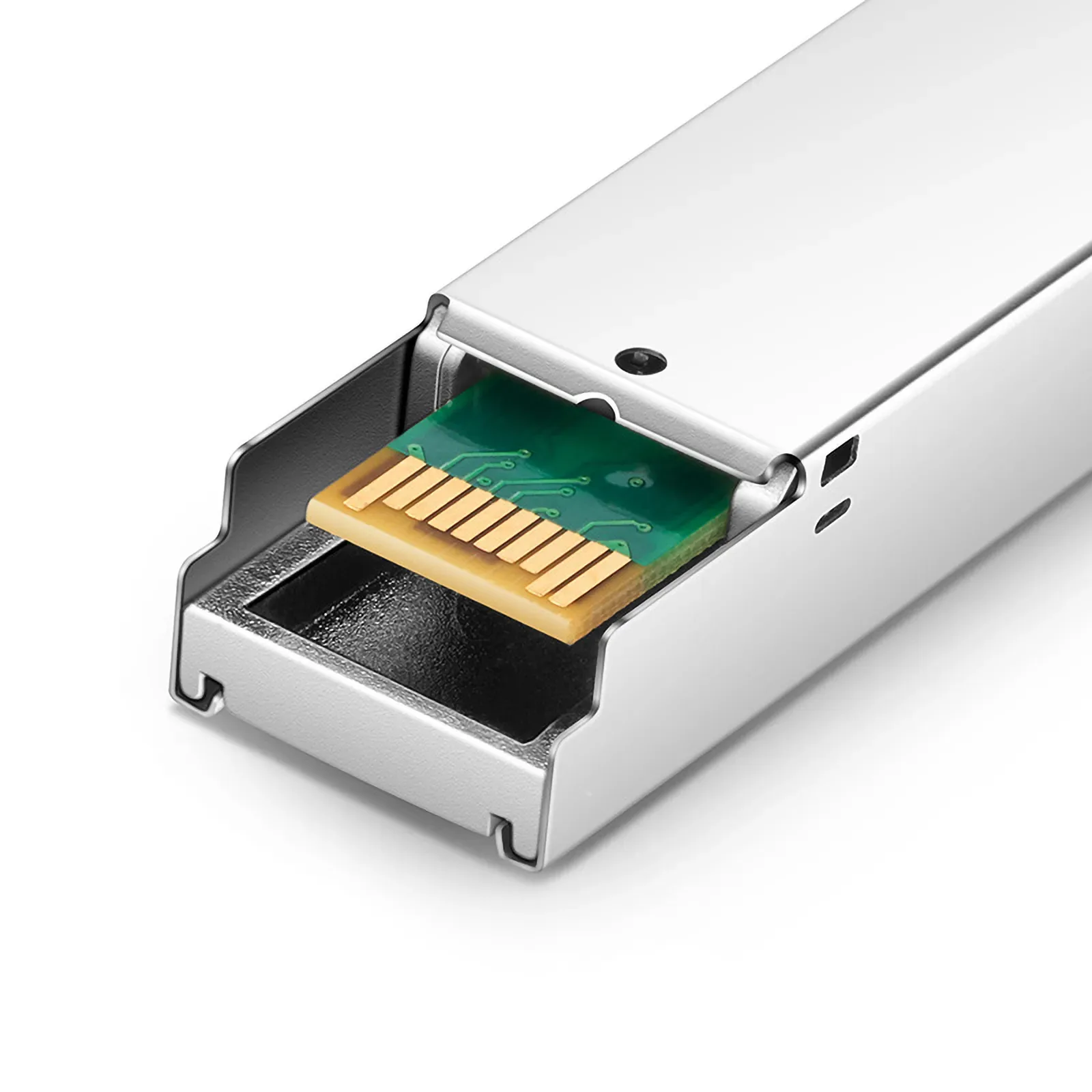

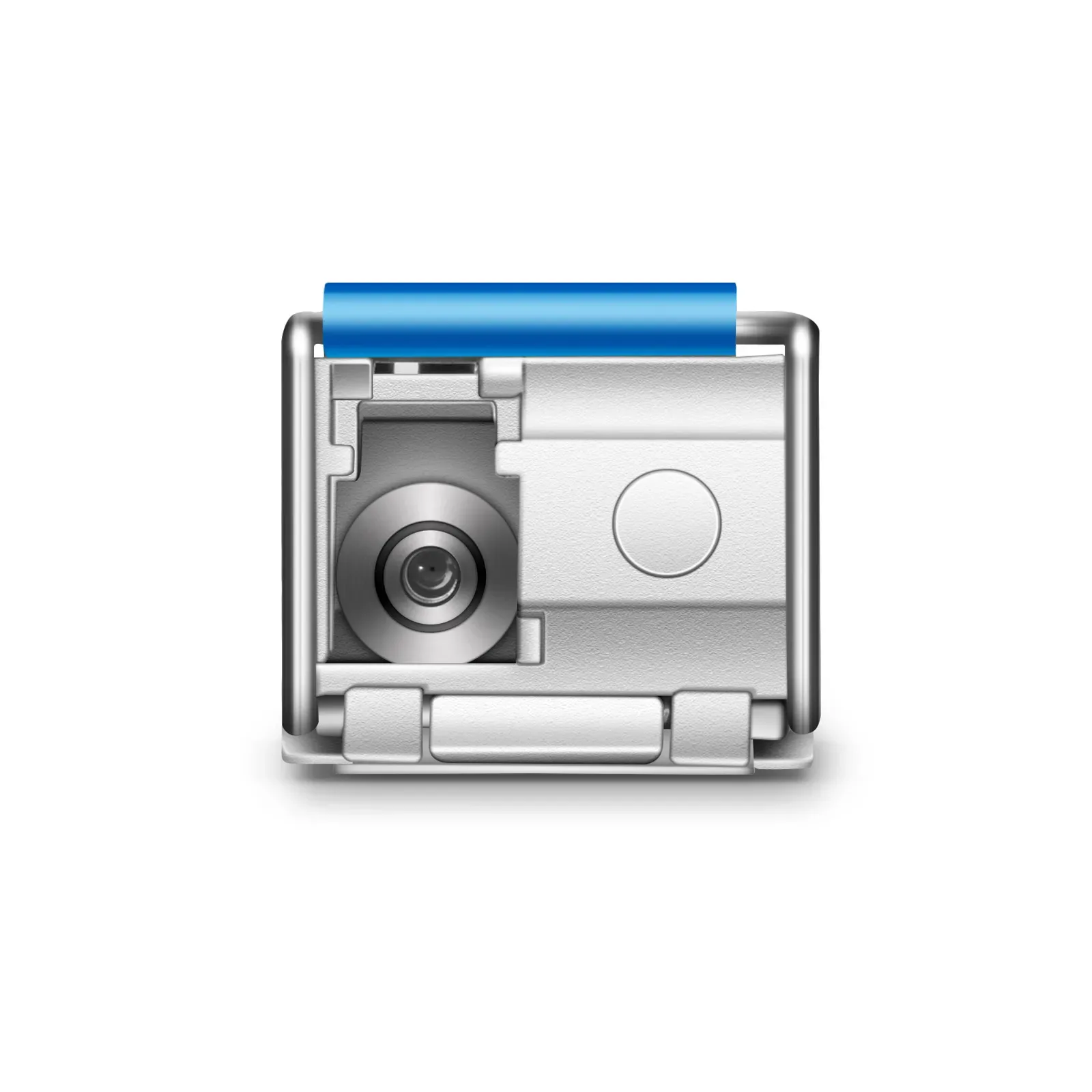

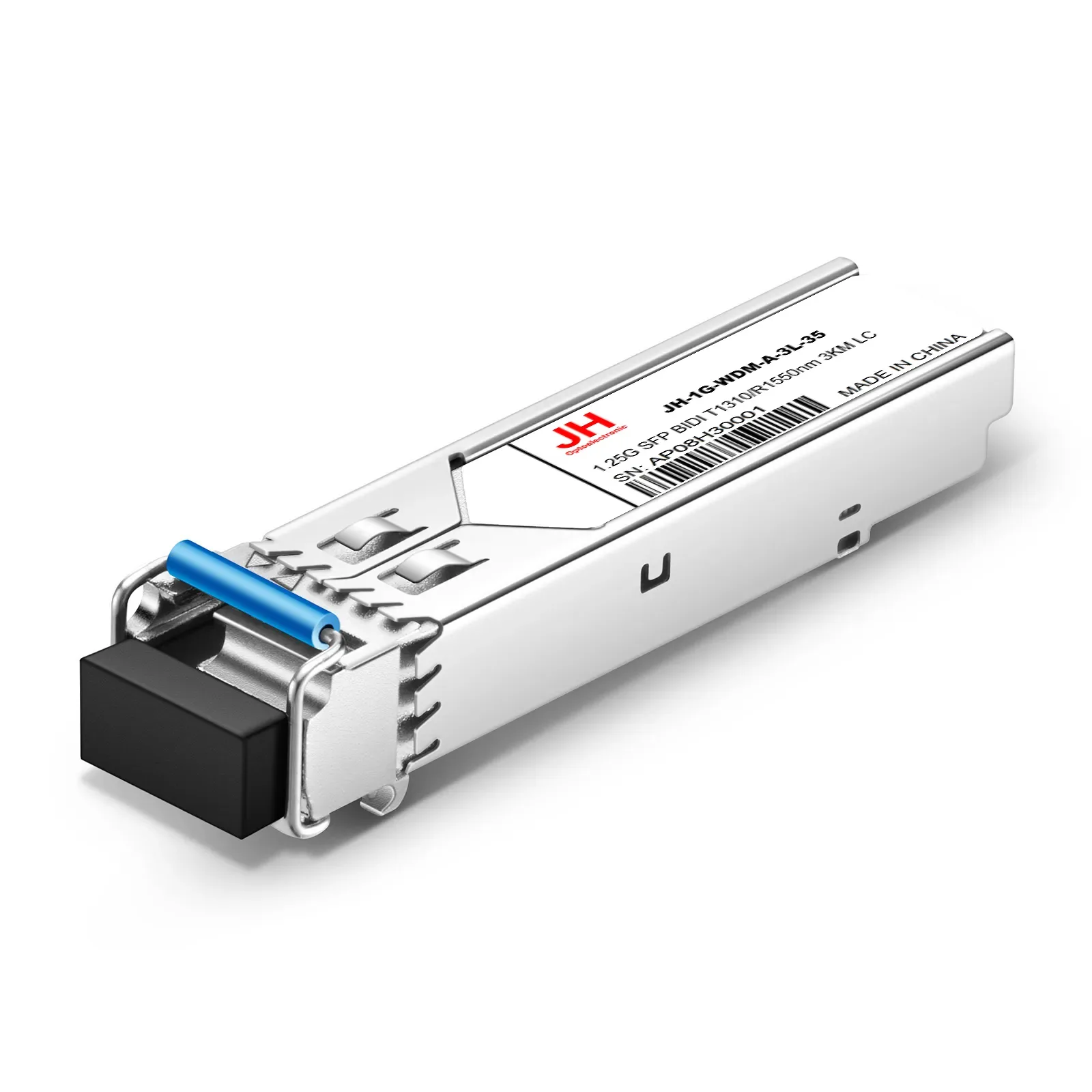

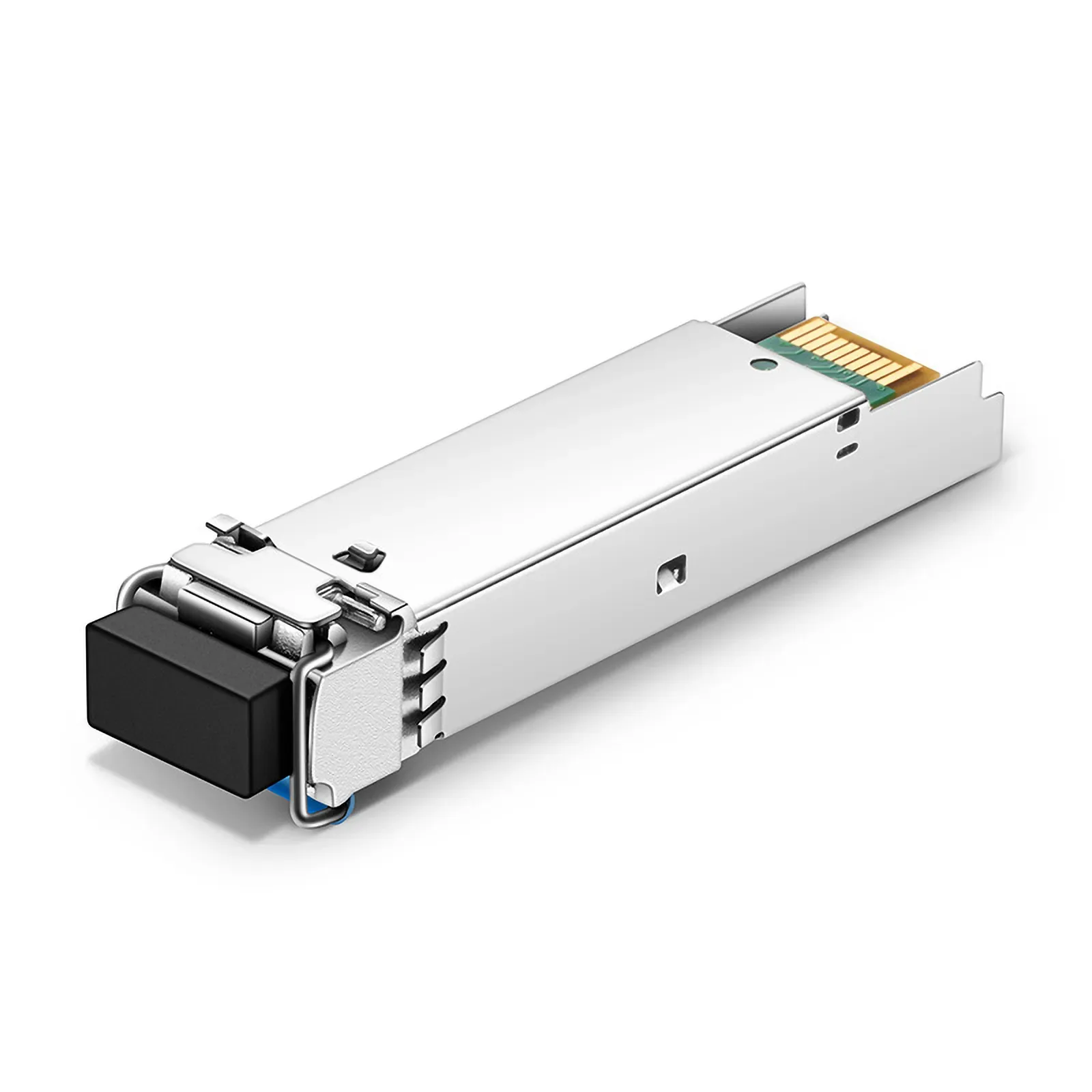

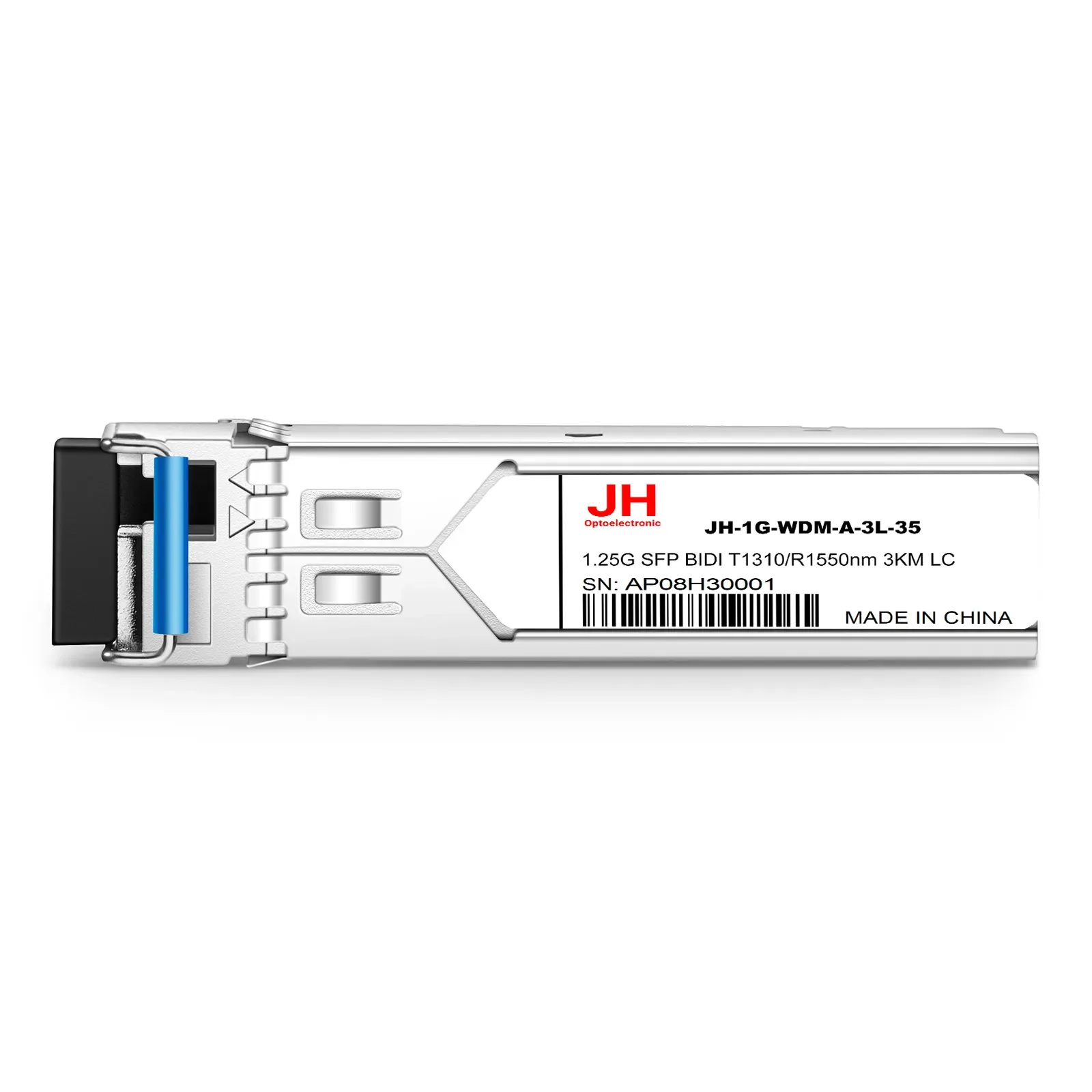

JH-1G-WDM-A-3L-35

型号：1.25G SFP BIDI T1310/R1550nm 3KM LC

JH-1G-WDM-A-3L-35 provides up to 3km of 1000Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.

联系我们

产品特性

Hot-pluggable SFP form factor
Supports 1.25Gbps data transmission rate, compliant with IEEE 802.3z Gigabit Ethernet standard
Maximum power consumption < 1W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise Access, FTTx Aggregation

规格参数

Data Rate	1.25G
Distance	3KM
Wavelength	BIDI
Form Factor	SFP
Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	FP
Receiver	PIN
TX Power	-10~-4
Receiver Sensitivity	-20
Power consumption（Max）	1W
