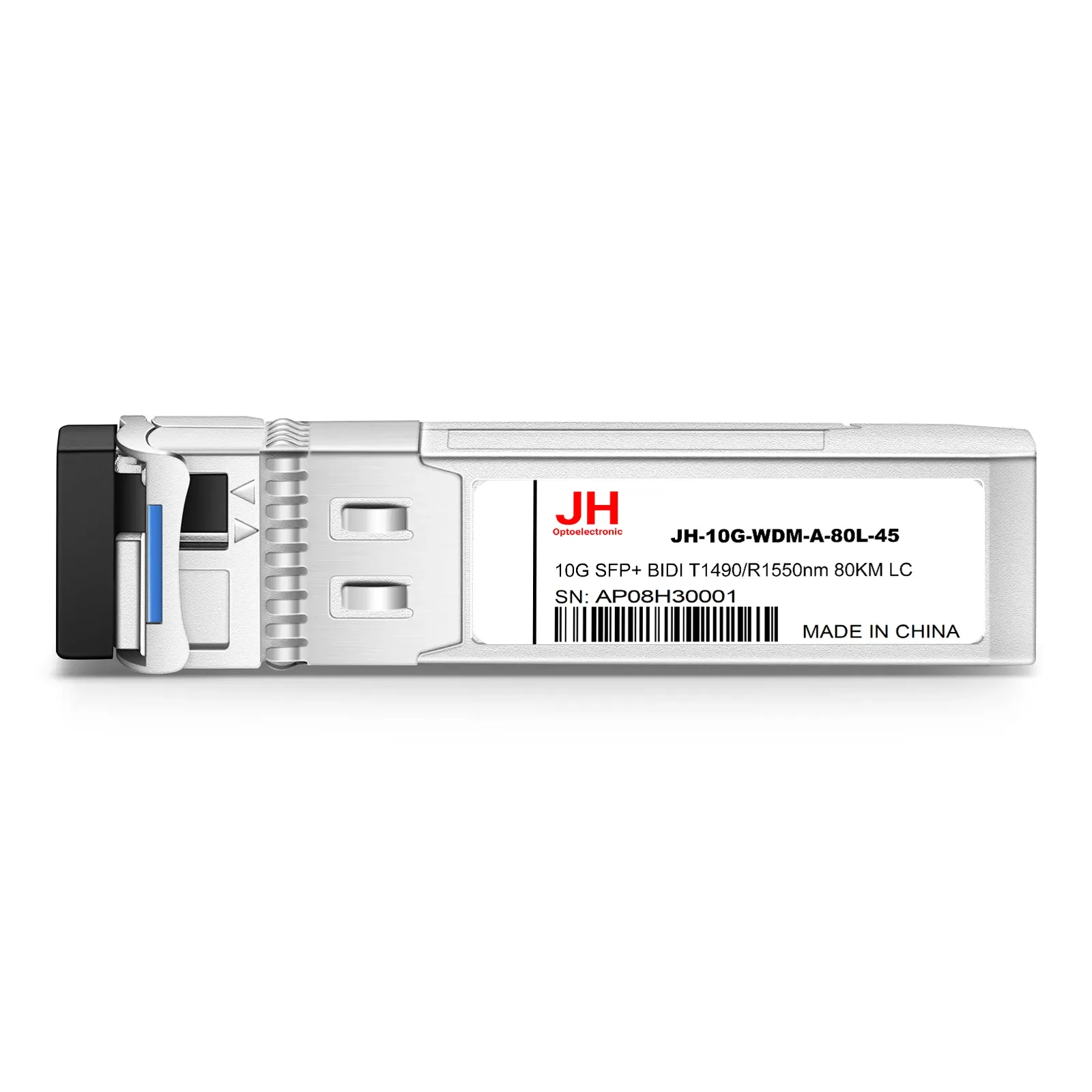

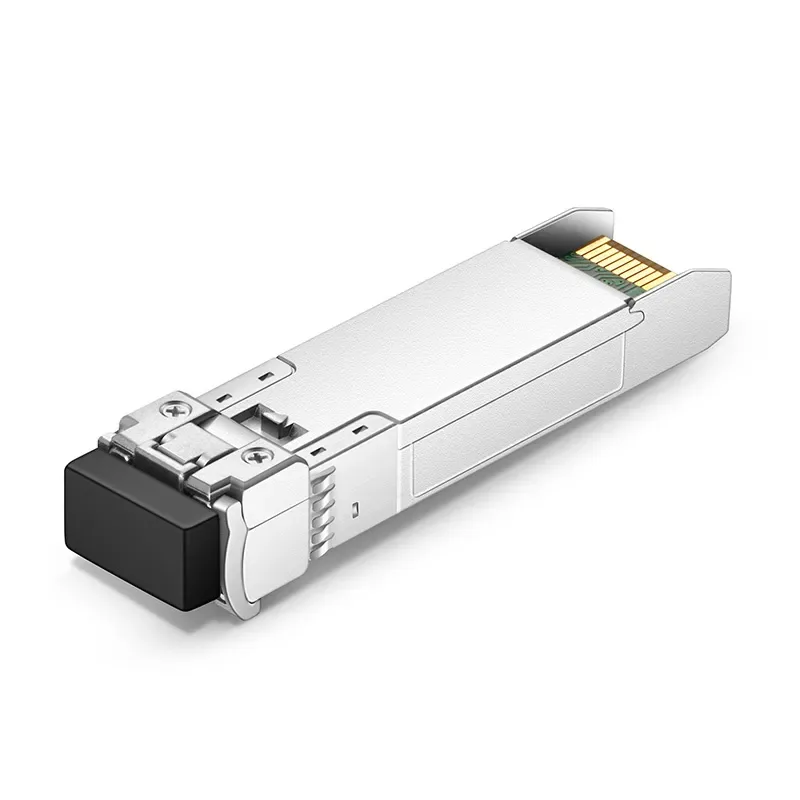

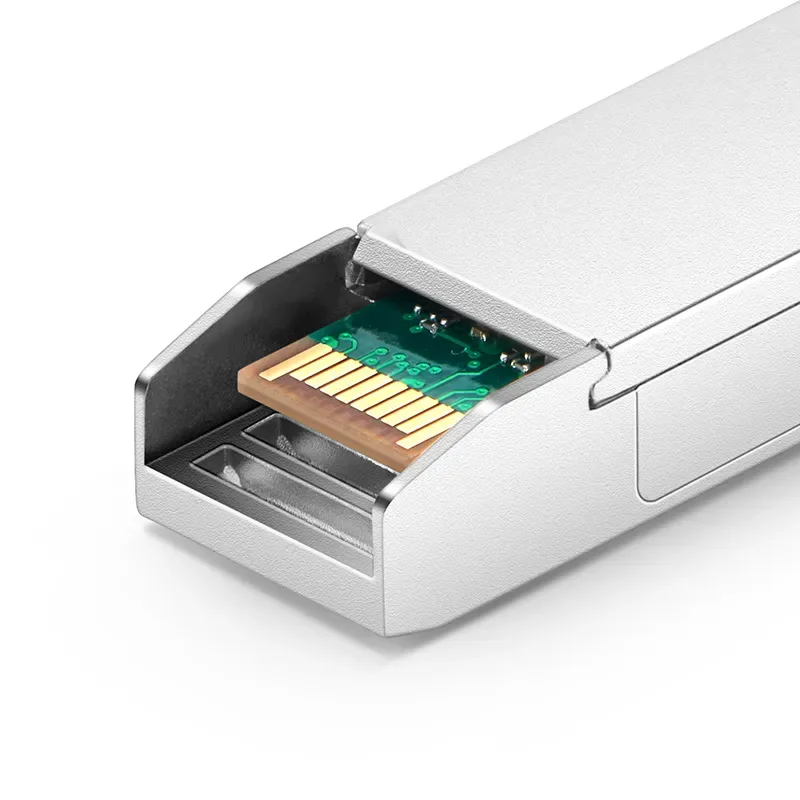

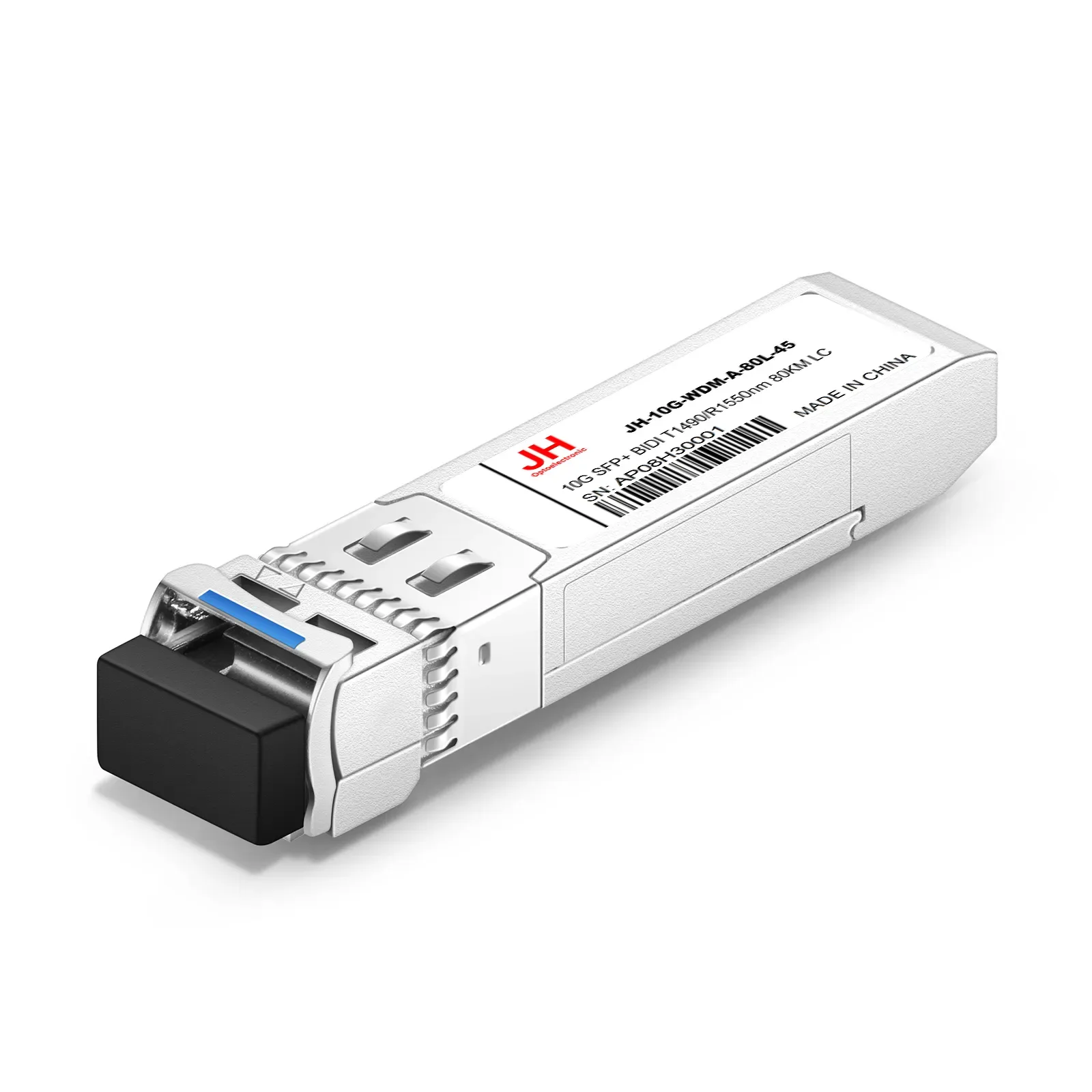

JH-10G-WDM-A-80L-45

型号：10G SFP+ BIDI T1490/R1550nm 80KM LC

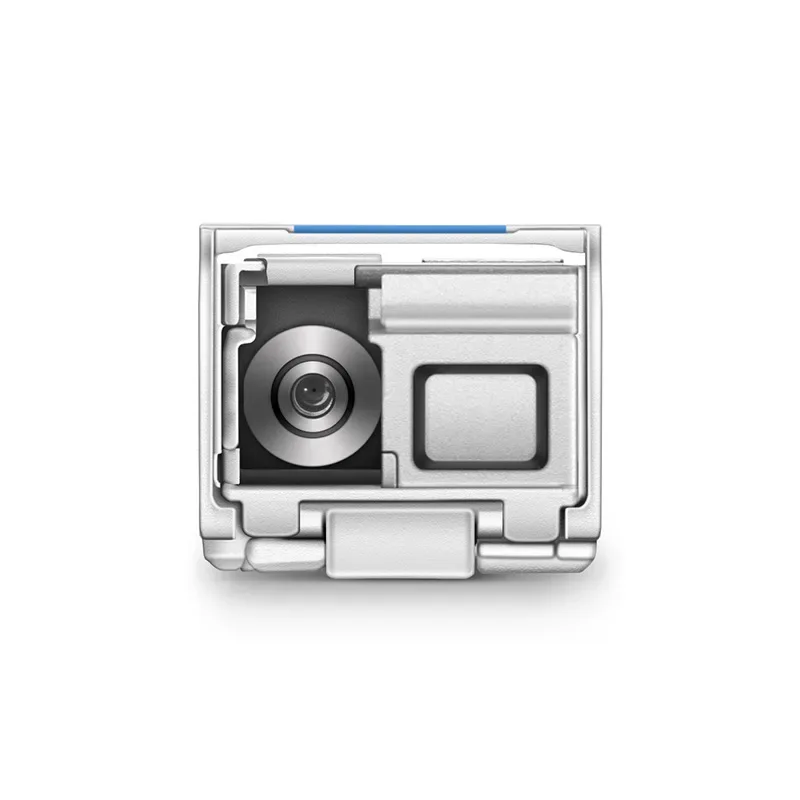

JH-10G-WDM-A-80L-45 supports up to 80km over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1490-nm channel and receives a 1550-nm signal, whereas the other BiDi SFP+ optics transmits at a 1550-nm wavelength and receives a 1490-nm signal.

联系我们

产品特性

Hot-pluggable SFP+ form factor
Supports 10.3125Gbps data transmission rate, compliant with IEEE 802.3ae 10G Ethernet standard
Maximum power consumption < 1.5W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
ISP Access, Rural Broadband

规格参数

Data Rate	10G
Distance	80KM
Wavelength	BIDI
Form Factor	SFP+
Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	DFB
Receiver	APD
TX Power	0~4
Receiver Sensitivity	-23
Power consumption（Max）	1.5W
