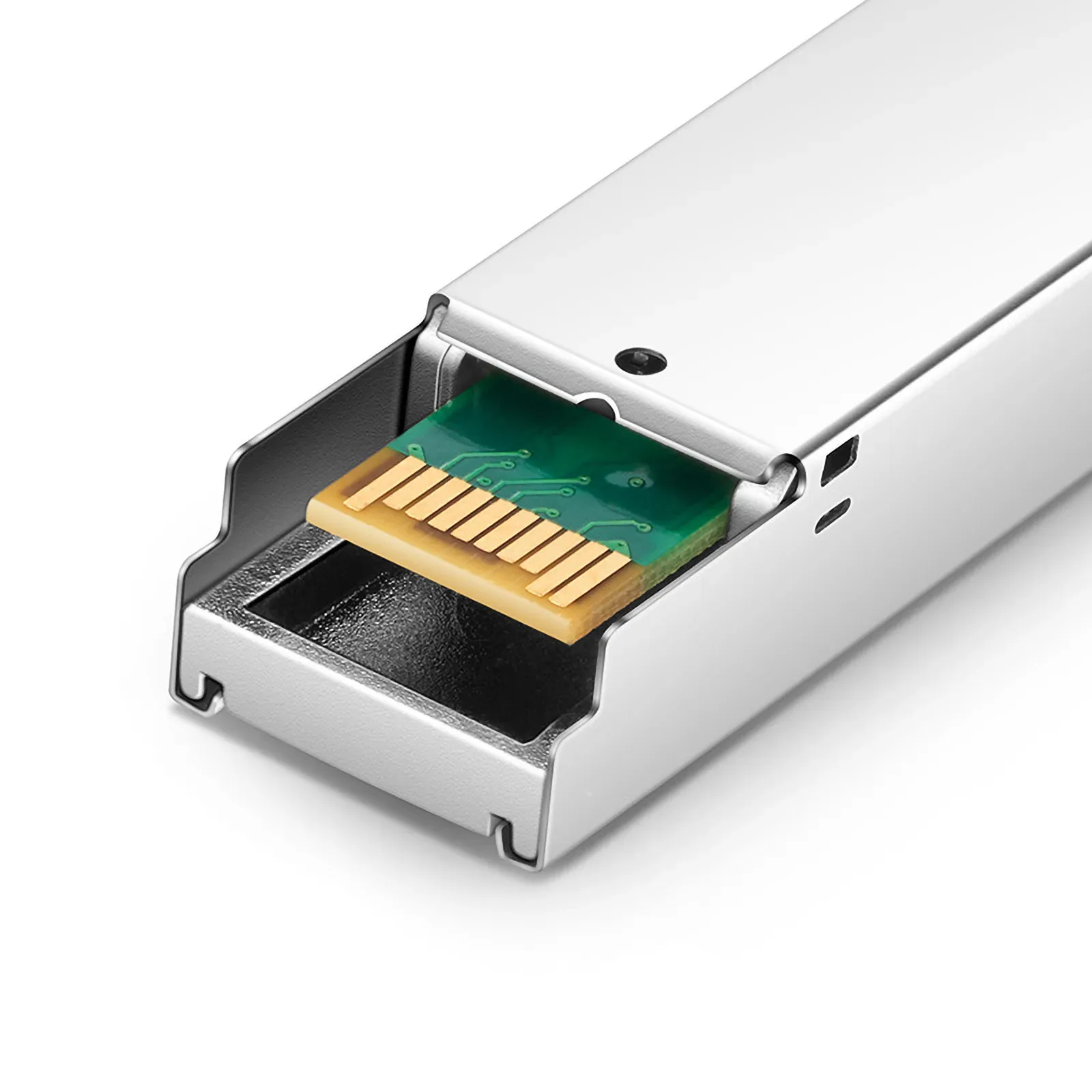

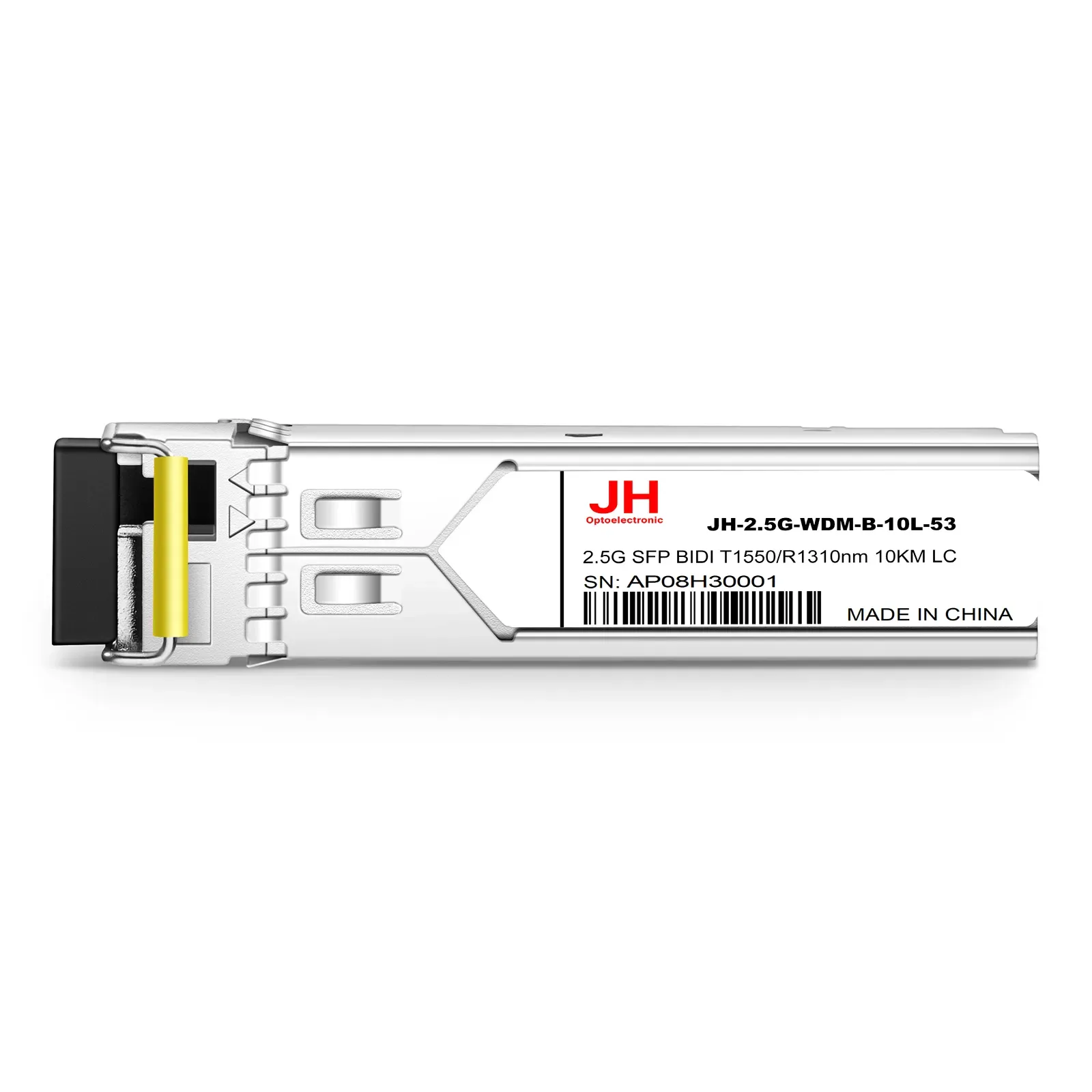

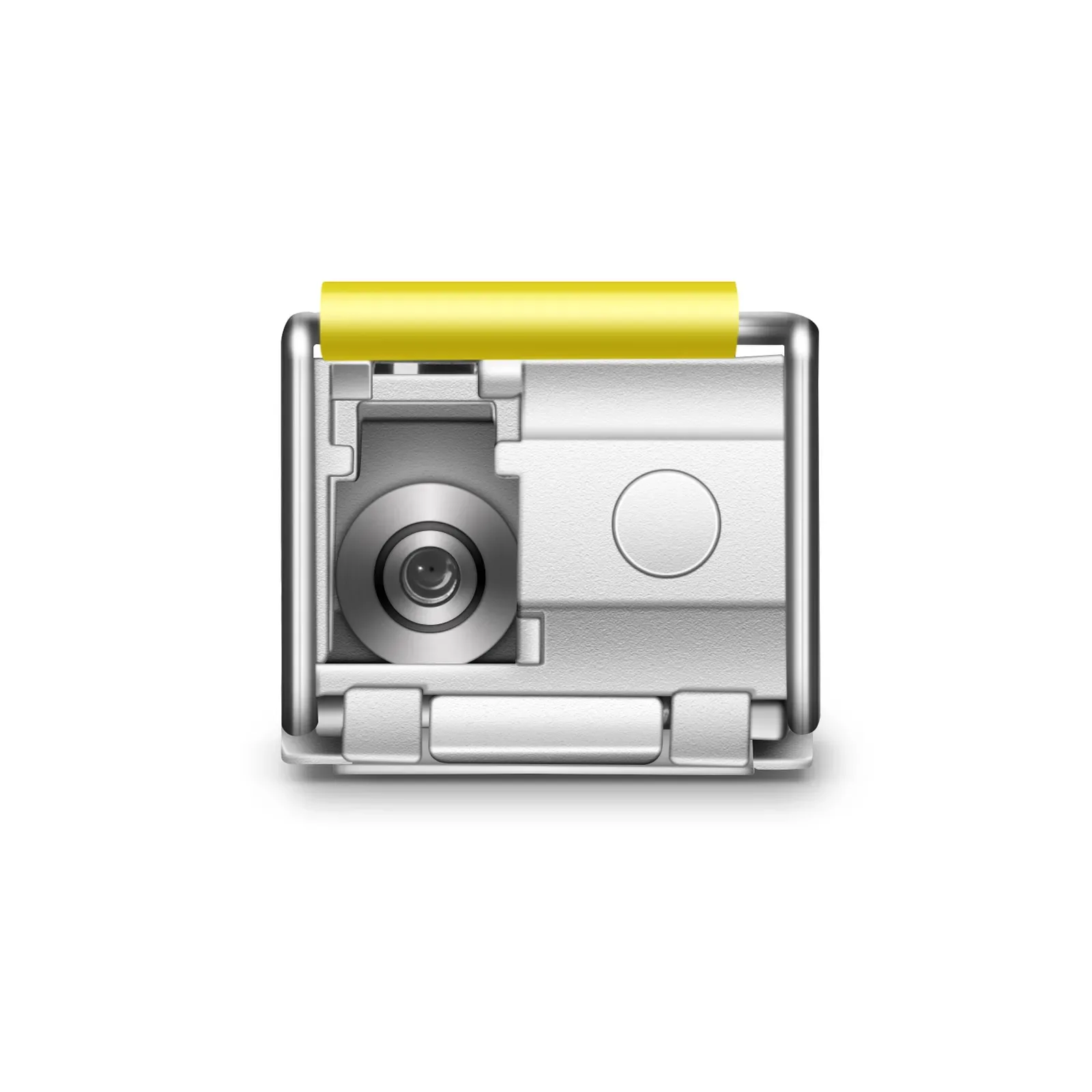

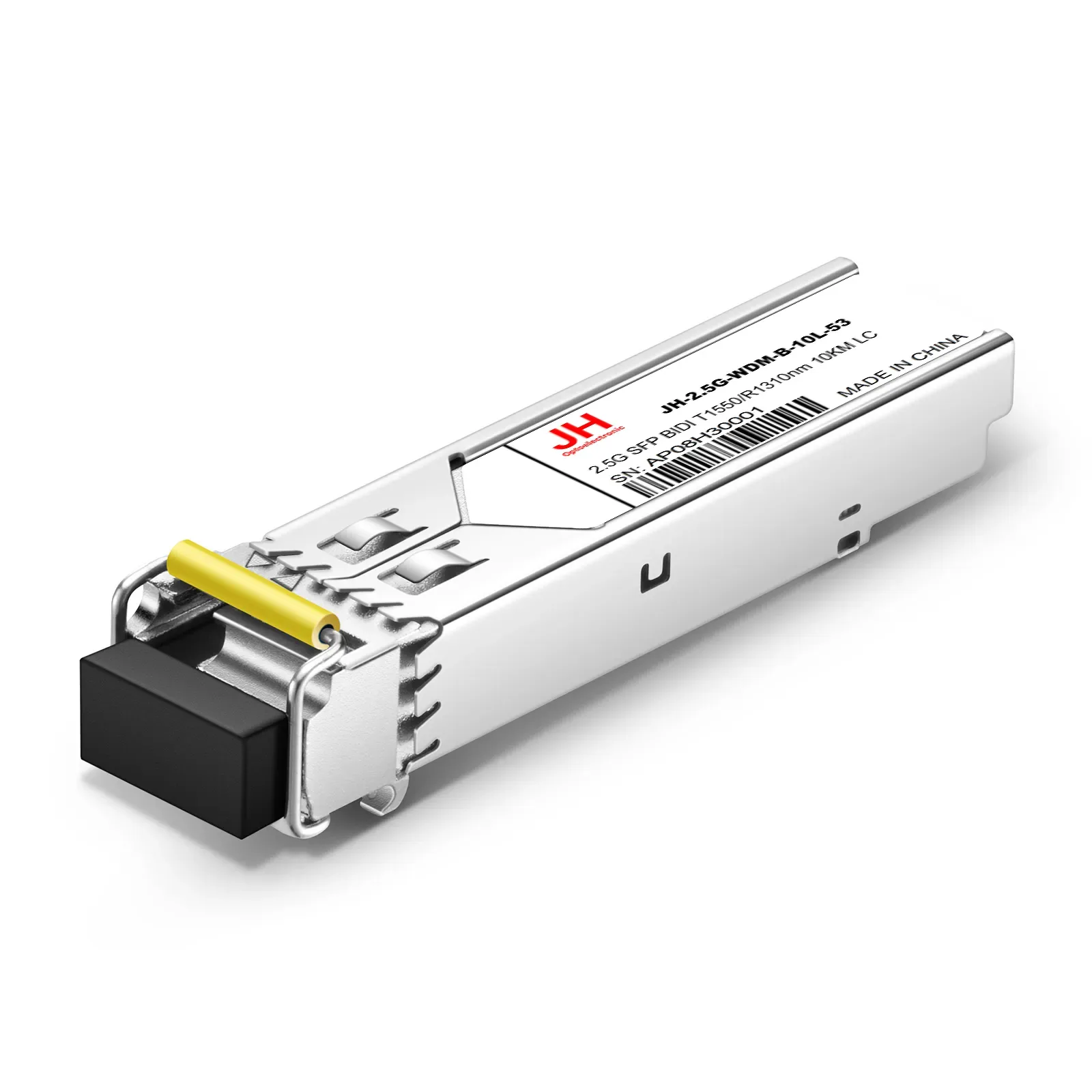

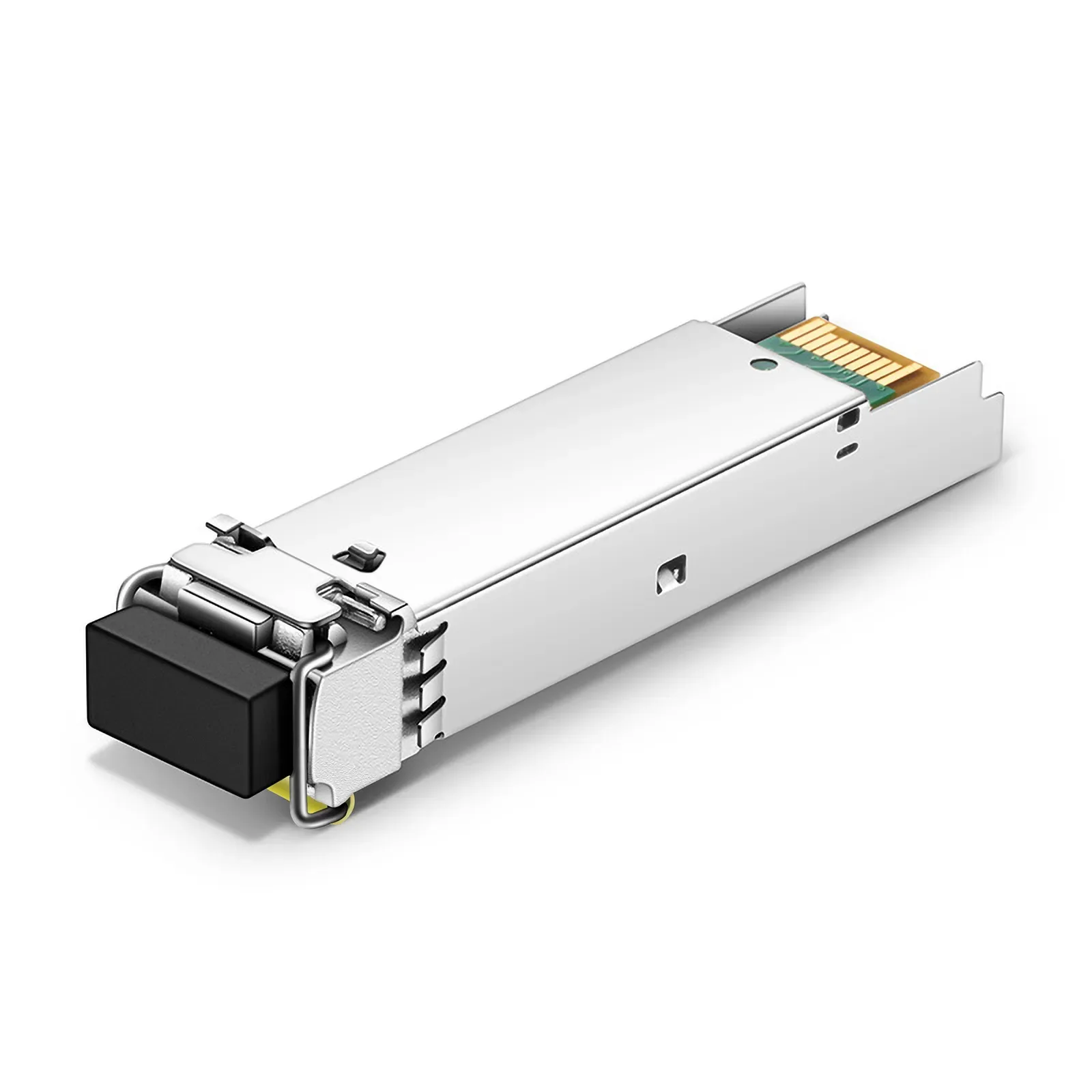

JH-2.5G-WDM-B-10L-53

型号：2.5G SFP BIDI T1550/R1310nm 10KM LC

JH-2.5G-WDM-B-10L-53 provides up to 10km of 2.5G-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 2.5G Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.

联系我们

产品特性

Hot-pluggable SFP form factor
Supports 2.488Gbps data rate, compliant with ITU-T G.957 STM-16/OC-48 standard
Maximum power consumption < 1W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise Campus, ISP Distribution

规格参数

Data Rate	2.5G
Distance	10KM
Wavelength	BIDI
Form Factor	SFP
Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-5~0
Receiver Sensitivity	-18
Power consumption（Max）	1W

规格书

规格书下载

Datasheet
