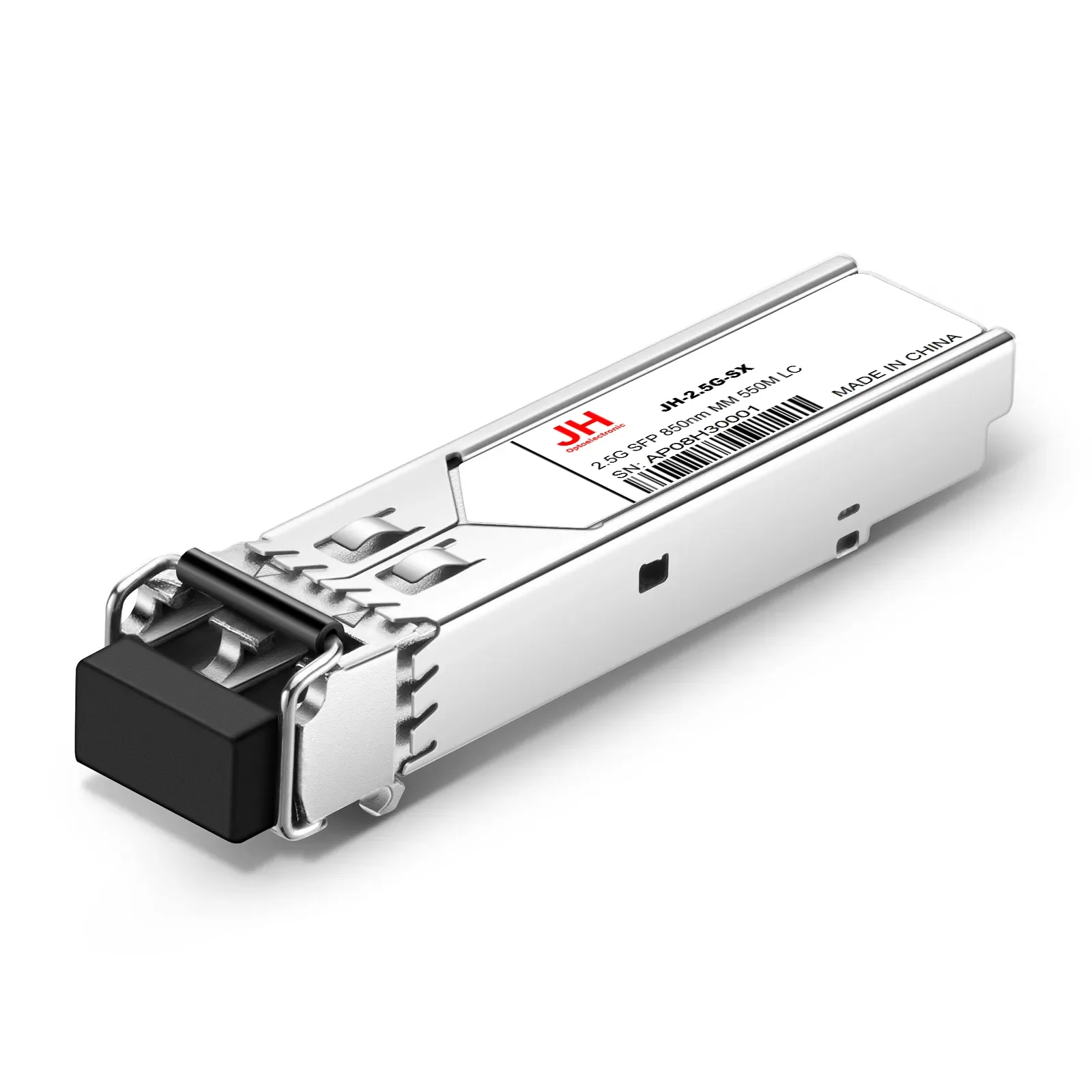

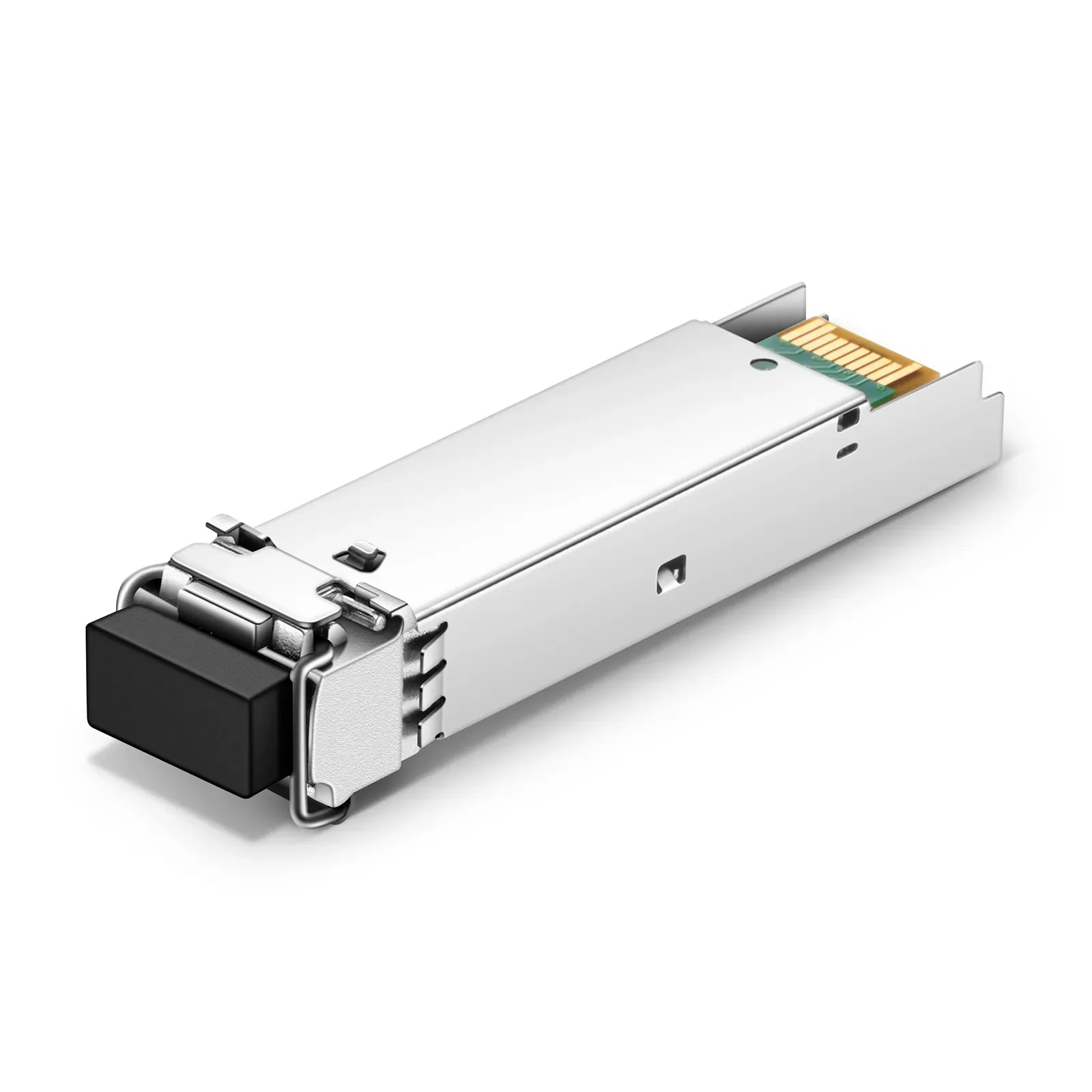

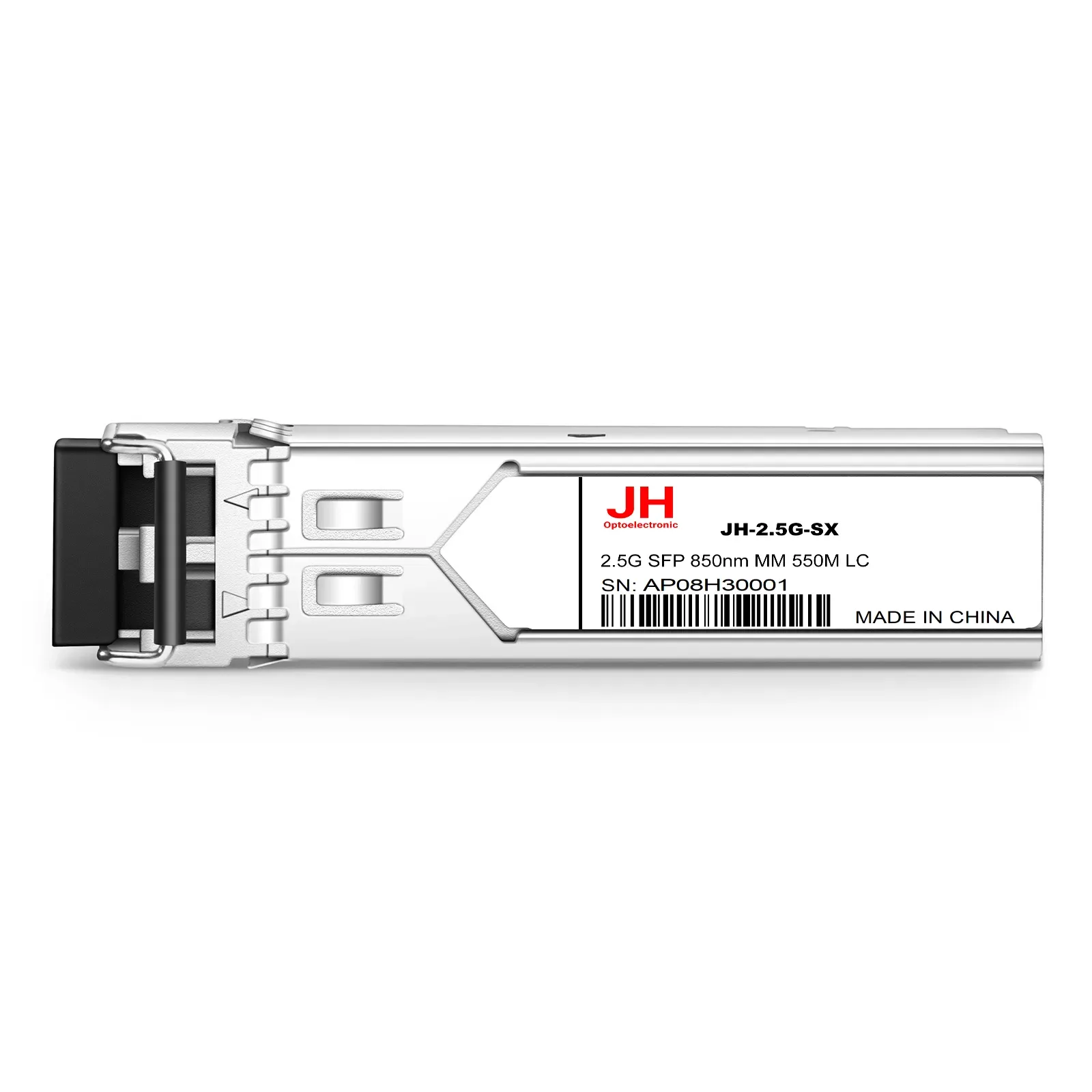

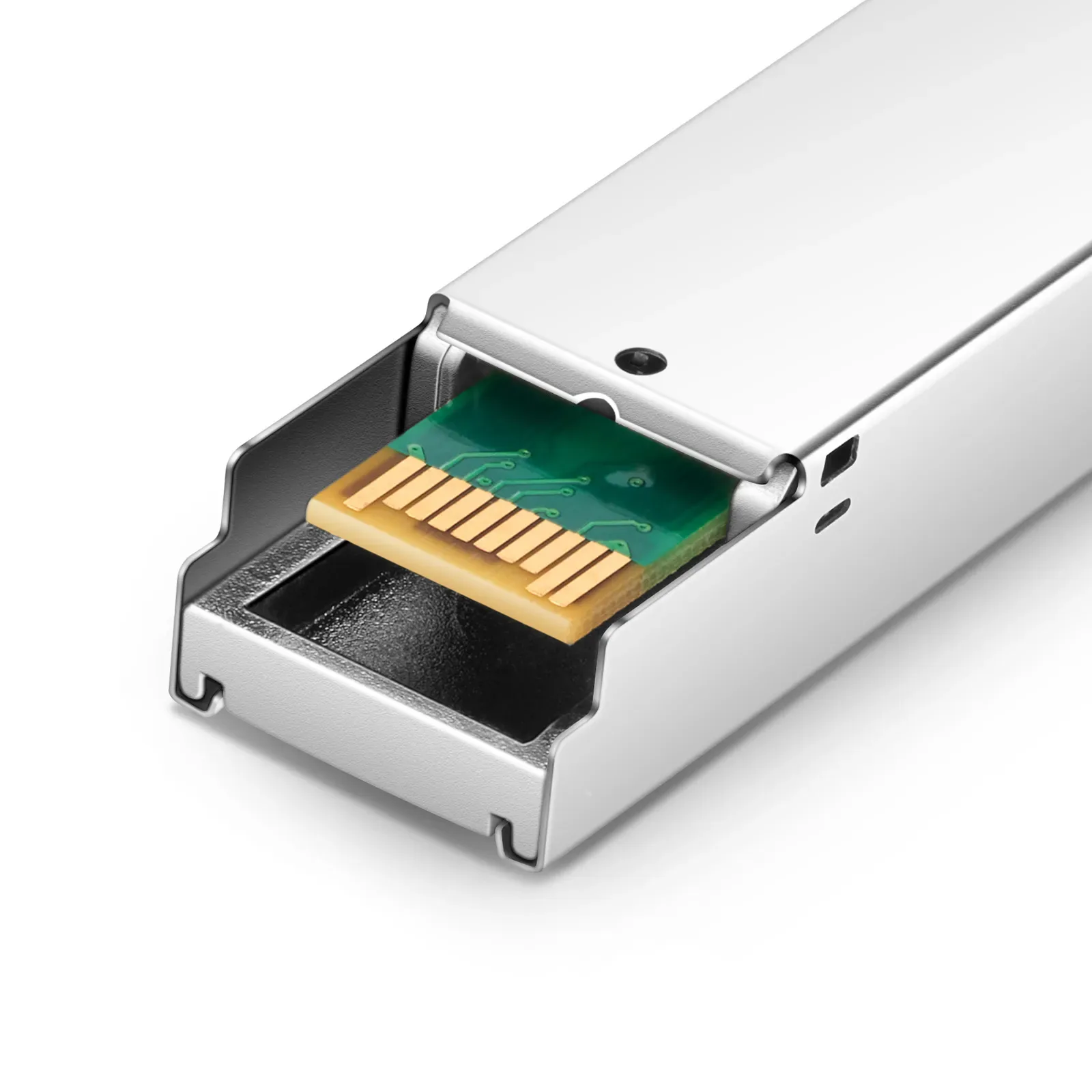

JH-2.5G-SX

型号：2.5G SFP 850nm MM 550M LC

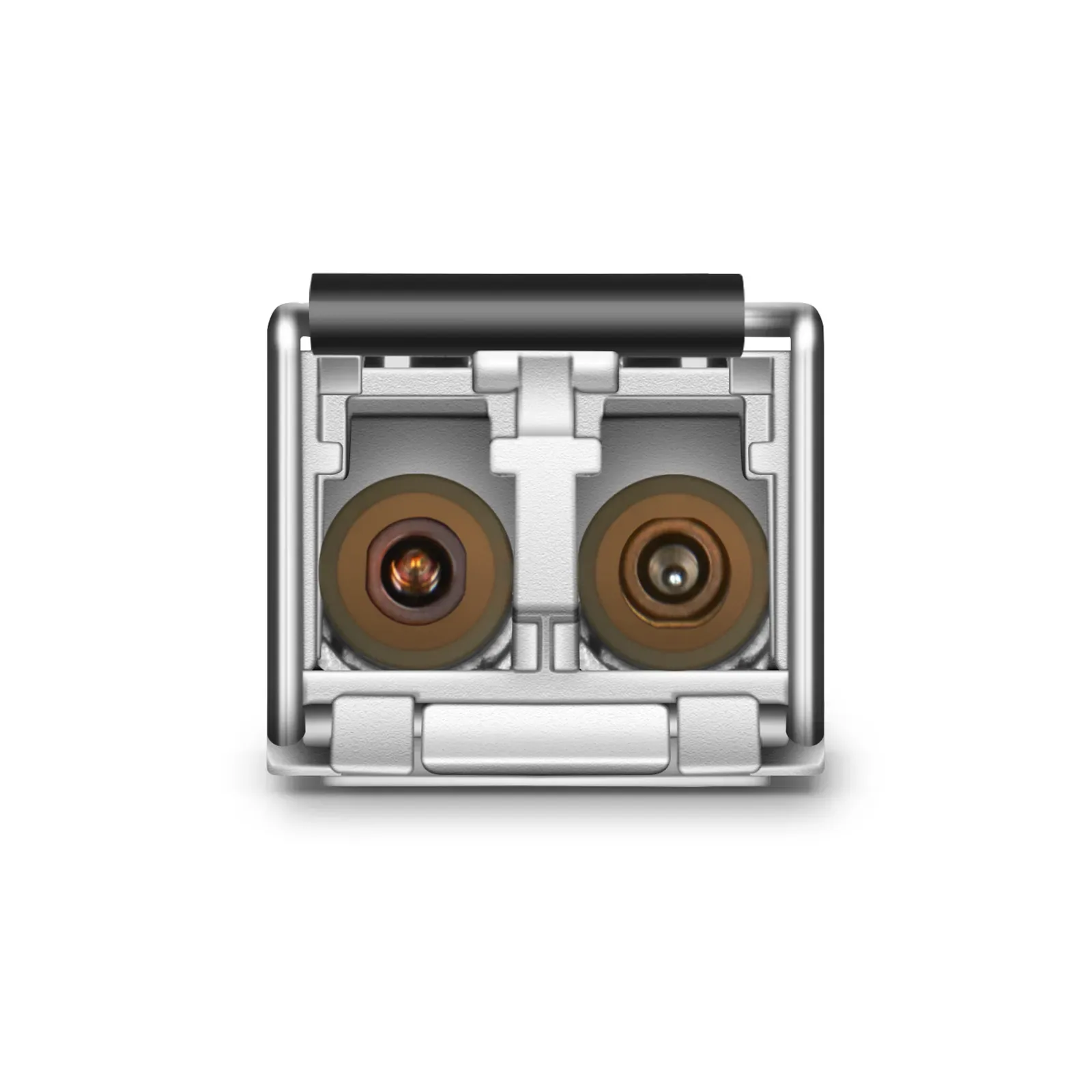

JH-2.5G-SX supports up to 550m link lengths over multmode fiber (MMF) using a wavelength of 850nm via a LC connector. This transceiver is compliant with SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0 and SFF-8472 v9.5 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for SONET OC-48 SR-1/SDH STM-16 I-16, 2x Fibre Channel applications, switch to switch interface, switched backplane applications.

联系我们

产品特性

Hot-pluggable SFP form factor
Supports 2.488Gbps data rate, compliant with ITU-T G.957 STM-16/OC-48 standard
Maximum power consumption < 1W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise LAN, Campus Access

规格参数

Data Rate	2.5G
Distance	550M
Wavelength	850nm
Form Factor	SFP
Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-10~-4
Receiver Sensitivity	-18
Power consumption（Max）	1W
