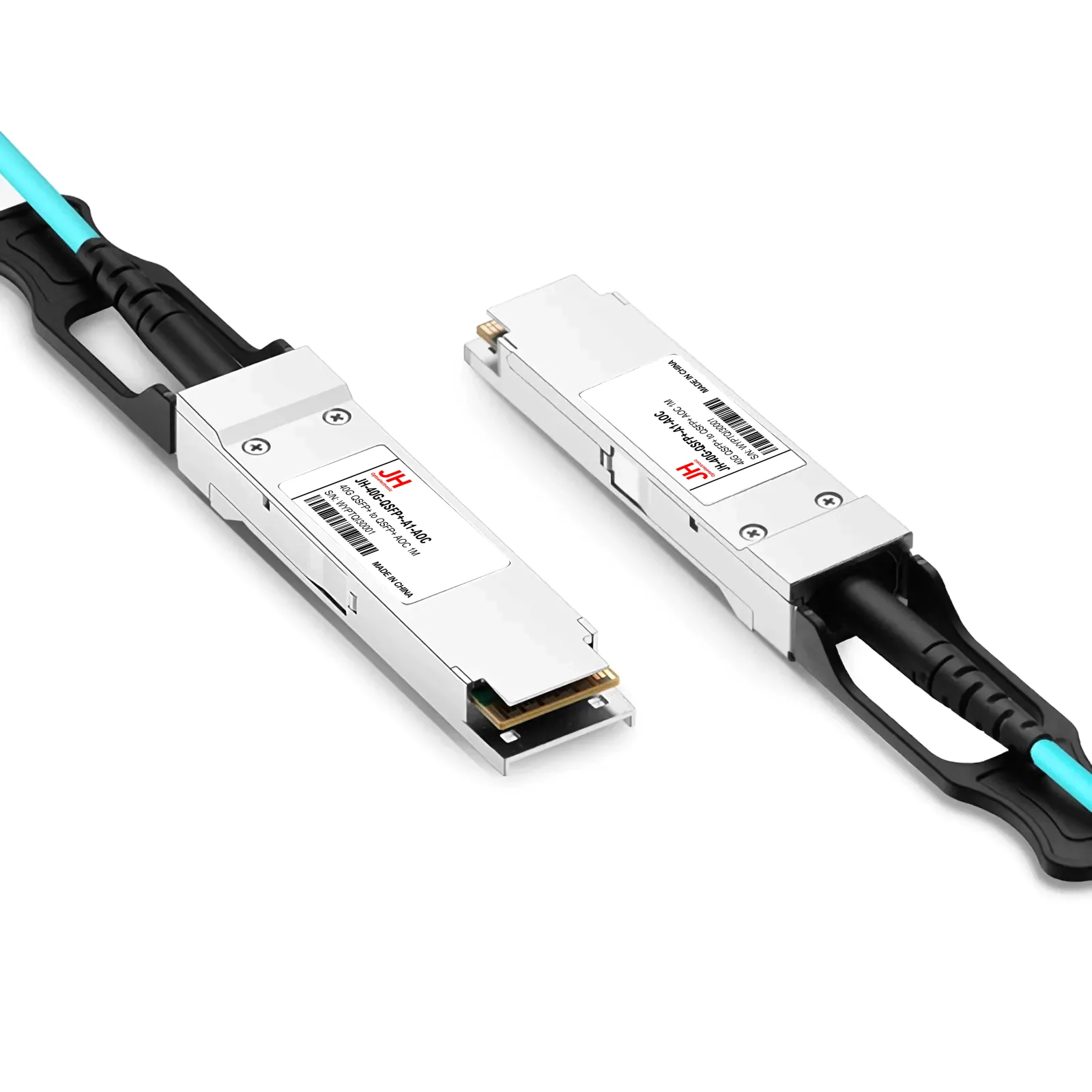

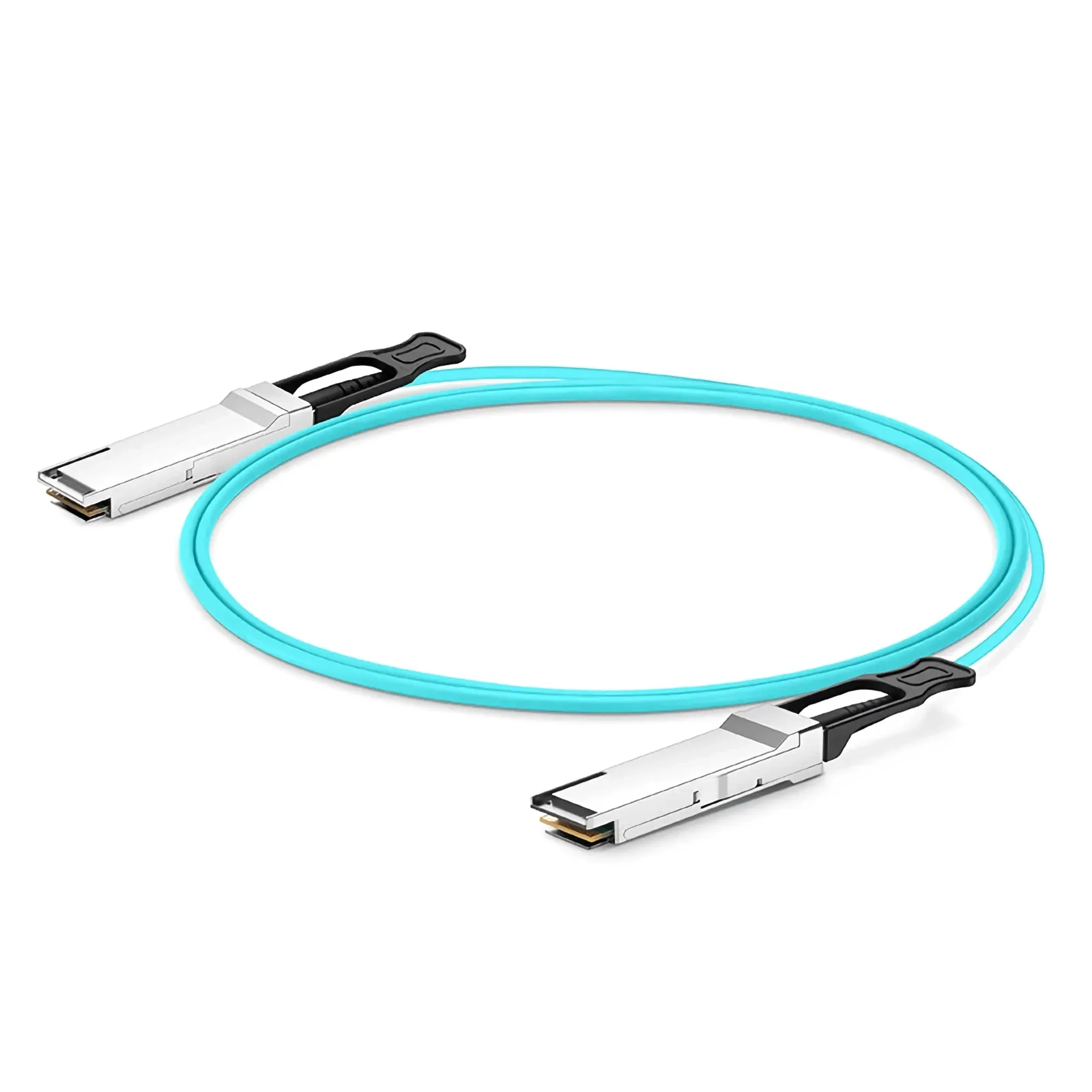

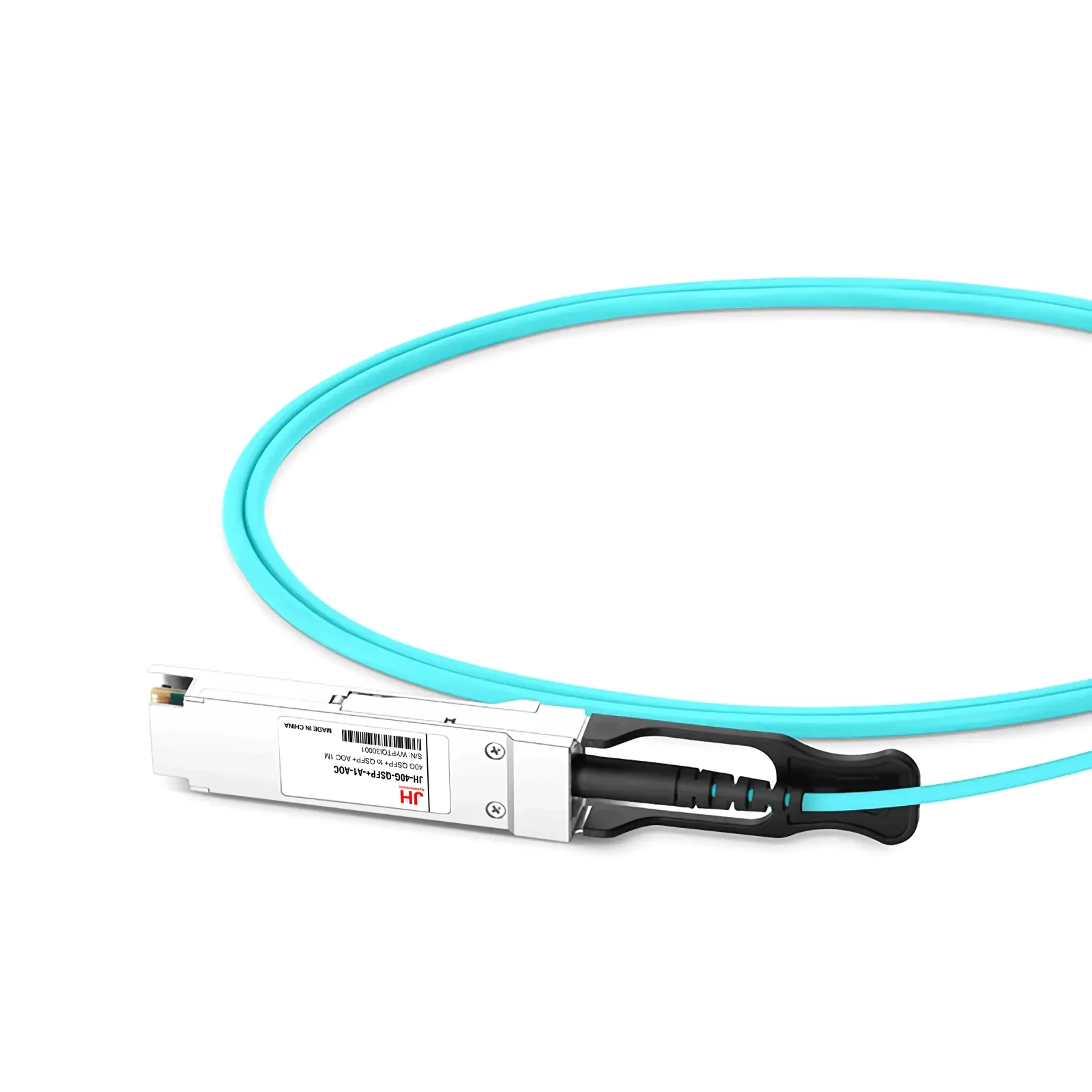

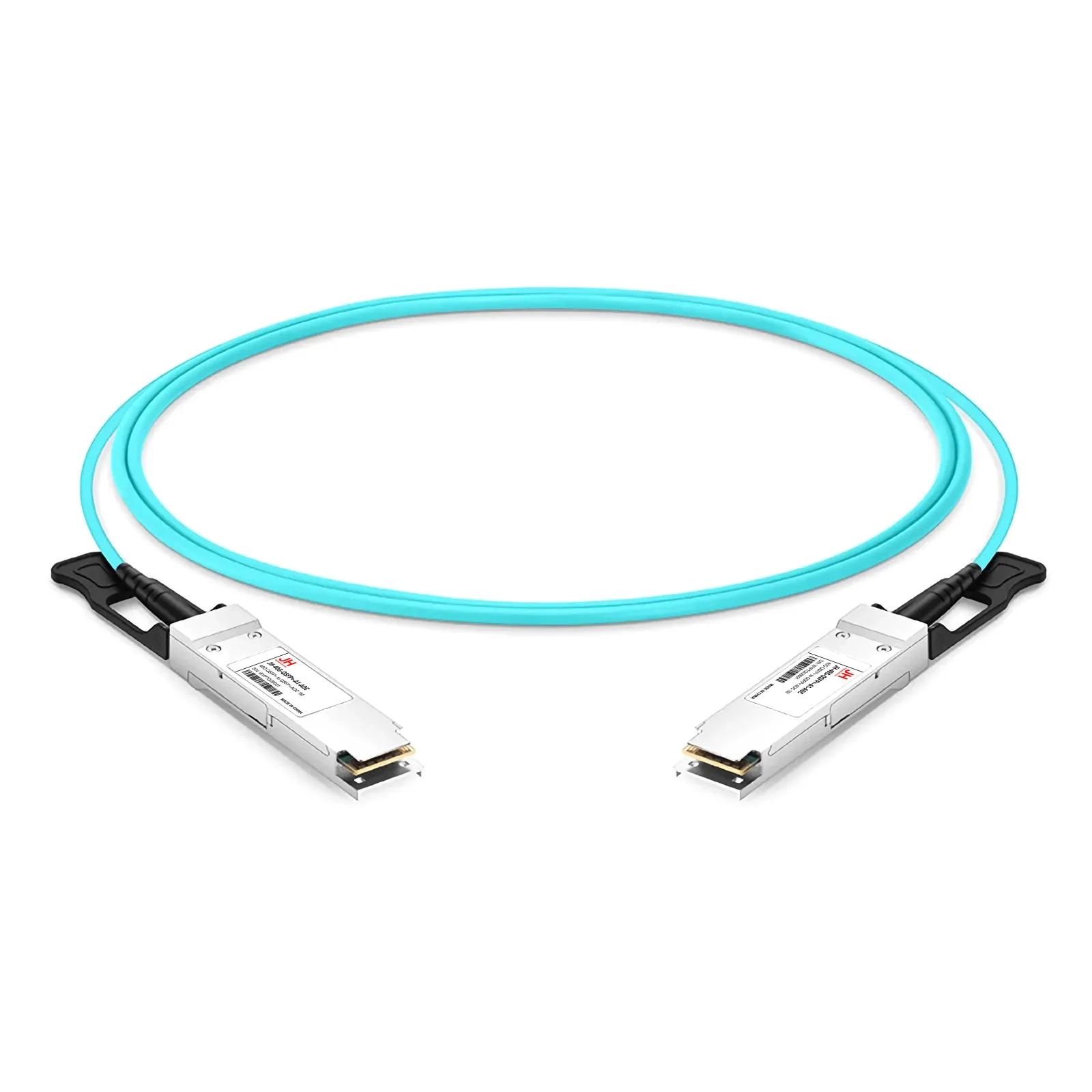

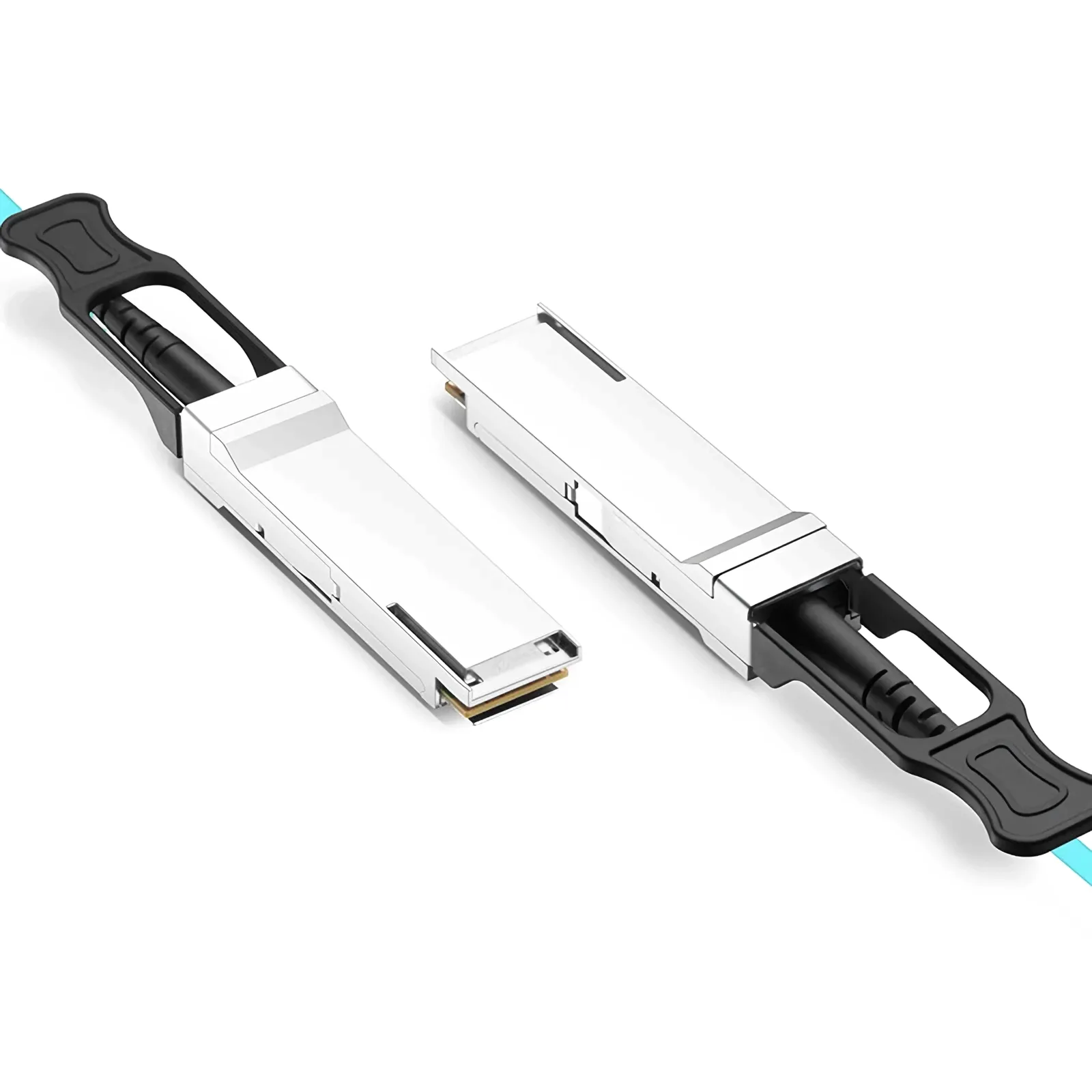

JH-40G-QSFP+-A1-AOC

型号：40G QSFP+ to QSFP+ AOC 1M

JH-40G-QSFP+-A1-AOC QSFP+ Active Optical Cables is a direct-attach fiber with QSFP+ connectors and operates over Multi-Mode Fiber (MMF). This AOC is compliant with the SFF-8436 QSFP+ MSA standards.

联系我们

产品特性

Hot-pluggable QSFP+ to QSFP+ Active Optical Cable assembly
Supports 40Gbps data rate, compliant with QSFP+ MSA and SFF-8436 standards
Maximum power consumption < 1.5W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 40G Interconnect, Server-to-Switch Connectivity

规格参数

Data Rate	40G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP+ to QSFP+
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-7.6~2.4
Receiver Sensitivity	-9.5
Power consumption（Max）	1.5W
